1.
Introduction
Lung cancer is responsible for the world's highest mortality rate [1], accounting for > 25% of cancer death; 82% of those deaths are caused by smoking [2]. Approximately 85% of the lung cancer tissue types are non-small cell lung cancer (NSCLC) [3]. As lung cancer does not display obvious symptoms in its early stages, a majority of the patients have progressed to the advanced stages. Metastasis occurs early in these patients with a poor overall survival rate [4]. Despite the recent advances in early detection, radiotherapy, chemotherapy, and surgical biopsy and treatment, lung cancer patients still show a poor prognosis.
Some of the NSCLC treatment strategies include the development of particular antibodies against the cytotoxic T lymphocyte-related protein 4 receptor, programmed death (PD-1) receptor and programmed death ligand-1 (PD-L1), and the implementation of these strategies in the first and second lines of treatment has significantly improved the survival rate of NSCLC patients [5]. For patients with advanced NSCLC and without molecular derivatives, conventional dual drug-based chemotherapy has been replaced by combined or non-combined chemotherapy with immunotherapy as the first treatment strategy [6].
The earlier reports have indicated that the implementation of the PD-1/PD-L1 strategy, in particular, has considerably increased the survival rate of the NSCLC patients. It was noted that the treatment with anti-PD-1/PD-L1 interrupted the association between PD-1 and its ligand, disrupted inhibitory signal transduction, restored T cell viability, thereby reactivating the anti-tumor immunological response [7]. However, the efficacy of PD-1/PD-L1 inhibitors differs due to high variation in the molecular immune subtypes and immunological microenvironment [8]. Several factors like the neoantigens, tumor infiltrating lymphocytes, PD-L1 expression levels, tumor mutation burden, and driver gene mutations, influence the success of the anti-PD-1/PD-L1 therapy. Hence, additional investigation into the biomarkers could help to select the most appropriate form of therapy for the patients and to correctly predict the efficiency of anti-PD-1/PD-L1 treatment [8].
Long noncoding RNA (lncRNA) is described as the type of RNA that has a length of > 200 nucleotide units [9]; however, it cannot encode complete proteins. Owing to the success of the Human Genome Project and wide application of second-generation sequencing, many researchers have begun to recognize the significant role of lncRNAs in many human diseases, particularly in cancers [10]. A few studies have identified their involvement in the pathophysiological processes of different cancers or their roles as diagnostic or clinical prognostic markers [11]. LncRNAs can regulate gene expression at RNA transcription, post transcription and epigenetic levels. Abnormal expression of lncRNAs in NSCLC patients is closely related to the onset and development of lung cancer. It can alter the drug resistance and radiation sensitivity of NSCLC patients by acting as an oncogene or tumor suppressor gene, regulating the proliferation, invasion and migration of lung cancer cells via various mechanisms. Currently, the predictive role of lncRNA gene characteristics remains poorly elucidated in patients with NSCLC. Hence, further investigation is needed to discover novel lncRNA gene characteristics for prognosis and treatments for NSCLC patients [12].
Here, we have derived the gene expression data from different public databases like the Gene Expression Omnibus (GEO) and The Cancer Genome Atlas (TCGA). The PD-1-related immune pathways were identified by using single sample gene set enrichment analysis (ssGSEA), and we determined the molecular subtypes of NSCLC based on the lncRNA of the PD-1-associated immune pathways. Also, we assessed the association between the different molecular subtypes and the clinical features and prognosis of this disease. To assess the NSCLC prognosis, a prognostic risk model was developed by using the differential expressed genes (DEGs) among NSCLC subtypes. Furthermore, we constructed a nomogram to assist clinical decision-making and prognosis evaluation. Variations between the molecular subtypes and immunotherapy/ chemotherapy sensitivity were analyzed.
2.
Materials and methods
2.1. Collection of the gene expression profile data and their preprocessing
In this study, we downloaded the RNA-Seq data, clinical survival data and all of the information regarding the characteristics of 993 TCGA-LUAD and LUSC samples, as based on the TCGA GDC API. Thereafter, we downloaded the GSE31210 dataset (226 samples), GSE19188 (82 samples) and GSE50081 (181 samples) chip datasets from the GEO database.
For the TCGA-LUAD and LUSC data, the fragments per kilobase of transcript per million fragments mapped values were converted to transcripts per million values. We eliminated samples that did not have any clinical follow-up data, survival times, or status. Human GFF3 annotation files from the Gencode website (https://www.gencodegenes.org/) were downloaded to extract the corresponding relationship between ensemble IDs and gene symbols: we then converted ensemble IDs to the gene symbols. Expression of multiple gene symbols was considered as their mean value. We used the removeBatchEffect function of the LIMMA package (Version 3.44.3) [13] to eliminate the batch effect between various datasets (Figure S1).
The following steps were implemented to process the NSCLC-GEO dataset: a) Retain the NSCLC tissue samples; b) Eliminate samples that did not present any clinical follow-up data; c) Eliminate samples that had no information regarding the survival time; d) Eliminate samples with no status; e) Convert the probe to symbols based on the annotation data file. The sample clinical statistics after data pre-processing is described in Table S1.
2.2. ssGSEA
The ssGSEA algorithm analyses for 29 immune gene sets include all genes associated with various cells involved in the immune system, as well as their pathways, functions and checkpoints. In this study, we applied the ssGSEA algorithm via the R package (GSVA (Version 1.30.0), GSEABase (Version 1.38.0) and LIMMA) for systematical assessment of the immunological features of each sample used in this study [14,15].
2.3. Identification of molecular subtypes
We used the TCGA expression profile to derive the expression levels of the 479 immune-associated genes. The univariate Cox analysis (P < 0.01) was utilized to acquire the genes associated with the NSCLC prognosis by using the Cox function in the Survival R package (Version 2.38-2) (https://mran.microsoft.com/web/packages/survival/index.html). We consistently clustered the 993 TCGA-NSCLC samples by using the ConsensusClusterPlus (Version 1.48.0) R package (parameters used: pFeature = 1, pItem = 0.8, reps = 100, distance = Minkowski) [16]. The accurate cluster number was determined based on the cumulative distribution function (CDF) and CDF delta area. The Pam algorithm was applied as a clustering algorithm and the Minkowski distance was the distance measure in the study.
2.4. Identification and functional analysis of the DEGs
We extracted the data related to the DEGs from the different molecular subtypes, i.e., C1 and C2 groups, of the TCGA dataset by using the LIMMA package [13]. The following filter criteria were set: false discovery rate (FDR) < 0.05 and |log2fold change (FC)| > 1.5. Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis and gene ontology (GO) functional enrichment analysis were performed by applying the DEG data for subtype grouping using the WebGestaltR package (Version 0.4.2).
2.5. Establishment and assessment of the immune subtype-associated lncRNA prognostic risk scoring system
We randomly sampled and divided the samples from the TCGA dataset into training and testing datasets at the ratio of 3:2. Univariate Cox regression and LASSO-Cox regression analyses were used to develop a novel prognostic risk model based on the DEGs in the various subtypes. The penalty parameter (λ, lambda) for the model was determined via tenfold cross-validation following the minimum criteria (i.e., the value of λ corresponding to the lowest partial likelihood deviance). When lambda = 0.02160913, genes were selected for further analysis. For decreasing gene numbers contained in the model, the stepwise Akaike information criterion (stepAIC) process was applied. This step-by-step regression considers the statistical fitting degree of this model and determines the parameters used for the data fit. In the stepAIC process, which was implemented by using the MASS package (Version 7.3-54), a complicated model is initially generated, and one variable is deleted to decrease the AIC. This model was developed by using the "glmnet" R package (Version 3.0-2) based on the formula for the risk score: Σβi × Expi, where β, i.e., the Cox regression coefficient is the respective gene, I denotes the prognosis-related lncRNA and Exp is the expression level of the prognostic lncRNA. The efficiency of the model was improved when the value was smaller. This indicated that the model acquired an appropriate fitting degree with fewer parameters [17]. Thereafter, we calculated the risk scores for every sample included in the TCGA training, TCGA testing, TCGA dataset and external GEO datasets, respectively. Then, the optimal cut-off value was determined by using the "surv_cutpoint" function in the "survminer" R package. Finally, Kaplan-Meier (KM) curves were generated for survival analysis. The "survivalROC" R package was used to generate time-dependent receiver operating characteristic (ROC) curves to assess the predictive power.
2.6. Development and validation of the nomogram
The nomogram could visually and effectively present all results of the above risk model and prediction. This nomogram used the line length to define the effects of various factors and their values on the final results. We constructed the nomograph model based on the univariate and multivariate analytical results [18].
2.7. Predicting the benefit of each subclass from immunotherapy
We used the published the data of the lung cancer patients who received immunotherapy to predict the efficiency of the immunotherapy in their subclass. Based on the SubMap algorithms (https://cloud.genepattern.org/gp) in Gene Pattern 2.0, we compared the gene expression profiles of the same significant genes in our subtypes with another published dataset containing lung cancer patients who received immunotherapy [19].
2.8. Statistical analysis
We conducted the data visualization and the statistical analysis using R software (Version 3.6.3, https://www.r-project.org/ ver. 3.6.3). Bonferroni correction was performed to compare the differences in the SubMap analysis of anti-PD-L1. The distributions of immune scores or IC50 values between the two subtypes were compared by using Wilcoxon testing. Log-rank testing was employed to determine the significant differences for KM curves. Univariate and the multivariate Cox regression analyses were used to screen features that were significantly associated with prognosis in the risk model. P < 0.05 was considered to be significant.
3.
Results
3.1. Identifying the immune lncRNAs related to PD-1
We used the ssGSEA process to score the KEGG pathways using the TCGA data, and we estimated the relationship between the PD-1 (i.e., PDCD1) and the KEGG pathways. The results indicated that the PD-1 and KEGG-T cell receptor signaling pathways were significantly related (Figure 1A). Then, the TCGA dataset was applied to screen 479 lncRNAs that were significantly related to the score of the KEGG-T cell receptor signaling pathway. We noted that 301 lncRNAs were positively related to each other, whereas 178 lncRNAs were not related. Then, a heat map was developed for the gene expression changes of the 479 lncRNAs based on the score of the KEGG-T cell receptor signaling pathway, as arranged from high to low values (Figure 1B).
3.2. Molecular subtyping of immune-related lncRNAs
The TCGA dataset was first used to calculate the univariate analysis of 479 lncRNA genes. There were 59 lncRNA genes related to the prognosis in TCGA, according to a univariate survival analysis. ConsensusClusterPlus was used to cluster 993 NSCLC samples based on 59 lncRNAs from the TCGA cohort. By using the CDF, we determined the accurate cluster number. The CDF delta area curve showed that the cluster had relatively stable clustering results when the value of 2 was selected (Figure 1C, D). Thus, k = 2 was used and we obtained two related subtypes (Figure 1E). Analysis of the prognostic features of the 2 molecular subtypes showed significant prognostic variations. Thus, we concluded that C2 showed a worse prognosis than C1 (P = 0.00022, Figure 1F). Additionally, using the TCGA dataset, the distribution of various clinical characteristics in these two molecular subtypes was compared. The findings revealed significant gender disparities among the TCGA subtypes (Figure S2), with a majority of the male patients displaying the C1 subtype. Other clinical characteristics were not significantly different among subgroups.
Here, we identified six types of immune infiltrations, which included C1 (wound healing), C2 (predominance of INF-r), C3 (inflammation), C4 (lymphocyte depletion), C5 (immunological silence) and C6 (TGF-beta predominance), have been identified as the tumor suppressors from the corresponding tumor promoters in human malignancies. C1, C2 and C6 were associated with a poor prognosis [20]. A majority of NSCLC patients from the TCGA dataset had immune subtypes C1 and C2, while no patient had the C5 immune subtype (Figure S3A). Further comparison of the distribution of the samples between both the molecular subtypes and existing subtypes (Figure S3B) showed that the C1, C2 and C4 immune subtype had poor prognosis (Figure S3C).
3.3. Differential gene analysis and functional identification of molecular subtypes
A total of 642 DEGs between C1 and C2 groups were screened by using the TCGA dataset. Additionally, the KEGG pathway and GO functional enrichment of 642 DEGs in both subtype groups were analyzed. For the GO functional annotation of DEGs, we annotated 768 items with significantly different biological processes (BP) (FDR < 0.05), 84 cellular component (CC) items (FDR < 0.05) and 71 molecular function (MF) items (FDR < 0.05). Figure 2A-C shows the top 10 items of BP, CC and MF. The differential genes were enriched by the KEGG pathway, and 52 distinct pathways were found to be significantly enriched (FDR 0.05), for instance, the immune pathways like Th17 cell differentiation and cytokine-cytokine receptor interaction, as well as the tumor-related pathways like the cell adhesion molecules (CAMs) and the hematopoietic cell lineages (Figure 2D), indicating that DEGs were involved in NSCLC through these immune-related pathways.
3.4. Comparative analysis of immune microenvironment and immunotherapy / chemotherapy sensitivity of molecular subtypes
As described in the heat map presented in Figure 3A, we used various techniques like MCP-counter, EPIC, quantiseq, ESTIMATE, and ssGSEA to analyze the distribution of the immune scores in various groups. Most of the five different types of immune scores had significant differences, and the expression was higher in the C2 group (Figure 3A). A literature review revealed 47 immune checkpoint genes [21]. We assessed the differential expression of all genes in the two molecular subtype groups; we noted that a majority of the immune checkpoint (IC) genes showed significant variations, and that the C2 subtype showed a higher variation than C1 (Figure 3B).

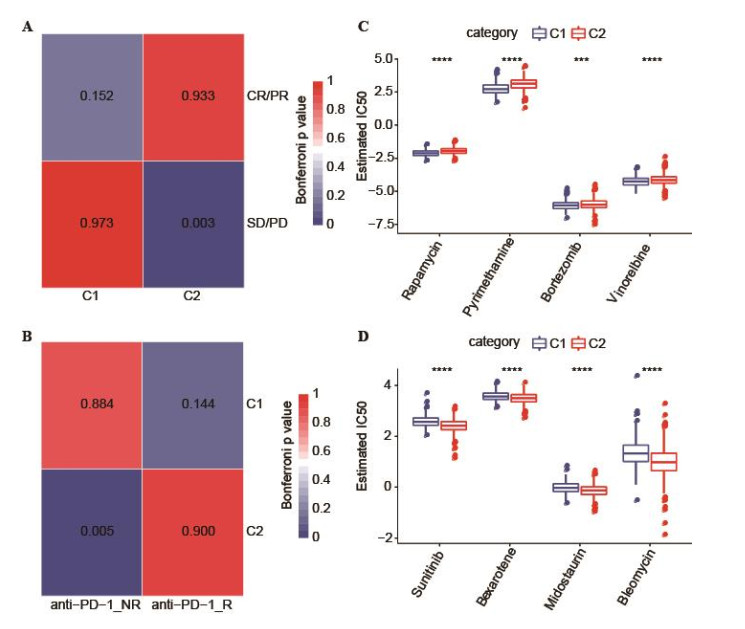

Then, we determined the differences between the sensitivity of the C1 and C2 molecular subtypes to chemotherapy and immunotherapy. Here, we used the subclass mapping technique to compare the similarities between both the defined subtypes and the immunotherapy patients in the GSE78220 and IMvigor210 datasets. A lower p-value indicated a higher similarity (GSE78220 was treated with anti-PD-1, while IMvigor210 was treated with PD-L1). The results showed that, in the TCGA dataset, the C2 subtype was similar to anti-PD-1-NR, and it is similar to sd/pd treated by PD-L1 (Figure 4A, B). At the same time, the response degree of different subtypes to traditional chemotherapy drugs was also analyzed. It was found that subtype C1 was more sensitive to rapamycin, pyrimethamine, bortezomib, vinorelbine (Figure 4C), whereas sunitinib, bexarotene, midostaurin and bleomycin were more influential on the C2 subtype (Figure 4D).
3.5. Development of the prognostic risk model based on the immune subtype-related lncRNA genes
First, according to the TCGA dataset, we screened 792 DEGs between C1 and C2 groups, and then we conducted the univariate analysis to obtain 52 genes based on their prognosis (P < 0.05). Then, LASSO was used to select the best gene, and 28 genes were obtained according to the minimum lambda = 0.02160913 (Figure 5A). These 28 genes were analyzed based on multiple factors. To reduce the number of genes, the stepAIC technique was applied to obtain 13 lncRNA genes (LINC00944, TRG-AS1, AC133552.5, ZNF674-AS1, AP006621.3, LINC01607, APTR, ITGB1-DT, AC022144.1, AC025569.1, LINC00857, LINC01806, and XIST) and calculate the risk coefficient for the associated genes (Figure 5B). Then, we estimated the risk scores for every sample in the TCGA training and validation datasets, respectively, categorized them into the high-risk and low-risk groups using the optimal cutoff score and then developed their KM and ROC curves, respectively. We noted that the high-risk patients showed a worse prognosis, while the ROC curve of the risk score showed a higher AUC (Figure 5C–G).
We also compared the risk score distribution for the TCGA among the various clinical feature groups, and we noted that the subtypes, gender groups and the N and T stages showed significant difference (P < 0.05). The risk score is higher in the later stage of the tumor, and the C2 risk score with poor prognosis in the subtype is higher. The C1 subtype with better prognosis has a lower risk score. Furthermore, the male patients showed a higher risk score than the female ones. No significant difference was noted between other clinical feature groups (Figure S4). TCGA datasets were grouped according to clinical characteristics, and the survival effects of our risk groups on different clinical characteristics were plotted. The results showed that our risk group had fine results in different clinical groups. Additionally, the high-risk patients showed a worse prognosis than the low-risk patients, which proved the reliability of our risk group (Figure S5).
3.6. Risk Score and clinical features to construct a nomogram and forest map
To determine the independent application of the risk scoring model in clinical applications, univariate and multivariate survival analysis was conducted to examine the factors that were significantly related to patient's survival by using the complete clinical data in the TCGA dataset. Also, the clinical data of the patients in the TCGA dataset, like sex, age, N stage, M stage, T stage, and the risk score were examined (Figure 6). The univariate COX regression analysis showed that the N stage, T stage, M stage, stage, age, and risk score from the TCGA dataset, were significantly correlated to the patient's survival. Based on multivariate analysis, risk score (1.81, 95% CI = 1.52-2.15, p < 1e-5) was influential on patient's survival (Figure 6A, B).
Nomography is described as a technique used to effectively display the risk model results. It can also be applied to predict the outcome of an application. The nomogram presents the effects of diverse variables, in addition to their values, on the final outcome, as based on the length of a straight line. We developed the nomogram by using the data of the clinical features T stage, age, N stage and risk score as derived from the TCGA datasets (Figure 6C). This model showed that the risk score feature significantly affected the prediction of the survival rate of the patients, which implies that the risk score model could offer a better prediction of the final prognosis. Furthermore, the nomograms (data for 1, 3 and 5 years) used to determine the model's performance (Figure 6D) were analyzed. Decision curve analysis (DCA) refers to a basic technique for assessing clinical prediction models, molecular markers and diagnostic tests. The DCA diagrams for T stage, age, N stage, risk score and the nomogram were generated. The results showed that the nomogram had a greater effect (Figure 6E).
3.7. Difference analysis of the risk score on immunotherapy
The differences in immunotherapy among different risk groups in the TCGA dataset were analyzed. Here, the subclass mapping technique was applied to compare the similarity scores between the various defined risk groups and the immunotherapy patients included in the GSE78220 and IMvigor210 data sets. A lower p-value was proportional to a higher similarity (GSE78220 was treated with anti-PD-1, while IMvigor210 was treated with PD-L1). The results showed that, in the TCGA datasets, the high group and anti-PD-1-NR were similar to the group of SD/PD treated with PD-L1 (Figure 7).
4.
Discussion
In this study, we first identified the T-cell receptor signaling pathway associated with PD-1, and we further screened 479 lncRNAs significantly related to the score of the T cell receptor signaling pathway. Additionally, 993 NSCLC samples derived from the TCGA dataset were genotyped as per the 59 lncRNAs. These samples were categorized into two subtypes with significantly different prognoses. The C2 subtype showed a significantly poor prognosis. Further analysis indicated the presence of significant differences in the gender-based clinical features among the different subtypes, where a large proportion of the C1 subtypes included male patients. Then, we conducted GO functional enrichment and KEGG pathway analyses on the DEGs and found that the immune-related pathways including the Th17 cell differentiation and cytokine-cytokine receptor interaction, as well as the tumor-related pathways such as the CAMs and hematopoietic cell lineage were significantly enriched. The results of this study suggest that the T cell receptor pathway-related lncRNAs played an important role in the invasion, development, immune response and the treatment of NSCLC patients, which may provide new insight into the progress of NSCLC and immunotherapy.
T cell receptors (TCRs) present on the T-cell surfaces can identify the antigen peptide presented by the major histocompatibility complex (MHC) on the antigen-presenting cell surface, thereby activating c-Jun N-terminal kinase (JNK), ERK, NF-kappa B and other signaling pathways in the T cells [22]. Many transcription factors involved in cell division and differentiation are activated by a variety of signal pathways to control T cell proliferation, differentiation, cytokine production, apoptosis and other cellular processes. The typical intracellular signals of TCR activation also include MAPK, PKC and calcium signaling pathways. A previous experimental study has demonstrated that caspase cascade regulation, cell cycle arrest, the activation of MAPK and PI3K/Akt/mTOR signal modification contribute to the apoptosis of human leukemia Jurkat T cells [23]. Another study has revealed that the activation of mitochondrial reactive oxygen species-mediated Src and PKC pathways using low-level laser provokes MHC class Ⅱ-restricted T cell immunity to tumors [24]. The activation of TCR signaling will not only cause the proliferation of T cells and the production of cytokines, but it will also encourage T cells to differentiate into effector T cells and perform functions [22]. In some cases, it is noted that tumor-specific immune activation can increase the survival rate of cancer patients. An assorted TCR library has been widely acknowledged as a necessary requirement for accurately predicting the adaptive immune response [25]. These findings verified that the activation of TCR pathways contribute to immunity in tumors.
Immunotherapy is an important tumor therapy, widely used to treat NSCLC patients. Immune checkpoint (IC) inhibitors targeting the CTLA-4, PD-1, and PD-L1 molecules have been developed and used to treat patients with NSCLS and other types of tumors, showing promising clinical activity, effective toxicity features and a long-lasting response [26]. PD-1/PD-L1 is a set of important ICs that are involved in the tumors' immune escape processes. Development of anti PD-1/PD-L1 immune molecules could help to deter the tumor cells from inhibiting the operation of the immune system through the PD-1/PD-L1 axis, as well as to restore its negative effects on the malignant cells. A recent study has confirmed that PD-1 signaling attenuated the death of leukemic stem cells induced by TCRs in T cell acute lymphoblastic leukemia, which provides a potential therapeutic strategy for treating acute lymphoblastic leukemia via PD-1 blockade [27]. The anti-PD-1/PD-L1 immunotherapy mechanism was closely associated with the JNK, nuclear factor kappa B subunit 1, phosphatidylinositol 3-kinase (PI3K)/AKT (AKT serine / threonine kinase 1) pathways and other complicated signal pathways [28]. Moreover, as previously reported, tonsil-derived mesenchymal stem cells inhibit Th17-mediated autoimmune response through regulation of the PD-1/PD-L1 pathway [29]. Therefore, regulation of immune-related pathways represents a promising approach for immunotherapy.
Then, we identified 13 lncRNA genes (LINC00944, TRG-AS1, AC133552.5, ZNF674-AS1, AP006621.3, LINC01607, APTR, ITGB1-DT, AC022144.1, AC025569.1, LINC00857, LINC01806 and XIST). It was noted that lncRNA-LINC00944 promoted tumorigenesis and inhibited Akt phosphorylation in renal cell carcinoma [30]. Immune-related lncRNA LINC00944 was seen to regulate the ADAR1 expression in breast cancer and to be related to its prognosis [31]. Some studies have shown that the TRG-AS1 gene was significantly up-regulated in lung cancer and promoted the invasion and propagation of lung cancer cells through the miR-224-5p/SMAD4 axis [32]. TRG-AS1 has been shown to be an effective mediator of carcinogenicity in the tongue squamous cell carcinoma that was regulated by the microRNA-543/Yes-associated protein 1 axis [33]. Earlier studies showed the therapeutic efficacy of the ZNF674-AS1 gene in NSCLC. ZNF674-AS1 suppressed the growth of NSCLC, by inducing P2 and downregulating the miR-423-3p expression [34]. Additionally, it was noted that ZNF674-AS1 inhibited the invasion and the migration of NSCLC, as it regulated the miR-23a/E-cadherin axis [35]. It has been reported that Wnt signaling is associated with tumor heterogeneity, growth, immunity and drug resistance [36].
APTR is engaged in the onset and development of gynecological cancer and it has been shown to promote the proliferation of the uterine leiomyoma cells as it targeted the Erα for activation of the Wnt/β catenin pathway [37]. ITGB1-DT was seen to be a novel biomarker related to lung adenocarcinoma immunity [38,39]. It promotes the progression of lung adenocarcinoma through the establishment of a positive feedback loop with the ITGB1/Wnt/β-catenin/MYC pathway [40]. In the past, the LINC00857 gene was considered to be involved in the onset and development of various types of cancers [41,42] because it was significantly up-regulated in lung adenocarcinoma. The LINC00857 gene primarily regulates the proliferation, glycolysis and the apoptosis of LUAD cells by targeting the miR-1179/SPAG5 axis, offering a potential target for clinically treating LUAD [43]. The oncogene XIST was significantly up-regulated in the NSCLC tissues. Several studies presented that XIST was involved in the invasion, proliferation, apoptosis, migration and chemosensitivity of NSCLC cells [44,45,46]. XIST played a vital role as the ceRNA in NSCLC development, even at the transcriptional level [47]. Collectively, these 13 lncRNA genes might reveal their contribution to the development and progression of NSCLC.
Risk factors have been selected for predictive model construction in many previous studies, and these risk features have been verified by clinical trials or manually selected by medical experts [48]. However, manually selecting and validating each risk factor has been considered as tedious work. A machine learning approach has become a novel strategy to select robust features and improve the long-term prognosis in cancers or diseases. For examples, Khosla A and colleagues have automatically selected robust features by using a conservative mean, which stacked with support vector machines (SVMs) generates a greater AUC compared to classical methods [49]. Fang et al employed recursive feature elimination with cross-validation, which incorporated linear support vector classifier, a random forest classifier, an extra tree classifier, an AdaBoost classifier and a multinomial naïve-Bayes classifier to select robust features for stroke prognosis prediction, which can accurately infer the long-term prognosis of acute stroke [50]. Recently, a random forest-based algorithm incorporating a nested 10-fold cross-validation has been utilized to assess the presence of congenital heart disease (CHD). And, six robust features that have potential values for screening CHD have been selected [51]. Moreover, the incorporation of a segment-based convolutional neural network with an SVM has been adopted to recognize atrial fibrillation from electrocardiogram records [50]. Random forest-based benchmark models incorporating K-nearest neighbor, SVMs, logistic regression, stochastic gradient descent and AdaBoost have been used for risk classification in breast cancer patients [52]. Therefore, a machine learning approach can be used to select robust features and improve prognosis prediction for NSCLC patients.
One of the advantages of this model is that compared with whole genome sequencing, targeted sequencing based on specific genes can significantly reduce medical costs. Secondly, we selected lncRNA significantly related to the PD-1 related T cell receptor signaling pathway as the target gene, which was seen to be important for forecasting the immunotherapeutic sensitivity of NSCLC. Furthermore, in clinical diagnosis and the development of a treatment strategy, we noted that the treatment plan and prognosis of the patients was primarily dependent on the pathological stage of the disease. The nomogram clinical model constructed in this study provides a basis for designing an individualized treatment plan for NSCLC patients. Our proposed modelling approach may be applicable for other diseases such as ophthalmic diseases including age-related macular degeneration and Stargardt diseases. These molecular subtypes and their changes in such diseases could be identified by using optical coherence tomography, and they could be used for modeling [53,54,55,56]. Compared with single-gene models, multi-gene models can comprehensively reflect the patient's status.
However, there are some limitations in the current study. First, we downloaded retrospective transcriptome data from TCGA and GEO datasets and validated the robustness of the prognostic model on TCGA datasets and external datasets. The predictive value of this prognostic model should be validated by performing prospective studies with larger samples. Second, this prognostic model should be iteratively verified following long-term clinical use. Besides, although we have identified 13 lncRNAs associated with NSCLC, their potential mechanism in the development and progression should be revealed by further in vivo and in vitro studies. Meanwhile, classical methods were used for our model development. Novel machine learning algorithms, such as random forest-based algorithm can be incorporated with SVMs, k-nearest neighbor, or AdaBoost to select robust features, which can infer the long-term prognosis for NSCLC patients.
5.
Conclusions
Based on the enrichment of the PD-1 related T cell receptor signaling pathway, we identified two lncRNA-related molecular subtypes of NSCLC. These molecular classifications facilitate the understanding of lncRNA in NSCLC and could be used to supplement the existing tumor TNM staging system. In addition, we developed and validated a novel 13-lncRNA-related prognostic model that could be applied to predict the prognosis and the sensitivity to PD-1 immunotherapy for NSCLC patients.
Acknowledgments
The present study was supported by the Shenzhen Special Fund for Innovation and Entrepreneurship of Overseas High-Level Talents (KQJSCX20180330124428928) and Shenzhen Technology R & D Fund (JSGG20180508152646606). The datasets generated and/or analyzed during the current study are available in the [GSE31210] repository, [https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc = GSE31210], [GSE19188] repository, [https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc = GSE19188] and [GSE50081] repository, [https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc = GSE50081].
Conflict of interests
The authors report that there are no competing interests to declare.
