In this paper, we apply the fractal-fractional derivative in the Atangana-Baleanu sense to a model of the human immunodeficiency virus infection of CD4+ T-cells in the presence of a reverse transcriptase inhibitor, which occurs before the infected cell begins producing the virus. The existence and uniqueness results obtained by applying Banach-type and Leray-Schauder-type fixed-point theorems for the solution of the suggested model are established. Stability analysis in the context of Ulam's stability and its various types are investigated in order to ensure that a close exact solution exists. Additionally, the equilibrium points and their stability are analyzed by using the basic reproduction number. Three numerical algorithms are provided to illustrate the approximate solutions by using the Newton polynomial approach, the Adam-Bashforth method and the predictor-corrector technique, and a comparison between them is presented. Furthermore, we present the results of numerical simulations in the form of graphical figures corresponding to different fractal dimensions and fractional orders between zero and one. We analyze the behavior of the considered model for the provided values of input factors. As a result, the behavior of the system was predicted for various fractal dimensions and fractional orders, which revealed that slight changes in the fractal dimensions and fractional orders had no impact on the function's behavior in general but only occur in the numerical simulations.
Presently, human immunodeficiency virus (HIV) is still a serious health issue since it is a fatal, incurable disease that has claimed the lives of millions of people. HIV is the cause of acquired immunodeficiency syndrome (AIDS), which reduces the body's ability to fight disease and makes it vulnerable to other infections [1]. When HIV gets into the body of healthy people, it targets CD4+ T-cells, which are white blood cells that function as an essential part of the human immune system and quickly reproduce to damage the CD4+ T-cells. The deterioration of CD4+ T-cells can have a wide-ranging impact on the protective capacity of a healthy immune system. However, due to medical evolution and effective HIV treatments, people living with HIV can live long and healthy lives. Antiretroviral therapy is the use of HIV drugs to treat HIV infection and protect the immune system by preventing the virus from replicating at various phases of the HIV life cycle [2], such as the phase of fusion inhibitors, reverse transcription inhibitors (RTIs), integrase inhibitors and protease, see; [3,4,5].
Mathematical modeling of dynamical systems plays a significant role in many fields of applied and natural sciences in term of understanding the dynamic behavior of problems in the real world, such as COVID-19 [6], the DateJimbo-Kashiwara-Miwa equation [7], magnetohydrodynamics [8,9], Maxwell materials [10], non-Newtonian fluids [11] and the problems described in the references cited therein. Many mathematical models have been that are created related to the HIV epidemic. It is beneficial to use a mathematical framework to determine the significance of the interaction between HIV infection and CD4+ T-cells. Numerous models have been designed and expanded to represent the transmission phenomena of CD4+ T-cells with HIV and describe the infection of HIV and its interaction with the immune system. A large number of publications can be found for examples, e.g., Wang and Li [12] created a model of HIV infection with CD4+ T-cells and investigated the global dynamics of the model in 2006. After that, Srivastava et al. [13] demonstrated a model under an RTI, which occurs before the virus is produced by the infected cell in 2009. They divided the class of infected CD4+ T-cells into two classes, namely pre-reverse transcription (RT) and post-RT classes which denote the stage of the infected cells in which the reverse transcription is not finished or completed, respectively. For the results, they established stability analysis at equilibrium points (EPs) as well as performed numerical simulations. See more examples in [14,15,16,17,18,19].
Fractional calculus is a huge body of knowledge that has piqued the curiosity of numerous researchers. Modeling with fractional calculus tools provides additional advantages in term of describing the dynamics of real-world problems with memory because a fractional-order derivative depends on local conditions and historical events. Some studies have found that fractional-order models provide more accurate and dependable information on dynamical behavior than ordinary differential integer-order models, such as those previously developed for HIV [20,21], Rift Valley fever [22], dengue [23], chemical kinetics [24], COVID-19 [25] and Zika [26]. Various fractional operators have been extensively utilized in mathematical models to solve a wide range of real-world problems. There exist different types of operators based on the kernels utilized, such as the Liouville-Caputo operator which involves the singularity of the kernel, the Caputo-Fabrizio (CF) fractional derivative which concerns the exponential kernel, and the Atangana-Baleanu (AB) fractional derivative operator which deals with the Mittag-Leffler (ML) kernel. There is also the newly established fractal-fractional (FF) operator which combines fractional and fractal derivatives was introduced by Atangana [27]. The power law, exponential law, and generalized ML law were convoluted with fractal derivatives to create this new operator. The three different kernels depend on two criteria: the fractional order and fractal dimension. The memory and fractal dimension of existing fractional-order derivatives are represented by these derivatives. According to Atangana's study and investigation, the FF order operator is a good alternative to looking at the mathematical model for real-world problems.
However, the memory characteristic of fractional-order systems enables a more accurate prediction and translation of the models by allowing for the incorporation of more historical data. Additionally, the hereditary characteristic describes the genetic profile as well as the age and immune system condition. Furthermore, dealing with fractional-order systems enables a more accurate understanding of the HIV systems by taking into account their memory and hereditary properties, which are the intricate behavioral patterns of biological systems. Using fractional derivatives and applying them to various models, several different sorts of research investigations have been established for example, in 2018, Bushnaq et al. [28] studied the existence theory and stability results of an HIV-AIDS infection model with a CF fractional derivative. In 2020, a fractional mathematical model of the rotavirus epidemic with the impacts of breastfeeding and vaccination was investigated using the AB derivative; it is discussed in [29]. In the same year, Naik et al. [30] applied a fractional-order HIV epidemic model in the Caputo sense to study the effects of prostitution in the population on disease transmission. In 2021, Shah et al. [31] incorporated CF into the HIV model proposed in [12] involving a source term for the provision of novel CD4+ T-cells depending on the viral load. In 2021, Kongson et al. [32], the existence theory and stability for the HIV CD4+ T-cells under the condition of treatment was investigated using a generalized fractional derivative of the Caputo type. After that, the FF operators were applied to analyze the dynamics of the dengue disease model with the hospitalization class of infected cases [33]. In 2022, a nonlinear fractional order system with a Caputo fractional derivative was proposed for an SEIR epidemic model of HIV transmission; additionally, an approximate solution was established by using the homotopy analysis method [34]. For more details and interesting analyses, see the examples of models of the human liver [35], cancer [36], HIV/AIDS [37,38,39,40,41] and an epidemic [42].
Since the fractional differential operators can be either local or nonlocal which are effective tools for explaining real-world issues, they are needed to develop mathematical models. In addition, the most recent operators are the FF operators, and there has not been much research on their use and application in the literature. In light of the foregoing reasoning, to make our work distinguishable from that of others, we developed the HIV model presented in [13] by utilizing the FF derivative in the AB sense because it gives a much more realistic result with a greater degree of freedom than integer order. In terms of the FF derivatives, the considered model explains the memory effect, as well as fractal qualities such as the fractal dimension β and fractional order α; these qualities are necessary for describing real-world phenomena. The existence and uniqueness of the solutions for an HIV model in the context of FF operators which also utilzes a variety of fixed-point theories (e.g., Banach and Leray-Schauder types), are investigated. We present the stability of EPs using the basic reproduction number (BRN) and analyze the stability of the solutions via various Ulam stability-based functions, such as Ulam-Hyers (UH), generalized UH (GUH), UH-Rassias (UHR) and GUH-Rassias (GUHR) functions. Moreover, we use the Newton polynomial approach, the Adams-Bashforth method and the predictor-corrector technique to find the approximated solutions and achieve the numerical form for the ML law of the proposed model for different fractal dimensions and fractional orders. We give a comparison of the three numerical algorithms and also detect some dynamic behaviors of the solutions using our simulations.
The rest of this paper is structured as follows. Section 2 gives some foundational information on FF operators in the AB sense, formulations of fixed-point theorems and the fractional HIV model construction. In Section 3, we demonstrate the solution's existence and positivity, as well as the EPs and BRN, and conduct a stability study on the proposed model. The unique result for the FF-HIV model is established by using Banach's fixed-point theory, while the existence result is investigated by using Leray-Schauder's nonlinear fixed-point theory in Section 4. Various categories of stability results, known as Ulam-type stability, are extensively verified in Section 5. In Section 6, the discussion of numerical simulations utilizing the Newton polynomial, the Adams-Bashforth and predictor-corrector methods are provided to analyze the behaviors of the considered model. Finally, we give the conclusion of our paper in the last section.
In this subsection, we survey the associated findings using FF calculus. We look at the fundamentals of FF calculus.
Definition 2.1. ([27]). Assume f(t) is a differentiable function in (a,b). If f is a fractal dimension on (a,b) with the order β∈(0,1], then the Riemann-Liouville-type FF derivative of f of the order α∈(0,1] with the generalized ML kernel is defined by
FFMtDα,βaf(t)=AB(α)1−α⋅ddtβ∫taf(s)Eα[−α1−α(t−s)α]ds, | (2.1) |
where
df(t)dtβ=limu→tf(u)−f(t)uβ−tβ |
is the fractal derivative, AB(α)=1−α+α/Γ(α) with AB(0)=AB(1)=1 and the ML function is defined by
Eα(u)=∞∑k=0ukΓ(αk+1),u,α∈C,Re(α)>0, | (2.2) |
with C being the set of the complex numbers.
Definition 2.2. ([27]). If f(t) is a continuous function in (a,b), then the FF integral of f with the order α∈(0,1] and fractal dimension β∈(0,1] is defined by
FFMtIα,βaf(t)=β(1−α)tβ−1f(t)AB(α)+βαAB(α)∫tasα−1(t−s)α−1f(s)ds. | (2.3) |
Definition 2.3. ([27]). Let f be continuous on an open interval (a,b); the fractal Laplace transform of the order α is given by
FLαpf(t)=∫∞0f(s)e−pssα−1ds,α>0. | (2.4) |
Consider the model of drug therapy for HIV infection that is presented in [13], which studied the antiretroviral therapy in the phase of RTI. The population was separated into four unknown variables (T(t), I(t), V(t), L(t)), as shown in Figure 1.
They constructed the model as below.
{dTdt=λ−kL(t)T(t)−μT(t)+(ηξ+b)I(t),dIdt=kL(t)T(t)−(σ+ξ+b)I(t),dVdt=(1−η)ξI(t)−δV(t),dLdt=NδV(t)−cL(t), |
with the initial conditions T(0)=T0≥0, I(0)=I0≥0, V(0)=V0≥0 and L(0)=L0≥0; descriptions of the unknown variables and parameters are described in Tables 1 and 2.
Variable | Description |
T(t) | The density of susceptible CD4+ T-cells |
I(t) | The density of infected CD4+ T-cells before reverse transcription (i.e., those infected cells that are in the pre-RT class) |
V(t) | The density of infected CD4+ T-cells in which reverse transcription has been completed (post-RT class) and are thus capable of producing virus |
L(t) | The virus density |
Parameter | Description |
λ | The inflow rate of CD4+ T-cells |
μ | The natural rate of CD4+ T-cells |
k | The interaction-infection rate of CD4+ T-cells (here, infection means the attachment and fusion of the virus to a cell) |
η | The efficacy of the RTI |
σ | The death rate of infected cells |
ξ | The transition rate from pre-RT infected CD4+ T-cells class to productively infected class (post-RT) |
b | The reverting rate of infected cells to the uninfected class due to non-completion of reverse transcription |
δ | The death rate of actively infected cells, which includes the possibility of death by the bursting of infected T-cells |
c | The clearance rate of virus |
N | The total number of viral particles produced by an infected cell |
This work further develops the model in [13] using a fractional framework, which allows for more precise and realistic predictions of the dynamic behavior over time. Therefore, we are going to establish the HIV model by using the FF operator in the AB sense (FF-HIV model). The proposed model is described as follows:
{FFMtDα,βaT(t)=λ−kL(t)T(t)−μT(t)+(ηξ+b)I(t),FFMtDα,βaI(t)=kL(t)T(t)−(σ+ξ+b)I(t),FFMtDα,βaV(t)=(1−η)ξI(t)−δV(t),FFMtDα,βaL(t)=NδV(t)−cL(t), | (2.5) |
which is subject to
T(0)=T0≥0,I(0)=I0≥0,V(0)=V0≥0,L(0)=L0; |
and, α and β represent the fractional and fractal orders, respectively. FFMtDα,βa is the FF derivative with the fractional order α∈(0,1] and the fractal order β∈(0,1] with the generalized ML kernel.
This subsection analyzes the existence and positivity of the FF-HIV model (2.5).
Theorem 3.1. There is a unique positive solution for the FF-HIV model (2.5) that remains in R4+. Moreover, the solution is non-negative.
Proof. In the FF-HIV model (2.5), we obtain its existence and uniqueness on the time interval (0,∞). Next, we are going to show that the non-negative region R4+ is a positivity invariant region. From the FF-HIV model (2.5), we get
{FFMtDα,βaT(t)=λ+(ηξ+b)I(t)≥0,FFMtDα,βaI(t)=kL(t)T(t)≥0,FFMtDα,βaV(t)=ξI(t)≥0,FFMtDα,βaL(t)=NδV(t)≥0. | (3.1) |
If (T(0),I(0),V(0),L(0))∈R4+, then, according to (3.1), the solutions cannot escape from the hyperplane.
Since
FFMtDα,βa(T(t)+I(t))=λ−μT(t)−σI(t)−(1−η)ξI(t)≤λ−ϕμ.σ(T(t)+I(t)), | (3.2) |
where ϕμ.σ=min{μ,σ}, solving (3.2) by using the fractal Laplace transform (2.4), we obtain
lim supt→∞(T(t)+I(t))≤λϕμ,σ. |
Without loss of generality, we can suppose that
lim supt→∞T(t)≤λϕμ,σandlim supt→∞I(t)≤λϕμ,σ. |
Then, we have the following biologically feasible region of the FF-HIV model (2.5):
Θ={(T,I,V,L)∈R4+:0≤T,I≤λϕμ,σ,0≤V≤Φ,0≤L≤Ψ} |
with respect to the FF-HIV model (2.5), where
Φ=ξλ(1−η)ϕμ,σδandΨ=Nξλ(1−η)ϕμ,σc. |
The proof is completed.
This subsection describes how to find the EPs of the FF-HIV model (2.5). We are going to determine the EPs and the model's BRN (R0). In the FF-HIV model (2.5), there are two types of possible EPs. The first point is the point at which there is no disease in the group, which is called the disease-free EP (E∗0). In the method of obtaining E∗0, we will be determining the right hand side of the FF-HIV model (2.5) when equal to zero, with I(t)=0, V(t)=0 and L(t)=0. Then,
E∗0=(T∗0,I∗0,V∗0,L∗0)=(λμ,0,0,0). | (3.3) |
To analyze the stability of E∗0, we will focus on R0, which can be obtained via the next-generation matrix (NGM) method [43,44] for the FF-HIV model (2.5). To solve R0, we focus solely on the infectious classes of the FF-HIV model (2.5), i.e., I, V and L. The transmission matrix F and the transition matrix V are acquired as follows:
F=(00kλμ000000)andV=(σ+ξ+b00−(1−η)ξδ00−Nδc). | (3.4) |
Hence, the NGM is provided by
FV−1=(kλ(1−η)ξNμ(σ+ξ+b)ckλNμckλμc000000). | (3.5) |
Then, the spectral radius of the NGM (3.5) provides R0=ρ(FV−1), where
R0=kλ(1−η)ξN(σ+ξ+b)μc | (3.6) |
and ρ represents the spectral radius.
Theorem 3.2. The FF-HIV model (2.5) at the disease-free EP (E0) is locally asymptotically stable (LAS) whenever R0<1, with the necessary and sufficient conditions:
|arg(θi)|>απ2. | (3.7) |
Proof. In order to investigate the sufficient conditions for the FF-HIV model (2.5), we must obtain the eigenvalues θi of the Jacobian matrix (J(E0)) by computing the FF-HIV model (2.5) at E0, which gives
J(E0)=(−μηξ+b0−kλμ0−(σ+ξ+b)0kλμ0(1−η)ξ−δ000Nδ−c). |
Then, we obtain the characteristic equation as follows:
θ4+ω3θ3+ω2θ2+ω1θ+ω0=0, | (3.8) |
where
ω0=(σ+ξ+b)δcμ−kλ(1−η)ξNδ,ω1=(σ+ξ+b)δc−kλμ(1−η)ξNδ+μ((c+δ)(σ+ξ+b)+cδ),ω2=(c+δ)(σ+ξ+b)+cδ+μ(c+δ+σ+ξ+b),ω3=σ+ξ+b+c+δ+μ. |
The coefficients given by ωi (i=0,1,2,3) are positive. Then, we have the eigenvalue θ=−μ, which provides negative real parts; the others can be obtained by solving
θ3+ϵ2θ2+ϵ1θ+ϵ0=0, | (3.9) |
where
ϵ0=(σ+ξ+b)δc−kλμ(1−η)ξNδ=(σ+ξ+b)δc(1−R0),ϵ1=(c+δ)(σ+ξ+b)+cδ,ϵ2=σ+ξ+b+c+δ. |
Obviously, the coefficients ϵ1 and ϵ2 are positive, while ϵ0 is positive whenever R0<1, which corresponds to the assumption. Since
kλμ(1−η)ξNδ>0andϵ1ϵ2>(σ+ξ+b)δc, |
we have that
ϵ1ϵ2>(σ+ξ+b)δc−kλμ(1−η)ξNδ=ϵ0. |
Thus, by the Routh-Hurwitz conditions given in [45], if ϵ2>0,ϵ0>0 and ϵ1ϵ2>ϵ0, we can conclude that all roots of (3.9) have negative real parts. This assures the assumption of (3.7) for all α∈(0,1]. Therefore, the model (2.5) at the steady-state E0 is LAS if R0<1.
As we know, the value of R0 provides the knowledge needed to estimate the transmission potential of an infectious disease over time. The FF-HIV model (2.5) has an endemic EP (E∗1) when R0>1. To solve E∗1, we will be applying the fact that all unknown variables T(t), I(t), V(t) and L(t) of the FF-HIV model (2.5) are non-negative. It is possible to compute it by equating each equation of the FF-HIV model (2.5) to zero, that is,
FFMtDα,βaT(t)=0,FFMtDα,βaI(t)=0,FFMtDα,βaV(t)=0,FFMtDα,βaL(t)=0, | (3.10) |
which yields that E∗1=(T∗1,I∗1,V∗1,L∗1), where the components of E∗1 are given by
T∗1=(σ+ξ+b)cNξk(1−η),I∗1=λ−μT∗1σ+ξ(1−η),V∗1=ξ(1−η)I∗1δ,L∗1=NαδαV∗1cα. | (3.11) |
Theorem 3.3. The FF-HIV model (2.5) at the endemic EP (E∗1) is LAS whenever R0>1, with the necessary and sufficient conditions given by (3.7) and
¯ω1¯ω2¯ω3>¯ω21+¯ω23¯ω0, | (3.12) |
where
¯ω0=cδkL∗1(σ+ξ(1−η))=δμc(σ+ξ+b)(R0−1),¯ω1=cδ(μ+kL∗1)+(c+δ)(μσ+μξ+μb+σkL∗1+(1−η)ξkL∗1),¯ω2=(c+δ)(σ+ξ+b+μ+kL∗1)+cδ+μ(σ+ξ+b)+kL∗1(σ+(1−η)ξ),¯ω3=μ+kL∗1+σ+ξ+b+δ+c. |
Proof. The Jacobian matrix computed at E∗1 is provided as follows:
J(E∗1)=(−μ−kL∗1ηξ+b0−kT∗1kL∗1−(σ+ξ+b)0kT∗10(1−η)ξ−δ000Nδ−c). |
Then, the characteristic equation of J(E∗1) is
θ4+¯ω3θ3+¯ω2θ2+¯ω1θ+¯ω0=0. | (3.13) |
We can see that ¯ω1 and ¯ω3 are positive, while ¯ω0 is positive if R0>1. We utilize the proposition given in [46], which applies the Routh-Hurwitz criterion that, if the given condition (3.12) is satisfied, then all real eigenvalues and all real parts of complex conjugate eigenvalues of (3.13) are negative, which ensures the condition (3.7) for all α∈(0,1]. Therefore, the point E∗1 is LAS.
In this section, we establish the uniqueness, existence and stability properties with fixed-point theorems. To demonstrate the existence and unique results of solutions for the FF-HIV model (2.5), we define a Banach space B=C(J×R4,R) equipped with the norm
‖U‖B=supt∈J{|T(t)|}+supt∈J{|I(t)|}+supt∈J{|V(t)|}+supt∈J{|L(t)|}. |
Since the integral is differentiable, the FF-HIV model (2.5) can be rewritten as
{ABRtDα,βaT(t)=βtβ−1U1(t,T,I,V,L),ABRtDα,βaI(t)=βtβ−1U2(t,T,I,V,L),ABRtDα,βaV(t)=βtβ−1U3(t,T,I,V,L),ABRtDα,βaL(t)=βtβ−1U4(t,T,I,V,L), | (4.1) |
where
{U1(t,T,I,V,L)=λ−kL(t)T(t)−μT(t)+(ηξ+b)I(t),U2(t,T,I,V,L)=kL(t)T(t)−(σ+ξ+b)I(t),U3(t,T,I,V,L)=(1−η)ξI(t)−δV(t),U4(t,T,I,V,L)=NδV(t)−cL(t), | (4.2) |
For the sake of discussion, we can rewrite the system (4.1) to have the following form:
{ABRtDα,βaU(t)=βtβ−1H(t,U(t)),U(0)=U0≥0,0≤t<T<∞, | (4.3) |
where
U(t)=(T(t)I(t)V(t)L(t)),U0=(T0I0V0L0),(U1(t)U2(t)U3(t)U4(t))=(U1(t,T,I,V,L)U2(t,T,I,V,L)U3(t,T,I,V,L)U4(t,T,I,V,L)) | (4.4) |
and
H(t,U(t))=(U1(t)U2(t)U3(t)U4(t))=(λ−kL(t)T(t)−μT(t)+(ηξ+b)I(t)kL(t)T(t)−(σ+ξ+b)I(t)(1−η)ξI(t)−δV(t)NδV(t)−cL(t)). | (4.5) |
By replacing ABRtDα,βa with ABCtDα,βa and applying the AB-fractional integral, we obtain
U(t)=U(0)+(1−α)βAB(α)tβ−1H(t,U(t))+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,U(s))ds. | (4.6) |
Define an operator Q:B→B as
(QU)(t)=U(0)+(1−α)βAB(α)tβ−1H(t,U(t))+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,U(s))ds. | (4.7) |
Clearly, the problem (4.3) has the solution if and only if Q has the fixed points.
Theorem 4.1. Suppose that H∈C(J×R4,R) satisfies the following condition:
(A1) There is a number LH>0 such that
|H(t,U1(t))−H(t,U2(t))|≤LH|U1(t)−U2(t)| |
for all U1, U2∈B and t∈J. If
((1−α)βAB(α)tβ−1+αΓ(β+1)AB(α)Γ(α+β)Tα−β+1)LH<1, | (4.8) |
then the problem (4.3) has one solution, which signifies that the FF-HIV model (2.5) has a unique solution.
Proof. First, we will tranform (4.3), corresponding to (2.5), into U=QU (fixed-point problem).
Let H∗ be a non-negative number so that supt∈J|H(t,0)|=H∗<+∞. Set a bounded, closed and convex subset Dr1={U∈B:‖U‖≤r1}, where rU is chosen so that
r1≥‖U0‖+((1−α)βAB(α)tβ−1+αΓ(β+1)AB(α)Γ(α+β)Tα−β+1)H∗1−((1−α)βAB(α)tβ−1+αΓ(β+1)AB(α)Γ(α+β)Tα−β+1)LH. |
Next, the proof is separated into two steps.
Step 1. We present QDr1⊂Dr1.
For any U∈Dr1, we obtain
![]() |
which yields that QDr1⊂Dr1.
Step 2. We present that Q is a contraction.
For each U1, U2∈Dr1 and t∈J, we obtain
|(QU1)(t)−(QU2)(t)|≤(1−α)βAB(α)tβ−1|H(t,U1(t))−H(t,U2(t))|+αβAB(α)Γ(α)∫t0(t−s)α−1sβ−1|H(s,U1(s))−H(s,U2(s))|ds≤((1−α)βAB(α)tβ−1+αΓ(β+1)AB(α)Γ(α+β)Tα−β+1)LH‖U1−U2‖≤((1−α)βAB(α)tβ−1min+αΓ(β+1)AB(α)Γ(α+β)Tα−β+1)LH‖U1−U2‖, |
where tmin=min{t∈J}, which yields that
‖(QU1)−(QU2)‖≤((1−α)βAB(α)tβ−1min+αΓ(β+1)AB(α)Γ(α+β)Tα−β+1)LH‖U1−U2‖. |
Since ([(1−α)βtβ−1min]/AB(α)+[αΓ(β+1)Tα−β+1]/[AB(α)Γ(α+β)])LH<1, by the summary of the Banach contraction principle (defined as in [47]), then Q is called a contraction. Therefore, Q has the unique fixed-point, which is the unique solution of the FF-HIV model (2.5).
Theorem 4.2. Suppose that H∈C(J×R4,R) satisfies the following condition:
(A2) There are non-decreasing functions G∈C(R+,R+) and q∈C(J,R+), such that
|H(t,U(t))|≤q(t)G(‖U(t)‖),∀(t,u)∈J×R, |
with q∗=supt∈J{q(t)}.
(A3) There is a number M∗>0 such that
M∗‖U0‖+((1−α)βAB(α)tβ−1min+αΓ(β+1)AB(α)Γ(α+β)Tα+β−1)q∗G(M∗)>1. |
Then, the problem (4.3), which is consistent with the FF-HIV model (2.5), has at least one solution U∈B.
Proof. Suppose that Q is defined by (4.7). In the first procedure, we show that Q maps bounded sets (balls) into bounded sets in B. For any number r2>0, set Dr2:={U∈B:‖U‖≤r2} is a bounded set (ball) in B. From (A2), for t∈J, we have
|(QU)(t)|≤‖U0‖+1−αAB(α)βtβ−1|H(t,U(t))|+αβAB(α)Γ(α)∫t0(t−s)α−1sβ−1|H(s,U(s))|ds≤‖U0‖+((1−α)βAB(α)tβ−1min+αΓ(β+1)AB(α)Γ(α+β)Tα+β−1)q∗G(‖U‖), |
where tmin=min{t∈J}. It follows that
‖QU‖≤‖U0‖+((1−α)βAB(α)tβ−1min+αΓ(β+1)AB(α)Γ(α+β)Tα+β−1)q∗G(‖U‖). |
Now, we present that Q maps bounded sets into equicontinuous sets of B. Let t1, t2∈J given t1<t2, and for any U∈Dr2. Hence, we obtain that
|(QU)(t2)−(QU)(t1)|≤(1−α)βAB(α)|tβ−12H(t2,U(t2))−tβ−11H(t1,U(t1))|+αβAB(α)Γ(α)|∫t20(t2−s)α−1sβ−1H(s,U(s))ds−∫t10(t1−s)α−1sβ−1H(s,U(s))ds|≤((1−α)βAB(α)|tβ−12−tβ−11|+αΓ(β+1)AB(α)Γ(α+β)|tα+β−12−tα+β−11|)q∗G(‖U‖). |
Obviously, the above result is independent of U∈Dr2 when t2→t1; then, |(QU)(t2)−(QU)(t1)|→0. Consequently, ‖(QU)(t2)−(QU)(t1)‖→0 as t2→t1. Thus, Q is equicontinuous. So, by the Arzelá-Ascoli theorem (defined as in [48]), Q is completely continuous.
Finally, we present that there exists an open set D⊂B with U≠υQU for 0<υ<1 and U∈∂D. Assume that U∈B is a solution of U=υQU for each 0<υ<1. Then, for any t∈J, we will present that Q is bounded; thus, we have that
|U|=|υQU|≤‖U0‖+((1−α)βAB(α)tβ−1min+αΓ(β+1)AB(α)Γ(α+β)Tα+β−1)q∗G(‖U‖). | (4.9) |
Taking the norm of both sides of (4.9) for any t∈J, yields that
![]() |
In view of (A3), there is M∗>0 such that ‖U‖≠M∗. Define D:={U∈B:‖U‖<M∗+1} and E=D∪Dr2. Clearly, Q:¯E→B is continuous and completely continuous. By the choice of D, there is no U∈∂D such that U=υQU for some 0<υ<1.
Hence, by using a nonlinear alternative of the Leray-Schauder type (defined as in [47]), we can conclude that Q has the fixed-point U∈¯D, which suggests that the FF-HIV model (2.5) has at least one solution U∈B. The proof is completed.
In this section, we are going to prove different types of Ulam's stability for the FF-HIV model (2.5). First, we will provide the definitions of Ulam's stability that will be used in this section. Assume that we have a real number ϵ∈R+ and a function KH∈C(J,R+).
Definition 5.1. The FF-HIV model (2.5) is called UH-stable if there is a constant RH>0 so that, for every ϵ>0 and any solution Z∈B of
|ABRtDα,βaZ(t)−H(t,Z(t))|≤ϵ,∀t∈J, | (5.1) |
there exists the solution U∈B of the FF-HIV model (2.5) with
|Z(t)−U(t)|≤RHϵ,t∈J, | (5.2) |
where ϵ=max(ϵi)T and RH=max(RHi)T, i=1,2,3,4.
Definition 5.2. The FF-HIV model (2.5) is called GUH-stable if there is a function KH∈C(R+,R+) given KH(0)=0 so that, for every solution Z∈B of
|ABRtDα,βaZ(t)−H(t,Z(t))|≤ϵKH(t),∀t∈J, | (5.3) |
there exists the solution U∈B of the FF-HIV model (2.5) so that
|Z(t)−U(t)|≤KH(ϵ),t∈J, | (5.4) |
where ϵ=max(ϵi)T and RH=max(KHi)T, i=1,2,3,4.
Definition 5.3. The FF-HIV model (2.5) is called RUH-stable with respect to KH∈C(J,R+) if there is a constant RKH>0 so that, for every ϵ>0 and any solution Z∈B of (5.3), there is a solution U∈B of the FF-HIV model (2.5) with
|Z(t)−U(t)|≤RKHϵKH(t),t∈J, | (5.5) |
where ϵ=max(ϵi)T, RKH=max(RKHi)T and KH=max(KHi)T, i=1,2,3,4.
Definition 5.4. The FF-HIV model (2.5) is called GUHR-stable with respect to KH(J,R+) if there is a constant RKH>0 so that, for every solution Z∈B of
|ABRtDα,βaZ(t)−H(t,Z(t))|≤KH(t),∀t∈J, | (5.6) |
there is the solution U∈B of the FF-HIV model (2.5) with
|Z(t)−U(t)|≤RKHKH(t),t∈J, | (5.7) |
where RKH=max(RKHi)T and KH=max(KHi)T, i=1,2,3,4.
Remark 5.5. It is obvious that
(i) Definition 5.1 implies Definition 5.2.
(ii) Definition 5.3 implies Definition 5.4.
(iii) Definition 5.3 with KH(t)=1 implies Definition 5.1.
Remark 5.6. Z∈B is the solution of (5.1) if and only if there is W∈B (which depends on Z) so that the following properties apply:
(H1) |W(t)|≤ϵ with W=max(Wi)T for i=1,2,3,4 and t∈J.
(H2) ABRtDα,βaZ(t)=H(t,Z)+W(t) for all t∈J.
Remark 5.7. Z∈B is the solution of (5.3) if and only if there is V∈B (which depends on Z) so that the following properties apply:
(H3) |V(t)|≤ϵKH(t) with W=max(Wi)T and KH=(KHi)T for i=1,2,3,4 and t∈J.
(H4) ABRtDα,βaZ(t)=H(t,Z)+V(t) for all t∈J.
Lemma 5.8. Assume that α∈(0,1] and β∈(0,1]. If Z∈B is the solution of (5.1) then, Z is the solution of
|Z−GZ(t)−αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,Z(s))ds|≤((1−α)βAB(α)tβ−1min+αΓ(β+1)AB(α)Γ(α+β)Tα+β−1)ϵ, | (5.8) |
where GZ(t)=Z(0)+(1−α)βAB(α)tβ−1H(t,Z(t)).
Proof. Assume that Z is the solution of (5.1). By applying (H2) in Remark 5.6, we get
{ABRtDα,βaZ(t)=βtβ−1H(t,Z(t))+W(t),Z(0)=Z0≥0,0≤t<T<∞. | (5.9) |
Hence, the solution of (5.9) is given by
Z(t)=Z(0)+(1−α)βAB(α)tβ−1H(t,Z(t))+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,Z(s))ds+(1−α)βAB(α)tβ−1W(t)+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1W(s)ds. |
By using (H1) in Remark 5.6, we have that
|Z−GZ(t)−αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,Z(s))ds|≤(1−α)βAB(α)tβ−1|W(t)|+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1|W(s)|ds≤((1−α)βAB(α)tβ−1min+αΓ(β+1)AB(α)Γ(α+β)Tα+β−1)ϵ. |
Hence, the property (5.8) is achieved.
Theorem 5.9. Assume H∈C(J×R,R) for any U∈B. If (A1) and (4.8) are satisfied, then the FF-HIV model (2.5) is UH-stable on J.
Proof. Let ϵ>0 be a real number and Z∈B be the solution of (5.1). Suppose that U∈B is the unique solution of the problem
{ABRtDα,βaU(t)=βtβ−1H(t,U(t)),U(0)=U0≥0,0≤t<T<∞, | (5.10) |
where U(t) is provided by
U(t)=GU(t)+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,U(s))ds |
when GU(t)=U(0)+(1−α)βAB(α)tβ−1H(t,U(t)).
From Lemma 5.8 with (A1) in Theorem 4.1, we have that
|Z(t)−U(t)|≤|Z(t)−GU(t)−αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,U(s))ds|≤|Z(t)−GZ(t)−αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,Z(s))ds|+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1|H(s,Z(s))−H(s,U(s))|ds≤((1−α)βAB(α)tβ−1min+αΓ(β+1)AB(α)Γ(α+β)Tα+β−1)ϵ+αΓ(β+1)AB(α)Γ(α+β)Tα+β−1LH|Z(t)−U(t)|. |
Setting
![]() |
yields that
|Z(t)−U(t)|≤RHϵ. |
Therefore, we can conclude that the FF-HIV model (2.5) is UH-stable.
Corollary 5.10. Setting KH(ϵ)=RHϵ with KH(0)=0 in Theorem 5.9, implies that the FF-HIV model (2.5) is GUH-stable.
Next, we will prove the UHR and GUHR stability results. Assume the following:
(H5) There exist an increasing function KH∈B and a number CKH>0 so that
FFMtIα,βaKH(t)≤CKHKH(t),∀t∈J. | (5.11) |
Lemma 5.11. Assume that α∈(0,1] and β∈(0,1]. If Z∈B is the solution of (5.3), then Z is the solution of
|Z−GZ(t)−αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,Z(s))ds|≤ϵCKHKH(t), | (5.12) |
where GZ(t)=Z(0)+(1−α)βAB(α)tβ−1H(t,Z(t)).
Proof. Let Z be a solution of (5.3). By applying (H4) in Remark 5.7, we obtain the following:
{ABRtDα,βaZ(t)=βtβ−1H(t,Z(t))+V(t),Z(0)=Z0≥0,0≤t<T<∞. | (5.13) |
Hence, the solution of (5.13) is given by
Z(t)=Z(0)+(1−α)βAB(α)tβ−1H(t,Z(t))+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,Z(s))ds+(1−α)βAB(α)tβ−1V(t)+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1V(s)ds. |
By using (H3) in Remark 5.7, we have that
|Z−GZ(t)−αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,Z(s))ds|≤(1−α)βAB(α)tβ−1|V(t)|+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1|V(s)|ds≤ϵCKHKH(t). |
Then, the property (5.12) is achieved.
Theorem 5.12. Assume H∈C(J×R,R) for every U∈B. If (A1), (H5) and (4.8) are satisfied, then the FF-HIV model (2.5) is UHR-stable on J.
Proof. Let ϵ>0 be a real constant and Z∈B be the solution of (5.6). Suppose that U∈B is the unique solution of
{ABRtDα,βaU(t)=βtβ−1H(t,U(t)),U(0)=U0≥0,0≤t<T<∞, | (5.14) |
where U(t) is provided by
U(t)=GU(t)+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,U(s))ds |
when GU(t)=U(0)+(1−α)βAB(α)tβ−1H(t,U(t)).
From Lemma 5.11 with (A1) in Theorem 4.1 and (H5), we obtain that
|Z(t)−U(t)|≤|Z(t)−GU(t)−αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,U(s))ds|≤|Z(t)−GZ(t)−αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1H(s,Z(s))ds|+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1|H(s,Z(s))−H(s,U(s))|ds≤ϵCKHKH(t)+αΓ(β+1)AB(α)Γ(α+β)Tα+β−1LH|Z(t)−U(t)|. |
Setting
RKH:=CKHKH(t)1−αΓ(β+1)AB(α)Γ(α+β)Tα+β−1LH |
yields that
|Z(t)−U(t)|≤RKHϵKH(t). |
Hence, we can conclude that the FF-HIV model (2.5) is UHR-stable.
Corollary 5.13. Setting ϵ=1 in |Z(t)−U(t)|≤RKHϵKH(t), implies that the FF-HIV model (2.5) is GUHR-stable.
In this section, we apply three powerful algorithms for the FF-HIV model (2.5) by implementing the Newton polynomial approach, the Adams-Bashforth method and the predictor-corrector method. The numerical simulations are described and presented, as well as a comparison of the three methods, which will be handled later in the subsection on dynamical discussion.
In order to obtain the numerical schemes, we recall (4.3) and (4.6), which was obtained after integrating (4.3) on both sides. We now have
{FFMtDαaT(t)=βtβ−1U1(t,T,I,V,L),FFMtDαaI(t)=βtβ−1U2(t,T,I,V,L),FFMtDαaV(t)=βtβ−1U3(t,T,I,V,L),FFMtDαaL(t)=βtβ−1U4(t,T,I,V,L). | (6.1) |
The following result was obtained by using the AB-fractional integral; we do not show I(t), V(t) and L(t) because they contain the same steps.
T(t)=T(0)+(1−α)βAB(α)tβ−1U1(t,T,I,V,L)+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1U1(s,T,I,V,L)ds, | (6.2) |
I(t)=I(0)+(1−α)βAB(α)tβ−1U2(t,T,I,V,L)+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1U2(s,T,I,V,L)ds, | (6.3) |
V(t)=V(0)+(1−α)βAB(α)tβ−1U3(t,T,I,V,L)+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1U3(s,T,I,V,L)ds, | (6.4) |
L(t)=L(0)+(1−α)βAB(α)tβ−1U4(t,T,I,V,L)+αβAB(α)Γ(α)∫ta(t−s)α−1sβ−1U4(s,T,I,V,L)ds. | (6.5) |
We rewrite (6.2)–(6.5) at t=tn+1=(n+1)Δt, which gives
Tn+1=T0+(1−α)βAB(α)tβ−1nU1(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)∫tn+1a(tn+1−s)α−1sβ−1U1(s,T,I,V,L)ds, | (6.6) |
In+1=I0+(1−α)βAB(α)tβ−1nU2(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)∫tn+1a(tn+1−s)α−1sβ−1U2(s,T,I,V,L)ds. | (6.7) |
Vn+1=V0+(1−α)βAB(α)tβ−1nU3(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)∫tn+1a(tn+1−s)α−1sβ−1U3(s,T,I,V,L)ds, | (6.8) |
Ln+1=L0+(1−α)βAB(α)tβ−1nU4(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)∫tn+1a(tn+1−s)α−1sβ−1U4(s,T,I,V,L)ds. | (6.9) |
With an effective idea of an algorithm that has been studied in [49], a numerical approximation form for solving the FF-HIV model (4.3) using the Newton approach will be considered.
By using the approximation of the integrals in (6.6), we have that
Tn+1=T0+(1−α)βAB(α)tβ−1nU1(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=2∫tj+1tj(tn+1−s)α−1sβ−1U1(s,T,I,V,L)ds. | (6.10) |
Applying the Newton polynomial for the term tβ−1U1(t,T,I,V,L), yields
Pn(s)=tβ−1j−2U1(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)+(s−tj−2)Δt[tβ−1j−1U1(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)−tβ−1j−2U1(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)]+(s−tj−2)(s−tj−1)2(Δt)2[tβ−1jU1(tj,Tj,Ij,Vj,Lj)−2tβ−1j−1U1(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)+tβ−1j−2U1(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)]. | (6.11) |
Plugging (6.11) into (6.10), we get
Tn+1=T0+(1−α)βAB(α)tβ−1nU1(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=2tβ−1j−2U1(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)∫tj+1tj(tn+1−s)α−1ds+αβAB(α)Γ(α)n∑j=21Δt[tβ−1j−1U1(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)−tβ−1j−2U1(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)]∫tj+1tj(tn+1−s)α−1(s−tj−2)ds+αβAB(α)Γ(α)n∑j=212(Δt)2[sβ−1jU1(tj,Tj,Ij,Vj,Lj)−2sβ−1j−1U1(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)+sβ−1j−2U1(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)]∫tj+1tj(tn+1−s)α−1(s−tj−2)(s−tj−1)ds. | (6.12) |
Integration by parts to solve the integrals given in (6.12) yields
∫tj+1tj(tn+1−s)α−1ds=(Δt)ααΛn,j, | (6.13) |
∫tj+1tj(tn+1−s)α−1(s−tj−2)ds=(Δt)α+1α(α+1)Ξn,j, | (6.14) |
∫tj+1tj(tn+1−s)α−1(s−tj−2)(s−tj−1)ds=(Δt)α+2α(α+1)(α+2)Ωn,j, | (6.15) |
where the constants Λn,j, Ξn,j and Ωn,j are given by
Λn,j=(n+1−j)α−(n−j)α, | (6.16) |
Ξn,j=(n+1−j)α(n+3−j+2α)−(n−j)α(n+3−j+3α), | (6.17) |
Ωn,j=(n+1−j)α[2(n−j)2+(3α+10)(n−j)+2α2+9α+12]−(n−j)α[2(n−j)2+(5α+10)(n−j)+6α2+18α+12]. | (6.18) |
Plugging (6.13)–(6.15) into (6.12), we obtain the numerical scheme as follows:
Tn+1=T0+(1−α)βAB(α)tβ−1nU1(tn,Tn,In,Vn,Ln)+(Δt)ααβAB(α)Γ(α+1)n∑j=2Λn,jtβ−1j−2U1(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)+(Δt)ααβAB(α)Γ(α+2)n∑j=2Ξn,j[tβ−1j−1U1(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)−tβ−1j−2U1(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)]+(Δt)ααβ2AB(α)Γ(α+3)n∑j=2Ωn,j[tβ−1jU1(tj,Tj,Ij,Vj,Lj)−2tβ−1j−1U1(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)+tβ−1j−2U1(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)]. | (6.19) |
Clearly, we also have that
In+1=I0+(1−α)βAB(α)tβ−1nU2(tn,Tn,In,Vn,Ln)+(Δt)ααβAB(α)Γ(α+1)n∑j=2Λn,jtβ−1j−2U2(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)+(Δt)ααβAB(α)Γ(α+2)n∑j=2Ξn,j[tβ−1j−1U2(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)−tβ−1j−2U2(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)]+(Δt)ααβ2AB(α)Γ(α+3)n∑j=2Ωn,j[tβ−1jU2(tj,Tj,Ij,Vj,Lj)−2tβ−1j−1U2(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)+tβ−1j−2U2(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)], | (6.20) |
Vn+1=V0+(1−α)βAB(α)tβ−1nU3(tn,Tn,In,Vn,Ln)+(Δt)ααβAB(α)Γ(α+1)n∑j=2Λn,jtβ−1j−2U3(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)+(Δt)ααβAB(α)Γ(α+2)n∑j=2Ξn,j[tβ−1j−1U3(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)−tβ−1j−2U3(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)]+(Δt)ααβ2AB(α)Γ(α+3)n∑j=2Ωn,j[tβ−1jU3(tj,Tj,Ij,Vj,Lj)−2tβ−1j−1U3(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)+tβ−1j−2U3(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)], | (6.21) |
Ln+1=L0+(1−α)βAB(α)tβ−1nU4(tn,Tn,In,Vn,Ln)+(Δt)ααβAB(α)Γ(α+1)n∑j=2Λn,jtβ−1j−2U4(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)+(Δt)ααβAB(α)Γ(α+2)n∑j=2Ξn,j[tβ−1j−1U4(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)−tβ−1j−2U4(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)]+(Δt)ααβ2AB(α)Γ(α+3)n∑j=2Ωn,j[tβ−1jU4(tj,Tj,Ij,Vj,Lj)−2tβ−1j−1U4(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)+tβ−1j−2U4(tj−2,Tj−2,Ij−2,Vj−2,Lj−2)], | (6.22) |
where Λn,j, Ξn,j and Ωn,j are provided by (6.16)-(6.18), respectively.
This subsection shows the numerical algorithm for the FF-HIV model (2.5), which was developed by applying the Adams-Bashforth method, which is a well-known technique based on two-step Lagrange polynomials. By using (6.6)–(6.9); then, the approximation of (6.6)–(6.9) are formulated in the form of
Tn+1=T0+1−αAB(α)βtβ−1nU1(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=1∫tj+1tj(tn+1−s)α−1sβ−1U1(s,T,I,V,L)ds, | (6.23) |
In+1=I0+1−αAB(α)βtβ−1nU2(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=1∫tj+1tj(tn+1−s)α−1sβ−1U2(s,T,I,V,L)ds, | (6.24) |
Vn+1=V0+1−αAB(α)βtβ−1nU3(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=1∫tj+1tj(tn+1−s)α−1sβ−1U3(s,T,I,V,L)ds, | (6.25) |
Ln+1=L0+1−αAB(α)βtβ−1nU4(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=1∫tj+1tj(tn+1−s)α−1sβ−1U4(s,T,I,V,L)ds. | (6.26) |
Now, we estimate the three functions sβ−1Ui(s,T,I,V,L), i=1,2,3, on [tj,tj+1] by using two-step Lagrange interpolation polynomials with the step size h=tj+1−tj. By direct computations, we develop the algorithms that yield the numerical simulations for the model FF-HIV (2.5) as follows:
Tn+1=T0+1−αAB(α)βtβ−1nU1(tn,Tn,In,Vn,Ln)+β(△t)αAB(α)Γ(α+2)×n∑j=1[tβ−1jU1(tj,Tj,Ij,Vj,Lj)Υ1(n,j)−tβ−1jU1(tj,Tj,Ij,Vj,Lj)Υ2(n,j)]. |
Repeating all steps for I(t), V(t) and L(t), we also have that
In+1=I0+1−αAB(α)βtβ−1nU2(tn,Tn,In,Vn,Ln)+β(△t)αAB(α)Γ(α+2)×n∑j=1[tβ−1jU2(tj,Tj,Ij,Vj,Lj)Υ1(n,j)−tβ−1j−1U2(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)Υ2(n,j)],Vn+1=V0+1−αAB(α)βtβ−1nU3(tn,Tn,In,Vn,Ln)+β(△t)αAB(α)Γ(α+2)×n∑j=1[tβ−1jU3(tj,Tj,Ij,Vj,Lj)Υ1(n,j)−tβ−1j−1U3(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)Υ2(n,j)],Ln+1=L0+1−αAB(α)βtβ−1nU4(tn,Tn,In,Vn,Ln)+β(△t)αAB(α)Γ(α+2)×n∑j=1[tβ−1jU4(tj,Tj,Ij,Vj,Lj)Υ1(n,j)−tβ−1j−1U4(tj−1,Tj−1,Ij−1,Vj−1,Lj−1)Υ2(n,j)], |
where
Υ1(n,j)=(n+1−j)α(n−j+2+α)−(n−j)α(n−j+2+2α) |
and
Υ2(n,j)=(n+1−j)α+1−(n−j)α(n−j+1+α). |
This subsection shows the numerical algorithm for the FF-HIV model (2.5), which was developed by applying the predictor-corrector method. By using the approximation of the integrals as in (6.6)–(6.9), we have that
Tn+1=T0+1−αAB(α)βtβ−1nU1(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=0∫tj+1tj(tn+1−s)α−1sβ−1U1(s,T,I,V,L)ds, | (6.27) |
In+1=I0+1−αAB(α)βtβ−1nU2(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=0∫tj+1tj(tn+1−s)α−1sβ−1U2(s,T,I,V,L)ds, | (6.28) |
Vn+1=V0+1−αAB(α)βtβ−1nU3(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=0∫tj+1tj(tn+1−s)α−1sβ−1U3(s,T,I,V,L)ds, | (6.29) |
Ln+1=L0+1−αAB(α)βtβ−1nU4(tn,Tn,In,Vn,Ln)+αβAB(α)Γ(α)n∑j=0∫tj+1tj(tn+1−s)α−1sβ−1U4(s,T,I,V,L)ds. | (6.30) |
Now, we apply the Adams-type predictor-corrector tool to obtain the numerical approximation of the right-hand sides of (6.27)–(6.30). Assume that the solution belongs to [0,T]; then, we set Δt=T/N, tk=kΔt for k=0,1,2,…,N. So, the corrector scheme for the FF-HIV model (2.5) are given as follows:
Tn+1=T0+(1−α)(△t)αAB(α)Γ(α+2)βtβ−1n+1U1(tn+1,TPn+1,IPn+1,VPn+1,LPn+1)+αβ(△t)αAB(α)Γ(α+2)×n∑j=0Ξj,n+1tβ−1jU1(tj,Tj,Ij,Vj,Lj). |
Repeating all steps for I(t), V(t) and L(t), we also have that
In+1=I0+(1−α)(△t)αAB(α)Γ(α+2)βtβ−1n+1U2(tn+1,TPn+1,IPn+1,VPn+1,LPn+1)+αβ(△t)αAB(α)Γ(α+2)×n∑j=0Ξj,n+1tβ−1jU2(tj,Tj,Ij,Vj,Lj),Vn+1=V0+(1−α)(△t)αAB(α)Γ(α+2)βtβ−1n+1U3(tn+1,TPn+1,IPn+1,VPn+1,LPn+1)+αβ(△t)αAB(α)Γ(α+2)×n∑j=0Ξj,n+1tβ−1jU3(tj,Tj,Ij,Vj,Lj),Ln+1=L0+(1−α)(△t)αAB(α)Γ(α+2)βtβ−1n+1U4(tn+1,TPn+1,IPn+1,VPn+1,LPn+1)+αβ(△t)αAB(α)Γ(α+2)×n∑j=0Ξj,n+1tβ−1jU4(tj,Tj,Ij,Vj,Lj), |
where
Ξj,n+1={nα+1−(n−α)(n+1)α,ifj=0,(n−j+2)α+1+(n−j)α+1−2(n−j+1)α+1,if1≤j≤n. |
Further, the predictor terms TPn+1, IPn+1, VPn+1 and LPn+1 are described as
TPn+1=T0+1−αAB(α)βtβ−1nU1(tn,Tn,In,Vn,Ln)+αβAB(α)Γ2(α)×n∑j=0ωj,n+1tβ−1jU1(tj,Tj,Ij,Vj,Lj),IPn+1=I0+1−αAB(α)βtβ−1nU2(tn,Tn,In,Vn,Ln)+αβAB(α)Γ2(α)×n∑j=0ωj,n+1tβ−1jU2(tj,Tj,Ij,Vj,Lj),VPn+1=V0+1−αAB(α)βtβ−1nU3(tn,Tn,In,Vn,Ln)+αβAB(α)Γ2(α)×n∑j=0ωj,n+1tβ−1jU3(tj,Tj,Ij,Vj,Lj),LPn+1=L0+1−αAB(α)βtβ−1nU4(tn,Tn,In,Vn,Ln)+αβAB(α)Γ2(α)×n∑j=0ωj,n+1tβ−1jU4(tj,Tj,Ij,Vj,Lj), |
and
ωj,n+1=(△t)αα((n+1−j)α−(n−j)α)0≤j≤n. |
Employing the numerical schemes in the subsections 6.1–6.3, we conducted the numerical simulations for the FF-HIV model (2.5) by using the real data for the parameter values as assumed in [13], as shown in Table 3. Here, the approximate solutions of the model (2.5) have been verified for various fractional-order values of α={1.000,0.995,0.985,0.975,0.965,0.955,0.945,0.935} and the fractal dimensions β={1.000,0.995,0.985,0.975,0.965,0.955,0.945,0.935}, which have been separated into three cases.
Parameter | Value | Unit | Source |
λ | 10 | mm−3day−1 | [19] |
k | 0.000024 | mm3day−1 | [19] |
δ | 0.26 | day−1 | [19] |
c | 2.4 | day−1 | [19] |
σ | 0.015 | day−1 | [50,51] |
N | 1000 | dimensionless | [50,51] |
ξ | 0.4 | day−1 | [52] |
b | 0.05 | day−1 | [52] |
η | 0.6 | dimensionless | [52] |
μ | 0.01 | day−1 | [53] |

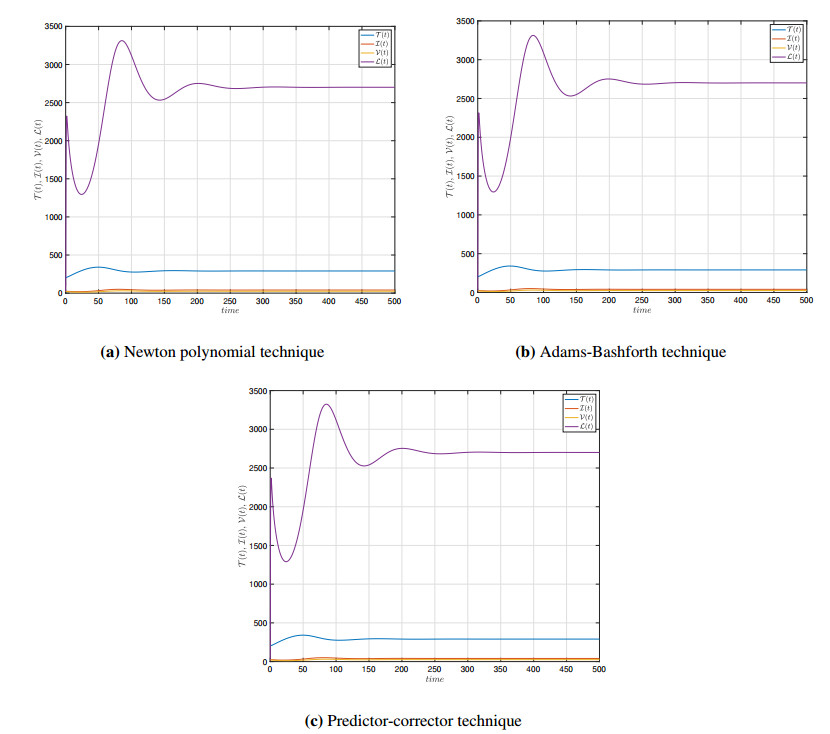

Note that we present the pairs of numerical simulations as a comparison of the Newton polynomial, the Adams-Bashforth and the predictor-corrector techniques. The quantity of time t in these graphs denotes the number of days.
Case (i): If we set the fractal dimension β and the {fractional-order} α values as 1.000, 0.995, 0.985, 0.975, 0.965, 0.955, 0.945 and 0.935 with (T(0),I(0),V(0),L(0))=(200,25,25,25). Figure 2 shows the dynamics of the density of the susceptible group of CD4+ T-cells (T(t)), the group of infected CD4+ T-cells before (I(t)) and after the completion of the reverse transcription (V(t)), and the group of the virus as time passes (L(t)), respectively, under the conditions of the Newton polynomial technique in Subsection 6.1 (Figure 2a), the Adams-Bashforth technique in Subsection 6.2 (Figure 2b) and the predictor-corrector technique in Subsection 6.3 (Figure 2c). Figure 3a–c represent that, when the fractional-order α values increase to integer order and the fractal dimension β=1.000, the behavior of the susceptible group of CD4+ T-cells rapidly increases from the start day, and then steadily decreases. After that, it increases again and finally converges to T∗1≈290.6250 at the end of the simulation period. Figures 4 and 5 show that, when the fractional-order α values increase from 0.935 to the integer order and the fractal dimension β=0.987, the behavior of the group of infected CD4+ T-cells before and after the completion of the reverse transcription rapidly increases to the peak values and steadily decreases, respectively, and also converges to I∗1≈40.5357 and V∗1≈24.9451 according to their asymptotic stabilities at the end. Figure 6 shows that, when the fractional-order α values increase from 0.935 to the integer order and the fractal dimension β=1.000, the behavior of the group of the virus as time passes rapidly increases and decreases. After that, it rapidly increases to the peak point and steadily decreases to converge to L∗1≈2702.3810 at the end. As shown in Figures 3–6, by using three numerical algorithms, the dynamic behavior of each of the four variables varies in sightly different ways when the fractional order is slightly changed. Their behaviors oscillate decreasing and increasing until, tending toward stabilization.

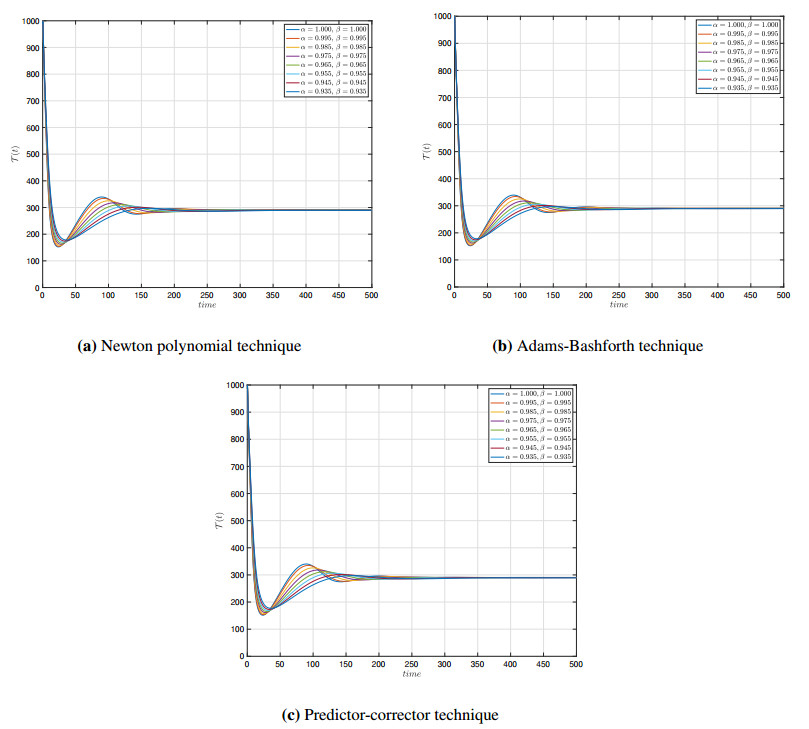

Case (ii): In this case, we fix α and vary β as 1.000, 0.995, 0.985, 0.975, 0.965, 0.955, 0.945 and 0.935 with (T(0),I(0),V(0),L(0))=(200,25,25,25). Figure 7 shows the dynamics of the {densities} of T(t), I(t), V(t) and L(t) under the conditions of the Newton polynomial technique (Figure 7a), the Adams-Bashforth technique (Figure 7b) and the predictor-corrector technique in Subsection 6.3 (Figure 7c). Figure 8a-c show that, when the fractional-order α=0.987 and the fractal dimension β increases to integer order, the behavior of T(t) rapidly increases from the start day, and then steadily decreases tending to T∗1≈290.6250. Figures 9 and 10 show, that when the fractional-order α=0.987 and the fractal dimension β increases from 0.935 to the integer order, I(t) and V(t) rapidly decrease and increase to the peak values, respectively. Further, they steadily decrease again from the peak values to I∗1≈40.5357 and V∗1≈24.9451 according to their asymptotic stabilities. Figure 11 indicates that, when the fractional-order α=0.987 and the fractal dimension β increases from 0.935 to the integer order, L(t) quickly increases and then decreases. After that, it increases again to the peak point and oscillates as it decreases to L∗1≈2702.3810. The dynamics of the four variables, as illustrated in Figure 8 to Figure 11, exhibit behavior that is similar to Case (i). Additionally, after using the three numerical techniques, we discovered that, when the fractional order has tiny variation, the system behaves in a somewhat different manner.

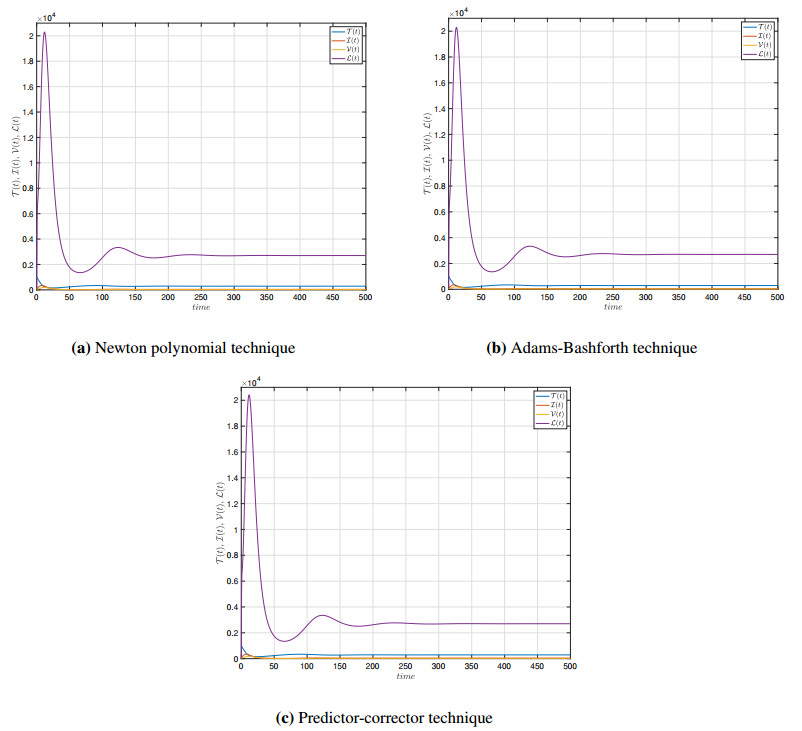

Case (iii). If we vary both the fractional-order α and fractal dimension β, each as 1.000, 0.995, 0.985, 0.975, 0.965, 0.955, 0.945 and 0.935 with (T(0),I(0),V(0),L(0))=(1000,50,70,80), which differ from the other two cases. Observing Figures 12–16, one of the noticeable aspects of the behavior of the system is that, even if we start with the other initial condition, the system will converge to the steady state.
In order to compare the results of the three numerical algorithms, i.e., the Newton polynomial, the Adams-Bashforth and the predictor-corrector techniques for all four state functions T(t), I(t), V(t) and L(t), we illustrate the extra case with the step size Δt=0.1 and α=β=0.945, as seen in Figures 17a–d. They display the results of the numerical simulations, which compare the numerical solutions of the three algorithms for the concentration of susceptible CD4+ T-cells, infected CD4+ T-cells before and after reverse transcription completion and the virus density. We show some numerical results for the population in four states given α=β=0.945 and Δt=0.1, which can be seen in Tables 4–7. These graphical simulation and numerical results reveal that these three numerical algorithms produce similar outcomes with minor differences.
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial | 938.6916 | 275.2107 | 288.7890 | 288.7875 | 289.5849 | 289.7662 |
Adams-Bashforth | 912.5990 | 282.8655 | 286.6146 | 289.5646 | 289.4987 | 289.8788 |
Predictor-corrector | 929.7821 | 276.2814 | 288.4990 | 288.8699 | 289.5681 | 289.7720 |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial | 101.0045 | 34.1573 | 45.1725 | 41.7537 | 41.9218 | 41.5712 |
Adams-Bashforth | 122.3127 | 34.5061 | 44.6850 | 41.7749 | 41.8191 | 41.5188 |
Predictor-corrector | 109.6054 | 33.9682 | 45.2524 | 41.7283 | 41.9280 | 41.5682 |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial | 65.8090 | 21.9418 | 27.9168 | 25.8263 | 25.8736 | 25.6452 |
Adams-Bashforth | 66.0844 | 21.7740 | 27.7478 | 25.7936 | 25.8142 | 25.6058 |
Predictor-corrector | 64.5360 | 21.7688 | 27.9824 | 25.8063 | 25.8782 | 25.6431 |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial ×103 | 5.7237 | 2.3852 | 3.0239 | 2.7982 | 2.8029 | 2.7782 |
Adams-Bashforth ×103 | 6.2425 | 2.3626 | 3.0072 | 2.7942 | 2.7966 | 2.7739 |
Predictor-corrector ×103 | 6.3114 | 2.3658 | 3.0312 | 2.7960 | 2.8034 | 2.7780 |
Moreover, given that α and β varies in each case, we observe that the fractional dimension β is independent of the EPs. Therefore, we obtained the values of the parameters R0≈3.4409, ¯ω0≈0.0071, ¯ω1≈0.0893, ¯ω2≈2.0760 and ¯ω3≈3.6649 and detected that all of these parameters satisfy the conditions of Theorem 3.3 i.e., that R0>1 and ¯ω1¯ω2¯ω3>¯ω21+¯ω23¯ω0. This guarantees locally asymptotic stability at the endemic EP E∗1≈(290.6250,40.5357,24.9451,2702.3810).
For our discussion, it is clearly visible from all of the images for Case (i)–(iii) that the approximate solutions for the different fractional orders converge to their solution for an integer-order model. The T(t), I(t), V(t) and L(t) densities oscillate initially before tending to stabilize at their EPs. Furthermore, the three numerical algorithms gave similar numerical results with a very tiny difference.
As we know, differential equations with a fractional order can be used to help overcome some of the flaws in biological systems that are connected to the idea of memory additionally, the use of differential equations in mathematical modeling helps us to better comprehend the behavior of dynamic biological systems. These are good reasons for employing the FF derivative in the AB sense for the model of the interaction between HIV infection and CD4+ T-cells in the presence of RTI that has been taken before the process of producing the virus was initiated. The significant outcomes and the parade of theoretical results were used to accomplish the requirements of our aim. First, the model was analyzed by deriving the unique positive solution and finding the sufficient conditions for it to be LAS at the EPs by using the BRN and the Routh-Hurwitz criteria. Second, the existence and uniqueness results are proven with the help of famous fixed-point theorems such as Banach's and Leray-Schauder's. Third, in order to emphasize the existence of solutions, various forms of Ulam's stability, such as UH, GUH, UHR and GUHR forms were used to achieve the purpose. Finally, a discussion of the dynamical behavior has been provided to confirm the accuracy of the theoretical results. The numerical simulations were distinguished for three different cases by using the Newton polynomial, the Adams-Basthforth and the predictor-corrector techniques in the numerical scheme. Overall, the fractional operator utilized in the study according to the findings satisfied all of the required theoretical conditions for the considered model, and the parameters were shown to have a substantial influence on the ecological system's stability. A slight variation in the FF orders was found to cause a tiny change in the behavior of the considered model. The three numerical algorithms were nearly identical in terms of the numerical results and system dynamic behavior, with only slight variance between them.
In summary, we found that the significant advantage of our considered FF-order HIV epidemic model is that it is more realistic, effective and efficient than the classical model because it improves the precision of the model by allowing for more flexibility, which helps us to achieve better results. Regarding the future research direction, the FF derivative in the AB sense can be applied to various mathematical models for the investigation and analysis of real-world problems. Alternativelt, there are some interesting fractional-order derivatives, such as CF, AB, Atangana-Koca and Atangana-Gomez derivatives, which can be applied to the HIV integer-order model and are worthy of further study. We continue to hope that our efforts may help researchers in various areas of applied sciences and engineering.
J. Kongson, C. Thaiprayoon and A. Neamvonk would like to extend their appreciation to the Faculty of Science at Burapha University in Thailand for the financial support (Grant no. SC06/2564). W. Sudsutad was partially supported by Ramkhamhaeng University and J. Alzabut is thankful to Prince Sultan University and OSTİM Technical University for their endless support. This work was financially supported by the Faculty of Science at Burapha University in Thailand (Grant no. SC06/2564).
The authors declare that there is no conflict of interest.
[1] |
G. Haas, A. Hosmalin, F. Hadida, J. Duntze, P. Debre, B. Autran, Dynamics of HIV variants and specific cytotoxic T-cell recognition in nonprogressors and progressors, Immunol. Lett., 57 (1997), 63–68. https://doi.org/10.1016/S0165-2478(97)00076-X doi: 10.1016/S0165-2478(97)00076-X
![]() |
[2] | F. Kirchhoff, IV life cycle: Overview. In: T. Hope, M. Stevenson, D. Richman, (eds), Encycl. AIDS, Springer, New York, (2013), 1–9. https://doi.org/10.1007/978-1-4614-9610-6_60-1 |
[3] |
M. A. Nowak, S. Bonhoeffer, G. M. Shaw, R. M. May, Anti-viral drug treatment: Dynamics of resistance in free virus and infected cell populations, J. Theor. Biol., 184 (1997), 203–217. https://doi.org/10.1006/jtbi.1996.0307 doi: 10.1006/jtbi.1996.0307
![]() |
[4] |
T. B. Kepler, A. S. Perelson, Drug concentration heterogeneity facilitates the evolution of drug resistance, Proc. Natl. Acad. Sci. USA, 95 (1998), 11514–11519. https://doi.org/10.1073/pnas.95.20.11514 doi: 10.1073/pnas.95.20.11514
![]() |
[5] |
R. J. Smith, L. M. Wahl, Distinct effects of protease and reverse transcriptase inhibition in an immunological model of HIV-1 infection with impulsive drug effects, Bull. Math. Biol., 66 (2004), 1259–1283. https://doi.org/10.1016/j.bulm.2003.12.004 doi: 10.1016/j.bulm.2003.12.004
![]() |
[6] | T. H. Zha, O. Castillo, H. Jahanshahi, A. Yusuf, M. O. Alassafi, F. E. Alsaadi, et al., A fuzzy-based strategy to suppress the novel coronavirus (2019-NCOV) massive outbreak, Appl. Comput. Math., 20 2021,160–176. |
[7] |
M. A. Iqbal, Y. Wang, M. M. Miah, M. S. Osman, Study on DateJimbo-Kashiwara-Miwa equation with conformable derivative dependent on time parameter to find the exact dynamic wave solutions, Fractal Fract., 6 (2022), 1–12. https://doi.org/10.3390/fractalfract6010004 doi: 10.3390/fractalfract6010004
![]() |
[8] | Y. M. Chu, S. Bashir, M. Ramzan, M. Y. Malik, Model-based comparative study of magnetohydrodynamics unsteady hybrid nanofluid flow between two infinite parallel plates with particle shape effects, Math. Methods Appl. Sci., 2022. http://dx.doi.org/10.1002/mma.8234 |
[9] |
M. Nazeer, F. Hussain, M. I. Khan, A. U. Rehman, E. R. El-Zahar, Y. M. Chu, et al., Theoretical study of MHD electro-osmotically flow of third-grade fluid in micro channel, Appl. Math. Comput., 420 (2022), 126868. https://doi.org/10.1016/j.amc.2021.126868 doi: 10.1016/j.amc.2021.126868
![]() |
[10] |
Y. M. Chu, B. M. Shankaralingappa, B. J. Gireesha, F. Alzahrani, M. I. Khan, S. U. Khan, Combined impact of Cattaneo-Christov double diffusion and radiative heat flux on bio-convective flow of Maxwell liquid configured by a stretched nanomaterial surface, Appl. Math. Comput., 419 (2022), 126883. https://doi.org/10.1016/j.amc.2021.126883 doi: 10.1016/j.amc.2021.126883
![]() |
[11] | T. H. Zhao, M. I. Khan, Y. M. Chu, Artificial neural networking (ANN) analysis for heat and entropy generation in flow of non-Newtonian fluid between two rotating disks, Math. Methods Appl. Sci., 2021. https://doi.org/10.1002/mma.7310 |
[12] |
L. Wang, M. Y. Li, Mathematical analysis of the global dynamics of a model for HIV infection of CD4+ T cells, Math. Biosci., 200 (2006), 44–57. https://doi.org/10.1016/j.mbs.2005.12.026 doi: 10.1016/j.mbs.2005.12.026
![]() |
[13] |
P. K. Srivastava, M. Banerjee, P. Chandra, Modeling the drug therapy for HIV infection, J. Biol. Syst., 17 (2009), 213–223. https://doi.org/10.1142/S0218339009002764 doi: 10.1142/S0218339009002764
![]() |
[14] |
A. Dutta, P. K. Gupta, A mathematical model for transmission dynamics of HIV/AIDS with effect of weak CD4+ T cells, Chin. J. Phys., 56 (2018), 1045–1056. https://doi.org/10.1016/j.cjph.2018.04.004 doi: 10.1016/j.cjph.2018.04.004
![]() |
[15] |
L. Rong, M. A. Gilchrist, Z. Feng, A. S. Perelson, Modeling within host HIV-1 dynamics and the evolution of drug resistance: Trade offs between viral enzyme function and drug susceptibility, J. Theor. Biol., 247 (2007), 804–818. https://doi.org/10.1016/j.jtbi.2007.04.014 doi: 10.1016/j.jtbi.2007.04.014
![]() |
[16] |
Z. Mukandavire, C. Chiyaka, W. Garira, G. Musuka, Mathematical analysis of a sex-structured HIV/AIDS model with a discrete time delay, Nonlinear Anal., Theory Methods Appl., 71 (2009), 1082–1093. https://doi.org/10.1016/j.na.2008.11.026 doi: 10.1016/j.na.2008.11.026
![]() |
[17] |
M. F. Tabassum, M. Saeed, A. Akgül, M. Farman, N. A. Chaudhry, Treatment of HIV/AIDS epidemic model with vertical transmission by using evolutionary Pade-approximation, Chaos Solitons Fractals, 134 (2020), 109686. https://doi.org/10.1016/j.chaos.2020.109686 doi: 10.1016/j.chaos.2020.109686
![]() |
[18] | A. S. Perelson, Modeling the interaction of the immune system with HIV, In: C. Castillo-Chavez (eds) Mathematical and Statistical Approaches to AIDS Epidemiology, Lecture Notes in Biomathematics, Springer, Berlin, Heidelberg, (1989), 350–370. https://doi.org/10.1007/978-3-642-93454-4_17 |
[19] |
A. S. Perelson, D. E. Kirschner, R. D. Boer, Dynamics of HIV infection of CD4+ T cells, Math. Biosci., 114 (1993), 81–125. https://doi.org/10.1016/0025-5564(93)90043-A doi: 10.1016/0025-5564(93)90043-A
![]() |
[20] |
S. Arshad, O. Defterli, D. Baleanu, A second order accurate approximation for fractional derivatives with singular and non-singular kernel applied to a HIV model, Appl. Math. Comput., 374 (2020), 125061. https://doi.org/10.1016/j.amc.2020.125061 doi: 10.1016/j.amc.2020.125061
![]() |
[21] |
D. Baleanu, H. Mohammadi, S. Rezapour, Analysis of the model of HIV-1 infection of CD4+ T-cell with a new approach of fractional derivative, Adv. Differ. Equation, 2020 (2020), 1–17. https://doi.org/10.1186/s13662-020-02544-w doi: 10.1186/s13662-020-02544-w
![]() |
[22] |
A. Jan, R. Jan, H. Khan, M. S. Zobaer, R. Shah, Fractional-order dynamics of Rift Valley fever in ruminant host with vaccination, Commun. Math. Biol. Neurosci., 2020 (2020), 1–32. https://doi.org/10.28919/cmbn/5017 doi: 10.28919/cmbn/5017
![]() |
[23] |
R. Jan, M. A. Khan, P. Kumam, P. Thounthong, Modeling the transmission of dengue infection through fractional derivatives, Chaos, Solitons Fractals, 127 (2019), 189–216. https://doi.org/10.1016/j.chaos.2019.07.002 doi: 10.1016/j.chaos.2019.07.002
![]() |
[24] |
F. Wang, M. N. Khan, I. Ahmad, H. Ahmad, H. Abu-Zinadah, Y. M. Chu, Numerical solution of traveling waves in chemical kinetics: time fractional fishers equations, Fractals, 30 (2022), 22400051, 1–11. https://doi.org/10.1142/S0218348X22400515 doi: 10.1142/S0218348X22400515
![]() |
[25] |
Y. M. Chu, A. Ali, M. A. Khan, S. Islam, S. Ullah, Dynamics of fractional order COVID-19 model with a case study of Saudi Arabia, Results Phys., 21 (2021), 103787. https://doi.org/10.1016/j.rinp.2020.103787 doi: 10.1016/j.rinp.2020.103787
![]() |
[26] |
M. A. Khan, S. Ullah, M. Farhan, The dynamics of Zika virus with Caputo fractional derivative, AIMS Math., 4 (2019), 134–146. https://doi.org/10.3934/Math.2019.1.134 doi: 10.3934/Math.2019.1.134
![]() |
[27] |
A. Atangana, Fractal-fractional differentiation and integtion: connecting fractal calculus and fractional calculus to predict complex system, Chaos, Solitons Fractals, 102 (2017), 396–406. https://doi.org/10.1016/j.chaos.2017.04.027 doi: 10.1016/j.chaos.2017.04.027
![]() |
[28] |
S. Bushnaq, S. A. Khan, K. Shah, G. Zaman, Mathematical analysis of HIV/AIDS infection model with Caputo-Fabrizio fractional derivative, Cogent Math. Stat., 5 (2018), 1432521. https://doi.org/10.1080/23311835.2018.1432521 doi: 10.1080/23311835.2018.1432521
![]() |
[29] |
S. Ahmad, A. Ullah, M. Arfan, K. Shah, On analysis of the fractional mathematical model of rotavirus epidemic with the effects of breastfeeding and vaccination under Atangana Baleanu (AB) derivative, Chaos, Solitons Fractals, 140 (2020), 110233. https://doi.org/10.1016/j.chaos.2020.110233 doi: 10.1016/j.chaos.2020.110233
![]() |
[30] |
P. A. Naik, M. Yavuz, J. Zu, The role of prostitution on HIV transmission with memory: A modeling approach, Alexandria Eng. J., 59 (2020), 2513–2531. https://doi.org/10.1016/j.aej.2020.04.016 doi: 10.1016/j.aej.2020.04.016
![]() |
[31] |
Z. Shah, R. Jan, P. Kumam, W. Deebani, M. Shutaywi, Fractional dynamics of HIV with source term for the supply of new CD4+ T-cells depending on the viral load via Caputo-Fabrizio derivative, Molecules, 26 (2021), 1806. https://doi.org/10.3390/molecules26061806 doi: 10.3390/molecules26061806
![]() |
[32] |
J. Kongson, C. Thaiprayoon, W. Sudsutad, Analysis of a fractional model for HIV CD4+ T-cells with treatment under generalized Caputo fractional derivative, AIMS Math., 6 (2021), 7285–7304. https://doi.org/10.3934/math.2021427 doi: 10.3934/math.2021427
![]() |
[33] |
Fatmawati, M. A. Khan, The dynamics of dengue in fection through fractal-fractional operator with real statistical data, Alexandria Eng. J., 60 (2021), 321–336. https://doi.org/10.1016/j.aej.2020.08.018 doi: 10.1016/j.aej.2020.08.018
![]() |
[34] | P. A. Naik, M. Ghoreishi, J. Zu, Approximate solution of a nonlinear fractional-order HIV model using homotopy analysis method, Int. J. Numer. Anal. Mod., 19 (2022), 52–84. |
[35] |
D. Baleanu, A. Jajarmi, H. Mohammadi, S. Rezapour, A new study on the mathematical modelling of human liver with Caputo-Fabrizio fractional derivative, Chaos Solitons Fractals, 134 (2020), 109705. https://doi.org/10.1016/j.chaos.2020.109705 doi: 10.1016/j.chaos.2020.109705
![]() |
[36] |
E. Uçara, N. Özdemir, A fractional model of cancer-immune system with Caputo and Caputo-Fabrizio derivatives, Eur. Phys. J. Plus, 136 (2021), 1–17. https://doi.org/10.1140/epjp/s13360-020-00966-9 doi: 10.1140/epjp/s13360-020-00966-9
![]() |
[37] |
Z. Ali, F. Rabiei, K. Shah, T. Khodadadi, Fractal-fractional order dynamical behavior of an HIV/AIDS epidemic mathematical model, Eur. Phys. J. Plus, 136 (2021), 1–17. https://doi.org/10.1140/epjp/s13360-020-00994-5 doi: 10.1140/epjp/s13360-020-00994-5
![]() |
[38] | S. Ahmad, A. Ullah, A. Akgül, M. D. L. Sen, Study of HIV disease and its association with immune cells under nonsingular and nonlocal fractal-fractional operator, Alexandria Eng. J., (2021), 1904067. https://doi.org/10.1155/2021/1904067 |
[39] |
P. A. Naik, J. Zu, K. M. Owolabi, Modeling the mechanics of viral kinetics under immune control during primary infection of HIV-1 with treatment in fractional order, Phys. A: Stat. Mech. Appl., 545 (2020), 123816. https://doi.org/10.1016/j.physa.2019.123816 doi: 10.1016/j.physa.2019.123816
![]() |
[40] |
P. A. Naik, K. M. Owolabi, M. Yavuz, J. Zu, Chaotic dynamics of a fractional order HIV-1 model involving AIDS-related cancer cells, Chaos, Solitons Fractals, 140 (2020), 110272. https://doi.org/10.1016/j.chaos.2020.110272 doi: 10.1016/j.chaos.2020.110272
![]() |
[41] |
P. A. Naik, J. Zu, M. Ghoreishi, Estimating the approximate analytical solution of HIV viral dynamic model by using homotopy analysis method, Chaos, Solitons Fractals, 131 (2020), 109500. https://doi.org/10.1016/j.chaos.2019.109500 doi: 10.1016/j.chaos.2019.109500
![]() |
[42] | M. M. El-Dessoky, M. A. Khan, Modeling and analysis of an epidemic model with fractal-fractional Atangana-Baleanu derivative, Alexandria Eng. J., 61 (2022), 729–746. https://doi.org/10.1016/j.aej.2021.04.103 |
[43] | X. Q. Zhao, The theory of basic reproduction ratios, in Dynamical Systems in Population Biology, CMS Books in Mathematics, Springer, Cham, (2017), 285–315. https://doi.org/10.1007/978-3-319-56433-3_11 |
[44] | C. Castillo-Chavez, Z. Feng, W. Huang, On the computation of R0 and its role on global stability, in Mathematical Approaches for Emerging and Reemerging Infectious Diseases: An Introduction, Springer, Berlin, 2002. https://doi.org/10.1007/978-1-4757-3667-0_13 |
[45] |
E. Ahmeda, A. S. Elgazzar, On fractional order differential equations model for nonlocal epidemics, Phys. A: Stat. Mech. Appl., 379 (2007), 607–614. https://doi.org/10.1016/j.physa.2007.01.010 doi: 10.1016/j.physa.2007.01.010
![]() |
[46] |
S. Bourafaa, M. S. Abdelouahaba, A. Moussaoui, On some extended Routh–Hurwitz conditions for fractional-order autonomous systems of order α∈(0,2) and their applications to some population dynamic models, Chaos, Solitons Fractals, 133 (2020), 109623. https://doi.org/10.1016/j.chaos.2020.109623 doi: 10.1016/j.chaos.2020.109623
![]() |
[47] | A. Granas, J. Dugundji, Fixed Point Theory, Springer, New York, 2003. https://doi.org/10.1007/978-0-387-21593-8 |
[48] | D. H. Griffel, Applied Functional Analysis, Ellis Horwood: Chichester, UK, 1981. |
[49] | A. Atangana, S. I. Araz, New Numerical Scheme with Newton Polynomial: Theory, Methods, and Applications, 1st edition, Elsevier, 2021. https://doi.org/10.1016/C2020-0-02711-8 |
[50] |
A. T. Haase, K. Henry, M. Zupancic, G. Sedgewick, R. A. Faust, H. Melroe, et al., Quantitative image analysis of HIV-1 infection in lymphoid tissue, Science, 274 (1996), 985–989. https://doi.org/10.1126/science.274.5289.9 doi: 10.1126/science.274.5289.9
![]() |
[51] |
R. D. Hockett, J. M. Kilby, C. A. Derdeyn, M. S. Saag, M. Sillers, K. Squires, et al., Constant mean viral copy number per infected cell in tissues regardless of high, low, or undetectable plasma HIV RNA, J. Exp. Med., 189 (1999), 1545–1554. https://doi.org/10.1084/jem.189.10.1545 doi: 10.1084/jem.189.10.1545
![]() |
[52] |
P. Essunger, A. S. Perelson, Modeling HIV infection of CD4+ T-cell subpopulations, J. Theor. Biol., 170 (1994), 367–391. https://doi.org/10.1006/jtbi.1994.1199 doi: 10.1006/jtbi.1994.1199
![]() |
[53] |
H. Mohri, S. Bonhoeffer, S. Monard, A. S. Perelson, D. D. Ho, Rapid turnover of T lymphocytes in SIV-infected rhesus macaques, Science, 279 (1998), 1223–1227. https://doi.org/10.1126/science.279.5354.1223 doi: 10.1126/science.279.5354.1223
![]() |
1. | Marisa Kaewsuwan, Rachanee Phuwapathanapun, Weerawat Sudsutad, Jehad Alzabut, Chatthai Thaiprayoon, Jutarat Kongson, Nonlocal Impulsive Fractional Integral Boundary Value Problem for (ρk,ϕk)-Hilfer Fractional Integro-Differential Equations, 2022, 10, 2227-7390, 3874, 10.3390/math10203874 | |
2. | Arunachalam Selvam, Sriramulu Sabarinathan, Beri Venkatachalapathy Senthil Kumar, Haewon Byeon, Kamel Guedri, Sayed M. Eldin, Muhammad Ijaz Khan, Vediyappan Govindan, Ulam-Hyers stability of tuberculosis and COVID-19 co-infection model under Atangana-Baleanu fractal-fractional operator, 2023, 13, 2045-2322, 10.1038/s41598-023-35624-4 | |
3. | Saba Jamil, Muhammad Farman, Ali Akgül, Qualitative and quantitative analysis of a fractal fractional HIV/AIDS model, 2023, 76, 11100168, 167, 10.1016/j.aej.2023.06.021 | |
4. | Tharmalingam Gunasekar, Shanmugam Manikandan, Salma Haque, Murgan Suba, Nabil Mlaiki, Fractal-fractional mathematical modeling of monkeypox disease and analysis of its Ulam–Hyers stability, 2025, 2025, 1687-2770, 10.1186/s13661-025-02013-x | |
5. | Chatthai Thaiprayoon, Jutarat Kongson, Weerawat Sudsutad, Dynamics of a fractal-fractional mathematical model for the management of waste plastic in the ocean with four different numerical approaches, 2025, 10, 2473-6988, 8827, 10.3934/math.2025405 |
Variable | Description |
T(t) | The density of susceptible CD4+ T-cells |
I(t) | The density of infected CD4+ T-cells before reverse transcription (i.e., those infected cells that are in the pre-RT class) |
V(t) | The density of infected CD4+ T-cells in which reverse transcription has been completed (post-RT class) and are thus capable of producing virus |
L(t) | The virus density |
Parameter | Description |
λ | The inflow rate of CD4+ T-cells |
μ | The natural rate of CD4+ T-cells |
k | The interaction-infection rate of CD4+ T-cells (here, infection means the attachment and fusion of the virus to a cell) |
η | The efficacy of the RTI |
σ | The death rate of infected cells |
ξ | The transition rate from pre-RT infected CD4+ T-cells class to productively infected class (post-RT) |
b | The reverting rate of infected cells to the uninfected class due to non-completion of reverse transcription |
δ | The death rate of actively infected cells, which includes the possibility of death by the bursting of infected T-cells |
c | The clearance rate of virus |
N | The total number of viral particles produced by an infected cell |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial | 938.6916 | 275.2107 | 288.7890 | 288.7875 | 289.5849 | 289.7662 |
Adams-Bashforth | 912.5990 | 282.8655 | 286.6146 | 289.5646 | 289.4987 | 289.8788 |
Predictor-corrector | 929.7821 | 276.2814 | 288.4990 | 288.8699 | 289.5681 | 289.7720 |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial | 101.0045 | 34.1573 | 45.1725 | 41.7537 | 41.9218 | 41.5712 |
Adams-Bashforth | 122.3127 | 34.5061 | 44.6850 | 41.7749 | 41.8191 | 41.5188 |
Predictor-corrector | 109.6054 | 33.9682 | 45.2524 | 41.7283 | 41.9280 | 41.5682 |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial | 65.8090 | 21.9418 | 27.9168 | 25.8263 | 25.8736 | 25.6452 |
Adams-Bashforth | 66.0844 | 21.7740 | 27.7478 | 25.7936 | 25.8142 | 25.6058 |
Predictor-corrector | 64.5360 | 21.7688 | 27.9824 | 25.8063 | 25.8782 | 25.6431 |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial ×103 | 5.7237 | 2.3852 | 3.0239 | 2.7982 | 2.8029 | 2.7782 |
Adams-Bashforth ×103 | 6.2425 | 2.3626 | 3.0072 | 2.7942 | 2.7966 | 2.7739 |
Predictor-corrector ×103 | 6.3114 | 2.3658 | 3.0312 | 2.7960 | 2.8034 | 2.7780 |
Variable | Description |
T(t) | The density of susceptible CD4+ T-cells |
I(t) | The density of infected CD4+ T-cells before reverse transcription (i.e., those infected cells that are in the pre-RT class) |
V(t) | The density of infected CD4+ T-cells in which reverse transcription has been completed (post-RT class) and are thus capable of producing virus |
L(t) | The virus density |
Parameter | Description |
λ | The inflow rate of CD4+ T-cells |
μ | The natural rate of CD4+ T-cells |
k | The interaction-infection rate of CD4+ T-cells (here, infection means the attachment and fusion of the virus to a cell) |
η | The efficacy of the RTI |
σ | The death rate of infected cells |
ξ | The transition rate from pre-RT infected CD4+ T-cells class to productively infected class (post-RT) |
b | The reverting rate of infected cells to the uninfected class due to non-completion of reverse transcription |
δ | The death rate of actively infected cells, which includes the possibility of death by the bursting of infected T-cells |
c | The clearance rate of virus |
N | The total number of viral particles produced by an infected cell |
Parameter | Value | Unit | Source |
λ | 10 | mm−3day−1 | [19] |
k | 0.000024 | mm3day−1 | [19] |
δ | 0.26 | day−1 | [19] |
c | 2.4 | day−1 | [19] |
σ | 0.015 | day−1 | [50,51] |
N | 1000 | dimensionless | [50,51] |
ξ | 0.4 | day−1 | [52] |
b | 0.05 | day−1 | [52] |
η | 0.6 | dimensionless | [52] |
μ | 0.01 | day−1 | [53] |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial | 938.6916 | 275.2107 | 288.7890 | 288.7875 | 289.5849 | 289.7662 |
Adams-Bashforth | 912.5990 | 282.8655 | 286.6146 | 289.5646 | 289.4987 | 289.8788 |
Predictor-corrector | 929.7821 | 276.2814 | 288.4990 | 288.8699 | 289.5681 | 289.7720 |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial | 101.0045 | 34.1573 | 45.1725 | 41.7537 | 41.9218 | 41.5712 |
Adams-Bashforth | 122.3127 | 34.5061 | 44.6850 | 41.7749 | 41.8191 | 41.5188 |
Predictor-corrector | 109.6054 | 33.9682 | 45.2524 | 41.7283 | 41.9280 | 41.5682 |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial | 65.8090 | 21.9418 | 27.9168 | 25.8263 | 25.8736 | 25.6452 |
Adams-Bashforth | 66.0844 | 21.7740 | 27.7478 | 25.7936 | 25.8142 | 25.6058 |
Predictor-corrector | 64.5360 | 21.7688 | 27.9824 | 25.8063 | 25.8782 | 25.6431 |
Method (day) | 1 | 100 | 200 | 300 | 400 | 500 |
Newton polynomial ×103 | 5.7237 | 2.3852 | 3.0239 | 2.7982 | 2.8029 | 2.7782 |
Adams-Bashforth ×103 | 6.2425 | 2.3626 | 3.0072 | 2.7942 | 2.7966 | 2.7739 |
Predictor-corrector ×103 | 6.3114 | 2.3658 | 3.0312 | 2.7960 | 2.8034 | 2.7780 |
