Investigation of thermal fatigue behavior of aluminum 4032 alloy under cyclic thermal loading: An experimental study

Muhammad Arslan; Muhammad Zubair Farrukh; Zaheer Uddin Kamran; Ahmed Usman Yasir; Muhammad Arslan; Muhammad Zubair Farrukh; Zaheer Uddin Kamran; Ahmed Usman Yasir

doi:10.3934/matersci.2026019

AIMS Materials Science

2026, Volume 13, Issue 2: 368-390. doi: 10.3934/matersci.2026019

Previous Article Next Article

Research article

Investigation of thermal fatigue behavior of aluminum 4032 alloy under cyclic thermal loading: An experimental study

1.
Department of Mechanical Engineering, Faculty of Mechanical and Aeronautical Engineering, University of Engineering and Technology (UET), Taxila, 47080, Pakistan
2.
Mechanical and Nuclear Engineering Department, Tennessee Technological University, Cookeville, TN, 38505, USA
3.
Department of Mechanical and Materials Engineering, University of Alabama at Birmingham, Birmingham, Alabama, 35294, USA

Received: 31 December 2025 Revised: 07 April 2026 Accepted: 23 April 2026 Published: 08 May 2026

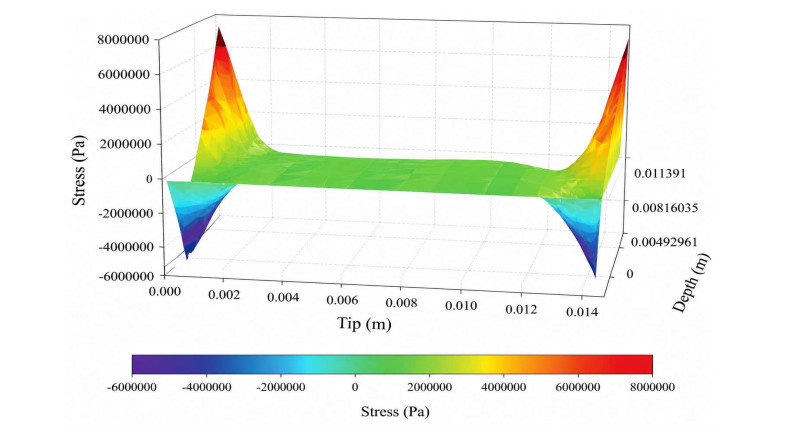

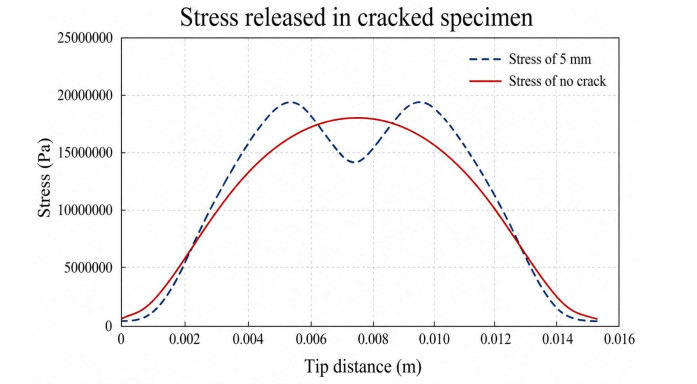

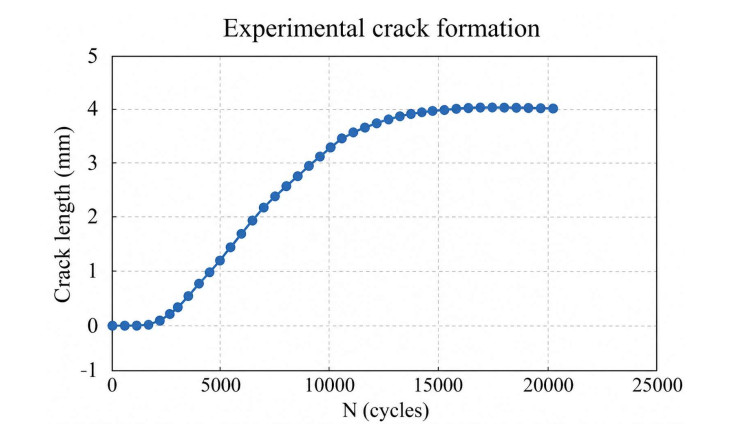

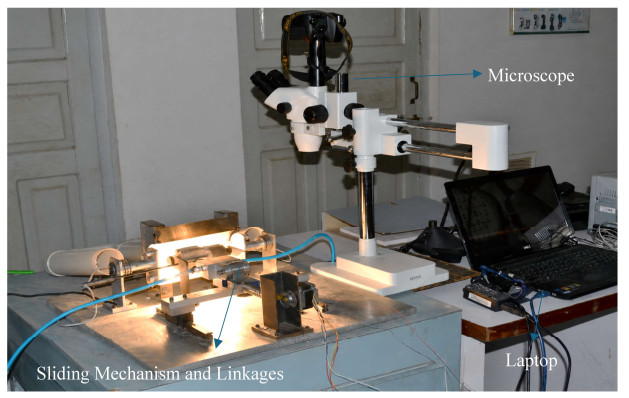

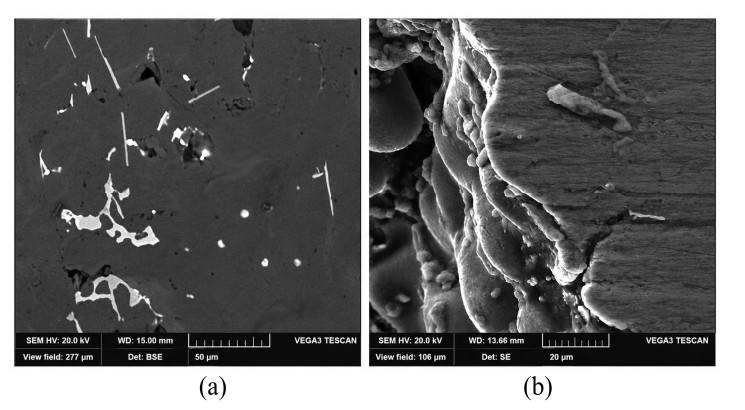

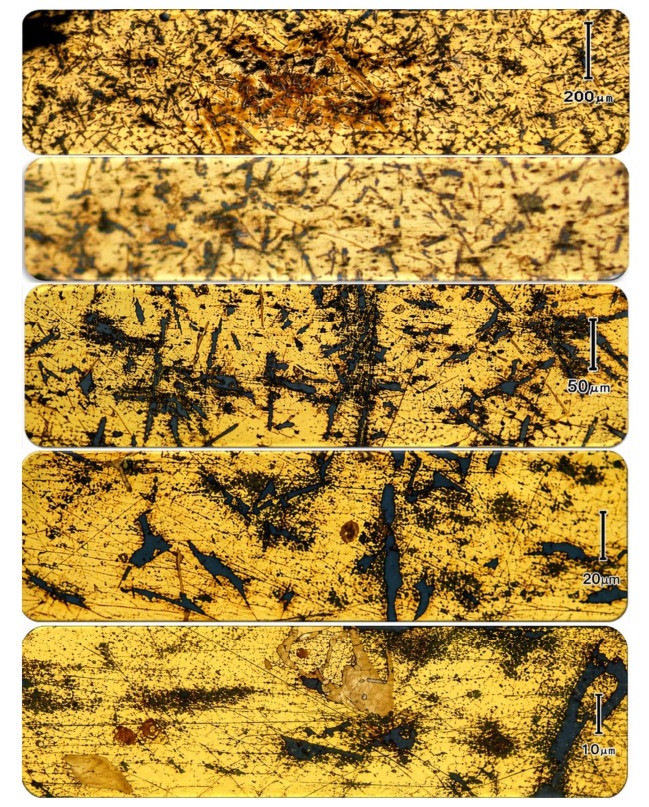

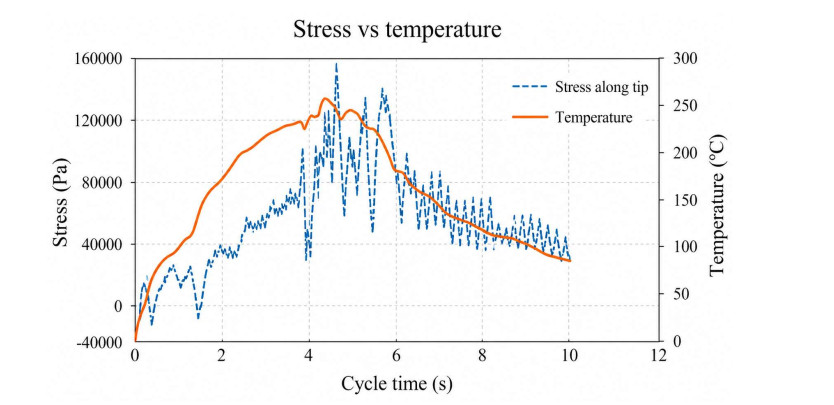

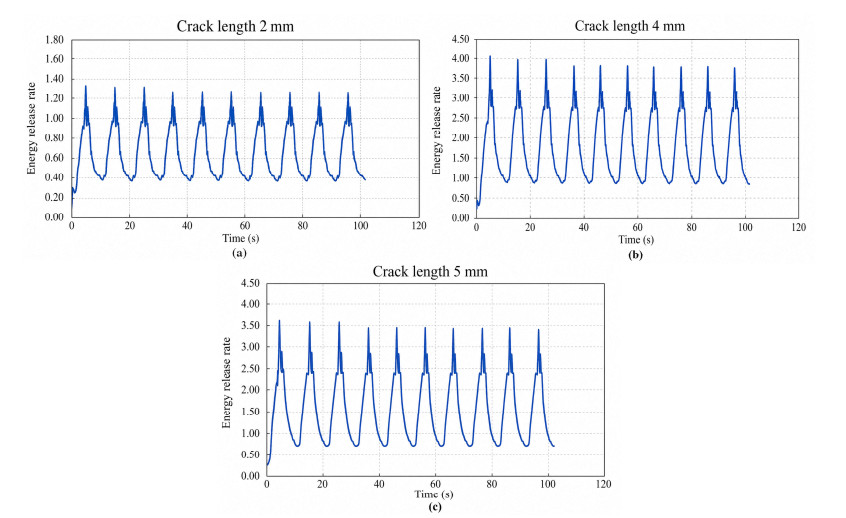

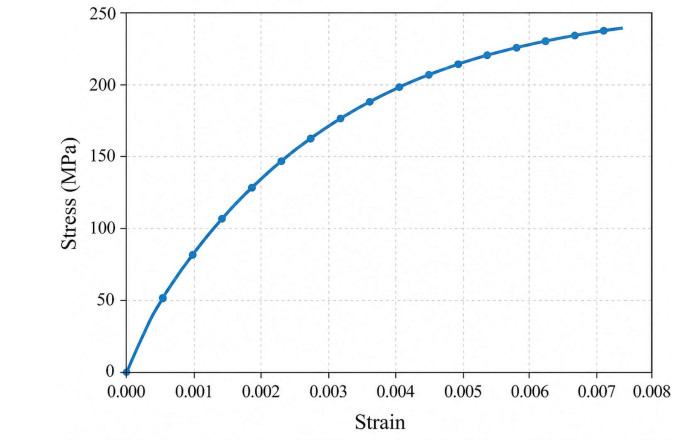

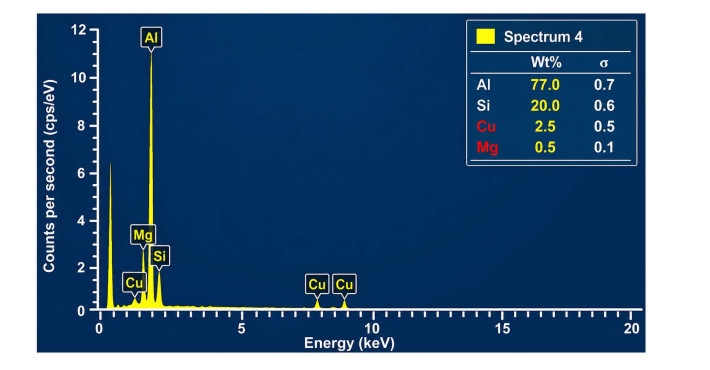

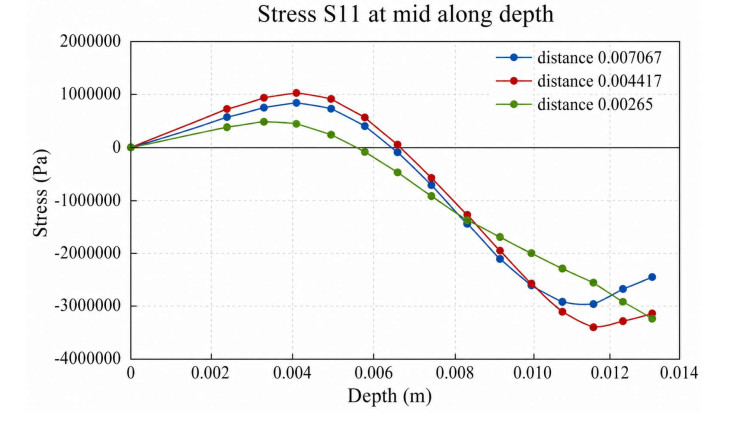

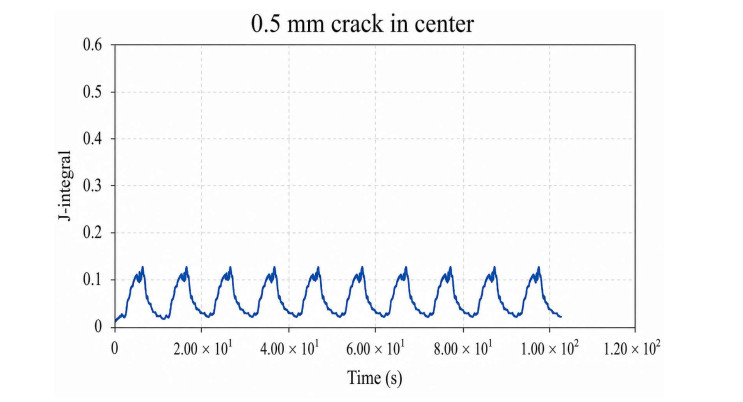

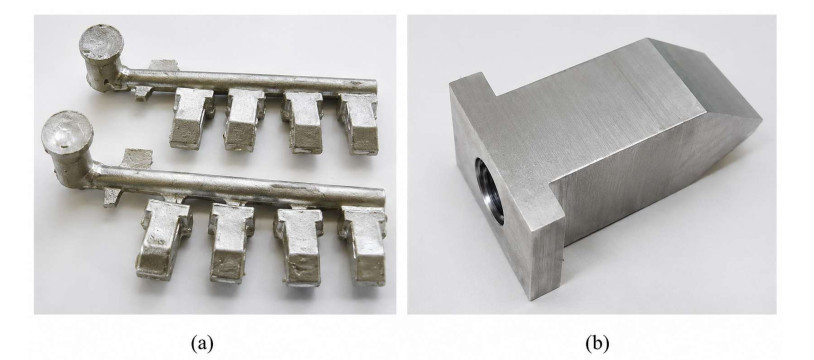

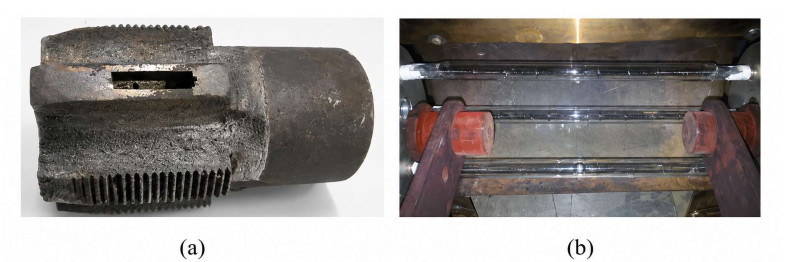

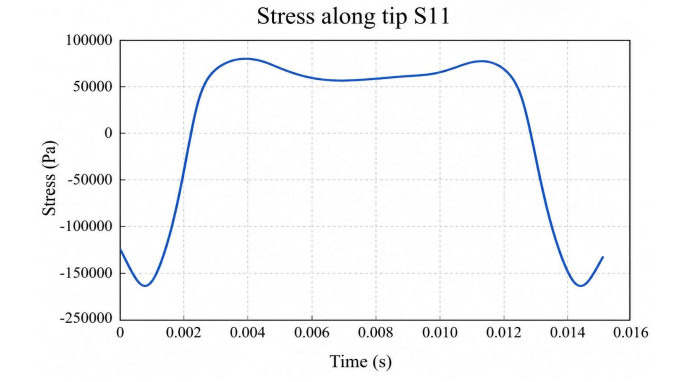

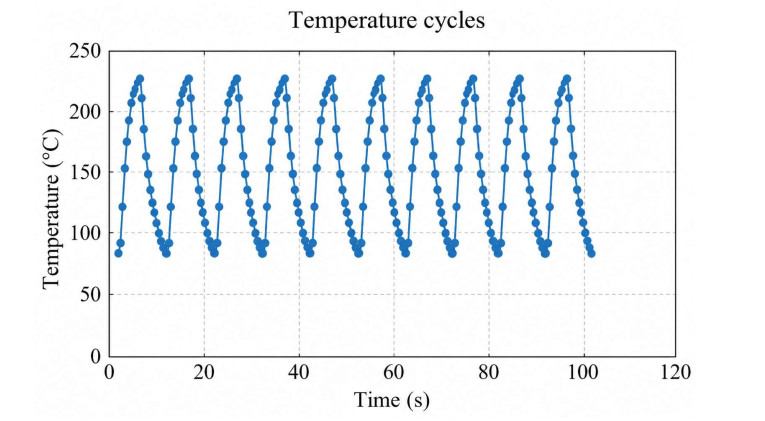

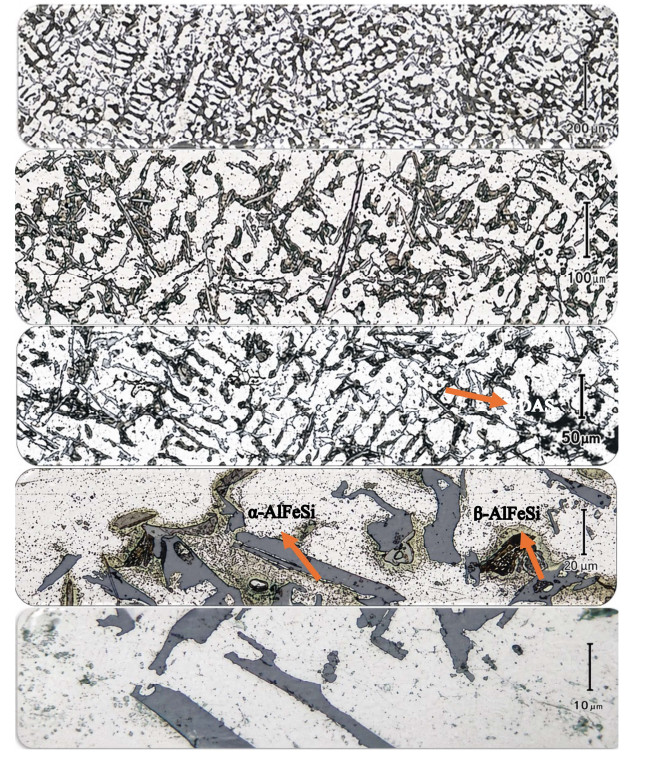

Thermal fatigue is a dominant failure mechanism in aluminum piston alloys exposed to repeated heating and cooling in internal combustion engines. In this study, the thermal fatigue behavior of cast aluminum 4032 alloy (Al4032) was investigated using a custom-built test rig that combines external electrical heating with internal water cooling to generate severe cyclic thermal gradients in wedge-shaped specimens. The specimen-tip temperature was cycled between 75 and 270 ℃ with 10 s heating and 10 s cooling per cycle, and crack initiation and growth were monitored by optical microscopy. Thermal fatigue started cracking at approximately 3000 cycles, predominantly near the internally cooled region where the thermal gradient and associated stresses are highest. After initiation, crack length increased rapidly during intermediate cycles and then stabilized, with crack growth approaching saturation at approximately 15, 000 cycles under the tested conditions. These results demonstrate that gradient-driven cyclic thermal stresses govern crack nucleation sites and subsequent propagation behavior in Al4032 and provide service-representative experimental evidence relevant to piston regions influenced by internal cooling.
- thermal fatigue,
- aluminum 4032,
- thermal stresses,
- crack initiation,
- crack propagation,
- crack saturation
Citation: Muhammad Arslan, Muhammad Zubair Farrukh, Zaheer Uddin Kamran, Ahmed Usman Yasir. Investigation of thermal fatigue behavior of aluminum 4032 alloy under cyclic thermal loading: An experimental study[J]. AIMS Materials Science, 2026, 13(2): 368-390. doi: 10.3934/matersci.2026019

Related Papers:

Abstract

Thermal fatigue is a dominant failure mechanism in aluminum piston alloys exposed to repeated heating and cooling in internal combustion engines. In this study, the thermal fatigue behavior of cast aluminum 4032 alloy (Al4032) was investigated using a custom-built test rig that combines external electrical heating with internal water cooling to generate severe cyclic thermal gradients in wedge-shaped specimens. The specimen-tip temperature was cycled between 75 and 270 ℃ with 10 s heating and 10 s cooling per cycle, and crack initiation and growth were monitored by optical microscopy. Thermal fatigue started cracking at approximately 3000 cycles, predominantly near the internally cooled region where the thermal gradient and associated stresses are highest. After initiation, crack length increased rapidly during intermediate cycles and then stabilized, with crack growth approaching saturation at approximately 15, 000 cycles under the tested conditions. These results demonstrate that gradient-driven cyclic thermal stresses govern crack nucleation sites and subsequent propagation behavior in Al4032 and provide service-representative experimental evidence relevant to piston regions influenced by internal cooling.

References

[1]	Li T, Lu Q, Wang S, et al. (2025) Investigation on thermal fatigue properties of a grid-structured CoCrNi-Fe/Ni dissimilar coating fabricated by laser cladding. Mater Today Commun 49: 113979. https://doi.org/10.1016/j.mtcomm.2025.113979 doi: 10.1016/j.mtcomm.2025.113979
[2]	Li CD, Yang HY, Dong BX, et al. (2025) Thermal fatigue failure mechanisms and enhancement strategies of die steel. J Mater Res Technol 38: 4567-4599. https://doi.org/10.1016/j.jmrt.2025.08.198 doi: 10.1016/j.jmrt.2025.08.198
[3]	Liu X, Huang K, Zhou J, et al. (2025) Temperature effects on fatigue properties of plain-woven composites by an acoustic-optical-thermal multi-information fusion method. Int J Fatigue 193: 108757. https://doi.org/10.1016/j.ijfatigue.2024.108757 doi: 10.1016/j.ijfatigue.2024.108757
[4]	Gao Z, Cheng T, Zhang N, et al. (2025) Thermal-mechanical coupling simulation and experimental study of ultrasound-assisted laser cladding of Ni60 coating. J Alloys Compd 1024: 180270. https://doi.org/10.1016/j.jallcom.2025.180270 doi: 10.1016/j.jallcom.2025.180270
[5]	Patarić A, Djurdjevic M, Manasijevic S, et al. (2025) The role of silicon during solidification process of cast Al-Si-Mg alloys. Materials 18: 5033. https://doi.org/10.3390/ma18215033 doi: 10.3390/ma18215033
[6]	Camargo OAB, Padilha GS, Pinto FC, et al. (2025) Synergistic effects of minor Be and Zr contents on microstructural and mechanical properties of A356 cast alloy. Int J Metalcast 19: 1676-1689. https://doi.org/10.1007/s40962-024-01416-3 doi: 10.1007/s40962-024-01416-3
[7]	Cheng X, Xiong B, Yu M, et al. (2025) Effect of grain characteristics on stress corrosion resistance of a novel Al-Mg-Zn-Si alloy with high Mg content. Mater Today Commun 46: 112413. https://doi.org/10.1016/j.mtcomm.2025.112413 doi: 10.1016/j.mtcomm.2025.112413
[8]	Yan L, Xu H (2025) Lightweight composite materials in automotive engineering: State-of-the-art and future trends. Alex Eng J 118: 1-10. https://doi.org/10.1016/j.aej.2024.12.002 doi: 10.1016/j.aej.2024.12.002
[9]	Vishnu SK, Rajeev VR (2024) Microstructure, hardness, and wear characteristics of eutectic and hyper eutectic Al-Si-Cu-Ni piston alloys, In: Singh S, Singh I, Advances in Materials and Manufacturing. ICDMT 2024. Lecture Notes in Mechanical Engineering, Singapore: Springer. https://doi.org/10.1007/978-981-96-7659-0_19
[10]	Tommy SD, Onah TO, Aneke AC (2025) Ageing on mechanical and microstructural properties of aluminum-silicon metal matrix composites: A review. World J Adv Res Rev 27: 535-547. https://doi.org/10.30574/wjarr.2025.27.1.2507 doi: 10.30574/wjarr.2025.27.1.2507
[11]	Ozbek YY, Yeşil F (2025) Fatigue behavior of aluminum alloys produced by high-pressure die casting method. Inter Metalcast. https://doi.org/10.1007/s40962-025-01700-w
[12]	Hu P, Pan L, Chen XG (2024) Elevated-temperature performances of Al-Si-Cu casting alloys for cylinder head applications. Mater Charact 218: 114484. https://doi.org/10.1016/j.matchar.2024.114484 doi: 10.1016/j.matchar.2024.114484
[13]	Ziadoon AH, Al-Khazraji AN, Shandookh AA (2025) Investigation of creep behaviour of metal functionally graded materials. AIP Conf Proc 3350: 050020. https://doi.org/10.1063/5.0297420 doi: 10.1063/5.0297420
[14]	Angeloni M, Ruchert COTR, Bose Filho WW, et al. (2025) Fatigue life assessment of A356 aluminium alloy used for engine cylinder head. J Braz Soc Mech Sci Eng 47: 175. https://doi.org/10.1007/s40430-025-05487-z doi: 10.1007/s40430-025-05487-z
[15]	Zhang C, Liao W, Shan Z, et al. (2024) Squeeze casting of 4032 aluminum alloy and the synergetic enhancement of strength and ductility via Al-Ti-Nb-B grain refiner. Mater Sci Eng A 896: 146233. https://doi.org/10.1016/j.msea.2024.146233 doi: 10.1016/j.msea.2024.146233
[16]	Tian H, Ma DM, Zhao X, et al. (2025) Effect of double deformation extrusion on the microstructure and properties of 4032 aluminum alloy. Mater Today Commun 42: 111396. https://doi.org/10.1016/j.mtcomm.2024.111396 doi: 10.1016/j.mtcomm.2024.111396
[17]	Baharudin A, Purwanto W, Setiawan MY, et al. (2025) Coupled thermo-structural simulation of Al2618, Al4032, and Al6061 pistons in a single-cylinder diesel engine. MOTIVECTION J Mech Electr Ind Eng 7: 229-244. https://doi.org/10.46574/motivection.v7i2.471 doi: 10.46574/motivection.v7i2.471
[18]	Ghoujehzadeh A, Mohtadi-Bonab MA, Jahani D (2025) Optimization and finite element analysis of an aluminum piston in the Peugeot XU7JPL3 engine for enhanced efficiency and durability. Discov Mech Eng 4: 6. https://doi.org/10.1007/s44245-025-00091-w doi: 10.1007/s44245-025-00091-w
[19]	Kumar NS, Pramod GK, Samrat P, et al. (2022) A critical review on heat treatment of aluminum alloys. Mater Today Proc 58: 71-79. https://doi.org/10.1016/j.matpr.2021.12.586 doi: 10.1016/j.matpr.2021.12.586
[20]	Singh AB, Singh S, Dangayach GS, et al. (2023) Fatigue behavior analysis of EN8 steel subjected to various heat treatments created for shaft. Mater Today Proc. https://doi.org/10.1016/j.matpr.2023.02.165
[21]	Azadi M, Shirazabad MM (2013) Heat treatment effects on thermo-mechanical fatigue and low cycle fatigue behaviors of A356.0 aluminum. Mater Des 45: 279-285. https://doi.org/10.1016/j.matdes.2012.08.066
[22]	Ilman MN (2014) Chromate inhibition of environmentally assisted fatigue crack propagation of aluminum alloy AA2024-T3 in 3.5% NaCl solution. Int J Fatigue 62: 228-235. https://doi.org/10.1016/j.ijfatigue.2013.03.008
[23]	May A, Belouchrani MA, Taharboucht S, et al. (2010) Influence of heat treatment on the fatigue behavior of two aluminum alloys 2024 and 2024 plated. Procedia Eng 2: 1795-1804. https://doi.org/10.1016/j.proeng.2010.03.193 doi: 10.1016/j.proeng.2010.03.193
[24]	Paffumi E, Nilsson KF, Szaraz Z (2015) Experimental and numerical assessment of thermal fatigue in 316 austenitic steel pipes. Eng Fail Anal 47: 312-327. https://doi.org/10.1016/j.engfailanal.2014.01.010 doi: 10.1016/j.engfailanal.2014.01.010
[25]	Mellouli D, Haddar N, Koster A, et al. (2014) Hardness effect on thermal fatigue damage of hot-working tool steel. Eng Fail Anal 45: 85-95. https://doi.org/10.1016/j.engfailanal.2014.06.007 doi: 10.1016/j.engfailanal.2014.06.007
[26]	Zhang Q, Zuo Z, Liu J (2014) Stepped-isothermal fatigue analysis of engine piston. Fatigue Fract Eng Mater Struct 37: 417-426. https://doi.org/10.1111/ffe.12125 doi: 10.1111/ffe.12125
[27]	Arabacı U, Karacif K, Albayrak S, et al. (2025) Effect of heat treatment on corrosion and wear properties of powder metal AZ91 magnesium alloy. Mater Test 67: 1924-1937. https://doi.org/10.1515/mt-2025-0208 doi: 10.1515/mt-2025-0208
[28]	Park CW (2013) The development of aluminum alloy piston for two-stroke cycle engines by powder forging. J Korean Soc Manuf Technol Eng 22: 173-177. https://doi.org/10.7735/ksmte.2013.22.1.173 doi: 10.7735/ksmte.2013.22.1.173
[29]	Alshoaibi AM, Fageehi YA (2024) Advances in finite element modeling of fatigue crack propagation. Appl Sci 14: 9297. https://doi.org/10.3390/app14209297 doi: 10.3390/app14209297
[30]	Bhattachar VS (1995) Thermal fatigue behaviour of nickel-base superalloy 263 sheets. Int J Fatigue 17: 407-413. https://doi.org/10.1016/0142-1123(95)00006-F doi: 10.1016/0142-1123(95)00006-F
[31]	Amiable S, Chapuliot S, Constantinescu A, et al. (2006) A computational lifetime prediction of a thermal shock experiment. Part I: Thermomechanical modelling and lifetime prediction. Fatigue Fract Eng Mater Struct 29: 175-182. https://doi.org/10.1111/j.1460-2695.2006.0976.x doi: 10.1111/j.1460-2695.2006.0976.x
[32]	Szmytka F, Salem M, Rezai-Aria F, et al. (2015) Thermal fatigue analysis of automotive diesel piston: Experimental procedure and numerical protocol. Int J Fatigue 73: 48-57. https://doi.org/10.1016/j.ijfatigue.2014.11.011 doi: 10.1016/j.ijfatigue.2014.11.011
[33]	Edalat Nobarzad AK (2017) Influence of microstructure on susceptibility to weld defects in two high strength low alloy steels. Doctoral dissertation, Ecole de Technologie Supérieure.
[34]	Girisha VA, Joshi MM, Kirthan LJ, et al. (2019) Thermal fatigue analysis of H13 steel die adopted in pressure-die-casting process. Sādhanā 44: 148. https://doi.org/10.1007/s12046-019-1111-3 doi: 10.1007/s12046-019-1111-3
[35]	Hormozi R, Biglari F, Nikbin K (2015) Experimental study of type 316 stainless steel failure under LCF/TMF loading conditions. Int J Fatigue 75: 153-169. https://doi.org/10.1016/j.ijfatigue.2015.02.014 doi: 10.1016/j.ijfatigue.2015.02.014
[36]	Karl J (2013) Thermomechanical fatigue life prediction of notched 304 stainless steel. Master's thesis, University of Central Florida. Available from: https://stars.library.ucf.edu/etd/2645.

Reader Comments

Your name:*

Email:*
© 2026 the Author(s), licensee AIMS Press. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0)
