Modeling cholera dynamics at multiple scales: environmental evolution, between-host transmission, and within-host interaction

  • Cholera is an acute intestinal illness caused by infection with the bacterium Vibrio cholerae. The dynamics of the disease transmission are governed by human-human, environmenthuman, and within-human sub-dynamics. A multi-scale model is presented to incorporate all three of these dynamical components. The model is divided into three subsystems where the dynamics are analyzed according to their respective time scales. For each subsystem, we conduct a careful equilibrium analysis, with a focus on the disease threshold characterized by the basic reproduction number. Finally, the three subsystems are combined to discuss the dynamical properties of the full system.

    Citation: Conrad Ratchford, Jin Wang. Modeling cholera dynamics at multiple scales: environmental evolution, between-host transmission, and within-host interaction[J]. Mathematical Biosciences and Engineering, 2019, 16(2): 782-812. doi: 10.3934/mbe.2019037

    Related Papers:

    [1] Conrad Ratchford, Jin Wang . Multi-scale modeling of cholera dynamics in a spatially heterogeneous environment. Mathematical Biosciences and Engineering, 2020, 17(2): 948-974. doi: 10.3934/mbe.2020051
    [2] Beryl Musundi . An immuno-epidemiological model linking between-host and within-host dynamics of cholera. Mathematical Biosciences and Engineering, 2023, 20(9): 16015-16032. doi: 10.3934/mbe.2023714
    [3] Chenwei Song, Rui Xu, Ning Bai, Xiaohong Tian, Jiazhe Lin . Global dynamics and optimal control of a cholera transmission model with vaccination strategy and multiple pathways. Mathematical Biosciences and Engineering, 2020, 17(4): 4210-4224. doi: 10.3934/mbe.2020233
    [4] Kazuo Yamazaki, Xueying Wang . Global stability and uniform persistence of the reaction-convection-diffusion cholera epidemic model. Mathematical Biosciences and Engineering, 2017, 14(2): 559-579. doi: 10.3934/mbe.2017033
    [5] Fred Brauer, Zhisheng Shuai, P. van den Driessche . Dynamics of an age-of-infection cholera model. Mathematical Biosciences and Engineering, 2013, 10(5&6): 1335-1349. doi: 10.3934/mbe.2013.10.1335
    [6] Yuyi Xue, Yanni Xiao . Analysis of a multiscale HIV-1 model coupling within-host viral dynamics and between-host transmission dynamics. Mathematical Biosciences and Engineering, 2020, 17(6): 6720-6736. doi: 10.3934/mbe.2020350
    [7] Chayu Yang, Jin Wang . A cholera transmission model incorporating the impact of medical resources. Mathematical Biosciences and Engineering, 2019, 16(5): 5226-5246. doi: 10.3934/mbe.2019261
    [8] Jiazhe Lin, Rui Xu, Xiaohong Tian . Transmission dynamics of cholera with hyperinfectious and hypoinfectious vibrios: mathematical modelling and control strategies. Mathematical Biosciences and Engineering, 2019, 16(5): 4339-4358. doi: 10.3934/mbe.2019216
    [9] Jinliang Wang, Ran Zhang, Toshikazu Kuniya . A note on dynamics of an age-of-infection cholera model. Mathematical Biosciences and Engineering, 2016, 13(1): 227-247. doi: 10.3934/mbe.2016.13.227
    [10] Jianxin Yang, Zhipeng Qiu, Xue-Zhi Li . Global stability of an age-structured cholera model. Mathematical Biosciences and Engineering, 2014, 11(3): 641-665. doi: 10.3934/mbe.2014.11.641
  • Cholera is an acute intestinal illness caused by infection with the bacterium Vibrio cholerae. The dynamics of the disease transmission are governed by human-human, environmenthuman, and within-human sub-dynamics. A multi-scale model is presented to incorporate all three of these dynamical components. The model is divided into three subsystems where the dynamics are analyzed according to their respective time scales. For each subsystem, we conduct a careful equilibrium analysis, with a focus on the disease threshold characterized by the basic reproduction number. Finally, the three subsystems are combined to discuss the dynamical properties of the full system.


    Infectious diseases continue devastating populations in developing countries, with a large number of morbidity and mortality reported each year. Mathematical modeling has long been providing useful insight into the transmission and spread of diseases and the design of effective control strategies [10]. Traditional mathematical epidemic models are focused on population-level dynamics, using well established differential equation and dynamical system theory to study the persistence and extinction of an infection. In recent years, more studies have been devoted to the understanding of pathogen evolution and interaction within a human body, which constitutes an important step in the development of a disease outbreak. Meanwhile, there has been increasing interest in multi-scale epidemic modeling and in linking the between-host transmission and within-host immunological dynamics [3,12].

    The present paper is concerned with multi-scale modeling of cholera, a severe waterborne infection caused by the bacterium Vibrio cholerae. The infection dynamics of cholera involve environmental ecology, population epidemiology, microbiology, and immunopathology that span several distinct time scales (with the range from a few hours to several years). The primary source of cholera infection is contaminated water and food. Meanwhile, the disease can be transmitted from the direct, human-to-human route; e.g., through shaking hands with infected people, or eating food prepared by infected individuals with dirty hands. In general, the disease can spread rapidly in areas lacking sufficient sanitation and hygiene. Populations with limited medical resources especially suffer from cholera. A significant example is the recent cholera outbreak in Yemen, a country that has been plagued by two years of heavy conflicts and wars that led to a severe shortage of medical supplies and health professionals. As of April 8, 2018, more than 1,088,000 cases in Yemen were reported by WHO [31], making it the worst cholera outbreak in modern history.

    There have been many mathematical models proposed for cholera dynamics [1,4,9,13,17,18,22,23,26,27,28]. Most of these studies are concerned with the population level between-host transmission, as is the case for mathematical modeling of many other types of infectious diseases. On the other hand, cholera infection involves complicated within-host dynamics that are distinct from other infectious diseases such as vector-borne or directly transmitted diseases. In a Science article [25], the authors found that a virus, named cholera toxin phage (CTXϕ), played a critical role in the pathogenesis of the vibrios. The virus, through injecting its DNA to the vibrio cells, causes a horizontal gene transfer of the bacteria that results in an infectivity hundreds of times higher than the vibrios ingested from the environment. Human cholera, with the major symptom of severe diarrhea, is a direct consequence of these highly infective vibrios. At the same time, the host immune system is inevitably involved in the interaction with the bacteria and viruses that shape the within-host development of cholera. Through shedding, the highly infective vibrios get out of the human body and remain active for a period of several hours, during which time these vibrios may significantly impact the human-to-human transmission of the disease. For example, a person who is infected with cholera and who does not pay attention to basic hygiene and sanitation, may use dirty hands to prepare food for, or shake hands with, other people, so that the infection risk of those people who are in direct contact with this person would be significantly increased. Hence, the within-host dynamics of cholera is not only essential in the development of the infectivity/toxicity for the pathogen, but also impacts the between-host transmission.

    A mathematical model that links the between-host and within-host dynamics of cholera was recently proposed in [29], where the model consists of two time scales: the fast scale for the pathogen dynamics inside the human body, and the slow scale for the disease transmission among hosts and the environmental evolution of the vibrios. The within-host dynamics in this work, however, take a very simple form, represented by a single differential equations describing the increased toxicity (or, infectivity) of the pathogen inside the human body. In another recent study [30], the within-host dynamics of cholera is investigated in more detail, where the vibrios ingested from the environment (with lower infectivity) and those transformed inside the human body (with higher infectivity) are distinguished, and their interaction with the virus (CTXϕ) is taken into account. The model, however, does not involve host immune responses, and the between-host transmission is not considered.

    Based on the prior studies in [29,30], we aim to perform a deeper investigation of the multi-scale cholera dynamics in this work. To that end, we will emphasize the nontrivial within-host dynamics by describing the interaction among different stages of the pathogen, the virus, and the host immune response. We will also emphasize the three different scales involved in the development of cholera infection: the environmental bacterial evolution could last for years, designated as the slow scale in this process; in contrast, the within-host interaction typically ranges from several hours to a few days, and that is referred to as the fast scale. Meanwhile, the disease transmission and spread among human hosts usually take place from weeks to months, regarded as the intermediate scale in this study. We will particularly distinguish the environmental dynamics and the between-host disease transmission at two different time scales in order to better reflect the reality.

    We organize the remainder of this paper as follows. In Section 2, we describe our cholera model based on differential equations that spans three time scales. In Section 3, we conduct an analysis using separation of scales so that the sub-model at each of the three time scales is decoupled from each other. We also consider the case where the environmental bacterial dynamics and the between-host disease transmission are agammaegated into one time scale, and conduct an analysis on this combined sub-model which is still decoupled from the fast-scale dynamics. In Section 4, we combine all the sub-models together by linking the three time scales, and present both analytical and numerical results. Finally, we conclude the paper with some discussion in Section 5.

    We first describe the between-host transmission dynamics of cholera using the following system of differential equations:

    dSdt=μNβHSIβLSBμS,dIdt=βHSI+βLSB(γ+μ)I,dRdt=γIμR, (2.1)

    where S, I, and R represent the number of susceptible, infected, and recovered individuals, respectively, and B represents the concentration of the bacteria Vibrio cholerae in the contaminated water supply. We assume that the natural birth and death rates for the human hosts are the same, denoted by μ. The size of the host population S+I+R is a constant and denoted by N. An individual contracts cholera either through direct (i.e., human-to-human) transmission at the rate βH, or through indirect (i.e., environment-to-human) transmission at the rate βL. In addition, an infected individual recovers at the rate γ.

    The vibrios from the environment, when ingested by a human host, go through complex biological and genomic interactions with the virus CTXϕ in the small intestine. As a result, the environmental vibrios are transformed into highly toxic and infectious vibrios (with infectivity increased up to 700-fold [7,15]), which we refer to as the human vibrios. Meanwhile, the host immune system responds to the invasion by trying to eliminate the pathogenic vibrios and viruses so as to protect the human body. Hence, our within-host model for an average infected individual takes the form

    dZdt=c1BVd1MZζZ,dVdt=c2BVd2MVτV,dMdt=e1MZ+e2MVpM, (2.2)

    where Z, V, and M represent the concentrations of human vibrios, viruses (i.e., CTXϕ), and host immune cells, respectively. Since the generation of new human vibrios and the replication and multiplication of new viruses depend on the numbers of both the (ingested) environmental vibrios and the viruses, we have employed a simple bilinear form, BV, to represent the bacterial-viral interaction [2,19]. The parameters c1 and c2 denote the generation rates, and d1 and d2 denote the immune killing rates, for human vibrios and viruses respectively; ζ is the removal rate of human vibrios (due to natural death or shedding), τ is the removal rate of viruses, and p is the removal rate of the immune cells; e1 and e2 represent the immune stimulation rates from the human vibrios and viruses, respectively.

    Individuals infected with cholera typically develop severe diarrhea, through which the human vibrios are shed into the environment. Once leaving the host body, the human vibrios lose their hyper infectivity in a few hours [9,15] and become part of the environmental vibrios, thus contributing to the growth of the vibrios in the environment. Hence, The between-host and within-host dynamics are connected through the environmental evolution of the vibrios:

    dBdt=ξ(Z)IδB, (2.3)

    where ξ(Z) is the host shedding rate that depends on the human vibrios, and δ is the natural death rate of the vibrios in the environment.

    In summary, our cholera modeling system is subdivided into three smaller systems, represented by Equations (2.1), (2.2) and (2.3), respectively, at three different time scales. The within-host dynamics in system (2.2) typically range from several hours to a few days, referred to as the fast scale in our framework. In contrast, the environmental evolution in system (2.3) normally take place in years and decades, referred to as the slow scale in our framework. Meanwhile, the transmission and spread of cholera among humans (i.e., between-host dynamics) in system (2.1) typically last several months, referred to as the intermediate scale. Consequently, the variable B is referred to as the slow variable, S, I and R are the intermediate variables, and Z, V and M are the fast variables.

    We will start the analysis of our model by separation of time scales, which leads to decoupled systems. In this simplified analysis, the slow variable B will be treated as constant in the intermediate-scale and fast-scale systems. Meanwhile, the fast and intermediate variables will be considered at their steady states in the slow-scale system.

    The environmental evolution of the vibrios is governed by Equation (2.3). Due to the slow time scale, we consider Z and I at their steady states, or effectively as constant. By solving (dB)/(dt)=0 for B, it is clear that the unique equilibrium solution is given by

    B=ξ(Z)Iδ, (3.1)

    where the term ξ(Z)δ can be interpreted as the environmental bacterial concentration per infected host. We can also easily check the stability of this equilibrium by solving for B(t). By direct calculation, we can see that

    B(t)=ξ(Z)Iξ(Z)Ieδtδ+B(0)eδt. (3.2)

    Clearly, B(t)ξ(Z)Iδ as t regardless of the value of B(0), which shows that the equilibrium is globally asymptotically stable. Biologically, this result implies that the bacterial concentration in the aquatic environment approaches a constant in the long run. In particular, if I=0 (i.e., the infection dies out), then B0; similarly, if ξ(Z)=0 (i.e., no shedding from infected hosts enters the environment), then B0. These two special cases can be directly observed from Equation (2.3), where the growth of the environmental vibrios relies on the contribution from the infected human hosts.

    The between-host dynamics are governed by system (2.1), where we consider B0 as a constant due to the difference in time scale.

    It is straightforward to observe that if B is a positive constant, then the disease-free equilibrium (DFE) does not exist for system (2.1). On the other hand, when B=0, system (2.1) is reduced to a standard SIR model representing an extreme scenario where the cholera infection only takes place through human-to-human transmission pathway and there is no disease transmission from the environment.

    With the assumption B=0, a unique DFE exists at (S,I,R)=(N,0,0)=X0. The basic reproduction number for this system can be consequently determined as

    RI0=βHNγ+μ. (3.3)

    It is well known that when RI0<1, the DFE is globally asymptotically stable, indicating the extinction of the disease; when RI0>1, the DFE is unstable, indicating the persistence of the disease. Here we skip the details of the analysis, since the SIR model has been extensively studied in the literature (see, e.g., [14,21]).

    We proceed to conduct an analysis on the endemic equilibrium (EE) of system (2.1) with B0 fixed as a constant. We have the following result.

    Theorem 1. A unique positive EE for system (2.1) exists of the form

    X=(S,I,R), (3.4)

    where each component of X depends on B:

    S(B)=μNβHI+βLB+μ,I(B)=μβHN(γ+μ)(βLB+μ)+[(γ+μ)(βLB+μ)μβHN]2+4(γ+μ)βHμβLBN2(γ+μ)βH,R(B)=γμI(B).

    Proof. Due to the linear relationship between R and I, it is only necessary to consider the two-dimensional system with dSdt and dIdt. Setting both equal to zero and combining the two equations yields a quadratic equation for I:

    (γ+μ)βHI2+[(γ+μ)(βLB+μ)μβHN]IμβLBN=0,

    or

    aI2+bI+c=0,

    where

    a=(γ+μ)βH,b=(γ+μ)(βLB+μ)μβHN,c=μβLBN.

    The two roots of the polynomial are given by the quadratic formula,

    I1=b+b24ac2a,I2=bb24ac2a.

    Note that I1 is guaranteed to be positive and real since the term 4ac>0 and 2a>0. I2 is real and negative for the same reason. Thus, I1 represents the value of I at the EE. We can easily substitute the value I=I1 into the equation where dSdt=0 to obtain the value of S at the EE. The resulting solution is given by (S,I)=(S,I) where S and I are defined in Equation (3.4). Obviously this solution is unique.

    In particular, from the expression of I in Equation (3.4) we see that when B=0,

    I(0)=μ[βHN(γ+μ)](γ+μ)βH

    and the endemic equilibrium is reduced to the one associated with the standard SIR model. This EE exists only if RI0>1 where RI0 is defined in Equation (3.3). When B>0, we can easily obtain I(B)>I(0) by direct algebraic manipulation. This comparison indicates that the presence of the pathogen in the environment increases the disease prevalence at the endemic state. In other words, system (2.1) with dual (both human-to-human and environment-to-human) transmission routes yields a higher level of infection in the long term than that associated with a standard SIR model (with only human-to-human transmission mode), a result natural to expect.

    Since S+I+R=N is a constant, we only need to consider the following two-dimensional system

    dSdt=μNβHSIβLSBμS,dIdt=βHSI+βLSB(γ+μ)I. (3.5)

    In order to achieve local asymptotic stability, it is necessary and sufficient that all eigenvalues of the Jacobian matrix have negative real parts when evaluated at the EE. The Jacobian matrix

    [βHIβLBμβHSβHI+βLBβHS(γ+μ)]

    when evaluated at (S,I)=(S,I) leads to the characteristic polynomial aλ2+bλ+c, where

    a=1,b=βHI+βLB+2μ+γβHS,c=(γ+μ)(βHI+βLB+μ)βHSμ.

    The Routh-Hurwitz stability criterion [8] guarantees that all roots of the above polynomial have negative real part provided that a>0, b>0, and c>0. Clearly, we have that a>0. Also, consider

    dIdt=βHSI+βLSB(γ+μ)I=0

    at the EE. Note that γ+μ>βHS, which immediately gives b>0 and c>0. Therefore, the EE is locally asymptotically stable.

    Indeed, we can establish a stronger result in this case.

    Theorem 2. The EE of system (2.1) is globally asymptotically stable.

    Proof. Consider again system (3.5) along with the function g(S,I)=1I. Let the P1 and P2 denote the right-hand sides of the two equations, respectively. We can now observe the modified system

    P1g=dSdtg=μNIβHSβLSBIμSI,P2g=dIdtg=βHS+βLSBI(γ+μ). (3.6)

    Then S(P1g)+I(P2g)<0. We have now satisfied Dulac's Criterion for the system, which guarantees global asymptotic stability of the EE [20].

    Having analyzed the slow-scale and intermediate-scale systems separately, we now consider the coupled system consisting of (2.1) and (2.3) together, where the fast variable Z is still fixed at its steady state.

    It can be observed that the DFE of this coupled system exists at (S,I,R,B)=(N,0,0,0)=X0. We will now proceed with the next generation matrix analysis to compute the basic reproduction number. Consider the components of the system that are directly related to the infection

    [dIdtdBdt]=[S(βHI+βLB)0][(γ+μ)IδBξ(Z)I]=FV, (3.7)

    where compartment F represents new infections and V represents transitions from other population sets. The next generation matrix is FV1 where

    F=DF(X0)=[βHNβLN00],V=DV(X0)=[γ+μ0ξ(Z)δ], (3.8)

    where X0 is the DFE of the system. Hence,

    FV1=1γ+μ[N(βLξ(Z)δ+βH)N(γ+μ)βLδ00].

    The basic reproduction number, denoted RSI0 here, is then defined as the spectral radius of the next generation matrix:

    RSI0=ρ(FV1)=NβHγ+μ+βLNγ+μξ(Z)δ, (3.9)

    which quantifies the disease risk for the coupled system (2.1) and (2.3). The first part, NβHγ+μ, reproduces RI0 (see equation 3.3) and represents the contribution from the intermediate-scale dynamics to the disease risk. The second part represents the contribution from the slow-scale environmental dynamics; particularly, note that ξ(Z)δ (where Z is constant) depicts the per capita bacterial concentration in the environment (see equation 3.1). Obviously, we have RI0<RSI0, implying that using the intermediate-scale system alone might underestimate the risk of cholera transmission.

    By van den Driessche and Watmough [24], we obtain local asymptotic stability of the DFE when RSI0<1 and instability when RSI0>1. We now proceed to determine the global stability of the DFE. Using Theorem 9 in Appendix A, we may establish the following theorem.

    Theorem 3. When RSI0=Nγ+μ[βH+βLξ(Z)δ]<1, the DFE X0=(N,0,0,0) is globally asymptotically stable.

    Proof. Assume RSI0<1. Let X1=(S,R)T, X2=(I,B)T, and X1=(N,0)T. Then the uninfected subsystem is given by

    ddt[SR]=F=[μ(NS)S(βHI+βLB)γIμR] (3.10)

    and the infected subsystem by

    ddt[IB]=G=[S(βHI+βLB)I(γ+μ)ξ(Z)IδB]. (3.11)

    Note that when X2=0, the uninfected subsystem reduces to

    ddt[SR]=[μ(NS)μR] (3.12)

    and the solution is given by

    R(t)=R(0)eμt,S(t)=N(NS(0))eμt.

    We can see that as t, R(t)0 and S(t)N independently of R(0) and S(0). Thus, X1 is globally asymptotically stable for

    dX1dt=F(X1,0).

    This satisfies condition (H1) of Theorem 9. Next, we have

    G=GX2(N,0,0,0)ˆG=[βHN(γ+μ)βLNξ(Z)δ][IB][(NS)(βHI+βLB)0]. (3.13)

    Note that the matrix A=GX2(N,0,0,0) has non-negative off-diagonal entries. Also, ˆG0 since NS. This satisfies condition (H2) of Theorem 9. Thus, the DFE is globally asymptotically stable.

    By setting each of the four equations in (2.1) and (2.3) to zero, we are able to explicitly solve for the unique endemic equilibrium solution:

    S=(γ+μ)(βH+βLξ(Z)δ)1,I=μ(NS)γ+μ,R=γ(NS)γ+μ,B=μξ(Z)(NS)δ(γ+μ). (3.14)

    Note that we need RSI0>1 in order for I>0.

    First, we will analyze the local stability of the system. The Jacobian matrix evaluated at the EE is given by

    [βHIβLBμSβH0SβLβHI+βLBβHSγμ0βLS0γμ00ξ(Z)0δ].

    Then the characteristic polynomial is given by

    det(λIJ)=(λ+μ)[(λ+μ)(λSβH+γ+μ)(λ+δ)+(βHI+βLB)(λ+γ+μ)(λ+δ)(λ+μ)SβLξ(Z)]. (3.15)

    The EE is locally asymptotically stable iff all roots have a negative real part. This is clear for λ=μ. As for the remaining three roots, we can observe the expression in brackets above to be a0λ3+a1λ2+a2λ+a3, where

    a0=1,a1=βHI+βLB+δ+2μ+γβS,a2=μ2+(βHI+βLB)δ+(βHI+βLB)(μ+γ)+2δμ+δγ+μγδβHSβLSξ(Z)βHSμ,a3=δμ2+δμ(βHI+βLB)+δγ(βHI+βLB)+δγμδβHSμβLSξ(Z)μ. (3.16)

    In order for the roots of the above polynomial to have negative real parts, the Routh-Hurwitz stability criterion [8] requires that a0>0, a1>0, a2>0, a3>0, and a1a2>a0a3. We will need to make use of the following lemma.

    Lemma 1. When RSI0>1, S* satisfies the following:

    μ+γSβH>0andδ(γ+μ)=βLξ(Z)S+δβHS.

    Proof. Let RSI0>1. Then

    βHβH+βLξ(Z)δ<1(μ+γ)βHβH+βLξ(Z)δ<μ+γSβH<μ+γμ+γSβH>0.

    Next, we note that

    Sγ+μ(βLξ(Z)δ+βH)=1S(βLξ(Z)+βHδ)=δ(γ+μ)δ(γ+μ)=βLξ(Z)S+δβHS.

    Theorem 4. The polynomial a0λ3+a1λ2+a2λ+a3, with a0, a1, a2, and a3 as defined in (3.16), satisfies the inequalities a0>0, a1>0, a2>0, a3>0, and a1a2>a0a3.

    Proof. Using Lemma 1, we can easily show the following inequalities:

    a1=βHI+βLB+δ+2μ+γβHS=βHI+βLB+δ+μ+(μ+γβHS)>0.a2=μ2+(βHI+βLB)δ+(βHI+βLB)(μ+γ)+2δμ+δγ+μγδβHSβLSξ(Z)βHSμ=(βHI+βLB)(μ+γ+δ)+δμ+μ(μ+γβHS)+δ(γ+μ)βLSξ(Z)δβHS>0.a3=δμ2+δμ(βHI+βLB)+δγ(βHI+βLB)+δγμδβHSμβLSξ(Z)μ=μ[δ(γ+μ)βLSξ(Z)δβHS]+δ(γ+μ)(βHI+βLB)=δ(γ+μ)(βHI+βLB)>0.a1a1a0a3>δa2a0a3=δμ2+δ(βHI+βLB)(μ+γ+δ)+μγδ+δμ(μ+γβHS+δ2μδ(γ+μ)(βHI+βLB)>δ(μ+γ+δ)(βHI+βLB)δ(γ+μ)(βHI+βLB)>0.

    We now move on to determine the criteria for global stability of the EE. In order to do this, we will employ the geometric approach of Li and Muldowney [11], the main result of which is summarized in Theorem 10 in Appendix A.

    Theorem 5. If RSI0>1 and 2βHNγ0, then the unique EE (3.14) is globally asymptotically stable.

    Proof. First, we let P=diag[1,IB,IB]. Then

    P1=diag[1,BI,BI],PF=diag[0,(IB),(IB)],PFP1=diag[0,IIBB,IIBB]. (3.17)

    The Jacobian matrix of the system is given by

    J=[βHIβLBμβHSβLSβHI+βLBβHSγμβLS0ξ(Z)δ].

    The second additive compound matrix is then given by

    J[2]=[βH(SI)βLB(γ+2μ)βLSβLSξ(Z)(βHI+βLB+μ+δ)βHS0βHI+βLBβHS(γ+μ+δ)],

    and then

    PJ[2]P1=[βH(SI)βLB(γ+2μ)βLSBIβLSBIξ(Z)IB(βHI+βLB+μ+δ)βHS0βHI+βLBβHS(γ+μ+δ)].

    Thus, we can find the matrix Q=PFP1+PJ[2]P1. We can write Q in block form as follows:

    Q=[Q11Q12Q21Q22],

    where

    Q11=βH(SI)βLB(γ+2μ),Q12=[βLSBIβLSBI],Q21=[ξ(Z)IB0],Q22=[(βHI+βLB+μ+δ)+IIBBβHSβHI+βLBβHS(γ+μ+δ)+IIBB].

    Let m denote the Lozinskii measure with respect to the norm |(x1,x2,x3)|=max{|x1|,|x2|,|x3|}. Then m(Q)=sup{g1,g2} with

    g1=m1(Q11)+|Q12|,g2=|Q21|+m1(Q22).

    By direct calculation, we see that

    g1=βH(SI)(βLB+γ+2μ)+βLSBI,g2=ξ(Z)IB(μ+δ)+IIBB+sup{0,2βHSγ}. (3.18)

    Equivalently,

    g1=IIβHIβLBμ,g2=II+sup{0,2βHSγ}μ. (3.19)

    From this, we see that if 2βHNγ0, then 2βHSγ0, and then m(t)=sup{g1,g2}IIμ. Now, for sufficiently large t, since 0I(t)N, we have

    ln(I(t))ln(I(0))tμ2.

    Therefore,

    1tt0m(s)ds1tt0(I(s)I(s)μ)ds=ln(I(t))ln(I(0))tμμ2

    for sufficiently large t. This now implies ˉq2μ2<0. According to Theorem 10, the EE (3.14) is globally asymptotically stable.

    We comment that in Theorem 5, 2βHNγ0 is an additional (sufficient) condition, on top of the requirement RSI0>1, to ensure the global asymptotic stability of the EE, indicating a strong persistence of the disease when the host population size is lower than a certain threshold. From the proof, however, it is clear that we only need 2βHSγ0, a somehow weaker condition, to establish the result.

    We now investigate the within-host dynamics in our cholera model represented by (2.2), referred to as our fast-scale subsystem. This system describes the interaction among vibrios, viruses, and immune cells within the human body for an average infected individual. Per the separation of time scales, we treat the slow variable B as constant in the analysis below.

    The trivial equilibrium of this system is given by (Z,V,M)=(0,0,0). Consider the Jacobian matrix

    J(Z,V,M)=[d1Mζc1Bd1Z0c2Bd2Mτd2Ve1Me2Me1Z+e2Vp]

    which, when evaluated at (Z,V,M)=(0,0,0) becomes

    J(0,0,0)=J0=[ζc1B00c2Bτ000p].

    Obviously the three eigenvalues are ζ, p and c2Bτ. We define the basic reproduction number for the fast-scale system by

    RF0=c2Bτ, (3.20)

    which is the ratio between the generation rate and the natural removal rate of the viruses that infect the vibrios. It is clear that the trivial equilibrium is locally asymptotically stable if RF0<1, and unstable if RF0>1. Biologically, this implies that when the concentration of the environmental vibrios B (treated as a constant in this fast-scale system) is sufficiently low, the within-host dynamics may be trivial and it may not be necessary to include the within-host model in our study. In contrast, when the concentration of the environmental vibrios B is higher than a certain threshold, then the within-host dynamics become non-trivial and may also impact the between-host disease infection at the population level.

    The solution behavior at the marginal case, RF0=1, is not straightforward and requires the use of the center manifold theory [16]. The details are provided in Appendix B.

    Next, we assume RF0>1 and seek the existence of a nontrivial equilibrium (NTE) solution. The three equations in system (2.2) yields the following values for the nontrivial equilibrium:

    Z=c1Bpc1e1B+e2(d1α+ζ),V=p(d1α+ζ)c1e1B+e2(d1α+ζ),M=α, (3.21)

    where α=c2Bτd2. Note that this equilibrium is positive and unique when α>0, which is true iff RF0>1. We have the following result regarding its local stability.

    Theorem 6. When RF0>1, there exists a unique positive equilibrium (3.21). Furthermore, it is locally asymptotically stable iff d1>d2.

    Proof. By evaluating the Jacobian matrix at the NTE, we obtain the determinant

    |J(Z,V,M)λI|=|d1αζλc1Bd1c1Bpc1e1B+e2(d1α+ζ)0λd2p(d1α+ζ)c1e1B+e2(d1α+ζ)e1αe2αλ|.

    Evaluating this determinant yields the characteristic polynomial aλ3+bλ2+cλ+d where

    a=1,b=(d1α+ζ),c=pα[c1d1e1B+d2e2(d1α+ζ)]c1e1B+e2(d1α+ζ),d=d2pα(d1α+ζ). (3.22)

    Clearly, we have that α>0a,b,c,d<0. The Routh-Hurwitz stability criterion [8] guarantees local asymptotic stability when bc>ad. This condition is met as long as d1>d2. Specifically,

    bc=pα(d1α+ζ)[c1d1e1B+d2e2(d1α+ζ)]c1e1B+e2(d1α+ζ)>pα(d1α+ζ)[c1d2e1B+d2e2(d1α+ζ)]c1e1B+e2(d1α+ζ)=d2pα(d1α+ζ)=ad

    iff d1>d2.

    To summarize the result, when RF0<1, there is a unique and stable trivial equilibrium for the fast-scale system; when RF0>1, the trivial equilibrium is unstable, and there is a unique and stable positive equilibrium.

    Now that we have analyzed each of the three separate components of our multi-scale model, we will move on to the full system, with all three subsystems coupled together.

    dSdt=μNβHSIβLSBμS,dIdt=βHSI+βLSB(γ+μ)I,dRdt=γIμR,dBdt=ξ(Z)IδB,dZdt=c1BVd1MZζZ,dVdt=c2BVd2MVτV,dMdt=e1MZ+e2MVpM. (4.1)

    We assume that ξ(Z)>0 and ξ(Z)0 for all Z0. Particularly, when ξ(Z) is a positive constant, as is the case considered in many prior studies (see, e.g., [13,22,23,26]), these assumptions are satisfied.

    It is clear to see that there exists one unique DFE at (S,I,R,B,Z,V,M)T=(N,0,0,0,0,0,0)T=X0. Consequently, the next-generation matrix of the system is given by FV1 where

    F=[βHNβLN00000000000000],V=[γ+μ000ξ(0)δ0000ζ0000τ]. (4.2)

    The basic reproduction number R0 is the spectral radius of the next generation matrix. Thus, we obtain

    R0=βHNγ+μ+βLNξ(0)δ(γ+μ). (4.3)

    Although the expression of R0 is similar to that of RSI0 in Equation (3.9), the distinction is that the fast variable Z is treated as a constant in Equation (3.9) at the combined slow-intermediate scale, whereas Z does not appear in Equation (4.3) since the slow, intermediate and fast variables are all coupled together in the full system (4.1). Instead, the term ξ(0) in equation (4.3) represents the role played by the fast-scale dynamics in shaping the overall disease risk. With our assumption of the function ξ(Z), it is clear that

    RI0<R0RSI0, (4.4)

    which indicates that we might underestimate the disease risk if we only consider the between-host transmission at the intermediate time scale, yet we might overestimate the disease risk if our model includes both the intermediate-scale disease transmission and slow-scale environmental evolution but does not incorporate the fast-scale within-host dynamics. In general, the full system (4.1) represents a reciprocal (or, two-way) coupling between the different time scales. A special case occurs when ξ(Z)=ξ>0 is a constant, leading to R0=RSI0. This scenario represents a unidirectional (or, one-way) connection across the scales. On one hand, the slow-scale and intermediate-scale subsystems are independent of the fast-scale subsystem, so that the within-host dynamics does not play a role in shaping the population-level disease transmission characterized by the basic reproduction number. On the other hand, the fast-scale within-host dynamics are still directly impacted by the intermediate-scale between-host transmission and the slow-scale environmental bacterial evolution.

    Another interpretation of the basic reproduction number is based on the multiple transmission routes of cholera. In Equation (4.3), the first part on the right-hand side represents the contribution from the human-to-human transmission, and the second part represents the contribution from the environment-to-human transmission and the within-host dynamics. These factors, including human-human and environment-human interactions, and bacterial dynamics in the environment and within the human body, together shape the overall disease risk for cholera.

    Again by van den Driessche and Watmough [24], the DFE is stable whenever R0<1 and unstable when R0>1.

    We now seek all possible equilibrium solutions (S,I,R,B,Z,V,M) in which the infected population persists. As such, we assume I0. It follows immediately that R0 and S0. We now have multiple cases to consider.

    Case 1: Suppose R0>1, dXdt=0, B0 and V=0. Then dZdt=0 implies Z=0 and dMdt=0 implies M=0. The remaining four variables are uniquely determined by the remaining equations. Therefore, Case 1 yields the solution

    S=NR0,I=δμ(R01)δβH+βLξ(0),R=δγ(R01)δβH+βLξ(0),B=μξ(0)(R01)δβH+βLξ(0),Z=0,V=0,M=0. (4.5)

    Note that S, I, R, and B are all positive since R0>1. This solution can also be reached by changing the initial assumption V=0 to Z=0. This first case reduces to a system that reflects inactivity within the hosts, while environmental bacteria and the infected population persist.

    Case 2: Suppose R0>1, dXdt=0, B0, Z0 and M=0. It follows that each remaining variable must be nonzero. dVdt=0 tells us that B=τc2. Knowing this value for B, we may use the first two equations to solve for S and I. In doing so, the solution for I presents itself in the form of a quadratic equation:

    I0=b±b24ac2a,

    where

    a=c2βH(γ+μ),b=(γ+μ)(βLτ+c2μ)c2μβHN,c=μτβLN.

    Note that the solution with the positive root is guaranteed to be positive, since a>0 and c<0. Now that we have obtained this value for I, the rest of the solution variables may be determined to be as follows:

    S=c2μNc2(βHI0+μ)+βLτ,I=I0,R=γμI0,B=τc2,Z=ξ1(δτI0c2),V=c2ζc1τξ1(δτI0c2),M=0. (4.6)

    This equilibrium represents a state in which the host immune cells are depleted, but the viruses and vibrios persist within the human body.

    Finally, we will establish the existence of an entirely positive EE solution. Under the assumption that each variable is nonzero, we may solve the system (4.1) to obtain the system

    S=δ(γ+μ)δβH+βLξ(Z),I=μNγ+μμδδβH+βLξ(Z),R=γNγ+μγδδβH+βLξ(Z),B=μNξ(Z)δ(γ+μ)μξ(Z)δβH+βLξ(Z),Z=c1pBc1e1B+c1e2M+e2ζ,V=pe1Ze2,M=c2Bτd2. (4.7)

    For the special scenario ξ(Z)=ξ=Const, it is easy to verify that the above expressions for S,I,R and B coincide with those in Equation (3.14), since the slow-scale and intermediate-scale dynamics are decoupled from, and independent of, the fast-scale dynamics. In what follows we will focus on the more general case where ξ(Z) is not a constant. Note that the existence of such a solution depends on Z, as all other variables are represented as functions of Z. To start the analysis, we expand Z in the following way:

    Z=c1pBc1e1B+c1e2[c2Bτd2]+e2ζ=c1pBB[c1e1+c1c2e2d2]c1e2τd2+e2ζc1B[e1+c2e2d2]Z=c1pB+e2[c1τd2ζ]Z[Nδ(γ+μ)1δβH+βLξ(Z)][(d2e1+c2e2)Zpd2]=e2d2μ[τd2ζc1]Zξ(Z).

    Let

    f1(Z)=[Nδ(γ+μ)1δβH+βLξ(Z)][(d2e1+c2e2)Zpd2],Z0;f2(Z)=e2d2μ[τd2ζc1]Zξ(Z),Z0.

    If the two above equations have exactly one intersection point Z0, then this point will determine a unique solution for the system.

    Theorem 7. Suppose c1τ<d2ζ, ξ(Z)<0 and R0>1. Then there exists a unique point Z0(0,pd2d2e1+c2e2) such that f1(Z0)=f2(Z0). Furthermore, if

    Z0>ξ1(b+b24ac2a), (4.8)

    where

    a=c2μβLNδ(γ+μ),b=c2μβHNγ+μτβLc2μ,c=τδβH,

    then Z0 generates a unique positive EE solution (4.7) to system (4.1).

    Proof. First, note that R0>1 implies

    [Nδ(γ+μ)1δβH+βLξ(Z)]>0

    for any Z0. Then we have f1(0)<0 and f2(0)=0. If we let

    α=e2d2μ[τd2ζc1],

    the assumption c1τ<d2ζ gives α<0. Then the condition ξ<0 yields

    f2(Z)=αξ(Z)Zξ(Z)[ξ(Z)]2<0.

    Since f1(Z) is continuous on the interval (0,pd2d2e1+c2e2) with a negative left endpoint and a right endpoint equal to zero, the two functions f1(Z) and f2(Z) are guaranteed to have at least one intersection point Z0 on the interval. We now proceed to show the uniqueness of this intersection. To do this, we will demonstrate that f1(Z) is concave up for all points on the interval (0,pd2d2e1+c2e2). The first and second derivative of f1(Z) are given by

    f1(Z)=h2(Z)[(d2e1+c2e2)Zpd2]+[Nδ(γ+μ)1δβH+βLξ(Z)](d2e1+c2e2),f1(Z)=h1(Z)[(d2e1+c2e2)Zpd2]+2h2(Z)(d2e1+c2e2),

    where

    h1(Z)=βLξ(Z)(δβh+βLξ(Z))2(βLξ(Z))2(δβH+βLξ(Z))3,h2(Z)=βLξ(Z)(δβH+βLξ(Z))2.

    With our assumption ξ(Z)<0, it is clear that h1(Z)<0. Thus, since h2(Z)>0, we have f1(Z)>0 for all Z(0,pd2d2e1+c2e2). Since f2(Z) is a linear decreasing function passing through the origin, and f1(Z) is negative and concave up for all Z(0,pd2d2e1+c2e2), there exists a unique point Z0(0,pd2d2e1+c2e2) such that f1(Z0)=f2(Z0).

    Given the existence of such a point Z0, we must also verify X>0. It is clear that S>0 from (4.7) since ξ(Z)>0. From (4.7), it is clear that B>0 if and only if

    Nδ(γ+μ)δβH+βLξ(Z)>0.

    Since R0=N(δβH+βLξ(0))δ(γ+μ)>1, we have

    Nδ(γ+μ)δβH+βLξ(Z)>NN(δβH+βLξ(0))δ(γ+μ)δ(γ+μ)δβH+βLξ(Z)>NN(δβH+βLξ(Z))δ(γ+μ)δ(γ+μ)δβH+βLξ(Z)=NN=0. (4.9)

    Thus, B>0. By the same argument, we have that I>0 and R>0. Moving on, we want to determine if it is possible for M>0. First, it will be helpful to solve M=0 for ξ(Z) where M is defined in (4.7). After substituting for B from (4.7), we obtain a quadratic equation in ξ(Z) of the form

    M=aξ2(Z)+bξ(Z)+c, (4.10)

    where

    a=c2μβLNδ(γ+μ),b=c2μβHNγ+μτβLc2μ,c=τδβH. (4.11)

    So, in order for M>0, we need the Equation (4.10) to be greater than zero. First, we will attempt to find a positive zero for the equation, as ξ(Z) must be positive. This positive zero of (4.10) is given by

    b+b24ac2a (4.12)

    since a>0 and c<0. Next, note that M as a function of ξ(Z) is concave up. So M is increasing at the zero (4.12), and hence M>0 whenever

    ξ(Z)>b+b24ac2a,

    or

    Z>ξ1(b+b24ac2a).

    In addition, since Z0<pd2d2e1+c2e2<pe1, we have V>0. Hence, our solution point Z0 determines a unique positive EE (4.7) to the system (4.1) only if condition (4.8) holds.

    Due to the high dimension of the full system (4.1), the stability analysis of the endemic equilibrium is challenging. Nevertheless, we may gain some insight of the dynamical behavior near the bifurcation point R0=1, based on Theorem 12 (see Appendix A). With the use of this result, we will show that a local forward bifurcation occurs at the bifurcation point.

    Theorem 8. When R01 changes from negative to positive, the DFE X0 changes its stability from stable to unstable. Furthermore, the EE becomes locally asymptotically stable.

    Proof. First, we will verify condition (A1) of Theorem 12. Setting R0=1 and solving for the parameter βH in Equation (4.3) gives

    βH=γ+μNβLξ(0)δ.

    The Jacobian matrix A=J(X0,βH) is given by

    A=[μβHN0βLN0000βHNγμ0βLN0000γμ00000ξ(0)0δ0000000ζ0000000τ0000000p].

    It can be clearly seen that four eigenvalues of A are μ, ζ, τ and p. The remaining three eigenvalues can be determined from the smaller matrix

    B=[βHNγμ0βLNγμ0ξ(0)0δ].

    After some simplification, we have

    det(BλI)=λ(μλ)(δ+NβLξ(0)δ+λ).

    Thus, the remaining three eigenvalues are given by μ, (δ+NβLξ(0)δ), and 0. The conditions of (A1) are then satisfied.

    Consider again the Jacobian matrix A. Denote w=(w1,w2,w3,w4,w5,w6,w7)T, a right eigenvector of the zero eigenvalue such that

    Aw=[μw1βHNw2βLNw4(βHNγμ)w2+βLNw4γw2μw3ξ(0)w2δw4ζw5τw6pw7]=0.

    Setting w4=1 and solving the above system gives

    w=(δ(γ+μ)μξ(0),δξ(0),γδμξ(0),1,0,0,0)T.

    Similarly, denote v=(v1,v2,v3,v4,v5,v6,v7), a left eigenvector of the zero eigenvalue such that

    vA=[μv1βHNv1+(βHγμ)v2+γv3+ξ(0)v4μv3βLNv1+βLNv2δv4ζv5τv6pv7]=0.

    Solving this system along with the additional condition

    v4(δ2+βLNξ(0)βLNξ(0))=1

    gives

    v=(0,δξ(0)δ2+βLNξ(0),0,βLNξ(0)δ2+βLNξ(0),0,0,0).

    Now we have vw=1, Aw=0 and vA=0. From (A2) in Theorem 12, it follows that

    a=2δ3(γ+μ)2μNξ(0)[δ2+βLNξ(0)]<0,b=δ2Nδ2+βLNξ(0)>0.

    Thus, based on Theorem 12, we have verified the conditions under which the result of the theorem holds.

    We now use numerical simulations to verify some of the analytical results concerned with the full system (4.1). Our main goal with these simulations is to demonstrate the stability of the equilibrium solutions relative to R0.

    First, our numerical results indicate that when R0<1, the DFE is globally asymptotically stable. A typical scenario is shown in Figure 1, where the S component of the solution approaches the total population size N and all other components of the solution approach 0 over time. When R0>1, the DFE becomes unstable and there exist nontrivial multiple equilibria. Particularly, we have proven the existence and uniqueness of the positive EE (4.7) under specific conditions. When these conditions are not present, the positive EE may not exist. Figure 2 illustrates a scenario where R0>1 and solutions of system (4.1) converge to the boundary equilibrium (4.5). Finally, we are able to verify the existence and local asymptotic stability of the positive EE numerically, and one such result is displayed in Figure 3.

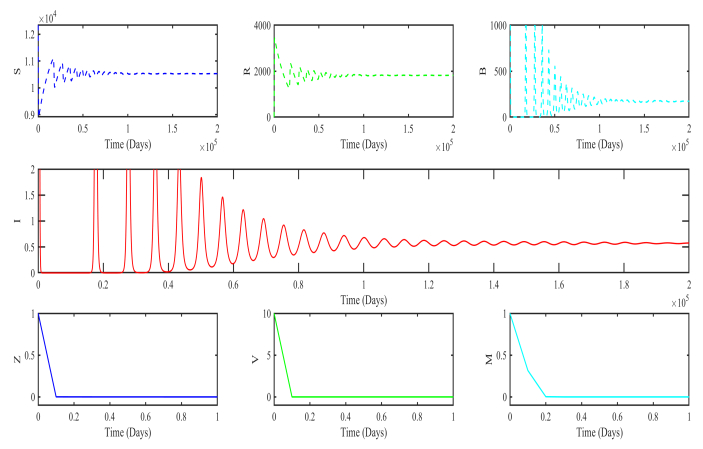

    Figure 1.  A typical scenario when R0<1 and solutions of system (4.1) converge to the DFE.
    Figure 2.  A typical scenario when R0>1 and solutions of system (4.1) approach the boundary equilibrium (4.5).
    Figure 3.  A typical scenario when R0>1 and solutions of system (4.1) converge locally to the positive EE (4.7).

    We have presented a new cholera modeling framework that involves three distinct time scales: the slow scale for the environmental bacterial dynamics, the intermediate scale for the between-host disease transmission, and the fast scale for the within-host pathogen interaction. Using separation of scales, we are able to conduct a careful analysis of each sub-model (at a single scale) on its equilibria and stabilities. We have also investigated the case when the slow-scale and intermediate-scale dynamics are agammaegated into one sub-model. In addition, we have conducted an analysis on the fully coupled model where the dynamics at three different scales are linked together.

    For the simpler, decoupled sub-models, we are able to employ dynamical system theory to establish the local and global stabilities of their equilibria. Due to the high dimension of the fully coupled model, however, fewer results have been obtained. We are able to establish the existence and uniqueness of the positive endemic equilibrium under certain conditions, and clarify the bifurcation behavior at the threshold point R0=1. The stability of the positive endemic equilibrium away from the bifurcation point, however, remains unresolved.

    Our work could provide more insight into the methodology of utilizing mathematical models for cholera dynamics, particularly regarding model complexity and feasibility. The most straightforward way to model cholera and investigate its public health impact is just to consider the between-host transmission at the intermediate time scale, treating any environmental factor (such as the bacterial concentration) as a constant input. Our study shows that even such a simple model could be useful in generating quantitative information on disease extinction and persistence. A more accurate modeling approach is to include both the between-host transmission and the environmental pathogen evolution using the coupled slow-intermediate-scale model, which could effectively cover both the direct (human-to-human) and indirect (environment-to-human) routes of cholera transmission and provide better prediction and assessment of the disease dynamics. The cost of such a model is the increased dimension of the system that adds analytical difficulty and the requirement for additional information related to the environmental evolution. Finally, a full system that connects the environmental bacterial dynamics, the between-host disease transmission and the within-host bacterial-viral-immune interaction at all the three time scales, is the most complex way of modeling cholera, but can potentially generate the most complete picture of cholera dynamics and yield the most accurate prediction of the disease risk. The drawback, however, is that mathematical analysis of such a fully coupled model is often highly challenging, if not impossible. Meanwhile, the implementation of such a complex model demands more data (especially for the within-host dynamics) and the use of nontrivial numerical simulation. The specific models at different scales employed in the present paper, though relatively simple, could illustrate these points and suggest that selection of a modeling approach for cholera (and, perhaps many other environmentally transmitted diseases) should be based on the purpose of modeling, the availability of relevant data, the analytical tools and the computational resources.

    In our modeling framework, from both the decoupled and coupled analysis, we observe that forward bifurcations occurs at each time scale; that is, regular threshold dynamics take place for each sub-model as well as the entire multi-scale model. This result indicates that the standard practice of reducing the basic reproduction number below unity would be effective for cholera control. For example, if we use vaccination or water sanitation to weaken disease transmission and so to reduce the basic reproduction number, or use medicine to boost the immune response of individual hosts, we can effectively control the infection and spread of cholera. These results, however, are obtained based on our model formulation. Our current model employs standard bilinear incidence for the infection dynamics, and does not consider facts such as the saturation of the bacteria. Also, we assume that an infected individual recovers with permanent immunity and so the effect of waning immunity is not considered. Meanwhile, the environmental pathogen evolution in our model does not include the intrinsic growth of the bacteria. Additionally, in our within-host dynamics sub-model we have only considered the innate immune response, and it may be more realistic to include also the adaptive immune response into the pathogen-host interaction. When these factors are added to the model, it is possible that more complicated dynamics, such as backward bifurcation, could appear.

    This work was partially supported by the National Science Foundation (under Grant Nos. 1412826 and 1557739). The authors are grateful to the editor for handling this paper and to the anonymous referee for the helpful comments that have improved this paper

    All authors declare no conflicts of interest in this paper

    Here we list several theorems from the literature that are used in our proof of the stability for various equilibria. The following result by Castillo-Chavez et al [5] is concerned with the global asymptotic stability of a DFE.

    Theorem 9. Consider a system of the form

    dX1dt=F(X1,X2),dX2dt=G(X1,X2),G(X1,0)=0

    where X1Rm denotes (its components) the number of uninfected individuals and X2Rn denotes (its components) the number of infected individuals including latent, infectious, etc; X0=(X1,0) denotes the DFE of the system. Also assume the conditions (H1) and (H2) below:

    (H1) For dX1/dt=F(X1,0), X is globally asymptotically stable;

    (H2) G(X1,X2)=AX2ˆG(X1,X2),ˆG(X1,X2)0 for (X1,X2)Ω,

    where the off-diagonal elements of the Jacobian matrix A=(GX2)(X1,0) are all non-negative, and Ω is the region where the model makes biological sense. Then the DFE X0=(X1,0) is globally asymptotically stable when R0<1.

    The theorem below summarizes the main result of the geometric approach for global asymptotic stability, originally proposed by Li and Muldowney [11].

    Theorem 10. Let the map xD from an open subset DRn to Rn be such that each solution x(t) to the differential equation

    x=f(x) (S1)

    is uniquely determined by its initial value x(0)=x0, and denote this solution by x(t,x0). Assume that

    (D1) D is simply connected;

    (D2) there is a compact absorbing set KD;

    (D3) ˉx is the only equilibrium of S1.

    Define

    ¯q2=lim suptsupx0K1tt0μ(Q(x(s,x0)))ds,

    where

    Q=AfA1+Af[2]xA1

    and xA is a (n2)×(n2) matrix-valued function. Then the unique equilibrium ˉx is globally asymptotically stable in D if ¯q2<0.

    The result below is referred to as the Local Center Manifold Theorem [16].

    Theorem 11. Consider the system X=f(X) where XRn. Let fCr(E), where E is an open subset of Rn containing the origin and r1. Suppose that f(0)=0 and that Df(0) has c eigenvalues with zero real part, and s=nc eigenvalues with negative real part. The system then can be written in diagonal form

    x=Cx+F(x,y),y=Py+G(x,y),

    where (x,y)Rc×Rs, C is a square matrix with c eigenvalues with zero real part, P is a square matrix with s eigenvalues with negative real part, and F(0)=G(0)=0, DF(0)=DG(0)=0. Furthermore, there exists a δ>0 and a function hCr(Nδ(0)), h(0)=0, Dh(0)=0 that defines the local center manifold Wc(0){(x,y)Rc×Rs|y=h(x)for|x|<δ} and satisfies

    Dh(x)[Cx+F(x,h(x))]=Ph(x)+G(x,h(x))

    for |x|<δ, and the flow on the center manifold Wc(0) is defined by the system of differential equations

    x=Cx+F(x,h(x))

    for all xRc with |x|<δ.

    The following theorem, presented in [6], describes the local bifurcation behavior around an equilibrium.

    Theorem 12. Consider a general system of ODEs with a real parameter β:

    x=f(x,β);f:Rn×RRn,andfC2(Rn×R). (S2)

    Assume x=X0 is an equilibrium of system (S2) for all β. Also assume

    (A1) A=Dxf(X0,β)=(fixj(X0,β)) is the linearization matrix of system (S2) at the equilibrium x=X0 with β evaluated at β. Zero is a simple eigenvalue of A and all other eigenvalues of A have negative real parts.

    (A2) Matrix A has a right eigenvector w and a left eigenvector v corresponding to the zero eigenvalue.

    Let fk be the kth component of f and,

    a=nk,i,j=1vkwiwj2fkxixj(X0,β),b=nk,i=1vkwi2fkxiβ(X0,β).

    The local dynamics of the system (S2) around x=X0 are totally determined by a and b.

    1. a>0, b>0. When ββ<0 with |ββ|1, x=X0 is locally asymptotically stable, and there exists a positive unstable equilibrium; when 0<ββ1, x=X0 is unstable and there exists a negative and locally asymptotically stable equilibrium;

    2. a<0, b<0. When ββ<0 with |ββ|1, x=X0 is unstable; when 0<ββ1, x=X0 is locally asymptotically stable, and there exists a positive unstable equilibrium;

    3. a>0, b<0. When ββ<0 with |ββ|1, x=X0 is unstable, and there exists a locally asymptotically stable negative equilibrium; when 0<ββ1, x=X0 is stable, and a positive unstable equilibrium appears;

    4. a<0, b>0. When ββ changes from negative to positive, x=X0 changes its stability from stable to unstable. Correspondingly a negative unstable equilibrium becomes positive and locally asymptotically stable.

    We consider the solution of the fast-scale system (2.2) specifically when RF0=c2B/τ=1. Setting B=τc2, the original system reduces to the following:

    dZdt=c1τc2Vd1MZζZ,dVdt=d2MV,dMdt=e1MZ+e2MVpM. (S3)

    Below we apply the Local Center Manifold Theorem (see Theorem 11 in Appendix A) to investigate the stability of the trivial equilibrium (0,0,0). The system can be decomposed into its linear and nonlinear components in the following way:

    [dZdtdVdtdMdt]=A[ZVM]+F,

    where

    A=[ζc1τc2000000p]andF=[d1MZd2MVe1MZ+e2MV].

    We proceed to decouple the variables by using the three eigenvalues λ1=ζ, λ2=0 and λ3=p, and the corresponding eigenvector matrix

    P1=[1c1τc2ζ0010001].

    Let Y=P(Z,V,M)T denote the transformed solution vector. We have

    Y=[Zc1τc2ζVVM]=[y1xy2].

    The decoupled system is then given by dYdt=JY+PF, or

    dYdt=[ζy10py2]+[d1y1y2d2y2xy2(e1y1+[c1e1τc2ζ+e2]x)].

    Simplifying the above expression gives

    dYdt=[y1(ζ+d1y2)d2y2xy2(e1y1+[c1e1τc2ζ+e2]xp)].

    We can separate the above system into two parts

    dxdt=Cx+F(x,y)dydt=Py+G(x,y)

    where y=[y1,y2]T and

    C=0,F(x,y)=d2y2x,P=[ζ00p],G(x,y)=[d1y1y2y2(e1y1+[c1e1τc2ζ+e2]x)].

    We now use a series expansion to represent y as a function of x:

    y=h(x)=[h1(x)h2(x)]=[a1x2+b1x3+...a2x2+b2x3+...]. (S4)

    Then y=h(x) defines a local center manifold for the original system. By differentiation with the chain rule we know that Dh(x)[Cx+F(x,h(x))]=Ph(x)+G(x,h(x)), where

    Dh(x)[Cx+F(x,h(x))]=[2a1x+...2a2x+...][d2x(a2x2+...)],Ph(x)+G(x,h(x))=[(a1x2+...)(ζ+d1(a2x2+...))(a2x2+...)[e1(a1x2+...)+[c1e1τc2ζ+e2]xp]]. (S5)

    When equating the second rows of the two equations, we obtain

    d2x(2a2x+3b2x2+...)(a2x2+b2x3+...)=(a2x2+b2x3+...)[e1(a1x2+...)+[c1e1τc2ζ+e2]xp].

    The above equation is only satisfied when a2=b2==0; i.e., h2(x)=0. This can be seen by noting the constant p on the right, as there is no possibility of a constant term on the left. When h2(x)=0, we must also have h1(x)=0 by Equation (S5). Thus, we have h(x)=0, and

    dxdt=F(x,(h(x))=0. (S6)

    According to the Center Manifold Theorem 11, the flow on the center manifold is locally described by Equation (S6). Thus, the trivial equilibrium solution is (Lyapunov) stable, but not asymptotically stable, when RF0=1.



    [1] J. R. Andrews and S. Basu, Transmission dynamics and control of cholera in Haiti: an epidemic model, Lancet, 377 (2011), 1248–1255.
    [2] A. Bechette, T. Stojsavljevic, M. Tessmer, J. A. Berges, G. A. Pinter and E. B. Young, Mathematical modeling of bacteria-virus interactions in Lake Michigan incorporating phosphorus content,J. Great Lakes Res., 39 (2013), 646–654.
    [3] B. Boldin and O. Diekmann, Superinfections can induce evolutionarily stable coexistence of pathogens,J. Math. Biol., 56 (2008), 635–672.
    [4] V. Capasso and S. L. Paveri-Fontana, A mathematical model for the 1973 cholera epidemic in the European Mediterranean region,Rev. Epidemiol. Sante, 27 (1979), 121–132.
    [5] C. Castillo-Chavez, Z. Feng and W. Huang, On the computation of R0 and its role in global stability, inMathematical Approaches for Emerging and Reemerging Infectious Diseases: an Introduction, (2002), 229–250.
    [6] C. Castillo-Chavez and B. Song, Dynamical models of tuberculosis and their applications,Math. Biosci. Eng., 1 (2004), 361–404.
    [7] R. R. Colwell, A global and historical perspective of the genus Vibrio, inThe Biology of Vibrios, (eds. F.L. Thompson, B. Austin and J. Swings), ASM Press: Washington DC, 2006.
    [8] F. R. Gantmacher and J. L. Brenner,Applications of the Theory of Matrices, Dover: Mineola, 2005.
    [9] D. M. Hartley, J. G. Morris and D. L. Smith, Hyperinfectivity: a critical element in the ability of V. cholerae to cause epidemics? PLoS Med., 3 (2006), 0063–0069.
    [10] H. W. Hethcote, The mathematics of infectious diseases,SIAM Rev., 42 (200) 599–653.
    [11] M. Y. Li and J. S. Muldowney, A geometric approach to global-stability problems,SIAM J. Math. Anal., 27 (1996), 1070–1083.
    [12] N. Mideo, S. Alizon and T. Day, Linking within- and between-host disease dynamics, Trends Ecol. Evol., 23 (2008), 511–517.
    [13] Z. Mukandavire, S. Liao, J. Wang, H. Gaff, D. L. Smith and J. G. Morris, Estimating the reproductive numbers for the 2008-2009 cholera outbreaks in Zimbabwe,Proc. Natl. Acad. Sci. USA, 108 (2011), 8767–8772.
    [14] J. D. Murray,Mathematical Biology, Springer, 2002.
    [15] E. J. Nelson, J. B. Harris, J. G. Morris, S. B. Calderwood and A. Camilli, Cholera transmission: The host, pathogen and bacteriophage dynamics,Nat. Rev. Microbiol., 7 (2009), 693–702.
    [16] L. Perko,Differential Equations and Dynamical Systems, Springer Science & Business Media: New York, 2013.
    [17] D. Posny and J. Wang, Modelling cholera in periodic environments,J. Biol. Dyn., 8 (2014) 1–19.
    [18] Z. Shuai and P. van den Driessche, Global stability of infectious disease models using Lyapunov functions,SIAM J. Appl. Math., 73 (2013), 1513–1532.
    [19] H. L. Smith and R. T. Trevino, Bacteriophage infection dynamics: multiple host binding sites, Math. Model. Nat. Pheno., 4 (2009), 111–136.
    [20] S.H. Strogatz,Nonlinear Dynamics and Chaos: with Applications to Physics, Biology, Chemistry, and Engineering, Westview Press: Boulder, 2015.
    [21] H. R. Thieme,Mathematics in Population Biology, Princeton University Press: Princeton, 2003.
    [22] J. P. Tian and J. Wang, Global stability for cholera epidemic models,Math. Biosci., 232 (2011), 31–41.
    [23] J. H. Tien and D. J. D. Earn, Multiple transmission pathways and disease dynamics in a waterborne pathogen model,Bull. Math. Biol., 72 (2010), 1506–1533.
    [24] P. van den Driessche and J. Watmough, Reproduction numbers and sub-threshold endemic equilibria for compartmental models of disease transmission,Math. Biosci., 180 (2002), 29–48.
    [25] M. K.Waldor and J. J. Mekalanos, Lysogenic conversion by a filamentous phage encoding cholera toxin,Science, 272 (1996), 1910–1914.
    [26] J. Wang and S. Liao, A generalized cholera model and epidemic-endemic analysis,J. Biol. Dyn., 6 (2012), 568–589.
    [27] X.Wang and J.Wang, Analysis of cholera epidemics with bacterial growth and spatial movement, J. Biol. Dyn., 9 (1) (2015), 233–261.
    [28] X. Wang, D. Gao and J. Wang, Influence of human behavior on cholera dynamics,Math. Biosci., 267 (2015), 41–52.
    [29] X. Wang and J. Wang, Disease dynamics in a coupled cholera model linking within-host and between-host interactions,J. Biol. Dyn., 11(S1) (2017), 238–262.
    [30] X. Wang and J. Wang, Modeling the within-host dynamics of cholera: bacterial-viral interaction, J. Biol. Dyn., 11(S2) (2017), 484–501.
    [31] WHO Weekly Epidemiology Bulletin, 2-8 April 2018.
  • This article has been cited by:

    1. Kinfe Hailemariam Hntsa, Berhe Nerea Kahsay, Analysis of Cholera Epidemic Controlling Using Mathematical Modeling, 2020, 2020, 0161-1712, 1, 10.1155/2020/7369204
    2. Beryl Musundi, Johannes Müller, Zhilan Feng, A Multi-Scale Model for Cholera Outbreaks, 2022, 10, 2227-7390, 3114, 10.3390/math10173114
    3. Owade Kennedy Jackob, Okaka Akinyi, Frankline Tireito, Filippo Cacace, A Mathematical Model on the Dynamics of In-Host Infection Cholera Disease with Vaccination, 2023, 2023, 1607-887X, 1, 10.1155/2023/1465228
    4. Xue-Zhi Li, Shasha Gao, Yi-Ke Fu, Maia Martcheva, Modeling and Research on an Immuno-Epidemiological Coupled System with Coinfection, 2021, 83, 0092-8240, 10.1007/s11538-021-00946-9
    5. Jin Wang, Mathematical Models for Cholera Dynamics—A Review, 2022, 10, 2076-2607, 2358, 10.3390/microorganisms10122358
    6. Saima Rashid, Fahd Jarad, Hajid Alsubaie, Ayman A. Aly, Ahmed Alotaibi, A novel numerical dynamics of fractional derivatives involving singular and nonsingular kernels: designing a stochastic cholera epidemic model, 2023, 8, 2473-6988, 3484, 10.3934/math.2023178
    7. Saima Rashid, Fahd Jarad, Abdulaziz Khalid Alsharidi, Numerical investigation of fractional-order cholera epidemic model with transmission dynamics via fractal–fractional operator technique, 2022, 162, 09600779, 112477, 10.1016/j.chaos.2022.112477
    8. Hui Wu, Yafei Zhao, Xinjian Xu, Jie Lou, Modeling and analysis of a two-strain immuno-epidemiological model with reinfection, 2025, 81, 14681218, 104188, 10.1016/j.nonrwa.2024.104188
    9. Beryl Musundi, An immuno-epidemiological model linking between-host and within-host dynamics of cholera, 2023, 20, 1551-0018, 16015, 10.3934/mbe.2023714
  • Reader Comments
  • © 2019 the Author(s), licensee AIMS Press. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0)
通讯作者: 陈斌, bchen63@163.com
  • 1.

    沈阳化工大学材料科学与工程学院 沈阳 110142

  1. 本站搜索
  2. 百度学术搜索
  3. 万方数据库搜索
  4. CNKI搜索

Metrics

Article views(5282) PDF downloads(847) Cited by(9)

Figures and Tables

Figures(3)

Other Articles By Authors

/

DownLoad:  Full-Size Img  PowerPoint
Return
Return

Catalog
