Abstract
In a shallow aquatic environment, a mathematical model with variable cell quota is proposed to characterize asymmetric resource competition for light and nutrients among aquatic producers. We investigate the dynamics of asymmetric competition models with constant and variable cell quotas and obtain the basic ecological reproductive indexes for aquatic producer invasions. The similarities and differences between the two types of cell quotas for dynamical properties and influences on asymmetric resource competition are explored through theoretical and numerical analysis. These results contribute to further revealing the role of constant and variable cell quotas in aquatic ecosystems.
1.
Introduction
Asymmetric resource competition is an important form of competition. It describes an unfair resource allocation among individuals of a population or between populations. The reasons for this unfairness include spatial distribution of resources, population characteristics, individual differences, etc. Such competition is ubiquitous in nature. For example, Lawton and Hassell in [1] stated that asymmetric resource competition among insects is a more common phenomenon than symmetric resource competition with equal opportunities to compete for resources. Terrestrial plants also exhibit strong asymmetry to resources due to individual differences. Taller and bigger plants always dominate the competition and obtain more resources [2].
Aquatic producers are the basis of aquatic communities and influence energy flow and material cycling in aquatic ecosystems. Their growth is limited by light and nutrients [3,4,5,6,7]. Light comes from the water surface and changes with the seasons or day and night. Aquatic producers photosynthesize mainly by absorbing blue-violet and red light in the spectrum. Light intensity descends exponentially over water depth since it is absorbed by water and aquatic producers [8,9,10,11]. Nutrients in aquatic water bodies come from a variety of sources. For example, natural rainfall usually causes an inflow of nutrients at the surface; industrial or domestic wastewater enters aquatic habitats through underground pipes or tributaries. Each of the nutrient inputs may disrupt the nutrient balance in the aquatic environment. The nutrients we consider here are mainly derived from lake bottom sediments. They are transported into aquatic habitats by water exchange and turbulence [12,13,14]. In this situation, the different spatial direction of light and nutrient supply causes asymmetric resource competition among aquatic producers.
Jäger and Diehl in [15] modeled the asymmetrical resource competition between aquatic producers for light and nutrients in a shallow aquatic environment. Let x be the water depth coordinate with x=0 at the water surface and x=xp+xb at the water bottom. Aquatic producers are divided into two parts: pelagic producers (P) and benthic producers (B). The former is located in the pelagic habitat (x∈[0,xp]), mainly composed of various phytoplankton. The latter, including submerged macrophytes and benthic algae, lives in the benthic habitat (x∈[xp,xp+xb]). Light (Ip,Ib) first passes through the pelagic habitat and then reaches the benthic habitat. Following the Lambert-Beer law [8], it is given by Ip(x,P)=I0exp(−k0x−kpPx),x∈[0,xp] in the pelagic habitat and Ib(x,P,B)=Ip(xp,P)exp(−k0(x−xp)−kbB(x−xp)),x∈[xp,xp+xb] in the benthic habitat. Nutrients (U,V) are just the opposite, passing through the benthic and pelagic habitat in turn. This process involves two nutrient exchanges. One is the nutrient exchange between the benthic habitats and sediment ((b/xb)(V0−V)). The other is the nutrient exchange between the pelagic and benthic habitat ((a/xp)(V−U) and (a/xb)(V−U)). This form of spatial supply of resources results in pelagic producers having the priority to use light and benthic producers having the preemptive right for nutrients. This creates unfair allocations of resources between pelagic and benthic producers. In [15], Jäger and Diehl also introduced a mathematical model to describe this asymmetric resource competition among aquatic producers. Their model can be simplified as
The biological significance of variables and parameters in the model (1.1) can be found in Table 1. The growth rate of aquatic producers takes the multiplication of Monod functions
This means that the resource-based growth in the model (1.1) is in the Monod form. One of its distinguishing feature is that aquatic producers' cell quota (nutrient to carbon ratio cp,cb) is constant. The first objective of the present paper is to analyze the dynamic properties of the model (1.1) theoretically and to derive rigorously the basic ecological reproductive indexes for pelagic and benthic producer invasions. These analyses can well validate and complement the numerical simulations of model (1.1) in [15].
In aquatic ecosystems, it has long been recognized that the cell quota in aquatic producers is not fixed but constantly changing [16]. This variable cell quota characterizes aquatic producer quality and affects the biodiversity of aquatic ecosystems. It has been applied to investigate some ecological mechanisms and elucidate important ecological problems. For example, producer and grazer interactions [6,17,18], the coexistence of three species systems [19,20,21], and the degradation of organic matter by bacteria [22,23,24]. The Droop form is most commonly used to describe the resource-based growth of a population that depends on the variable cell quota. In [25], Wang et al. compared the Monod (constant cell quota) and droop (variable cell quota) forms for resource-based population dynamics through theoretical analysis and experimental data. They stated that a population growth model with the two forms has similar dynamics in the closed nutrients, whereas in the case of the low nutrient uptake rate, the transient dynamics are significantly different. Therefore, it is of great significance to investigate the differences and similarities of asymmetric resource competition among aquatic producers under constant and variable cell quotas.
Motivated by the above considerations, we propose the following asymmetric resource competition model with the variable cell quota between pelagic and benthic producers:
dPdt=rpup(Qp)gp(P)P⏟pelagic producer growth−mpP⏟pelagic producer loss−vxpP⏟sinking due to gravity,dQpdt=hp(Qp)fp(U)⏟nutrient uptake of pelagic producers−rpup(Qp)gp(P)Qp⏟dilution due to pelagic producer growth,dUdt=axp(V−U)⏟nutrient exchange−hp(Qp)fp(U)P⏟pelagic producer consumption+θpQpmpP⏟nutrient recycling,dBdt=rbub(Qb)gb(P,B)B⏟benthic producer growth−mbB⏟benthic producer loss,dQbdt=hb(Qb)fb(V)⏟nutrient uptake of benthic producers−rbub(Qb)gb(P,B)Qb⏟dilution due to benthic producer growth,dVdt=bxb(V0−V)−axb(V−U)⏟nutrient exchange−hb(Qb)fb(V)B⏟benthic producer consumption+θbQbmbB⏟nutrient recycling.
(1.2)
Here Qp and Qb represent the cell quotas (N:C) in pelagic and benthic producers, respectively. In model (1.2), the resource-based growth of aquatic producers is the Droop form. It is expressed as rpup(Qp)gp(P) and rbub(Qb)gb(P,B), where ui(Qi)=(1−Qmin,i/Qi),Qmin,i≤Qi≤Qmax,i,i=p,b. The biomass reduction of aquatic producers is mpP,mbB owing to respiration, predation and death, and (v/xp)P due to sinking. The aquatic producer nutrient uptake rate is hp(Qp)fp(U) and hb(Qb)fb(V), where hi(Qi)=δi(Qmax,i−Qi)/(Qmax,i−Qmin,i),i=p,b. The dilution rate of cell quota is rpup(Qp)gp(P) and rbub(Qb)gb(P,B). Nutrients can be released after biomass loss by aquatic producers with proportions θp,θb. Another objective of this study is to explore the dynamics of model (1.2) and to compare the differences and similarities in the dynamic properties of the two models under constant and variable cell quotas. These comparisons contain the variation pattern of the basic ecological reproductive indexes and asymmetric resource competition for varying environmental factors.
The structure of this paper is organized as follows. In Section 2, we investigate the dynamics of models (1.1) and (1.2), including the dissipation, existence and stability of equilibria. The basic ecological reproductive indexes for aquatic producer invasion are rigorously derived. The differences and similarities in the dynamical properties of the two models are illustrated. In Section 3, we explore the variation pattern of the basic ecological reproductive indexes and the results of asymmetric resource competition for varying environmental factors via sensitivity analysis and some numerical bifurcation diagrams. A brief discussion and summary are in the last section.
2.
Model dynamics
In this section, we investigate the dynamics of models (1.1) and (1.2). Considering the ecological background of (1.1) and (1.2), we will explore the solutions of (1.1) and (1.2) with the nonnegative initial values
By standard mathematical arguments, (1.2) ((1.1)) has a unique nonnegative global solution for any initial values satisfying (2.1).
2.1. Dynamics of model (1.2)
This subsection is devoted to studying the dynamic properties of the model (1.2) containing dissipation, the existence and stability of equilibria.
Theorem 2.1.System (1.2) is dissipative.
Proof. Note that Qmin,i≤Qi(0)≤Qmax,i for i=p,b. From the Qp and Qb equations in (1.2), we have Qmin,i≤Qi(t)≤Qmax,i,i=p,b for all t≥0. It follows from the P and B equations in (1.2) that
Hence, there is no positive periodic orbit for (2.2) in R2+. This indicates that (h∗1,h∗2) is globally asymptotically stable. From the comparison theorem, we have
To explore asymmetrical resource competition among aquatic producers, we define the basic ecological reproductive indexes with variable cell quota for pelagic and benthic producers by
These indexes describe the average number of new aquatic producers produced by aquatic producers during one life cycle. This means that they represent the reproductive capacity of aquatic producers.
Theorem 2.2.Ev1 always exists, and it is locally asymptotically stable if max{Rp,v0,Rb,v0}<1, while Ev1 is unstable if max{Rp,v0,Rb,v0}>1. Furthermore, if
mp>rpup(Qmax,p)gp(0)−v/xp,mb>rbub(Qmax,b)gb(0,0),
(2.5)
then Ev1 is globally asymptotically stable.
Proof. It is obvious that Ev1≡(0,Qp1,V0,0,Qb1,V0). The Jacobian matrix at Ev1 is
and if max{Rp,v0,Rb,v0}<1, then a11,a44<0. By the Routh-Hurwitz criterion, all the eigenvalues of J(Ev1) have negative real parts. This suggests that E1 is locally asymptotically stable if max{Rp,v0,Rb,v0}<1. Conversely, if max{Rp,v0,Rb,v0}>1, then E1 is unstable.
By the Routh-Hurwitz criterion, all eigenvalues of J(Ev2) have negative real parts. Therefore, Ev2 is locally asymptotically stable. On the contrary, if Rp,v1>1, then Ev2 is unstable.
By similar arguments as those in Theorem 2.3, the existence and stability of Ev3 are ensured by the following theorem. The details are omitted here.
Theorem 2.4.Ev3 exists if and only if Rp,v0>1. Moreover, if Rb,v1<1, then Ev3 is locally asymptotically stable, while Ev3 is unstable if Rb,v1>1.
Remark 2.5. From Theorems 2.3 and 2.4, we have the following conclusion. If Rj,v0>1 and Rj,v1<1, j=p,b, then model (1.2) has a bistable structure, where both Ev2 and Ev3 are locally asymptotically stable.
Next, we use mp as the bifurcation parameter to study the existence of Ev4. Let
and denote ˆmvp by mb=rbub(Qb3(ˆmp))gb(Pv3(ˆmp),0). We consider the coexistence equilibrium Ev4 bifurcating from Π={(mp,0,Qp2,Uv2,Bv2,Qb2,Vv2):mp>0} at mp=ˉmvp and meeting mp=0 or Γ={(mp,Pv3,Qp3,Uv3,0,Qb3,Vv3):mp∈(0,mvp)} at mp=ˆmvp.
Theorem 2.6.Assume that Rp,v1>1 and Rb,v1>1 hold. Then for each fixed mb∈(0,mvb), Ev4 exists if mp∈(max{0,ˆmvp},ˉmvp).
Proof. This proof is divided into two parts. The first part is to explore the existence of Ev4 near (ˆmvp,0,Qp2,Uv2,Bv2,Qb2,Vv2) by the local bifurcation theory (see Theorem 1.7 in [27]). The second part to prove that (1.2) has at least one Ev4 for mp∈(max{0,ˆmvp},ˉmvp) by applying the global bifurcation theory (see Theorem 3.3 and Remark 3.4 in [28]).
Let η1=1. Note that (2.7) is a five-dimensional homogeneous linear equation, and its coefficient determinant is not zero. Hence, there exists a unique solution (1,ˆη2,ˆη3,ˆη4,ˆη5,ˆη6) satisfying (2.7). This means that dimkerF=1 and kerF=span{1,ˆη2,ˆη3,ˆη4,ˆη5,ˆη6}. It is obvious that
According to the Crandall-Rabinowitz bifurcation theorem (see Theorem 1.7 in [27]), the smooth curve Υ={(μp(s),Pv4(s),Qp4(s),Uv4(s),Bv4(s),Qb4(s),Vv4(s)):0<s<ε} for some ε>0 near (ˉμvp,0,Qp2,Uv2,Bv2,Qb2,Vv2) contains all positive coexistence equilibria of (1.2) with the form
(ⅱ) Global bifurcation. Let Λ be the set of all positive coexistence equilibria of (1.2). From Theorem 3.3 and Remark 3.4 in [28], there exists a connected set Λ+ in Λ such that Λ+ connects to Π and contains Υ and its closure includes (ˉμvp,0,Qp2,Uv2,Bv2,Qb2,Vv2). Furthermore, Λ+ satisfies one of the following: 1) Λ+ is not compact in R7+; 2) Λ+ meets another bifurcation point (˜mp,0,Qp2,Uv2,Bv2,Qb2,Vv2) with ˜mp≠ˉmvp; 3) Λ+ contains (mp,ˆPv4,Qp2+ˆQp4,Uv2+ˆUv4,Bv2+ˆBv4,Qb2+ˆQb4,Vv2+ˆVv4) with 0≠(ˆPv4,ˆQp4,ˆUv4,ˆBv4,ˆQb4,ˆVv4)∈X, where X is a closed complement of kerF=span{1,ˆη2,ˆη3,ˆη4,ˆη5,ˆη6} in R6+.
If 3) holds, then ˆPv4=0. It is a contradiction to ˆPv4>0. If 2) holds, then there is a coexistence equilibria sequence {(mip,(Pv4)i,Qip4,(Uv4)i,(Bv4)i,Qib4,(Vv4)i)} such that
as i→∞. It follows from the first equality in (2.3) that
rpup((Qvp4))igp((Pv4)i)−mip−v/xp=0.
Letting i→∞ gives
rpup(Qvp2)gp(0)−˜mp−v/xp=0,
which indicates that ˜mp=ˉmvp. It is a contradiction, and then 2) does not hold.
According to the above discussion, 1) must hold, and then Λ+ is not compact in R7+. From the first equality in (2.3), one can see 0<mp<ˉmvp if (1.2) has positive coexistence equilibria. By Theorem 2.1, we have
for any mp∈(0,ˉmvp). This means that Λ+ must meet the boundary of (0,ˉmvp)×R6+. Note that Λ+ connects to Π as mp→ˉmv,−p and Λ+ cannot meet (mp,0,Qp1,V0,0,Qb1,V0) for any mp∈(0,ˉmvp). Therefore, one of the following two alternatives must happen. The first alternative is mp→0 for some fixed mb∈(0,mvb), which indicates that the projection of Λ+ on the mp-axis contains the interval (0,ˉmvp). The second alternative is that Λ+ meets Γ at mp=ˆmvp. Thus, Ev4 exists on (ˆmvp,ˉmvp). The proof is complete.
To facilitate an understanding of the dynamics of model (1.2), we use the loss rates mp and mb as parameters to describe the attractive region of the above equilibria. From (2.6) and Theorems 2.2–2.6, we let

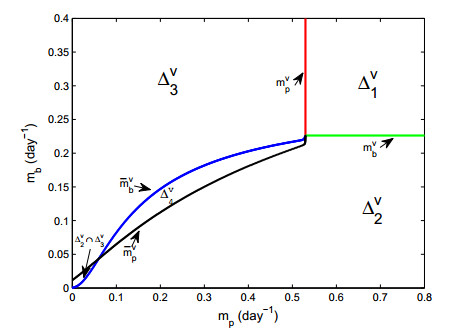

Figure 1 displays the districts of pelagic and benthic producers from extinction to survival in the (mp,mb)-plane. In Δv1, the solutions of model (1.2) converge to Ev1. It indicates that both pelagic and benthic producers are extirpated. In Δv2, benthic producers win asymmetric resource competition while pelagic producers go extinct. In this region, Ev2 attracts all solutions. Correspondingly, pelagic producers dominate aquatic ecosystems while benthic producers disappear in Δv3. Then the solutions of model (1.2) converge to Ev3. Pelagic and benthic producers can coexist in the region Δv4, and Ev4 is an attractor. Δv2∩Δv3 is a bistable region where the solutions converge to Ev2 or Ev3 for different initial values.
Figure 1.
The attractive region of Evi, i=1,2,3,4 in the (mp,mb)-plane. Here Qmax,p=0.02,Qmin,p=0.002,βp=5,βb=3,αp=60,αb=100 and other parameters are from Table 2.
We investigate the dynamic properties of model (1.1). The four possible equilibria are shown below: Ec1≡(0,V0,0,V0), Ec2=(0,Uc2,Bc2,Vc2), where Uc2,Bc2,Vc2 solve
and denote ˆmcp as mb=rbfb(Vc3(ˆmcp))gb(Pc3(ˆmcp),0).
Carrying out similar arguments to those in Theorems 2.1–2.6, we obtain the following theorem. The details of the proof are omitted here.
Theorem 2.7.(i) System (1.1) is dissipative.
(ii)Ec1 always exists, and it is locally asymptotically stable if max{Rp,c0,Rb,c0}<1, while Ec1 is unstable if max{Rp,c0,Rb,c0}>1. Furthermore, if mp>rpgp(0)−v/xp,mb>rbgb(0,0), then Ec1 is globally asymptotically stable.
(iii)Ec2 exists if and only if Rb,c0>1. Moreover, if Rp,c1<1, then Ec2 is locally asymptotically stable, while Ec2 is unstable if Rp,c1>1.
(iv)Ec3 exists if and only if Rp,c0>1. Moreover, if Rb,c1<1, then Ec3 is locally asymptotically stable, while Ec3 is unstable if Rb,c1>1.
(v) Assume that Rp,c1>1 and Rb,c1>1 hold. Then for each fixed mb∈(0,mcb), Ec4 exists if mp∈(max{0,ˆmcp},ˉmcp).
Remark 2.8. The above theoretical analysis results give the threshold conditions for pelagic and benthic producers to invade aquatic ecosystems, respectively, and the criterion for their coexistence. These findings explain and complement the results of the numerical analysis in [15]. It follows from (ⅲ) and (ⅳ) in Theorem 2.7 that both Ec2 and Ec3 are locally asymptotically stable if Rj,c0>1 and Rj,c1<1, j=p,b.
In order to compare with model (1.2), we also take (mp,mb) as the parameters and define
From Figure 2, one can see that the solutions of model (1.1) converge to Eci in each region Δci. Δc2∩Δc3 is also a bistable region of Ec2 and Ec3. The ecological interpretation of the corresponding region is the same as in Figure 1. It can be seen from Figures 1 and 2 that the dynamic behavior of models (1.1) and (1.2) are similar, mainly including equilibria, bistability, and no oscillation. This suggests that there is no essential difference in the dynamics of models for constant and variable cell quotas. However, the ranges of Δvi, Δci and the bistable region are not the same. Therefore, the results of the asymmetric competition are not identical within certain parameter ranges for two different types of cell quotas.
Figure 2.
The attractive region of Eci, i=1,2,3,4 in the (mp,mb)-plane. Here cp=0.004,cb=0.04,βp=5,βb=3,αp=60,αb=100 and other parameters are from Table 2.
Models (1.1) and (1.2) have different forms of cell quota. This difference would bring some changes to the asymmetric resource competition among aquatic producers. In the following, we will compare the asymmetric resource competition and the effects of environmental factors between the constant and variable cell quotas. These comparisons contain the basic ecological reproductive indexes (2.4) and (2.8), the results of asymmetric resource competition, and the evolution trend of the biomass densities of pelagic and benthic producers with environmental factors. In Table 2, we list the ecologically reasonable parameter values applied in the numerical analysis.
Table 2.
Numerical values of parameters of model (2.3) with references.
In view of the model analysis in Section 2, Rj,vi=1 and Rj,ci=1, i=0,1,j=p,b are the critical thresholds of aquatic producers from extinction to survival. From (2.4) and (2.8), one can observe that the basic ecological reproductive indexes in models (1.1) and (1.2) are not the same. A significant difference is that the indexes in (2.4) depend on variable cell quotas of pelagic and benthic producers. Figure 3 shows the changing trend of the basic ecological reproductive indexes for varying sediment nutrient concentration V0 and light intensity I0. The following phenomenons can be seen: 1) Rb,v1<1 if V0>141.5 (Figure 3(a)); 2) Rb,ci<1, i=0,1 when V0 tends to 0.5 and Rb,c1<1 if V0>367.5 (Figure 3(b)); 3) Rj,vi>1, Rb,ci>1, i=0,1,j=p,b if I0∈(75,846) and Rp,v1<1 if I0>846 (Figure 3(c)); 4) Rj,vi>1, Rb,ci>1, i=0,1,j=p,b if I0∈(196,1200). Phenomenons 1) and 2) illustrate that pelagic and benthic producers with variable cell quota are more likely to coexist in nutrient-poor environments, while in eutrophic environments, pelagic producers win asymmetric resource competition and dominate aquatic ecosystems. The reason is that variable cell quotas can well offset the adverse effects of nutrient deprivation. High nutrient input breaks the balance of resource supply, making pelagic producers dominant in asymmetric competition. Phenomenons 3) and 4) indicate that low light is detrimental for aquatic producers to coexist, while high light causes benthic producers with variable cell quota to win asymmetric resource competition. These studies suggest that the basic ecological reproductive indexes are not consistent for constant and varying cell quotas, and thus the coexistence region of pelagic and benthic producers are also very different for varying V0 and I0.
Figure 3.
Influence of V0∈(0.5,500) and I0∈(10,1200) on the basic ecological reproductive indexes. Left: variable cell quota; Right: constant cell quota.
Based on the Latin Hypercube Sampling (LHS) and Partial Rank Correlation Coefficients (PRCCs) analyses, we explore the correlation of basic ecological reproductive indexes to model parameters. Due to the lack of available data on the distribution function, it is reasonable to assume that all input parameters conform to a normal distribution according to previous studies. The mean is the parameter value in Table 1, and the standard deviation is 0.1 times the mean. From Figure 4, one can see the correlation between Rj,vi and Rb,ci, i=0,1,j=p,b on model parameters that are linked to environmental factors. The value of the histogram represents the degree of correlation between them. High values indicate that they are more correlated, indicating that this parameter has a more significant influence on Rj,vi and Rb,ci. The overall observation shows that parameters I0,k0,xp,rb,rp,mb,mp have a relatively large influence on the reproductive indexes, while others are not too significant for some indexes. Sensitivity analysis of basic ecological reproductive indexes also reveals differences between constant and variable cell quotas. For example, in Figure 4(c1), (c2), the indexes Rp,v1, Rb,v1 show the correlations for the parameters.
Figure 4.
Sensitive analysis of basic ecological reproductive indexes Rj,vi, Rj,ci, i=0,1,j=p,b via parameters for models (1.2) and (1.1). The white areas represent highly correlation between input parameters and output variables (0.4≤|PRCC|<1), the dark gray areas indicate moderate correlations (0.2≤|PRCC|<0.4), and light grey areas represent statistically insignificant(0<|PRCC|<0.2). Left: variable cell quota; Right: constant cell quota.
We now consider the influences of environmental factors on the biomass densities of pelagic and benthic producers. These environmental factors have a necessarily close connection with resource supply, including parameters I0,k0 related to light, parameters V0,a,b related to nutrients. The following numerical bifurcation diagrams reveal the evolution trend of pelagic and benthic producer biomass densities for varying I0,k0,V0,a,b.
Figure 5(a) shows that very low water surface light intensity is harmful to both pelagic and benthic producers. As I0 increases, pelagic producers first invade aquatic ecosystems. A sharp regime shift follows, with benthic producers invading aquatic habitats and rapidly increasing biomass, while pelagic producer biomass rapidly declines. This suggests that the low light intensity is beneficial for pelagic producers, and the high light intensity allows benthic producers to win in asymmetric resource competition. For varying background light attenuation coefficient k0, a sharp regime shift also occurs from benthic to pelagic producer dominance. Especially if the water is very turbid, both pelagic and benthic producers become extinct (see Figure 5(b)). For constant and variable cell quotas, pelagic and benthic producer biomass show similar evolutionary trends and regime transitions in Figure 5 (see solid and dashed lines). Two differences can also be observed. One is that when only one type of producer is present, its biomass is higher for the variable cell quota. This suggests that the variable cell quota facilitates the increase in producer biomass. The other is that the coexistence range of pelagic and benthic producers is relatively small when the cell quota is varied relative to the constant cell quota. This is because the variable cell quota reduces the dependence of pelagic producers on nutrients, making it easier to win in asymmetric resource competition.
Figure 5.
Influences of the water surface light intensity I0 and background light attenuation coefficient k0.
From Figure 6, one can see the changes in pelagic and benthic producer biomass for varying sediment nutrient concentration V0 and nutrient exchange rates a,b. Low nutrient concentrations or exchange rates allow benthic producers to win the asymmetric competition, while high ones are beneficial for pelagic producers to dominate aquatic habitats. During this process, there is a clear regime switch from benthic to pelagic producers. Similar to light-related environmental factors, pelagic and benthic producers have higher biomass and small coexistence areas for the variable cell quota when nutrient-related factors change. These findings indicate that the variable cell quota can influence asymmetric resource competition among aquatic producers and exhibit properties that differ from the constant cell quota.
Figure 6.
Influences for the sediment nutrient concentration V0 and nutrient exchange rates a,b.
Asymmetric competition is widespread in aquatic ecosystems due to the asymmetric supply of resources such as light and nutrients. Jäger and Diehl in [15] stated that asymmetric competition between pelagic and benthic producers might have different competition outcomes compared to classical resource competition theories based on numerical simulations. A significant difference is that pelagic and benthic producers can coexist even when one of them is at a disadvantage in terms of both light and nutrient uptake. In contrast, in the classical theory of resource competition, the conditions for the coexistence of two populations are that their utilization of resources must be significantly different. This means that asymmetric competition is more beneficial to the coexistence of pelagic and benthic producers.
In this study, we investigate the dynamic properties of the model (1.1), which explain and complement the numerical analysis results in [15]. Model (1.2) is proposed to describe asymmetric resource competition among aquatic producers with the variable cell quota. We also explore the dynamics of model (1.2) and compare the similarities and differences under constant and variable cell quotas. It should be emphasized that models (1.1) and (1.2) are only suitable for describing shallow aquatic environments but not all aquatic habitats.
The basic ecological reproductive indexes Rj,vi=1 and Rj,ci=1, i=0,1,j=p,b for aquatic producer invasions are rigorously derived. If max{Rp,v0,Rb,v0}<1 (max{Rp,c0,Rb,c0}<1), then the extinction of aquatic producers is inevitable. If Rb,v0>1 and Rp,v1<1 (Rb,c0>1 and Rp,c1<1), then benthic producers win the asymmetric competition and dominate aquatic habitats. Correspondingly, if Rp,v0>1 and Rb,v1<1 (Rp,c0>1 and Rb,c1<1), then pelagic producers win the competition and dominate aquatic ecosystems. If Rp,v1>1 and Rb,v1>1 (Rp,c1>1 and Rb,c1>1), then pelagic and benthic producers can coexist. Finally, if Rp,v1<1 and Rb,v1<1 (Rp,c1<1 and Rb,c1<1), then the models have bistability, where either pelagic or benthic producers may win asymmetric competition.
The constant cell quota (Monod forms) and variable cell quota (Droop forms) have been widely used in aquatic ecological models. The former indicates that nutrient consumption and growth/cell division in aquatic producer cells occur simultaneously, while the latter indicates that the two processes are considered separately [25]. The existing studies show that the variable cell quota model describes the data more accurately, while the constant cell quota model is more applicable due to its simple form [25]. In view of the importance and wide applicability of constant and variable cell quotas in aquatic ecosystems, elucidating the similarities and differences between the two types of cell quotas can facilitate the further development of aquatic ecological models.
Here we attempt to explore the similarities and differences between constant and variable cell quota models under asymmetric resource competition. Theoretical analysis reveals the similarity of the dynamics of model (1.1) with the constant cell quota and model (1.2) with the variable cell quota. They both have four equilibria and bistable structures. However, asymmetric competition results in models (1.1) and (1.2) are not consistent for different parameter values. Sensitive analysis and bifurcation diagrams show that if there is only one aquatic producer, the aquatic producer biomass is higher when the cell quota is changed, which is beneficial to its survival. However, the variable cell quota reduces the dependence of pelagic producers on nutrients, thus enabling them to win an advantage in the asymmetric resource competition. This causes a reduction in the coexistence of pelagic and benthic producers.
Compared with the research work of Wang et al. in [25], our model is composed of two populations and includes the effect of light. Numerical analysis shows that light can bring some differences to some basic ecological reproductive indexes for two different types of cell quotas (see Figure 3(c), (d)). There are still some biological problems that deserve further discussion. For example, the roles of zooplankton [21,29] and toxins [30,31] in asymmetric competition.
Acknowledgments
This work is supported by NSFC-12271144, 11901140 and Heilongjiang Provincial Natural Science Foundation of China-LH2022A015.
Conflict of interest
The authors declare there is no conflict of interest.
