Numerical solution of the Hibler model of sea-ice dynamics: Comparing backward Euler and Crank-Nicolson methods

Salim Bensassi; Boualem Khouider; Clint Seinen; M'hamed Kesri; Salim Bensassi; Boualem Khouider; Clint Seinen; M'hamed Kesri

doi:10.3934/math.2026329

AIMS Mathematics

2026, Volume 11, Issue 3: 7980-8013. doi: 10.3934/math.2026329

Previous Article Next Article

Research article

Numerical solution of the Hibler model of sea-ice dynamics: Comparing backward Euler and Crank-Nicolson methods

1.
Dynamical Systems Laboratory, Department of Analysis, Faculty of Mathematics, University of Science and Technology Houari Boumediene, BP 32 Bab Ezzouar, 16111 - Algiers, Algeria
2.
Mathematics and Statistics, University of Victoria, P.O. Box 1700 STN CSC, Victoria, Canada

Received: 30 September 2025 Revised: 03 March 2026 Accepted: 05 March 2026 Published: 25 March 2026
MSC : 35Q74, 35Q86, 65M06

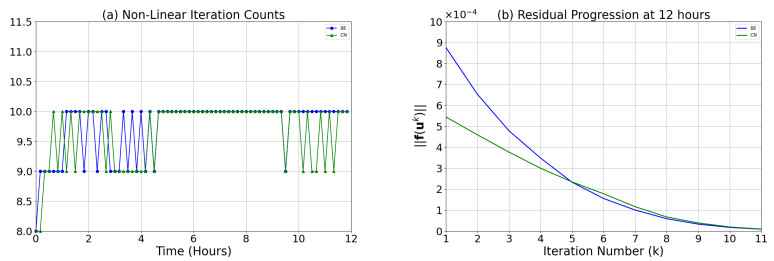

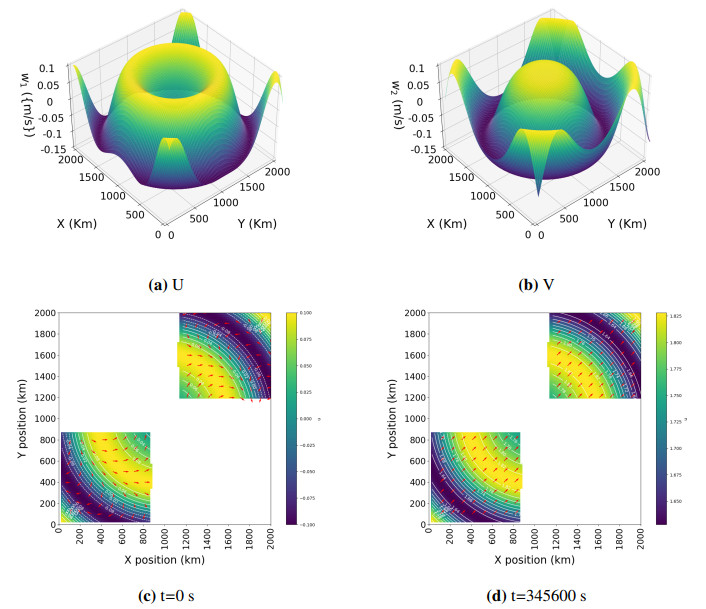

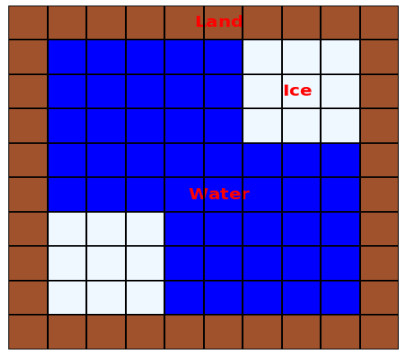

The viscous-plastic momentum equations for sea-ice dynamics are a model for the time evolution of the horizontal velocity field of a vertically homogeneous column of ice-pack continuum whose thickness and ice concentration vary in time and space. They constitute a highly nonlinear system of partial differential equations, and as such, both the mathematical analysis and numerical solution of its solution remain a challenge. To shed some light on this problem, we compared the performance of two known time discretization methods: the backward Euler (BE) and the Crank-Nicolson (CN) methods. Both methods are in theory unconditionally stable, but Euler's method is only first-order accurate while Crank-Nicolson is second-order. Centered finite differences were used for the spatial derivatives. This led to a nonlinear system of algebraic equations which was then solved using a Jacobian-free Newton-Krylov approach. First, the two methods were compared in terms of their ability to reproduce a synthetic solution to the viscous-plastic momentum equations when an artificial forcing is applied. The convergence of the two methods is assessed for a short time integration period of 12 hours and grid resolutions of $ dx = 5, 10, 20 $ km and $ dt = 20, 10, 5 $ minutes. While both methods showed an overall second-order convergence in space, only the BE method displayed the expected first-order convergence in timestep refinement. The CN's errors didn't decrease under time refinement, although they are consistently twice as small as the BE's errors. This behaviour persisted in longer 4-day runs, where the BE method displayed a more stable solution overall, especially at the coarse resolution with $ dt = 80 $ minutes, where the CN failed to converge. The two methods are then compared in a 1-year climatic simulation with realistic wind and ocean forcings, using a grid resolution of 20 km where both methods performed fairly well. However, after 1 year the two solutions diverged somewhat significantly from one-another, providing hard evidence that climate models are sensitive to the underlying numerical methods.
- viscous-plastic sea-ice equations,
- Jacobian-free Newton-Krylov,
- numerical solutions,
- Crank-Nicolson,
- backward Euler,
- numerical stability
Citation: Salim Bensassi, Boualem Khouider, Clint Seinen, M'hamed Kesri. Numerical solution of the Hibler model of sea-ice dynamics: Comparing backward Euler and Crank-Nicolson methods[J]. AIMS Mathematics, 2026, 11(3): 7980-8013. doi: 10.3934/math.2026329

Related Papers:

Abstract

The viscous-plastic momentum equations for sea-ice dynamics are a model for the time evolution of the horizontal velocity field of a vertically homogeneous column of ice-pack continuum whose thickness and ice concentration vary in time and space. They constitute a highly nonlinear system of partial differential equations, and as such, both the mathematical analysis and numerical solution of its solution remain a challenge. To shed some light on this problem, we compared the performance of two known time discretization methods: the backward Euler (BE) and the Crank-Nicolson (CN) methods. Both methods are in theory unconditionally stable, but Euler's method is only first-order accurate while Crank-Nicolson is second-order. Centered finite differences were used for the spatial derivatives. This led to a nonlinear system of algebraic equations which was then solved using a Jacobian-free Newton-Krylov approach. First, the two methods were compared in terms of their ability to reproduce a synthetic solution to the viscous-plastic momentum equations when an artificial forcing is applied. The convergence of the two methods is assessed for a short time integration period of 12 hours and grid resolutions of $ dx = 5, 10, 20 $ km and $ dt = 20, 10, 5 $ minutes. While both methods showed an overall second-order convergence in space, only the BE method displayed the expected first-order convergence in timestep refinement. The CN's errors didn't decrease under time refinement, although they are consistently twice as small as the BE's errors. This behaviour persisted in longer 4-day runs, where the BE method displayed a more stable solution overall, especially at the coarse resolution with $ dt = 80 $ minutes, where the CN failed to converge. The two methods are then compared in a 1-year climatic simulation with realistic wind and ocean forcings, using a grid resolution of 20 km where both methods performed fairly well. However, after 1 year the two solutions diverged somewhat significantly from one-another, providing hard evidence that climate models are sensitive to the underlying numerical methods.
