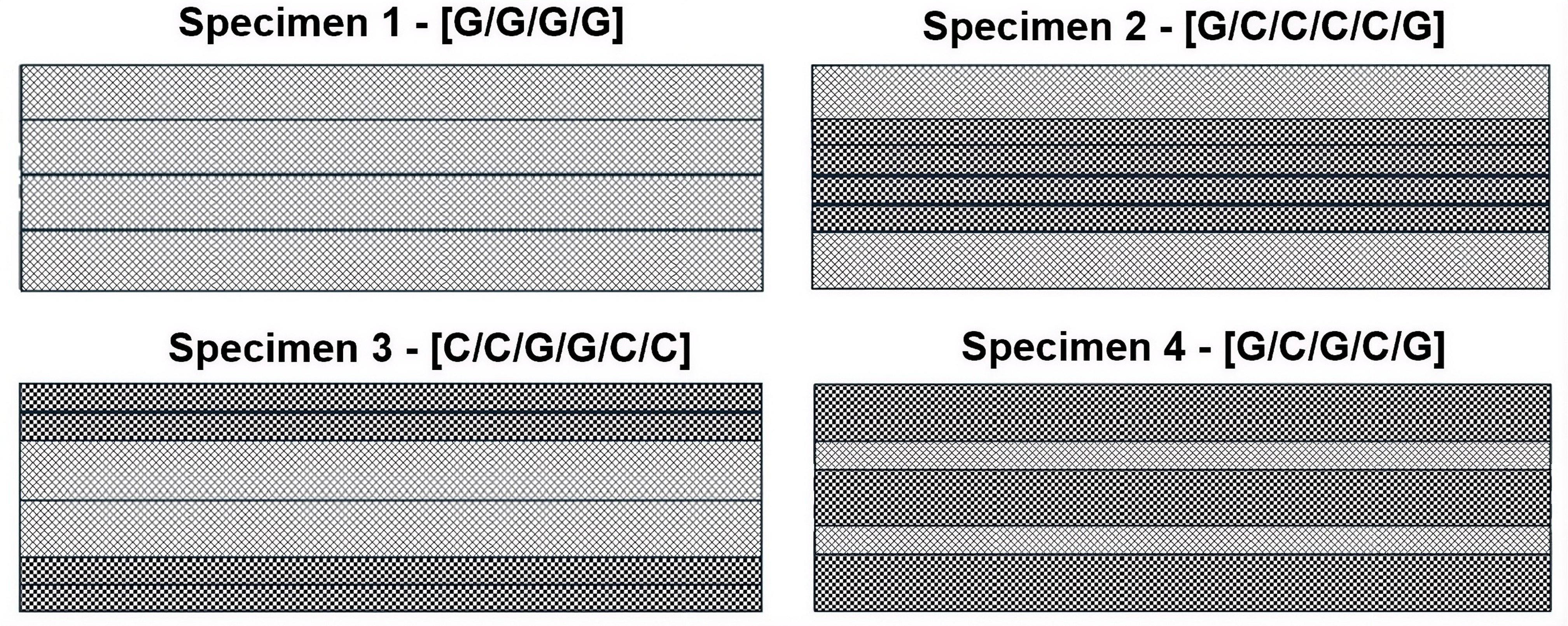

In this study, carbon (C)/glass (G) fiber reinforced polymer laminates were fabricated through the hand lay-up process. Our purpose was to investigate the influence of stacking sequence on their mechanical performance. Different stacking configurations such as G/G/G/G, G/C/C/C/C/G, C/C/G/G/C/C, and G/C/G/C/G with mixed construction of glass and carbon fibers such as randomized and mat type were used to tailor the properties of the laminates for specific mechanical behavior. The results highlighted that the stacking sequence played a crucial role in determining the composite's mechanical behavior, offering valuable insights for optimizing design and performance. The least porosity was observed for G/C/C/C/C/G & G/G/G/G composite laminates, which might be due to the arrangement of similar fiber mats on successive layers that increased the density appreciably and reduced the porosity. With much higher diffusion rates, carbon fibers were observed to possess a larger potential for water uptake than glass fibers. Maximum tensile strength of about 18.6 kN was observed for G/C/C/C/C/G laminate and least tensile strength of 3.9 kN for G/G/G/G laminate. Compared to other composite laminates, the laminate with stacking sequence C/C/G/G/C/C resulted in high load carrying capacity against compression. The randomized glass fiber and woven carbon fiber had an enhanced interlocking behavior, which resulted in improved resistance against transverse loading. Laminates containing carbon fibers in the outer or middle layers performed better under impact loading and inter-laminar shear loading due to their superior load-bearing capacity, crack arresting behavior, and higher shear resistance of carbon fibers. Even with the delamination damage of the laminates, carbon fibers at the outer layers protected the laminate better than others. It was observed from ANOVA results that the stacking sequence had a strong influence on the mechanical and machining behavior of laminates.
Citation: Ganesh Radhakrishnan, Ahmed Ali Salim Al Burtamani, Ali Jamil Humaid Al Daraai, Abdul Aziz Mohammed Al Ismaili, Asim Hamed Saif Al Hadhrami, Kadhavoor R. Karthikeyan. Effect of stacking sequence on the mechanical performance of hybrid carbon/glass fiber reinforced polymer composite laminates—A comprehensive experimental study[J]. AIMS Materials Science, 2026, 13(3): 614-635. doi: 10.3934/matersci.2026030
In this study, carbon (C)/glass (G) fiber reinforced polymer laminates were fabricated through the hand lay-up process. Our purpose was to investigate the influence of stacking sequence on their mechanical performance. Different stacking configurations such as G/G/G/G, G/C/C/C/C/G, C/C/G/G/C/C, and G/C/G/C/G with mixed construction of glass and carbon fibers such as randomized and mat type were used to tailor the properties of the laminates for specific mechanical behavior. The results highlighted that the stacking sequence played a crucial role in determining the composite's mechanical behavior, offering valuable insights for optimizing design and performance. The least porosity was observed for G/C/C/C/C/G & G/G/G/G composite laminates, which might be due to the arrangement of similar fiber mats on successive layers that increased the density appreciably and reduced the porosity. With much higher diffusion rates, carbon fibers were observed to possess a larger potential for water uptake than glass fibers. Maximum tensile strength of about 18.6 kN was observed for G/C/C/C/C/G laminate and least tensile strength of 3.9 kN for G/G/G/G laminate. Compared to other composite laminates, the laminate with stacking sequence C/C/G/G/C/C resulted in high load carrying capacity against compression. The randomized glass fiber and woven carbon fiber had an enhanced interlocking behavior, which resulted in improved resistance against transverse loading. Laminates containing carbon fibers in the outer or middle layers performed better under impact loading and inter-laminar shear loading due to their superior load-bearing capacity, crack arresting behavior, and higher shear resistance of carbon fibers. Even with the delamination damage of the laminates, carbon fibers at the outer layers protected the laminate better than others. It was observed from ANOVA results that the stacking sequence had a strong influence on the mechanical and machining behavior of laminates.
| [1] |
Nagaraja KC, Rajanna S, Prakash GS, et al. (2020) The role of stacking order on mechanical properties of glass/carbon reinforced epoxy hybrid composites prepared by resin infusion technique. Mater Today Proc 22: 2446–2451. https://doi.org/10.1016/j.matpr.2020.03.371 doi: 10.1016/j.matpr.2020.03.371
|
| [2] |
Nagaraja KC, Rajanna S, Prakash GS, et al. (2020) Studying the effect of different carbon and glass fabric stacking sequence on mechanical properties of epoxy hybrid composite laminates. Compos Commun 21: 100425. https://doi.org/10.1016/j.coco.2020.100425 doi: 10.1016/j.coco.2020.100425
|
| [3] |
Abdalla GA, Elbadry EA, Aboraia M (2020) Effect of glass fiber stacking sequence on the notch sensitivity of glass fiber reinforced epoxy matrix composites. Egypt J Chem 63: 2977–2986. https://doi.org/10.21608/ejchem.2020.19497.2186 doi: 10.21608/ejchem.2020.19497.2186
|
| [4] |
Kumar K, Mishra YK, Kumar J, et al. (2024) Exploration of stacking effects of carbon/glass fabric in polymer hybrid composites: Analysis of mechanical properties. Discov Appl Sci 6: 636. https://doi.org/10.1007/s42452-024-06348-5 doi: 10.1007/s42452-024-06348-5
|
| [5] |
Dong C, Davies IJ (2018) Effect of stacking sequence on the flexural properties of carbon and glass fibre-reinforced hybrid composites. Adv Compos Hybrid Mater 1: 530–540. https://doi.org/10.1016/j.compositesb.2013.10.027 doi: 10.1016/j.compositesb.2013.10.027
|
| [6] |
Ali HT, Akrami R, Fotouhi S, et al. (2020) Effect of the stacking sequence on the impact response of carbon-glass/epoxy hybrid composites. FU Mech Eng 18: 69–77. https://doi.org/10.22190/FUME191119010A doi: 10.22190/FUME191119010A
|
| [7] |
Jesthi DK, Mandal P, Rout AK, et al. (2018) Effect of carbon/glass fiber symmetric inter-ply sequence on mechanical properties of polymer matrix. Proc Manuf 20: 530–535. https://doi.org/10.1016/j.promfg.2018.02.079 doi: 10.1016/j.promfg.2018.02.079
|
| [8] |
Dubey AD, Kumar J, Kyratsis P, et al. (2024) Stacking effect of carbon/glass fiber during drilling operation of laminated polymer composite. Arch Metall Mater 69: 589–598. https://doi.org/10.24425/amm.2024.149787 doi: 10.24425/amm.2024.149787
|
| [9] |
Cole DP, Henry TC, Gardea F, et al. (2017) Interphase mechanical behavior of carbon fiber reinforced polymer exposed to cyclic loading. Compos Sci Technol 151: 202–210. https://doi.org/10.1016/j.compscitech.2017.08.012 doi: 10.1016/j.compscitech.2017.08.012
|
| [10] |
Avci H, Arikan H, Akdemir A (2004) Fracture behavior of glass fiber reinforced polymer composite. Cement Concrete Res 34: 429–434. https://doi.org/10.1016/j.cemconres.2003.08.027 doi: 10.1016/j.cemconres.2003.08.027
|
| [11] |
Onal L, Adanur S (2002) Effect of stacking sequence on the mechanical properties of glass-carbon hybrid composites before and after impact. J Ind Text 31: 255–271. https://doi.org/10.1106/152808302028713 doi: 10.1106/152808302028713
|
| [12] |
Radhakrishnan G, Mathialagan S (2022) Effect of fiber orientation on mechanical behavior of glass fiber reinforced polyethylene terephthalate foam sandwich composite. Mater Today Proc 62: 624–628. https://doi.org/10.1016/j.matpr.2022.03.623 doi: 10.1016/j.matpr.2022.03.623
|
| [13] |
Chen AY, Baehr S, Turner A, et al. (2021) Carbon fiber reinforced polymer composites: A comparison of manufacturing methods on mechanical properties. Int J Lightweight Mater Manuf 4: 468–479. https://doi.org/10.1016/j.ijlmm.2021.04.001 doi: 10.1016/j.ijlmm.2021.04.001
|
| [14] |
Liu X, Tey WS, Tan P, et al. (2022) Effect of the fibre length on the mechanical anisotropy of glass fibre-reinforced polymer composites printed by Multi Jet Fusion. Virtual Phys Prototy 17: 734–748. https://doi.org/10.1080/17452759.2022.2059638 doi: 10.1080/17452759.2022.2059638
|
| [15] |
RomanziniI D, Ornaghi Junior HL, AmicoII SC, et al. (2012) Preparation and characterization of ramie-glass fiber reinforced polymer matrix hybrid composites. Mat Res 15: 415–420. https://doi.org/10.1590/S1516-14392012005000050 doi: 10.1590/S1516-14392012005000050
|
| [16] | Jagannatha TD, Harish G (2015) Mechanical properties of carbon/glass fiber reinforced epoxy hybrid polymer composites. Int J Mech Eng Robot Res 4: 131–137. Available from: https://www.ijmerr.com/show-130-634-1.html. |
| [17] |
Radhakrishnan G, Breaz TO, Al Hinai AHH, et al. (2025) Effect of alumina microparticle-infused polymer matrix on mechanical performance of carbon fiber reinforced polymer (CFRP) composite. J Compos Sci 9: 360. https://doi.org/10.3390/jcs9070360 doi: 10.3390/jcs9070360
|
| [18] |
Bere P, Popescu A, Dudescu C, et al. (2017) Influence of the stacking sequence on the mechanical behavior of glass fiber reinforced polymer. MATEC Web Conf 112: 04006. https://doi.org/10.1051/matecconf/201711204006 doi: 10.1051/matecconf/201711204006
|
| [19] |
Radhakrishnan G, Vaithilingam S, Tamilarasan VD, et al. (2025) Multi response optimization during machining of magnesium matrix nanocomposite reinforced with TiN nano particulates. MJChem 27: 361–369. https://doi.org/10.55373/mjchem.v27i3.361 doi: 10.55373/mjchem.v27i3.361
|
| [20] |
Radhakrishnan G, Breaz D, Al Hattali AHMS, et al. (2023) Influence of aspect ratio on the flexural and buckling behavior of an aluminium sandwich composite: A numerical and experimental approach. Materials 16: 6544. https://doi.org/10.3390/ma16196544 doi: 10.3390/ma16196544
|
Figures(16) / Tables(9)
Ganesh Radhakrishnan, Ahmed Ali Salim Al Burtamani, Ali Jamil Humaid Al Daraai, Abdul Aziz Mohammed Al Ismaili, Asim Hamed Saif Al Hadhrami, Kadhavoor R. Karthikeyan. Effect of stacking sequence on the mechanical performance of hybrid carbon/glass fiber reinforced polymer composite laminates—A comprehensive experimental study[J]. AIMS Materials Science, 2026, 13(3): 614-635. doi: 10.3934/matersci.2026030
