We investigate the well-posedness, regularity, and numerical approximation of a viscoelastic membrane equation involving a Caputo fractional derivative of order $ \alpha\in(1, 2) $. The fractional term describes an acceleration history memory effect and is therefore different from the velocity memory damping terms commonly used in fractional viscoelastic wave models. By introducing the velocity variable $ z = \partial_tu $ and setting $ \beta = \alpha-1 $, the original problem is reformulated as an order-reduced first-order system in which a Caputo derivative of order $ \beta\in(0, 1) $ acts on the velocity. On the basis of this reformulation, we establish the well-posedness of the initial boundary value problem under homogeneous Neumann or Robin boundary conditions. For the Neumann case, a shifted spectral scale is introduced to include the zero eigenvalue and to obtain regularity estimates uniformly for both the constant and nonconstant modes. We then develop a fully discrete finite element method by combining continuous piecewise linear finite elements in space with the L1 approximation in time. Under suitable regularity and compatibility assumptions, we prove the error estimate
$ \|u-U\|_{\widehat L^\infty(L^2)} + \|\partial_tu-Z\|_{\widehat L^\infty(L^2)} \le C(\tau+h^2). $

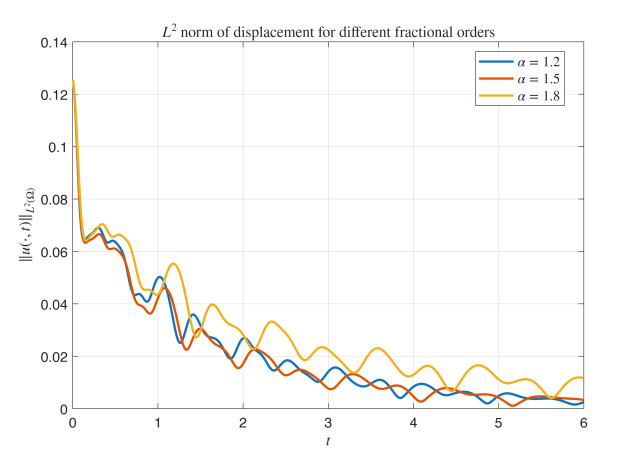

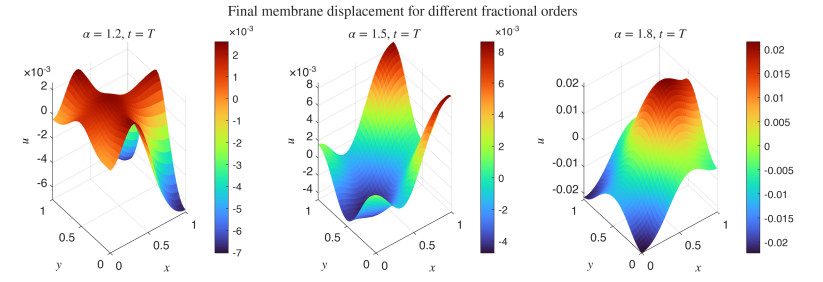

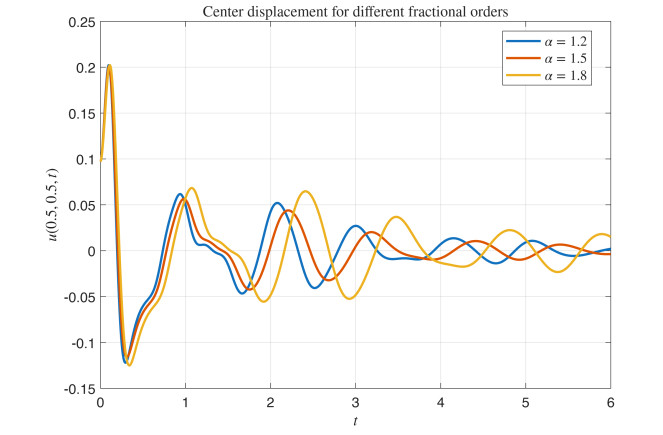

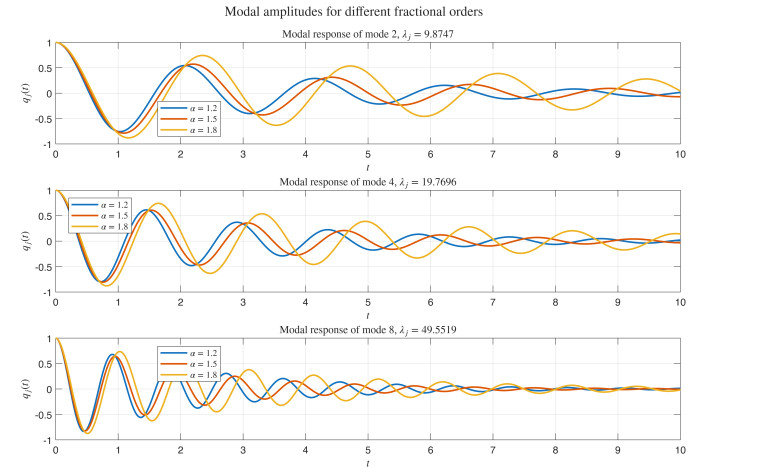

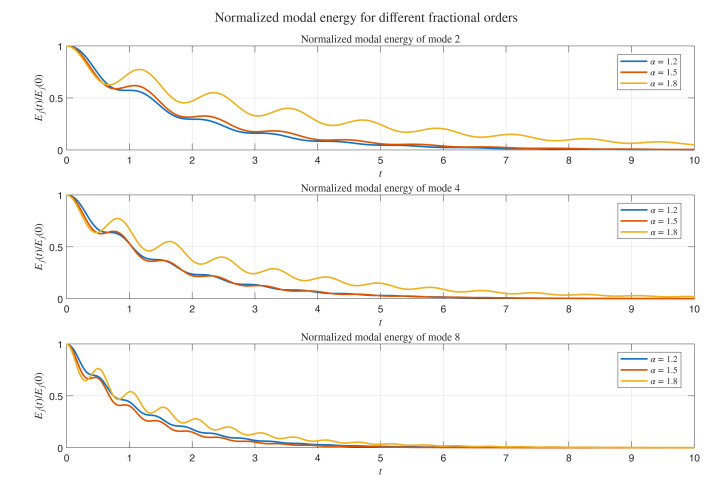

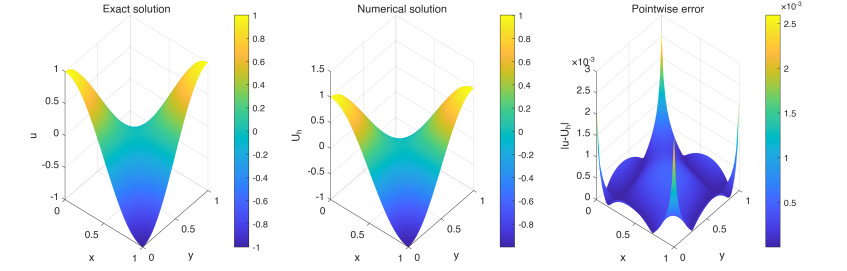

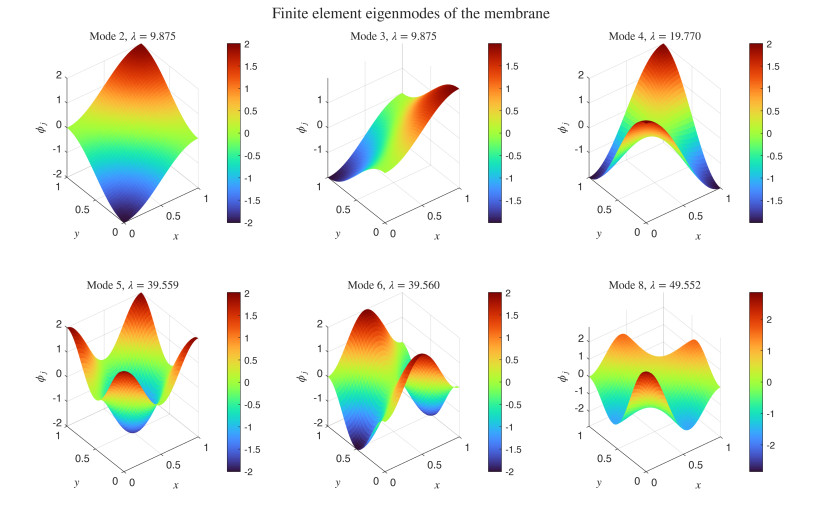

Numerical experiments are presented to confirm the predicted first-order temporal convergence and optimal second-order spatial convergence in the $ L^2 $ norm. In addition to the Neumann case, a Robin boundary manufactured solution test is included to demonstrate the applicability of the proposed framework under homogeneous Robin boundary conditions. Additional simulations illustrate the influence of the fractional order on viscoelastic membrane vibration and demonstrate the applicability of the proposed method to modal response analysis.
Citation: Zhiwei Yang, Changyuan Chen, Wenrui Wang, Huaqing Ma, Yuan Ma. Order-reduced analysis and finite element approximation for a viscoelastic membrane equation with Caputo acceleration memory[J]. Electronic Research Archive, 2026, 34(8): 5452-5477. doi: 10.3934/era.2026244
We investigate the well-posedness, regularity, and numerical approximation of a viscoelastic membrane equation involving a Caputo fractional derivative of order $ \alpha\in(1, 2) $. The fractional term describes an acceleration history memory effect and is therefore different from the velocity memory damping terms commonly used in fractional viscoelastic wave models. By introducing the velocity variable $ z = \partial_tu $ and setting $ \beta = \alpha-1 $, the original problem is reformulated as an order-reduced first-order system in which a Caputo derivative of order $ \beta\in(0, 1) $ acts on the velocity. On the basis of this reformulation, we establish the well-posedness of the initial boundary value problem under homogeneous Neumann or Robin boundary conditions. For the Neumann case, a shifted spectral scale is introduced to include the zero eigenvalue and to obtain regularity estimates uniformly for both the constant and nonconstant modes. We then develop a fully discrete finite element method by combining continuous piecewise linear finite elements in space with the L1 approximation in time. Under suitable regularity and compatibility assumptions, we prove the error estimate
$ \|u-U\|_{\widehat L^\infty(L^2)} + \|\partial_tu-Z\|_{\widehat L^\infty(L^2)} \le C(\tau+h^2). $
Numerical experiments are presented to confirm the predicted first-order temporal convergence and optimal second-order spatial convergence in the $ L^2 $ norm. In addition to the Neumann case, a Robin boundary manufactured solution test is included to demonstrate the applicability of the proposed framework under homogeneous Robin boundary conditions. Additional simulations illustrate the influence of the fractional order on viscoelastic membrane vibration and demonstrate the applicability of the proposed method to modal response analysis.
| [1] |
M. Ansari, E. Esmailzadeh, D. Younesian, Internal-external resonance of beams on non-linear viscoelastic foundation traversed by moving load, Nonlinear Dyn., 61 (2010), 163–182. https://doi.org/10.1007/s11071-009-9639-0 doi: 10.1007/s11071-009-9639-0
|
| [2] | D. J. Inman, R. C. Singh, Engineering Vibration, Prentice Hall, Englewood Cliffs, NJ, 1994. |
| [3] | L. Meirovitch, Fundamentals of Vibrations, Waveland Press, Long Grove, IL, 2010. |
| [4] | S. Timoshenko, D. H. Young, W. Weaver, Vibration Problems in Engineering, John Wiley & Sons, New York, 1974. |
| [5] | R. M. Christensen, Theory of Viscoelasticity: An Introduction, Academic Press, New York, 1982. |
| [6] |
M. Fabrizio, B. Lazzari, On the existence and the asymptotic stability of solutions for linearly viscoelastic solids, Arch. Ration. Mech. Anal., 116 (1991), 139–152. https://doi.org/10.1007/BF00375589 doi: 10.1007/BF00375589
|
| [7] | M. Fabrizio, A. Morro, Mathematical Problems in Linear Viscoelasticity, SIAM, Philadelphia, 1992. https://doi.org/10.1137/1.9781611970807 |
| [8] |
R. L. Bagley, Power law and fractional calculus model of viscoelasticity, AIAA J., 27 (1989), 1412–1417. https://doi.org/10.2514/3.10279 doi: 10.2514/3.10279
|
| [9] |
R. L. Bagley, P. J. Torvik, A theoretical basis for the application of fractional calculus to viscoelasticity, J. Rheol., 27 (1983), 201–210. https://doi.org/10.1122/1.549724 doi: 10.1122/1.549724
|
| [10] |
A. Bonfanti, J. L. Kaplan, G. Charras, A. Kabla, Fractional viscoelastic models for power-law materials, Soft Matter, 16 (2020), 6002–6020. https://doi.org/10.1039/D0SM00354A doi: 10.1039/D0SM00354A
|
| [11] | C. Li, F. Zeng, Numerical Methods for Fractional Calculus, Chapman and Hall/CRC, Boca Raton, 2015. https://doi.org/10.1201/b18503 |
| [12] | F. Mainardi, Fractional Calculus and Waves in Linear Viscoelasticity: An Introduction to Mathematical Models, World Scientific, Singapore, 2010. https://doi.org/10.1142/p614 |
| [13] |
F. Mainardi, G. Spada, Creep, relaxation and viscosity properties for basic fractional models in rheology, Eur. Phys. J. Spec. Top., 193 (2011), 133–160. https://doi.org/10.1140/epjst/e2011-01387-1 doi: 10.1140/epjst/e2011-01387-1
|
| [14] |
Y. A. Rossikhin, M. V. Shitikova, Application of fractional calculus for dynamic problems of solid mechanics: novel trends and recent results, Appl. Mech. Rev., 63 (2010), 010801. https://doi.org/10.1115/1.4000563 doi: 10.1115/1.4000563
|
| [15] | K. Diethelm, The Analysis of Fractional Differential Equations, Springer, Berlin, 2010. https://doi.org/10.1007/978-3-642-14574-2 |
| [16] | R. Gorenflo, F. Mainardi, Fractional calculus: integral and differential equations of fractional order, in Fractals and Fractional Calculus in Continuum Mechanics, Springer, Vienna, (1997), 223–276. https://doi.org/10.1007/978-3-7091-2664-6_5 |
| [17] | A. A. Kilbas, H. M. Srivastava, J. J. Trujillo, Theory and Applications of Fractional Differential Equations, Elsevier, Amsterdam, 2006. |
| [18] | I. Podlubny, Fractional Differential Equations, Academic Press, San Diego, 1999. |
| [19] | S. G. Samko, A. A. Kilbas, O. I. Marichev, Fractional Integrals and Derivatives: Theory and Applications, Gordon and Breach, London, 1993. |
| [20] |
B. Jin, R. Lazarov, Z. Zhou, An analysis of the L1 scheme for the subdiffusion equation with nonsmooth data, IMA J. Numer. Anal., 36 (2016), 197–221. https://doi.org/10.1093/imanum/dru063 doi: 10.1093/imanum/dru063
|
| [21] |
B. Jin, B. Li, Z. Zhou, Correction of high-order BDF convolution quadrature for fractional evolution equations, SIAM J. Sci. Comput., 39 (2017), A3129–A3152. https://doi.org/10.1137/17M1118816 doi: 10.1137/17M1118816
|
| [22] |
H. L. Liao, D. Li, J. Zhang, Sharp error estimate of the nonuniform L1 formula for linear reaction-subdiffusion equations, SIAM J. Numer. Anal., 56 (2018), 1112–1133. https://doi.org/10.1137/17M1131829 doi: 10.1137/17M1131829
|
| [23] |
H. L. Liao, W. McLean, J. Zhang, A discrete Gronwall inequality with applications to numerical schemes for subdiffusion problems, SIAM J. Numer. Anal., 57 (2019), 218–237. https://doi.org/10.1137/16M1175742 doi: 10.1137/16M1175742
|
| [24] |
Y. Lin, C. Xu, Finite difference/spectral approximations for the time-fractional diffusion equation, J. Comput. Phys., 225 (2007), 1533–1552. https://doi.org/10.1016/j.jcp.2007.02.001 doi: 10.1016/j.jcp.2007.02.001
|
| [25] |
C. Lubich, Discretized fractional calculus, SIAM J. Math. Anal., 17 (1986), 704–719. https://doi.org/10.1137/0517050 doi: 10.1137/0517050
|
| [26] |
C. Lubich, Convolution quadrature and discretized operational calculus. I, Numer. Math., 52 (1988), 129–145. https://doi.org/10.1007/BF01398686 doi: 10.1007/BF01398686
|
| [27] |
M. Stynes, E. O'Riordan, J. L. Gracia, Error analysis of a finite difference method on graded meshes for a time-fractional diffusion equation, SIAM J. Numer. Anal., 55 (2017), 1057–1079. https://doi.org/10.1137/16M1082329 doi: 10.1137/16M1082329
|
| [28] | Y. Feng, L. Li, J. G. Liu, T. Tang, Some Gronwall inequalities for a class of discretizations of time fractional equations on nonuniform meshes, SIAM J. Numer. Anal., 62 (2024). https://doi.org/10.1137/24M1631614 |
| [29] |
C. Quan, X. Wu, $L^2$-norm stability and convergence of an L2-type method on nonuniform meshes for subdiffusion equation, SIAM J. Numer. Anal., 61 (2023), 2586–2611. https://doi.org/10.1137/22M1506468 doi: 10.1137/22M1506468
|
| [30] | B. Jin, Q. Quan, B. Wohlmuth, Z. Zhou, Regularity analysis and high-order time stepping scheme for quasilinear subdiffusion, SIAM J. Numer. Anal., 63 (2025). https://doi.org/10.1137/23M159531X |
| [31] | M. López-Fernández, L. Płociniczak, Convolution quadrature for the quasilinear subdiffusion equation, SIAM J. Numer. Anal., 63 (2025). https://doi.org/10.1137/23M161450X |
| [32] |
X. J. Li, C. J. Xu, A space-time spectral method for the time fractional diffusion equation, SIAM J. Numer. Anal., 47 (2009), 2108–2131. https://doi.org/10.1137/080718942 doi: 10.1137/080718942
|
| [33] |
K. Mustapha, Time-stepping discontinuous Galerkin methods for fractional diffusion problems, Numer. Math., 130 (2015), 497–516. https://doi.org/10.1007/s00211-014-0669-2 doi: 10.1007/s00211-014-0669-2
|
| [34] |
Z. Z. Sun, X. Wu, A fully discrete difference scheme for a diffusion-wave system, Appl. Numer. Math., 56 (2006), 193–209. https://doi.org/10.1016/j.apnum.2005.03.003 doi: 10.1016/j.apnum.2005.03.003
|
| [35] |
H. Yuan, X. Xie, A fast fully discrete mixed finite element scheme for fractional viscoelastic models of wave propagation, Numer. Math. Theory Methods Appl., 19 (2026), 129–154. https://doi.org/10.4208/nmtma.OA-2025-0030 doi: 10.4208/nmtma.OA-2025-0030
|
| [36] |
X. Zheng, H. Wang, Analysis and discretization of a variable-order fractional wave equation, Commun. Nonlinear Sci. Numer. Simul., 104 (2022), 106047. https://doi.org/10.1016/j.cnsns.2021.106047 doi: 10.1016/j.cnsns.2021.106047
|
| [37] |
X. Zheng, H. Wang, A hidden-memory variable-order fractional optimal control model: analysis and approximation, SIAM J. Control Optim., 59 (2021), 1851–1880. https://doi.org/10.1137/20M1344962 doi: 10.1137/20M1344962
|
| [38] |
X. Zheng, H. Wang, An error estimate of a numerical approximation to a hidden-memory variable-order space-time fractional diffusion equation, SIAM J. Numer. Anal., 58 (2020), 2492–2514. https://doi.org/10.1137/20M132420X doi: 10.1137/20M132420X
|
| [39] |
X. Zheng, H. Wang, Optimal-order error estimates of finite element approximations to variable-order time-fractional diffusion equations without regularity assumptions of the true solutions, IMA J. Numer. Anal., 41 (2021), 1522–1545. https://doi.org/10.1093/imanum/draa013 doi: 10.1093/imanum/draa013
|
| [40] |
X. Zheng, H. Wang, An optimal-order numerical approximation to variable-order space-fractional diffusion equations on uniform or graded meshes, SIAM J. Numer. Anal., 58 (2020), 330–352. https://doi.org/10.1137/19M1245621 doi: 10.1137/19M1245621
|
| [41] |
X. Zheng, Two methods addressing variable-exponent fractional initial and boundary value problems and Abel integral equation, CSIAM Trans. Appl. Math., 6 (2025), 666–710. https://doi.org/10.4208/csiam-am.SO-2024-0052 doi: 10.4208/csiam-am.SO-2024-0052
|
| [42] |
X. Zheng, Z. Yang, W. Li, H. Wang, A time-fractional mean field control modeling subdiffusive advective transport, SIAM J. Sci. Comput., 45 (2023), B884–B905. https://doi.org/10.1137/22M1527726 doi: 10.1137/22M1527726
|
| [43] | W. McLean, Strongly Elliptic Systems and Boundary Integral Equations, Cambridge University Press, Cambridge, 2000. |
