Dynamics and bifurcation phenomena of a tri-hybrid nanofluid model in a curved channel

Mashael A. Aljohani; Eman D. Abou Elela; Mashael A. Aljohani; Eman D. Abou Elela

doi:10.3934/math.2026232

AIMS Mathematics

2026, Volume 11, Issue 3: 5648-5668. doi: 10.3934/math.2026232

Previous Article Next Article

Research article Special Issues

Dynamics and bifurcation phenomena of a tri-hybrid nanofluid model in a curved channel

Department of Mathematics and Statistics, College of Science in Yanbu, Taibah University, Yanbu Governorate, Saudi Arabia

Received: 12 December 2025 Revised: 22 February 2026 Accepted: 02 March 2026 Published: 05 March 2026
MSC : 34C23, 34C37, 37M20, 37N10, 76-10

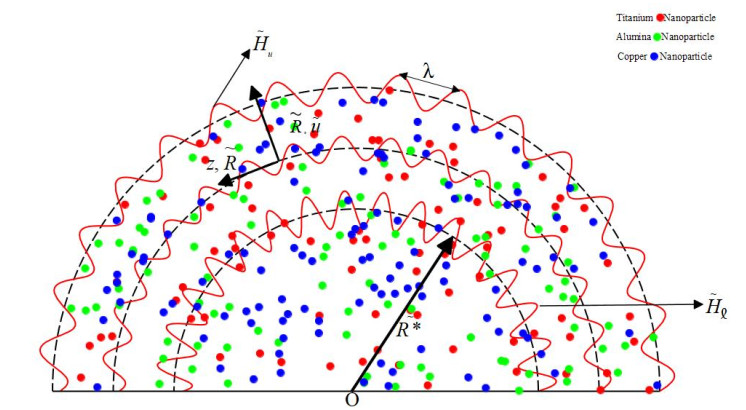

In this paper, we present a novel approach to characterize the flow and heat transfer characteristics of a tri-hybrid nanofluid (Blood + TiO$ _2 $ + Al$ _2 $O$ _3 $ + Cu) through a curved, thermally heated channel using analytical and numerical frameworks based on a dynamical system. Dynamical system theory enables systematic identification and analysis of fundamental flow phenomena, including equilibrium states, stability, and bifurcations, which are often difficult to capture with traditional methods. Long-wavelength and low-Reynolds reductions yield analytical flow fields, from which the nonlinear dynamical system was constructed. The analytical determination of the general equilibrium points was complicated by the channel geometry and the strong nonlinearity of the model; therefore, a numerical approach based on domain decomposition techniques was adopted to overcome these difficulties. Saddle-node bifurcations, periodic orbits, and heteroclinic orbits provide a framework to characterize recirculating flows and the transitions between different flow states. The impact of physical properties and nanoparticle characteristics, which affect both global and local bifurcation behavior, was also examined. As a novel result, we revealed multiple equilibrium points with distinct bifurcation behaviors, capturing key fluid motion phenomena, such as trapping, governed by the channel geometry and tri-hybrid nanofluid properties. Our results, based on a dynamical systems analysis, refine and extend previous studies by clarifying the stability of equilibrium solutions, identifying key bifurcation regimes, and revealing the underlying nonlinear flow behavior.
- nonlinear dynamics,
- trapping phenomena,
- multiple-equilibria computation,
- flow bifurcation,
- peristaltic motion,
- numerical simulation
Citation: Mashael A. Aljohani, Eman D. Abou Elela. Dynamics and bifurcation phenomena of a tri-hybrid nanofluid model in a curved channel[J]. AIMS Mathematics, 2026, 11(3): 5648-5668. doi: 10.3934/math.2026232

Related Papers:

Abstract

In this paper, we present a novel approach to characterize the flow and heat transfer characteristics of a tri-hybrid nanofluid (Blood + TiO$ _2 $ + Al$ _2 $O$ _3 $ + Cu) through a curved, thermally heated channel using analytical and numerical frameworks based on a dynamical system. Dynamical system theory enables systematic identification and analysis of fundamental flow phenomena, including equilibrium states, stability, and bifurcations, which are often difficult to capture with traditional methods. Long-wavelength and low-Reynolds reductions yield analytical flow fields, from which the nonlinear dynamical system was constructed. The analytical determination of the general equilibrium points was complicated by the channel geometry and the strong nonlinearity of the model; therefore, a numerical approach based on domain decomposition techniques was adopted to overcome these difficulties. Saddle-node bifurcations, periodic orbits, and heteroclinic orbits provide a framework to characterize recirculating flows and the transitions between different flow states. The impact of physical properties and nanoparticle characteristics, which affect both global and local bifurcation behavior, was also examined. As a novel result, we revealed multiple equilibrium points with distinct bifurcation behaviors, capturing key fluid motion phenomena, such as trapping, governed by the channel geometry and tri-hybrid nanofluid properties. Our results, based on a dynamical systems analysis, refine and extend previous studies by clarifying the stability of equilibrium solutions, identifying key bifurcation regimes, and revealing the underlying nonlinear flow behavior.

References

[1]	S. U. S. Choi, Enhancing thermal conductivity of fluids with nanoparticles, In: ASME International Mechanical Engineering Congress and Exposition, American Society of Mechanical Engineers, 1995, 99–105. https://doi.org/10.1115/IMECE1995-0926
[2]	W. Bian, M. Min, X. Liang, J. Xu, Y. Lou, X. Fan, et al., Investigation on thermal performance and flow characteristics of hybrid nanofluids in uniform and non-uniform twisted oval tubes, Case Stud. Therm. Eng., 76 (2025), 107275. https://doi.org/10.1016/j.csite.2025.107275 doi: 10.1016/j.csite.2025.107275
[3]	S. E. Ahmed, A. A. M. Arafa, S. A. Hussein, Biomedical analysis of heat and mass transport in hybrid nanofluid flow with bioconvection and reactive species over an oscillatory curved surface in a spatially varying porous medium, Int. J. Heat Mass Tran., 252 (2025), 127508. https://doi.org/10.1016/j.ijheatmasstransfer.2025.127508 doi: 10.1016/j.ijheatmasstransfer.2025.127508
[4]	J. Du, Y. Wang, W. Yang, J. Wang, Z. Cao, B. Sundén, Effect of nanoparticle concentration and surfactants on nanofluid pool boiling, Int. J. Heat Mass Tran., 221 (2024), 125080. https://doi.org/10.1016/j.ijheatmasstransfer.2023.125080 doi: 10.1016/j.ijheatmasstransfer.2023.125080
[5]	S. Z. H. Shah, H. A. Wahab, S. Ahmad, U. Khan, A. Ishak, E. M. Sherif, et al., Numerical investigation of ternary hybrid non-newtonian nanofluids and heat transport over an inclined shrinking sheet utilizing artificial neural network, Adv. Math. Phys., 1 (2024), 4133538. https://doi.org/10.1155/2024/4133538 doi: 10.1155/2024/4133538
[6]	A. Tanveer, Iram, M. Z. Alqarni, S. Saleem, A. Al-Zubaidi, Enhancement in heat generation through ternary hybrid nanofluid in a periodic channel, Case Stud. Therm. Eng., 69 (2025), 106011. https://doi.org/10.1016/j.csite.2025.106011 doi: 10.1016/j.csite.2025.106011
[7]	G. Huminic, A. Huminic, Hybrid nanofluids for heat transfer applications–A state-of-the-art review, Int. J. Heat Mass Tran., 125 (2018), 82–103. https://doi.org/10.1016/j.ijheatmasstransfer.2018.04.059 doi: 10.1016/j.ijheatmasstransfer.2018.04.059
[8]	N. S. Akbar, T. Zamir, T. Noor, T. Muhammad, M. R. Ali, Heat transfer enhancement using ternary hybrid nanofluid for cross-viscosity model with intelligent levenberg-marquardt neural networks approach incorporating entropy generation, Case Stud. Therm. Eng., 63 (2024), 105290. https://doi.org/10.1016/j.csite.2024.105290 doi: 10.1016/j.csite.2024.105290
[9]	C. Revnic, T. Grosan, I. Pop, Dual solutions of ternary hybrid nanofluids stagnation point over a linearly stretching/shrinking sheet, J. Therm. Anal. Calorim., 150 (2025), 11265–11274. https://doi.org/10.1007/s10973-025-14195-8 doi: 10.1007/s10973-025-14195-8
[10]	I. I. Wertgeim, M. A. Zaks, R. V. Sagitov, A. N. Sharifulin, Instabilities, bifurcations, and nonlinear dynamics in two-dimensional generalizations of kolmogorov flow, Fluid Dyn., 57 (2022), 430–443. https://doi.org/10.1134/S0015462822040115 doi: 10.1134/S0015462822040115
[11]	M. Bouteraa, C. Nouar, E. Plaut, C. Metivier, A. Kalck, Weakly nonlinear analysis of rayleigh-bénard convection in shear-thinning fluids: nature of the bifurcation and pattern selection, J. Fluid Mech., 767 (2015), 696–734. https://doi.org/10.1017/jfm.2015.64 doi: 10.1017/jfm.2015.64
[12]	Y. Zhang, L. Xie, Y. Dong, J. Huang, S. Ruan, Y. Takeuchi, Bifurcation analysis in a tumor-immune system interaction model with dendritic cell therapy and immune response delay, SIAM J. Appl. Math., 83 (2023), 1892–1914. https://doi.org/10.1137/22M1533979 doi: 10.1137/22M1533979
[13]	D. Das, B. L. Sharma, Local bifurcation analysis of circular von-kármán plate with kirchhoff rod boundary, SIAM J. Appli. Math., 85 (2025), 1749–1784. https://doi.org/10.1137/24M1703999 doi: 10.1137/24M1703999
[14]	Beenish, M. Samreen, Analytical solutions and dynamical insights of the modified benjamin-bona-mahony equation with applications in nonlinear optics, J. Appl. Math. Comput., 71 (2025), 699–723. https://doi.org/10.1007/s12190-025-02484-2 doi: 10.1007/s12190-025-02484-2
[15]	Y. Xiao, Z. Jiang, P. Meng, W. Yin, D. Qi, L. Zhou, Local manifold approximation of dynamical system based on neural ordinary differential equation, Physica D, 477 (2025), 134688. https://doi.org/10.1016/j.physd.2025.134688 doi: 10.1016/j.physd.2025.134688
[16]	J. M. Cadou, M. Potier-Ferry, B. Cochelin, A numerical method for the computation of bifurcation points in fluid mechanics, Eur. J. Mech. B/Fluid., 25 (2006), 234–254. https://doi.org/10.1016/j.euromechflu.2005.07.002 doi: 10.1016/j.euromechflu.2005.07.002
[17]	H. A. Dijkstra, F. W. Wubs, A. K. Cliffe, E. Doedel, I. F. Dragomirescu, B. Eckhardt, et al., Numerical bifurcation methods and their application to fluid dynamics: Analysis beyond simulation, Commun. Comput. Phys., 15 (2014), 1–45. https://doi.org/10.4208/cicp.240912.180613a doi: 10.4208/cicp.240912.180613a
[18]	J. S. Keeler, J. E. Sprittles, Finding the point of no return: Dynamical systems theory applied to the moving contact-line instability, Curr. Opin. Colloid In., 67 (2023), 101724. https://doi.org/10.1016/j.cocis.2023.101724 doi: 10.1016/j.cocis.2023.101724
[19]	H. A. Hosham, E. N. Thabet, A. M. Abd-Alla, S. M. M. El-Kabeir, Dynamic patterns of electroosmosis peristaltic flow of a Bingham fluid model in a complex wavy microchannel, Sci. Rep., 13 (2023), 8686. https://doi.org/10.1038/s41598-023-35410-2 doi: 10.1038/s41598-023-35410-2
[20]	K. Ullah, N. Ali, Stability and bifurcation analysis of stagnation/equilibrium points for peristaltic transport in a curved channel, Phys. Fluids, 31 (2019), 073103. https://doi.org/10.1063/1.5097555 doi: 10.1063/1.5097555
[21]	N. Ali, H. R. Kazmi, K. Ullah, A study on the bifurcation of the peristaltic driven flow of Ellis fluid, Wave. Random Complex, 2023 (2023), 1–18. https://doi.org/10.1080/17455030.2023.2179338 doi: 10.1080/17455030.2023.2179338
[22]	H. A. Hosham, N. M. Hafez, Bifurcation phenomena in the peristaltic transport of non-Newtonian fluid with heat and mass transfer effects, J. Appl. Math. Comput., 67 (2021), 275–299. https://doi.org/10.1007/s12190-020-01477-7 doi: 10.1007/s12190-020-01477-7
[23]	H. A. Hosham, N. M. Hafez, Global dynamics and bifurcation analysis for the peristaltic transport through nonuniform channels, J. Comput. Nonlinear Dyn., 17 (2022), 061001. https://doi.org/10.1115/1.4053668 doi: 10.1115/1.4053668
[24]	N. Ali, K. Ullah, H. Rasool, Bifurcation analysis for a two-dimensional peristaltic driven flow of power-law fluid in asymmetric channel, Phys. Fluids, 32 (2020), 073104. https://doi.org/10.1063/5.0011465 doi: 10.1063/5.0011465
[25]	I. Shahzadi, N. Ahsan, S. Nadeem, A. Issakhov, Analysis of bifurcation dynamics of streamlines topologies for pseudoplastic shear thinning fluid: Biomechanics application, Physica A, 540 (2020), 122502. https://doi.org/10.1016/j.physa.2019.122502 doi: 10.1016/j.physa.2019.122502
[26]	H. M. Sayed, H. A. Hosham, Dynamics and bifurcations of non-Newtonian Au-Cu/blood hybrid nanofluid model of electrokinetic flow in asymmetrically tapered wave microchannel, Wave. Random Complex, 35 (2025), 6496–6513. https://doi.org/10.1080/17455030.2022.2078018 doi: 10.1080/17455030.2022.2078018
[27]	M. G. Thoubaan, D. G.S. Al-Khafajy, A. K. Wanas, D. Breaz, L. Cotîrlă, Analysis of a bifurcation and stability of equilibrium points for jeffrey fluid flow through a non-uniform channel, Symmetry, 16 (2024), 1144. https://doi.org/10.3390/sym16091144 doi: 10.3390/sym16091144
[28]	H. Rasool, N. Ali, K. Ullah, Bifurcations of streamlines in peristaltic flow without lubrication approximation: A case study, ZAMM J. Appl. Math. Mech., 104 (2024), e202200345. https://doi.org/10.1002/zamm.202200345 doi: 10.1002/zamm.202200345
[29]	Z. Abbas, R. Mehboob, M. Y. Rafiq, S. Khaliq, A. Ali, Peristaltic pumping of ternary hybrid nanofluid between two sinusoidally deforming curved tubes, Adv. Mech. Eng., 15 (2023), 16878132231189373. https://doi.org/10.1177/16878132231189373 doi: 10.1177/16878132231189373
[30]	M. A. El Kot, E. M. Elsaid, Y. Abd Elmaboud, A. M. Algatheem, M. R. Eid, Beyond shear-thinning hyperbolic tangent electromagnetic nanofluid flow-based blood in porous constricted channels: Electroosmotic and activation energy dynamics, Mod. Phys. Lett., 40 (2026), 2550280. https://doi.org/10.1142/S021798492550280X doi: 10.1142/S021798492550280X
[31]	A. Khan, Hashim, M. Farooq, S. M. Hussain, H. Ahmad, W. Jamshed, et al., Convective heat transfer in ternary nanofluids over stretching sheets under radiation and slip conditions, J. Radiat. Res. Appl. Sci., 18 (2025), 101974. https://doi.org/10.1016/j.jrras.2025.101974 doi: 10.1016/j.jrras.2025.101974
[32]	K. Smida, Adnan, M. U. Sohail, I. Tlili, A. Javed, Numerical thermal study of ternary nanofluid influenced by thermal radiation towards convectively heated sinusoidal cylinder, Heliyon, 9 (2023), e20057. https://doi.org/10.1016/j.heliyon.2023.e20057 doi: 10.1016/j.heliyon.2023.e20057
[33]	H. Aybar, M. Sharifpur, M. R. Azizian, M. Mehrabi, J. P. Meyer, A review of thermal conductivity models for nanofluids, Heat Transfer Eng., 36 (2015), 1085–1110. https://doi.org/10.1080/01457632.2015.987586 doi: 10.1080/01457632.2015.987586
[34]	W, Yu, S. Choi, The role of interfacial layers in the enhanced thermal conductivity of nanofluids: A renovated maxwell model, J. Nanopart. Res., 5 (2004), 355–361. https://doi.org/10.1007/s11051-004-2601-7 doi: 10.1007/s11051-004-2601-7
[35]	A. H. Shapiro, M. Y. Jaffrin, S. L. Weinberg, Peristaltic pumping with long wavelengths at low reynolds number, J. Fluid Mech., 37 (1969), 799–825. https://doi.org/10.1017/S0022112069000899 doi: 10.1017/S0022112069000899
[36]	W. J. F Govaerts, Numerical methods for bifurcations of dynamical equilibria, Society for Industrial and Applied Mathematics, 2000.
[37]	K. Thirunavukarasan, G. Sucharitha, Thermal performance and mhd peristaltic flow of hybrid nanofluid (au-ta/blood) in an asymmetric conduit with electro-osmosis and shape factor effects, Case Stud. Therm. Eng., 66 (2025), 105708. https://doi.org/10.1016/j.csite.2024.105708 doi: 10.1016/j.csite.2024.105708
[38]	M. A. A. Mohamed, Peristaltic eyring-powell nanofluid flow linking with microorganisms across a curved channel: Maa mohamed, Theor. Comput. Fluid Dyn., 39 (2025), 33. https://doi.org/10.1007/s00162-025-00751-3 doi: 10.1007/s00162-025-00751-3
