Bistability and delay-induced oscillations in a density-gated synNotch model

Huichao Xing; Jun Wu; Conghua Wang; Huichao Xing; Jun Wu; Conghua Wang

doi:10.3934/math.2026545

AIMS Mathematics

2026, Volume 11, Issue 5: 13216-13232. doi: 10.3934/math.2026545

Previous Article Next Article

Research article

Bistability and delay-induced oscillations in a density-gated synNotch model

1.
Faculty of Education, Yunnan Normal University, Kunming, Yunnan 650500, China
2.
Chongqing Municipal University Key Laboratory of Optimization Techniques and Intelligent Vehicle, National Center for Applied Mathematics in Chongqing, Chongqing Normal University, Chongqing 401331, China

Received: 03 April 2026 Revised: 24 April 2026 Accepted: 29 April 2026 Published: 12 May 2026
MSC : 34K18, 34K20, 92C42

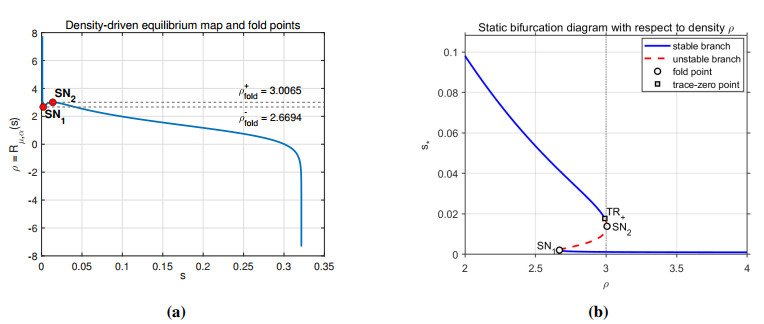

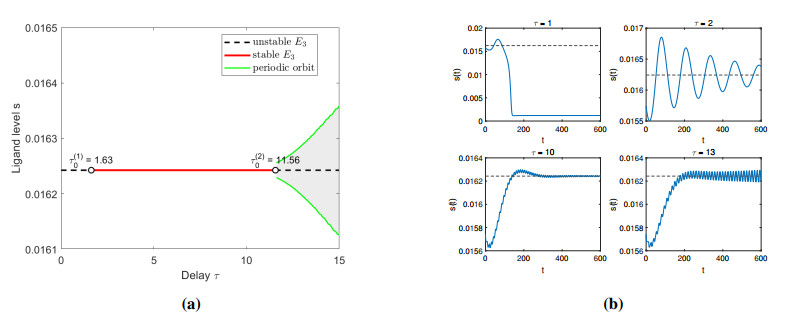

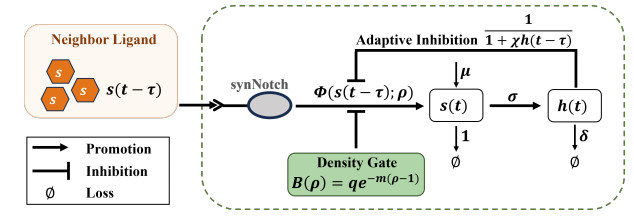

Synthetic signaling circuits provide a versatile framework for programming contact-dependent cell behaviors, yet their collective dynamics are strongly shaped by cell density and processing delay. In this work, we studied a reduced delay differential model motivated by synNotch-type signaling with density-dependent attenuation and adaptive inhibition. The analysis was organized along two complementary routes. First, the equilibrium structure was characterized through a density-driven saddle-node bifurcation analysis, which identified the emergence of a three-equilibrium region and, when the outer-branch trace condition is satisfied, a low/high bistable subinterval. Second, the local dynamics around positive equilibria were examined through a delay-induced Hopf bifurcation analysis, which determined the onset of oscillatory behavior and the associated stability switching. Numerical simulations confirmed the predicted branch structure and the delay-dependent stability switching on the upper equilibrium branch. These results provided a compact dynamical description of how density and intracellular processing time jointly regulated state selection and rhythmic activity in contact-mediated synthetic signaling systems.
- synNotch relay,
- delay differential equations,
- saddle-node bifurcation,
- Hopf bifurcation
Citation: Huichao Xing, Jun Wu, Conghua Wang. Bistability and delay-induced oscillations in a density-gated synNotch model[J]. AIMS Mathematics, 2026, 11(5): 13216-13232. doi: 10.3934/math.2026545

Related Papers:

Abstract

Synthetic signaling circuits provide a versatile framework for programming contact-dependent cell behaviors, yet their collective dynamics are strongly shaped by cell density and processing delay. In this work, we studied a reduced delay differential model motivated by synNotch-type signaling with density-dependent attenuation and adaptive inhibition. The analysis was organized along two complementary routes. First, the equilibrium structure was characterized through a density-driven saddle-node bifurcation analysis, which identified the emergence of a three-equilibrium region and, when the outer-branch trace condition is satisfied, a low/high bistable subinterval. Second, the local dynamics around positive equilibria were examined through a delay-induced Hopf bifurcation analysis, which determined the onset of oscillatory behavior and the associated stability switching. Numerical simulations confirmed the predicted branch structure and the delay-dependent stability switching on the upper equilibrium branch. These results provided a compact dynamical description of how density and intracellular processing time jointly regulated state selection and rhythmic activity in contact-mediated synthetic signaling systems.

References

[1]	S. Toda, J. M. Brunger, W. A. Lim, Synthetic development: learning to program multicellular self-organization, Curr. Opin. Syst. Biol., 14 (2019), 41–49. https://doi.org/10.1016/j.coisb.2019.02.008 doi: 10.1016/j.coisb.2019.02.008
[2]	J. Davies, M. Levin, Synthetic morphology with agential materials, Nat. Rev. Bioeng., 1 (2023), 46–59. https://doi.org/10.1038/s44222-022-00001-9 doi: 10.1038/s44222-022-00001-9
[3]	T. P. Padial, S. Chen, A. C. Hortelão, A. Sen, S. Sánchez, Swarming intelligence in self-propelled micromotors and nanomotors, Nat. Rev. Mater., 10 (2025), 947–963. https://doi.org/10.1038/s41578-025-00818-x doi: 10.1038/s41578-025-00818-x
[4]	L. Morsut, K. T. Roybal, X. Xiong, R. M. Gordley, S. M. Coyle, M. Thomson, et al., Engineering customized cell sensing and response behaviors using synthetic Notch receptors, Cell, 164 (2016), 780–791. https://doi.org/10.1016/j.cell.2016.01.012 doi: 10.1016/j.cell.2016.01.012
[5]	K. T. Roybal, L. J. Rupp, L. Morsut, W. J. Walker, K. A. McNally, J. S. Park, et al., Precision tumor recognition by T cells with combinatorial antigen-sensing circuits, Cell, 164 (2016), 770–779. https://doi.org/10.1016/j.cell.2016.01.011 doi: 10.1016/j.cell.2016.01.011
[6]	F. Teng, T. Cui, L. Zhou, Q. Gao, Q. Zhou, W. Li, Programmable synthetic receptors: the next-generation of cell and gene therapies, Sig. Transduct. Target. Ther., 9 (2024), 7. https://doi.org/10.1038/s41392-023-01680-5 doi: 10.1038/s41392-023-01680-5
[7]	D. Chen, X. Liu, H. Wang, R. M. Merks, D. A. Baker, A model of Notch signalling control of angiogenesis: Evidence of a role for Notch ligand heterodimerization, PLoS Comput. Biol., 21 (2025), e1012825. https://doi.org/10.1371/journal.pcbi.1012825 doi: 10.1371/journal.pcbi.1012825
[8]	S. J. Bray, A. Bigas, Modes of Notch signalling in development and disease, Nat. Rev. Mol. Cell Biol., 26 (2025), 522–537. https://doi.org/10.1038/s41580-025-00835-2 doi: 10.1038/s41580-025-00835-2
[9]	D. Sprinzak, A. Lakhanpal, L. LeBon, L. A. Santat, M. E. Fontes, G. A. Anderson, et al., Cis-interactions between Notch and Delta generate mutually exclusive signalling states, Nature, 465 (2010), 86–90. https://doi.org/10.1038/nature08959 doi: 10.1038/nature08959
[10]	L. Tveriakhina, G. Scanavachi, E. D. Egan, R. B. D. C. Correia, A. P. Martin, J. M. Rogers, et al., Temporal dynamics and stoichiometry in human Notch signaling from Notch synaptic complex formation to nuclear entry of the Notch intracellular domain, Dev. Cell, 59 (2024), 1425–1438. https://doi.org/10.1016/j.devcel.2024.03.021 doi: 10.1016/j.devcel.2024.03.021
[11]	H. Moghimianavval, C. Newell, P. Parvizian, M. J. Booth, A. P. Liu, Strategies and applications of synthetic cell communication, Nat. Chem. Biol., 21 (2025), 1317–1329. https://doi.org/10.1038/s41589-025-02002-2 doi: 10.1038/s41589-025-02002-2
[12]	A. Burgstaller, S. Madureira, O. Staufer, Synthetic cells in tissue engineering, Curr. Opin. Biotechnol., 92 (2025), 103252. https://doi.org/10.1016/j.copbio.2024.103252 doi: 10.1016/j.copbio.2024.103252
[13]	H. Momiji, K. L. Hassall, K. Featherstone, A. V. McNamara, A. L. Patist, D. G. Spiller, et al., Disentangling juxtacrine from paracrine signalling in dynamic tissue, PLoS Comput. Biol., 15 (2019), e1007030. https://doi.org/10.1371/journal.pcbi.1007030 doi: 10.1371/journal.pcbi.1007030
[14]	M. Santorelli, P. S. Bhamidipati, J. Courte, B. Swedlund, N. Jain, K. Poon, et al., Control of spatio-temporal patterning via cell growth in a multicellular synthetic gene circuit, Nat. Commun., 15 (2024), 9867. https://doi.org/10.1038/s41467-024-53078-8 doi: 10.1038/s41467-024-53078-8
[15]	J. E. Dawson, A. Bryant, B. Walton, S. Bhikot, S. Macon, A. Ajamu-Johnson, et al., Contact area and tissue growth dynamics shape synthetic juxtacrine signaling patterns, Biophys. J., 124 (2025), 93–106. https://doi.org/10.1016/j.bpj.2024.11.007 doi: 10.1016/j.bpj.2024.11.007
[16]	M. Garibyan, T. Hoffman, T. Makaske, S. K. Do, Y. Wu, B. A. Williams, et al., Engineering programmable material-to-cell pathways via synthetic notch receptors to spatially control differentiation in multicellular constructs, Nat. Commun., 15 (2024), 5891. https://doi.org/10.1038/s41467-024-50126-1 doi: 10.1038/s41467-024-50126-1
[17]	Y. Nie, Z. Yang, T. Huang, C. Wang, Dynamic analysis and robust strategy for the delayed paradoxical cell population control circuit, IEEE Trans. Cybern., 55 (2025), 2719–2728. https://doi.org/10.1109/TCYB.2025.3556585 doi: 10.1109/TCYB.2025.3556585
[18]	C. Wang, Y. Zhang, J. Cao, Z. Yang, Oscillatory dynamics and regulatory mechanisms of the p53–Per2 network in DNA-damaged cells, IEEE Trans. Neural Networks Learn. Syst., 36 (2025), 9725–9732. https://doi.org/10.1109/TNNLS.2024.3424784 doi: 10.1109/TNNLS.2024.3424784
[19]	Z. Wang, B. Hu, L. Zhu, J. Lin, M. Xu, D. Wang, Hopf bifurcation analysis for Parkinson oscillation with heterogeneous delays: A theoretical derivation and simulation analysis, Commun. Nonlinear Sci. Numer. Simul., 114 (2022), 106614. https://doi.org/10.1016/j.cnsns.2022.106614 doi: 10.1016/j.cnsns.2022.106614
[20]	T. Gao, X. Meng, Stability and Hopf bifurcation of a delayed diffusive phytoplankton-zooplankton-fish model with refuge and two functional responses, AIMS Math., 8 (2023), 8867–8901. https://doi.org/10.3934/math.2023445 doi: 10.3934/math.2023445
[21]	T. Troost, U. Binshtok, D. Sprinzak, T. Klein, Cis-inhibition suppresses basal Notch signaling during sensory organ precursor selection, Proc. Natl. Acad. Sci. U.S.A., 120 (2023), e2214535120. https://doi.org/10.1073/pnas.2214535120 doi: 10.1073/pnas.2214535120
[22]	D. Chen, Z. Forghany, X. Liu, H. Wang, R. M. Merks, D. A. Baker, A new model of Notch signalling: Control of Notch receptor cis-inhibition via Notch ligand dimers, PLoS Comput. Biol., 19 (2023), e1010169. https://doi.org/10.1371/journal.pcbi.1010169 doi: 10.1371/journal.pcbi.1010169
[23]	Y. Zhang, J. Cao, L. Liu, H. Liu, Z. Li, Complex role of time delay in dynamical coordination of neural progenitor fate decisions mediated by Notch pathway, Chaos Soliton Fract., 180 (2024), 114479. https://doi.org/10.1016/j.chaos.2024.114479 doi: 10.1016/j.chaos.2024.114479
[24]	Y. Wang, A. Zeb, R. K. Upadhyay, A. Pratap, A delayed synthetic drug transmission model with two stages of addiction and Holling Type-Ⅱ functional response, AIMS Math., 6 (2021), 1–22. https://doi.org/10.3934/math.2021001 doi: 10.3934/math.2021001
[25]	L. Hua, J. Sun, W. Li, Y. Pang, Oscillation of solutions for second-order neutral multi-delay differential equations, AIMS Math., 10 (2025), 18586–18602. https://doi.org/10.3934/math.2025830 doi: 10.3934/math.2025830
[26]	Z. Wang, B. Hu, W. Zhou, M. Xu, D. Wang, Hopf bifurcation mechanism analysis in an improved cortex-basal ganglia network with distributed delays: An application to Parkinson's disease, Chaos Soliton Fract., 166 (2023), 113022. https://doi.org/10.1016/j.chaos.2022.113022 doi: 10.1016/j.chaos.2022.113022
[27]	J. G. Wang, X. Y. Meng, X. Lei, Bifurcations and control of plant–herbivore systems with spatiotemporal nonlocal effects in arid regions, Int. J. Bifurcat. Chaos, 36 (2026), 2650071. https://doi.org/10.1142/S0218127426500719 doi: 10.1142/S0218127426500719
[28]	X. Y. Meng, Z. W. Liang, Dynamics analysis of a delayed diffusive predator–prey model with memory-based diffusion and fear effect of prey, Int. J. Biomath., 2025, 2550101. https://doi.org/10.1142/S1793524525501013 doi: 10.1142/S1793524525501013
