The influence of pulse current duty cycle on the tensile deformation behavior of commercially pure titanium

Vladimir Stolyarov; Оleg Korolkov; Vladimir Stolyarov; Оleg Korolkov

doi:10.3934/matersci.2026028

AIMS Materials Science

2026, Volume 13, Issue 3: 577-592. doi: 10.3934/matersci.2026028

Previous Article Next Article

Research article Special Issues

The influence of pulse current duty cycle on the tensile deformation behavior of commercially pure titanium

Vladimir Stolyarov ^,,
Оleg Korolkov

Mechanical Engineering Research Institute of Russian Academy of Sciences, Moscow, Russia

Received: 23 April 2026 Revised: 01 June 2026 Accepted: 09 June 2026 Published: 22 June 2026

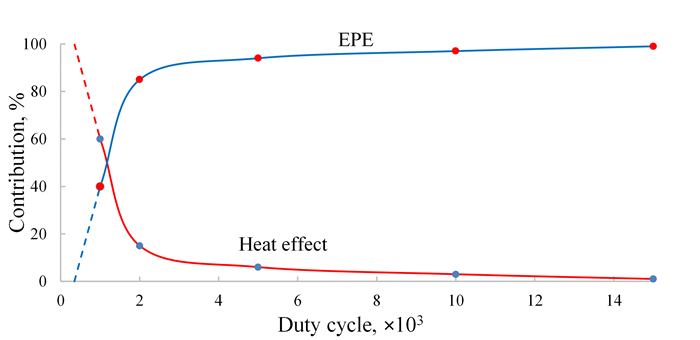

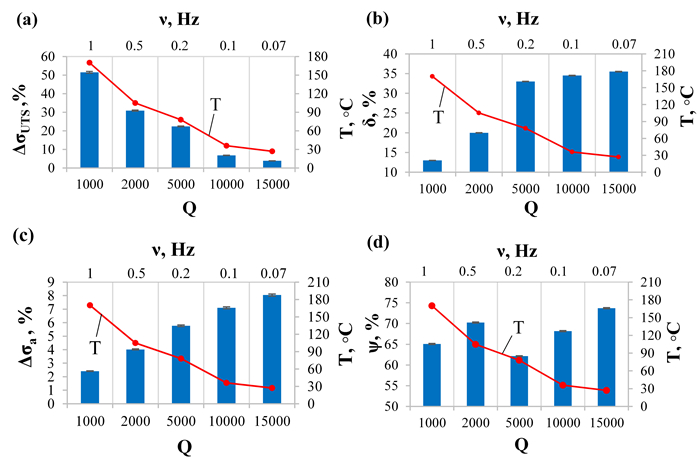

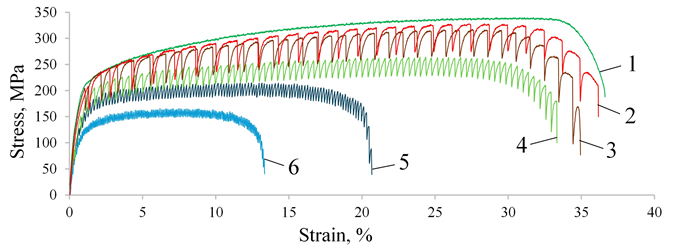

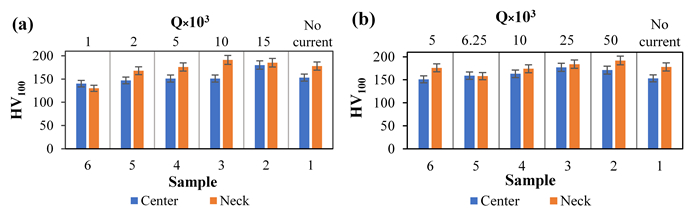

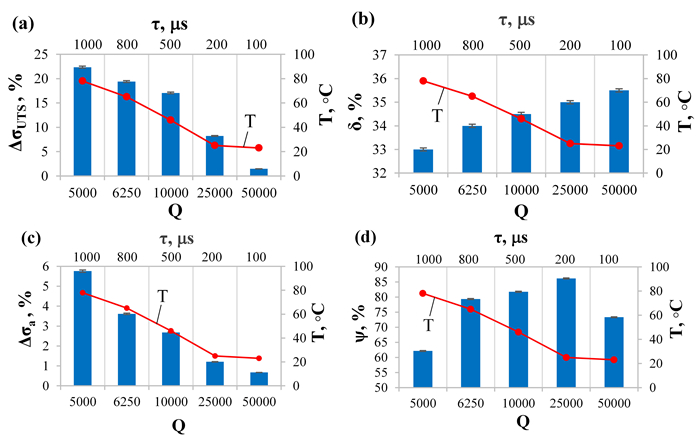

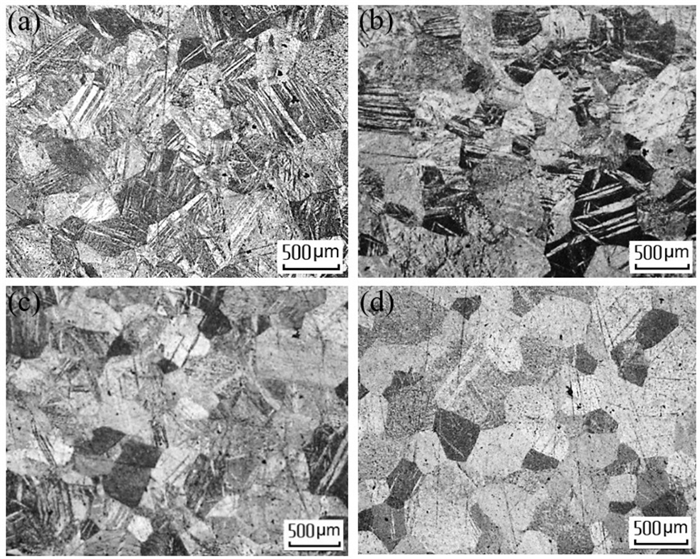

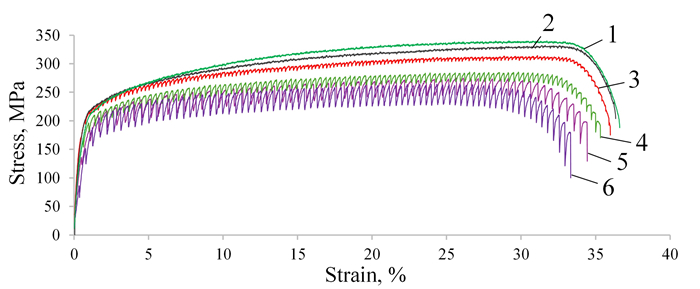

This article examined the influence of pulse current duty cycle at different pulse durations and frequencies on the ratio of thermal and true electroplastic effects (EPEs) during quasi-static tension testing of commercially pure Grade 2 titanium in a coarse-grained recrystallized state. Duty cycle values varied over a wide range corresponding to the minimum thermal effect of the current. Microstructural studies were performed using optical microscopy, microhardness analysis of various sections of the specimen, and scanning electron microscopy of the fracture surface. An increase in temperature, a decrease/increase in the amplitude of stress surges, a reduction in flow stress, ductility, and suppression of the twinning mechanism with a decrease in the duty cycle in the range of 1000–50,000 were demonstrated. In all cases, the failure mechanism remained ductile but changed from dimple type to predominantly cup type with a simultaneous increase in porosity. The use of the duty cycle parameter allows one to regulate the contribution of thermal and electroplastic effects, which can be useful both for modeling the EPE mechanism and for practical use in pressure processing of titanium alloys accompanied by current.
- titanium,
- tension,
- pulse current,
- duty cycle,
- microstructure,
- microhardness,
- fracture
Citation: Vladimir Stolyarov, Оleg Korolkov. The influence of pulse current duty cycle on the tensile deformation behavior of commercially pure titanium[J]. AIMS Materials Science, 2026, 13(3): 577-592. doi: 10.3934/matersci.2026028

Related Papers:

Abstract

This article examined the influence of pulse current duty cycle at different pulse durations and frequencies on the ratio of thermal and true electroplastic effects (EPEs) during quasi-static tension testing of commercially pure Grade 2 titanium in a coarse-grained recrystallized state. Duty cycle values varied over a wide range corresponding to the minimum thermal effect of the current. Microstructural studies were performed using optical microscopy, microhardness analysis of various sections of the specimen, and scanning electron microscopy of the fracture surface. An increase in temperature, a decrease/increase in the amplitude of stress surges, a reduction in flow stress, ductility, and suppression of the twinning mechanism with a decrease in the duty cycle in the range of 1000–50,000 were demonstrated. In all cases, the failure mechanism remained ductile but changed from dimple type to predominantly cup type with a simultaneous increase in porosity. The use of the duty cycle parameter allows one to regulate the contribution of thermal and electroplastic effects, which can be useful both for modeling the EPE mechanism and for practical use in pressure processing of titanium alloys accompanied by current.

References

[1]	Kim MJ, Bui-Thi TA, Kang SG, et al. (2024) Electric current-induced phenomena in metallic materials. Curr Opin Solid State Mater Sci 32: 101190. https://doi.org/10.1016/j.cossms.2024.101190 doi: 10.1016/j.cossms.2024.101190
[2]	Lv Y, Chen G, Zhang B, et al. (2024) Application of electroplastic effect in mechanical processing. Int J Adv Manuf Technol 135: 25–48. https://doi.org/10.1007/s00170-024-14574-9 doi: 10.1007/s00170-024-14574-9
[3]	Perkins TA, Kronenberger TJ, Roth JT (2006) Metallic forging using electrical flow as an alternative to warm/hot working. J Manuf Sci Eng 129: 84–94. https://doi.org/10.1115/1.2386164 doi: 10.1115/1.2386164
[4]	Cao W, Sprecher AF, Conrad H (1989) Measurement of the electroplastic effect in Nb. J Phys E Sci Instrum 22: 1026. https://doi.org/10.1088/0022-3735/22/12/015 doi: 10.1088/0022-3735/22/12/015
[5]	Pakhomov MA, Savenkov GG, Smakovsky MA, et al. (2023) Effect of pulsed current duty factor on deformation behavior of aluminum bronze. Met Sci Heat Treat 65: 292–297. http://doi.org/10.1007/s11041-023-00928-9 doi: 10.1007/s11041-023-00928-9
[6]	Stolyarov V (2026) Pulse current duty cycle and its role in the electroplastic effect of conductive materials. J Mater Eng Perform. https://doi.org/10.1007/s11665-026-13355-7
[7]	Kim MJ, Lee K, Oh KH, et al. (2014) Electric current-induced annealing during uniaxial tension of aluminum alloy. Scr Mater 75: 58–61. https://doi.org/10.1016/j.scriptamat.2013.11.019 doi: 10.1016/j.scriptamat.2013.11.019
[8]	Adabala S, Cherukupally S, Guha S, et al. (2022) Importance of machine compliance to quantify electro-plastic effect in electric pulse aided testing: An experimental and numerical study. J Manuf Process 75: 268–279. https://doi.org/10.1016/j.jmapro.2021.12.027 doi: 10.1016/j.jmapro.2021.12.027
[9]	Gennari C, Calliari I, Stolyarov V (2020) Electroplastic effect in specimens of duplex stainless steel under tension. Ind Lab Diagn Mater 86: 41–45. https://doi.org/10.26896/1028-6861-2020-86-10-41-45 doi: 10.26896/1028-6861-2020-86-10-41-45
[10]	Li X, Xu Z, Guo P, et al. (2022) Electroplasticity mechanism study based on dislocation behavior of Al6061 in tensile process. J Alloys Compd 910: 164890. https://doi.org/10.1016/j.jallcom.2022.164890 doi: 10.1016/j.jallcom.2022.164890
[11]	Li H, Ding C, Xu Z. et al. (2025) Mechanical response and deformation mechanism of TA1 pure titanium during electrically assisted tension. J Mater Res Technol 39: 945–959. https://doi.org/10.1016/j.jmrt.2025.09.077 doi: 10.1016/j.jmrt.2025.09.077
[12]	Khalikova GR, Korolkov OE, Stolyarov VV. et al. (2026) Competing deformation mechanisms of Grade 2 titanium under electrically assisted tension. J Mater Res 41: 494–507. https://doi.org/10.1557/s43578-025-01768-4 doi: 10.1557/s43578-025-01768-4
[13]	Tsukamoto G, Kunieda T, Yamasaki S, et al. (2021) Effects of temperature and grain size on active twinning systems in commercially pure titanium. J Alloys Compd 884: 161154. https://doi.org/10.1016/j.jallcom.2021.161154 doi: 10.1016/j.jallcom.2021.161154
[14]	Li X, Zhou Q, Zhao S, et al. (2014) Effect of pulse current on bending behavior of Ti6Al4V alloy. Procedia Eng 81: 1799–1804. https://doi.org/10.1016/j.proeng.2014.10.235 doi: 10.1016/j.proeng.2014.10.235
[15]	Stolyarov V, Korolkov O, Pesin A, et al. (2023) Deformation behavior under tension with pulse current of ultrafine-grain and coarse-grain CP titanium. Materials 16: 191. https://doi.org/10.3390/ma16010191 doi: 10.3390/ma16010191
[16]	Chen C, Li C, Li C. et al. (2022) Effect of angle between pulse current and load direction on flow stress of Ti-6Al-4V alloy under uniaxial tension. J Mater Eng Perform 31: 9283–9293. https://doi.org/10.1007/s11665-022-06921-2 doi: 10.1007/s11665-022-06921-2
[17]	AZO Materials (2002) Titanium Alloys—Physical Properties. Available from: https://www.azom.com/article.aspx?ArticleID=1341.
