Effects of Cr and Er microalloying on the microstructural evolution and mechanical properties of high-pressure die-cast Al-Si-Ni alloys

Peng Hu; Xiaolu Hong; Liying Cui; Jiang Zhang; Yinjiang Peng; Dahui Chen; Peng Hu; Xiaolu Hong; Liying Cui; Jiang Zhang; Yinjiang Peng; Dahui Chen

doi:10.3934/matersci.2026017

AIMS Materials Science

2026, Volume 13, Issue 2: 300-314. doi: 10.3934/matersci.2026017

Previous Article Next Article

Research article Special Issues

Effects of Cr and Er microalloying on the microstructural evolution and mechanical properties of high-pressure die-cast Al-Si-Ni alloys

Ningbo Branch of Chinese Academy of Ordnance Science, Ningbo, 315103 China

Received: 03 February 2026 Revised: 07 March 2026 Accepted: 16 March 2026 Published: 06 April 2026

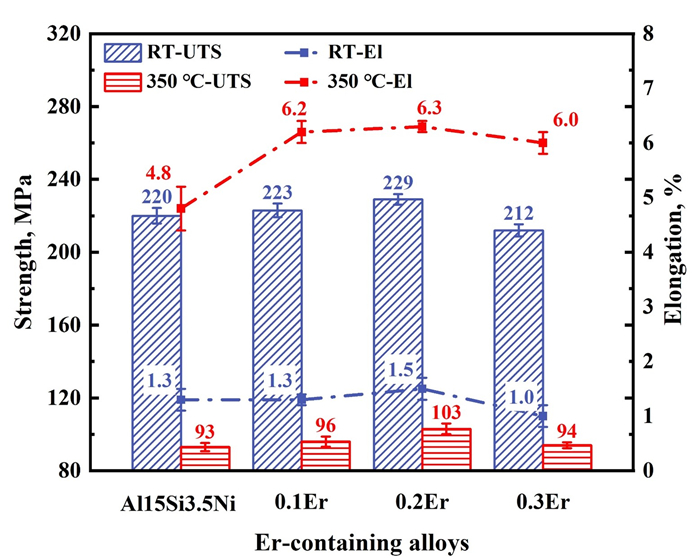

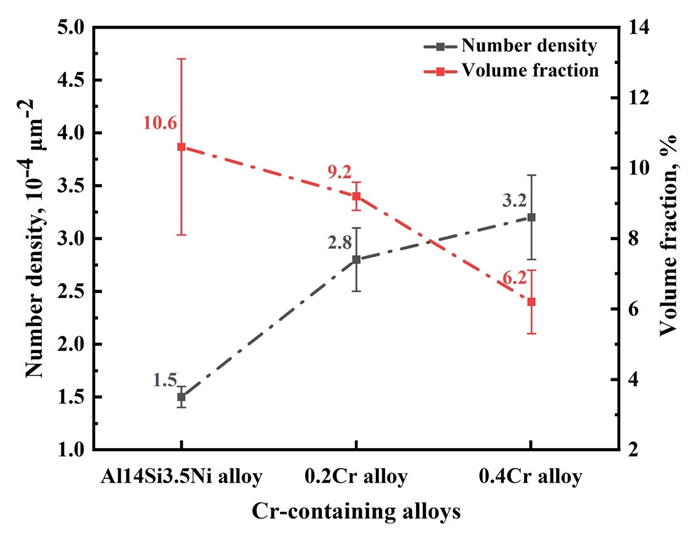

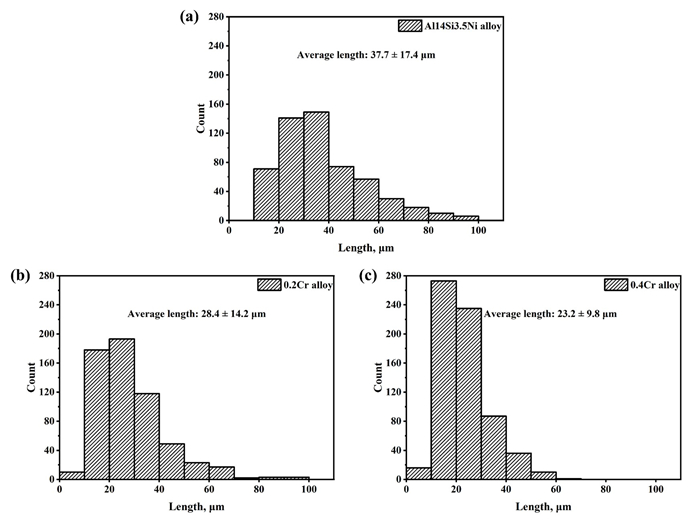

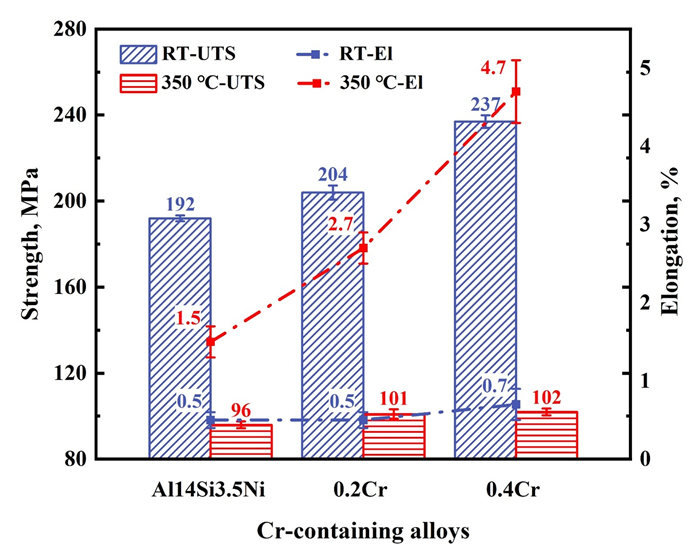

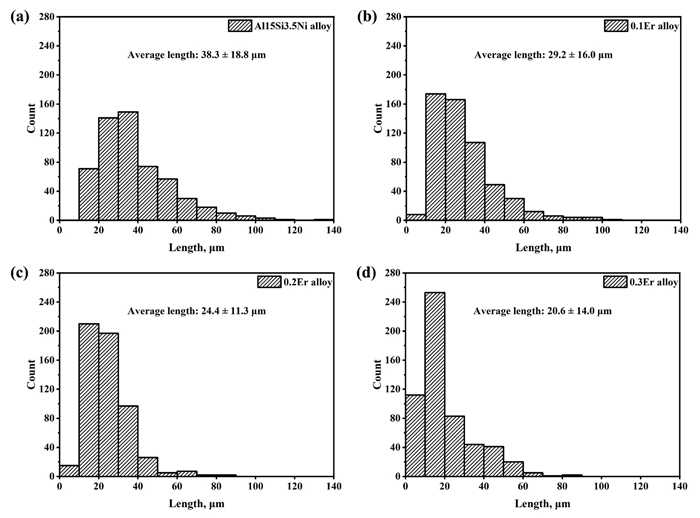

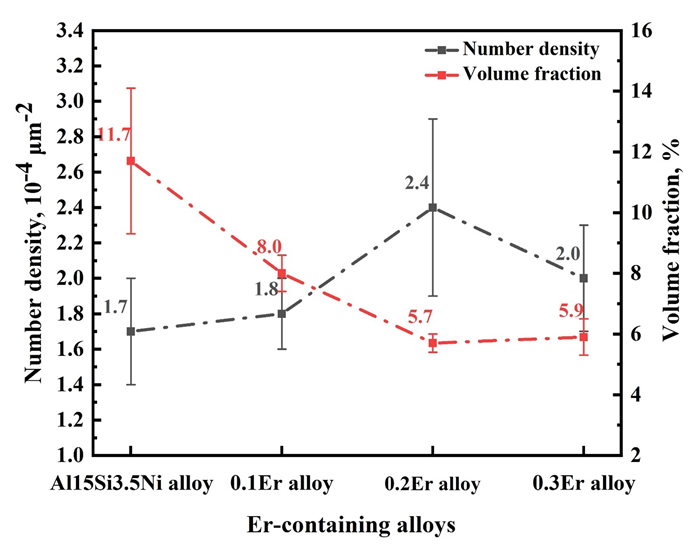

The effects of Cr and Er microalloying on the microstructural evolution and mechanical properties of high-pressure die-cast hypereutectic Al-Si-Ni alloys were systematically investigated. The morphology and distribution of primary Si were quantitatively analyzed using optical microscopy and ImageJ software, and the tensile properties were evaluated at room temperature and 350 ℃. The results indicate that Cr addition promotes the formation of CrSi₂ phases, which act as heterogeneous nucleation sites, increasing the nucleation rate and suppressing the growth of primary Si. Er addition refines primary Si through interfacial segregation and the modification of growth kinetics; however, excessive Er leads to the precipitation of Al₃Er and weakens the refinement effect. As a result of the refined and more homogeneous distribution of primary Si, both Cr- and Er-containing alloys exhibited enhanced tensile strength and ductility at room temperature and 350 ℃. The 0.4Cr alloy showed the best mechanical performance among the investigated compositions, and the optimal Er addition was identified to be approximately 0.2 wt.%. This work provides guidance for the microalloying design of hypereutectic Al-Si-Ni alloys with improved high-temperature mechanical performance.
- hypereutectic Al-Si-Ni alloy,
- microalloying,
- primary Si,
- mechanical properties
Citation: Peng Hu, Xiaolu Hong, Liying Cui, Jiang Zhang, Yinjiang Peng, Dahui Chen. Effects of Cr and Er microalloying on the microstructural evolution and mechanical properties of high-pressure die-cast Al-Si-Ni alloys[J]. AIMS Materials Science, 2026, 13(2): 300-314. doi: 10.3934/matersci.2026017

Related Papers:

Abstract

The effects of Cr and Er microalloying on the microstructural evolution and mechanical properties of high-pressure die-cast hypereutectic Al-Si-Ni alloys were systematically investigated. The morphology and distribution of primary Si were quantitatively analyzed using optical microscopy and ImageJ software, and the tensile properties were evaluated at room temperature and 350 ℃. The results indicate that Cr addition promotes the formation of CrSi₂ phases, which act as heterogeneous nucleation sites, increasing the nucleation rate and suppressing the growth of primary Si. Er addition refines primary Si through interfacial segregation and the modification of growth kinetics; however, excessive Er leads to the precipitation of Al₃Er and weakens the refinement effect. As a result of the refined and more homogeneous distribution of primary Si, both Cr- and Er-containing alloys exhibited enhanced tensile strength and ductility at room temperature and 350 ℃. The 0.4Cr alloy showed the best mechanical performance among the investigated compositions, and the optimal Er addition was identified to be approximately 0.2 wt.%. This work provides guidance for the microalloying design of hypereutectic Al-Si-Ni alloys with improved high-temperature mechanical performance.

References

[1]	Alan T, Emmanuel DM, Alan L, et al. (2019) Materials for automotive lightweighting. Annu Rev Mater Res 49: 327–359. https://doi.org/10.1146/annurev-matsci-070218-010134 doi: 10.1146/annurev-matsci-070218-010134
[2]	Cui L, Zhang Z, Chen XG (2024) Lightweight Al-based entropy alloys: Overview and future trend. Sci China Mater 67: 31–46. https://doi.org/10.1007/s40843-023-2699-2 doi: 10.1007/s40843-023-2699-2
[3]	Ye H (2003) An overview of the development of Al-Si-alloy based material for engine applications. J Mater Eng Perform 12: 288–297. https://doi.org/10.1361/105994903770343132 doi: 10.1361/105994903770343132
[4]	Hu P, Pan L, Chen XG (2024) Elevated-temperature performances of Al-Si-Cu casting alloys for cylinder head applications. Mate Charact 218: 114484. https://doi.org/10.1016/j.matchar.2024.114484 doi: 10.1016/j.matchar.2024.114484
[5]	Hu P, Liu K, Pan L, et al. (2024) Thermomechanical fatigue behavior and its life prediction of AlSi9Cu3.5 cast alloy. J Mater Sci 59: 8022–8039. https://doi.org/10.1007/s10853-024-09663-9
[6]	European Aluminium Association (2015) The aluminium automotive manual: Joining dissimilar materials, 1–31. Available from: https://european-aluminium.eu/blog/aluminium-automotive-manual/.
[7]	Farkoosh AR, Pekguleryuz M (2015) Enhanced mechanical properties of an Al-Si-Cu-Mg alloy at 300 ℃: Effects of Mg and the Q-precipitate phase. Mater Sci En A 621: 277–286. https://doi.org/10.1016/j.msea.2014.10.080 doi: 10.1016/j.msea.2014.10.080
[8]	Mørtsell EA, Qian F, Marioara CD, et al. (2019) Precipitation in an A356 foundry alloy with Cu additions-A transmission electron microscopy study. J Alloys Compd 785: 1106–1114. https://doi.org/10.1016/j.jallcom.2019.01.229 doi: 10.1016/j.jallcom.2019.01.229
[9]	Srinivas D, Gowrishankar MC, Hiremath P, et al. (2022) Influence of various trace metallic additions and reinforcements on A319 and A356 alloys-A review. Cogent Eng 9: 2007746. https://doi.org/10.1080/23311916.2021.2007746 doi: 10.1080/23311916.2021.2007746
[10]	Belov NA, Eskin DG, Avxentieva NN (2005) Constituent phase diagrams of the Al-Cu-Fe-Mg-Ni-Si system and their application to the analysis of aluminium piston alloys. Acta Mater 53: 4709–4722. https://doi.org/10.1016/j.actamat.2005.07.003 doi: 10.1016/j.actamat.2005.07.003
[11]	Asghar Z, Requena G, Boller E (2011) Three-dimensional rigid multiphase networks providing high-temperature strength to cast AlSi10Cu5Ni1-2 piston alloys. Acta Mater 59: 6420–6432. https://doi.org/10.1016/j.actamat.2011.07.006 doi: 10.1016/j.actamat.2011.07.006
[12]	Farkoosh AR, Javidani M, Hoseini M, et al. (2013) Phase formation in as-solidified and heat-treated Al-Si-Cu-Mg-Ni alloys: Thermodynamic assessment and experimental investigation for alloy design. J Alloys Compd 551: 596–606. https://doi.org/10.1016/j.jallcom.2012.10.182 doi: 10.1016/j.jallcom.2012.10.182
[13]	Liu K, Wang S, Hu P, et al. (2023) Improved thermos-mechanical fatigue resistance of Al-Si-Cu 319 alloys by microalloying with Mo. Materials 16: 3515. https://doi.org/10.3390/ma16093515 doi: 10.3390/ma16093515
[14]	Jin L, Liu K, Chen XG (2020) Evolution of dispersoids and their effects on elevated-temperature strength and creep resistance in Al-Si-Cu 319 cast alloys with Mn and Mo additions. Mater Sci Eng A 770: 138554. https://doi.org/10.1016/j.msea.2019.138554 doi: 10.1016/j.msea.2019.138554
[15]	Farkoosh AR, Chen XG, Pekguleryuz M (2015) Dispersoid strengthening of a high-temperature Al-Si-Cu-Mg alloy via Mo addition. Mater Sci Eng A 620: 181–189. https://doi.org/10.1016/j.msea.2014.10.004 doi: 10.1016/j.msea.2014.10.004
[16]	Liu K, Chen XG (2018) Improvement in elevated-temperature properties of Al-13%Si piston alloys by dispersoid strengthening via Mn addition. J Mater Res 33: 3430–3438. https://doi.org/10.1557/jmr.2018.117 doi: 10.1557/jmr.2018.117
[17]	Wang QG, Apelian D, Lados DA (2001) Fatigue behavior of A356/357 aluminum cast alloys. Part Ⅱ-Effect of microstructural constituents. J Light Met 1: 85–97. https://doi.org/10.1016/S1471-5317(00)00009-2 doi: 10.1016/S1471-5317(00)00009-2
[18]	Fatahalla N, Hafiz M, Abdulkhalek M (1999) Effect of microstructure on the mechanical properties and fracture of commercial hypoeutectic Al-Si alloy modified with Na, Sb and Sr. J Mater Sci 34: 3555–3564. https://doi.org/10.1023/A:1004626425326 doi: 10.1023/A:1004626425326
[19]	Xing P, Gao B, Zhuang Y, et al. (2010) On the modification of hypereutectic Al-Si alloys using rare earth Er. Acta Metal Sin (Engl Lett) 23: 327–333. https://doi.org/10.11890/1006-7191-105-327 doi: 10.11890/1006-7191-105-327
[20]	Li Q, Xia T, Lan Y, et al. (2013) Effects of rare earth Er addition on microstructure and mechanical properties of hypereutectic Al-20%Si alloy. Mater Sci Eng A 588: 97–102. https://doi.org/10.1016/j.msea.2013.09.017 doi: 10.1016/j.msea.2013.09.017
[21]	Li C, Liu F, Yu F, et al. (2023) The growth mechanism and morphology evolution of primary Si during slow cooling solidification of high-purity Al-15Si alloy with Cr additions. J Mater Re Technol 23: 1204–1213. https://doi.org/10.1016/j.jmrt.2023.01.034 doi: 10.1016/j.jmrt.2023.01.034
[22]	Li Q, Xia T, Lan Y, et al. (2013) Effect of rare earth cerium addition on the microstructure and tensile properties of hypereutectic Al-20%Si alloy. J Alloys Compd 562: 25–32. https://doi.org/10.1016/j.jallcom.2013.02.016 doi: 10.1016/j.jallcom.2013.02.016
[23]	Böyük U, Engin S, Maraşlı N (2011) Microstructural characterization of unidirectional solidified eutectic Al-Si-Ni alloy. Mater Charact 62: 844–851. https://doi.org/10.1016/j.matchar.2011.05.010 doi: 10.1016/j.matchar.2011.05.010
[24]	Lee YH, Kayani SH, Lee JM, et al. (2025) Role of Ni in high elastic modulus Al-Si-Ni alloys: Solidification and microstructure evolution. Mater Charact 115768. https://doi.org/10.1016/j.matchar.2025.115768 doi: 10.1016/j.matchar.2025.115768
[25]	Galkin NG, Velitchko TV, Skripka SV, et al. (1996) Semiconducting and structural properties of CrSi₂ A-type epitaxial films on Si (111). Thin Solid Films 280: 211–220. https://doi.org/10.1016/0040-6090(95)08241-7 doi: 10.1016/0040-6090(95)08241-7
[26]	Lu SZ, Hellawell A (1987) The mechanism of silicon modification in aluminum-silicon alloys: Impurity-induced twinning. Metall Trans A 18: 1721–1733. https://doi.org/10.1007/BF02646204 doi: 10.1007/BF02646204
[27]	Yang D, Li X, He D, et al. (2013) Effect of minor Er and Zr on microstructure and mechanical properties of Al−Mg−Mn alloy (5083) welded joints. Mater Sci Eng A 561: 226–231. https://doi.org/10.1016/j.msea.2012.11.002 doi: 10.1016/j.msea.2012.11.002
