Microwave deicing efficiency and microwave loss characteristics of carbon nanofibers reinforced concrete

Zhihang Wang; Binghong Li; Chao Zhang; Yue Zhang; Chao Wang; Erlei Bai; Zhihang Wang; Binghong Li; Chao Zhang; Yue Zhang; Chao Wang; Erlei Bai

doi:10.3934/matersci.2026010

AIMS Materials Science

2026, Volume 13, Issue 1: 168-186. doi: 10.3934/matersci.2026010

Previous Article Next Article

Research article Special Issues

Microwave deicing efficiency and microwave loss characteristics of carbon nanofibers reinforced concrete

1.
Air Force Logistics Academy, Jiangsu 221000, China
2.
Aviation Engineering School, Air Force Engineering University, Xi'an 710038, China

Received: 26 November 2025 Revised: 28 January 2026 Accepted: 03 February 2026 Published: 27 February 2026

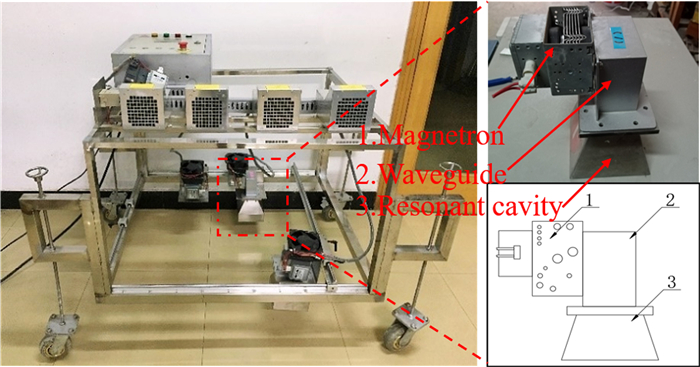

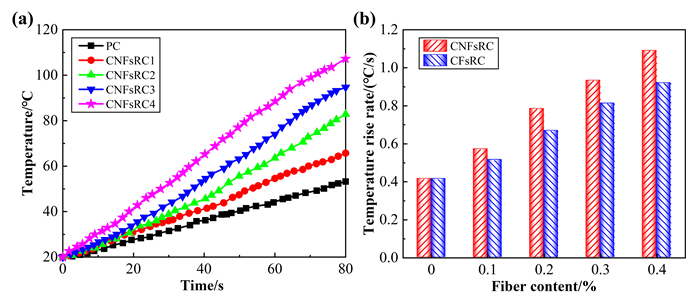

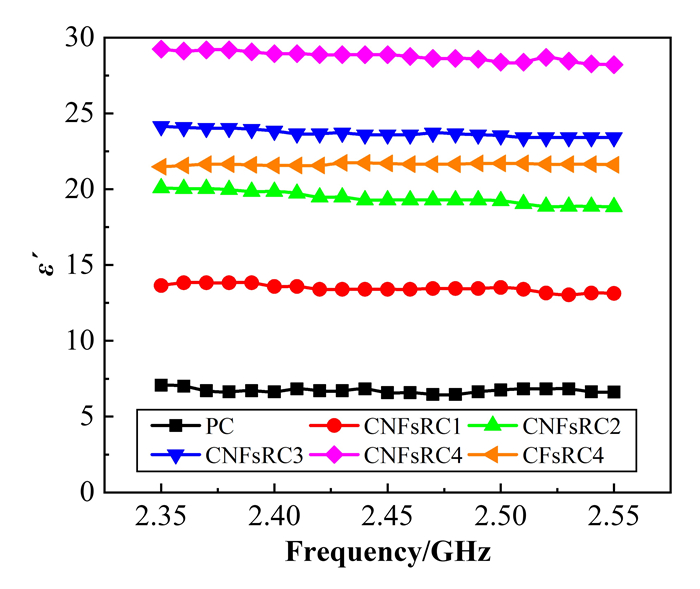

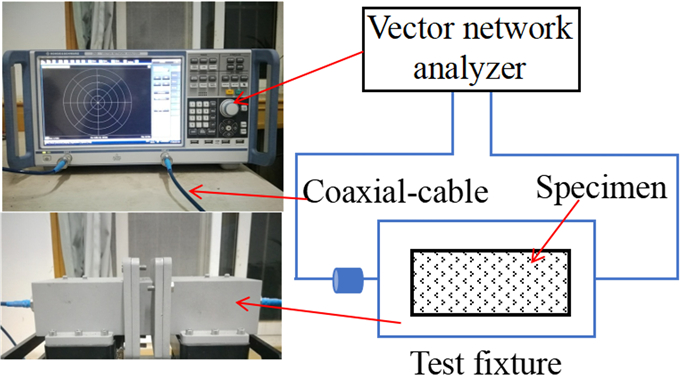

In this work, the ice-free heating test and microwave deicing test of carbon nanofiber (CNFs)-reinforced concrete (CNFsRC) were carried out, and the effect of CNFs on the temperature rise rate, temperature distribution, and microwave deicing efficiency of concrete was studied. Also, the resistance loss and dielectric loss characteristics of CNFsRC were studied by measuring the resistivity and electromagnetic parameters of concrete. In addition, the microwave deicing efficiency and loss characteristics of CNFsRC and carbon fiber (CFs)-reinforced concrete (CFsRC) were compared. The results show that CNFs can improve the resistance loss and dielectric loss characteristics of concrete, so that the microwave deicing efficiency of CNFsRC is improved. As the CNFs content increases, the surface temperature, temperature rise rate, area of microwave heating region, and area of ice-breaking region of CNFsRC increase. CNFs can reduce the resistivity of concrete and increase the complex permittivity real part, imaginary part, and dielectric loss angle tangent. As the CNFs content increases, the microwave loss characteristics of CNFsRC increase. Compared with CFs, CNFs have better improvement in the microwave deicing efficiency of concrete. The resistance loss characteristics of CFsRC are better than those of CNFsRC, but the microwave absorption efficiency of CFsRC is poor, and the dielectric loss characteristics of CNFsRC are better than those of CFsRC.
- concrete,
- carbon nanofibers,
- carbon fibers,
- microwave deicing,
- microwave loss characteristics
Citation: Zhihang Wang, Binghong Li, Chao Zhang, Yue Zhang, Chao Wang, Erlei Bai. Microwave deicing efficiency and microwave loss characteristics of carbon nanofibers reinforced concrete[J]. AIMS Materials Science, 2026, 13(1): 168-186. doi: 10.3934/matersci.2026010

Related Papers:

Abstract

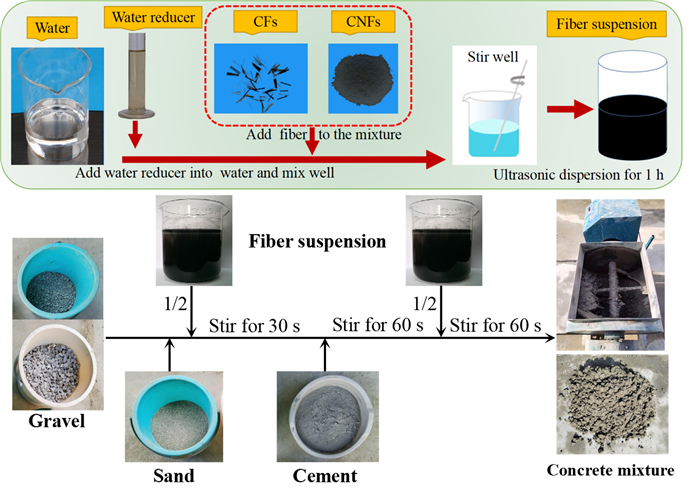

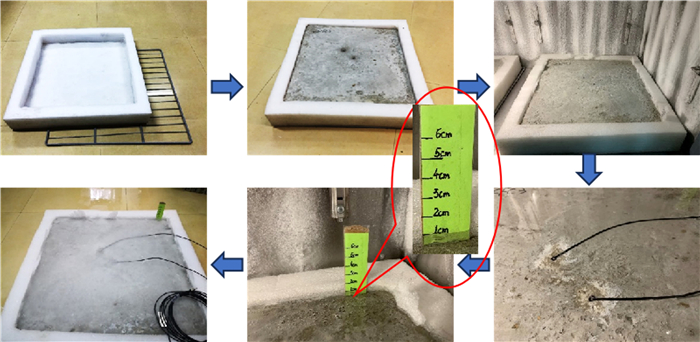

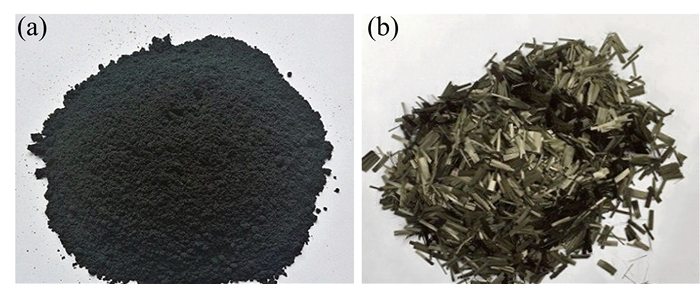

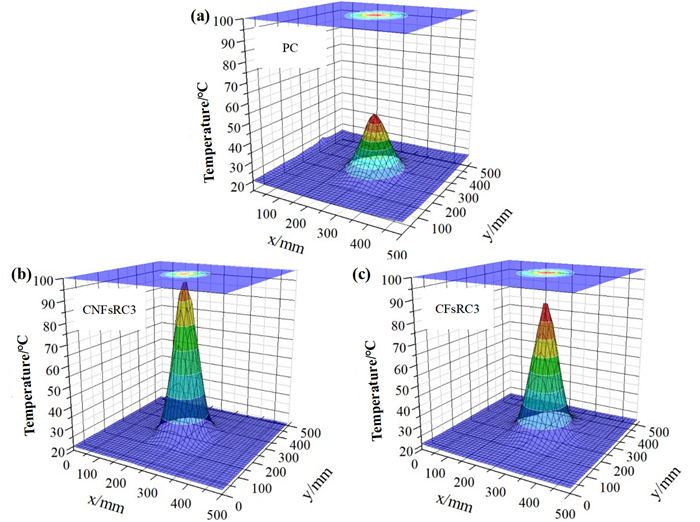

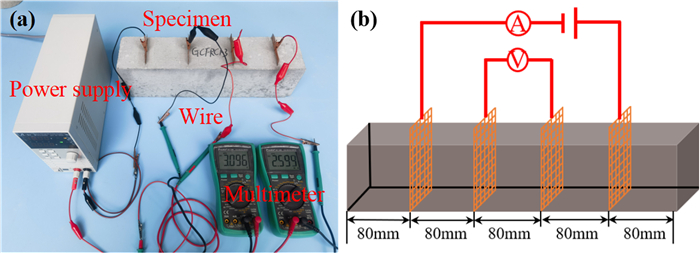

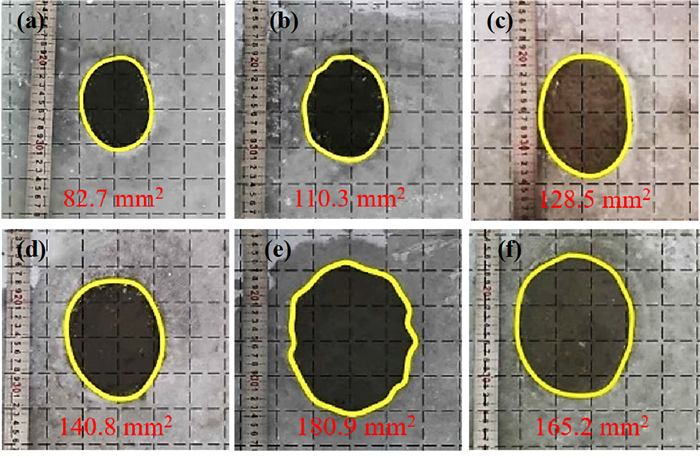

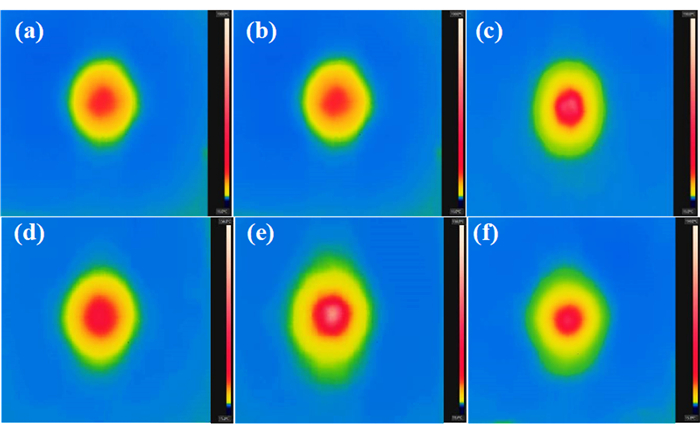

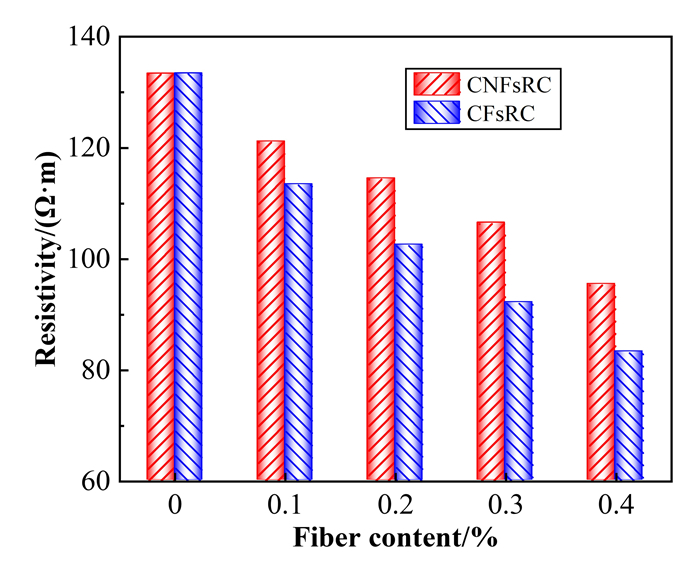

In this work, the ice-free heating test and microwave deicing test of carbon nanofiber (CNFs)-reinforced concrete (CNFsRC) were carried out, and the effect of CNFs on the temperature rise rate, temperature distribution, and microwave deicing efficiency of concrete was studied. Also, the resistance loss and dielectric loss characteristics of CNFsRC were studied by measuring the resistivity and electromagnetic parameters of concrete. In addition, the microwave deicing efficiency and loss characteristics of CNFsRC and carbon fiber (CFs)-reinforced concrete (CFsRC) were compared. The results show that CNFs can improve the resistance loss and dielectric loss characteristics of concrete, so that the microwave deicing efficiency of CNFsRC is improved. As the CNFs content increases, the surface temperature, temperature rise rate, area of microwave heating region, and area of ice-breaking region of CNFsRC increase. CNFs can reduce the resistivity of concrete and increase the complex permittivity real part, imaginary part, and dielectric loss angle tangent. As the CNFs content increases, the microwave loss characteristics of CNFsRC increase. Compared with CFs, CNFs have better improvement in the microwave deicing efficiency of concrete. The resistance loss characteristics of CFsRC are better than those of CNFsRC, but the microwave absorption efficiency of CFsRC is poor, and the dielectric loss characteristics of CNFsRC are better than those of CFsRC.

References

[1]	Chen H, Xu J, Wu Y, et al. (2020) Study on the thermodynamic properties of concrete surface uring microwave deicing of airport pavement. Material 13: 3557. https://doi.org/10.3390/ma13163557 doi: 10.3390/ma13163557
[2]	Liu X, Zhao Y, Liu W, et al. (2022) Microwave heating and deicing efficiency for asphalt concrete with SiC-Fe₃O₄ microwave enhanced functional layer. J Cleaner Prod 332: 130111. https://doi.org/10.1016/j.jclepro.2021.130111 doi: 10.1016/j.jclepro.2021.130111
[3]	Gulisano F, Gallego J, Trigos L, et al. (2021) Dielectric characterisation of asphalt mortars for microwave heating applications. Constr Build Mater 308: 125048. https://doi.org/10.1016/J.CONBUILDMAT.2021.125048 doi: 10.1016/J.CONBUILDMAT.2021.125048
[4]	Fakhri M, Javadi S, Sedghi R, et al. (2021) Microwave induction heating of polymer-modified asphalt materials for self-healing and deicing. Sustainability 13: 10129. https://doi.org/10.3390/SU131810129 doi: 10.3390/SU131810129
[5]	Guo H, Wang Z, Huo J, et al. (2020) Microwave heating improvement of asphalt mixtures through optimizing layer thickness of magnetite and limestone aggregates J Cleaner Prod 273: 123090. https://doi.org/10.1016/j.jclepro.2020.123090 doi: 10.1016/j.jclepro.2020.123090
[6]	Ding L, Wang X, Cui X, et al. (2021) Development and performance research of new sensitive materials for microwave deicing pavement at different frequencies. Cold Reg Sci Tech 181: 103176. https://doi.org/10.1016/j.coldregions.2020.103176 doi: 10.1016/j.coldregions.2020.103176
[7]	Xu O, Han S, Liu Y, et al. (2020) Experimental investigation surface abrasion resistance and surface frost resistance of concrete pavement incorporating fly ash and slag. Int J Pavement Eng 22: 1858–1866. https://doi.org/10.1080/10298436.2020.1726348 doi: 10.1080/10298436.2020.1726348
[8]	Wang Z, He Z, Wang Z, et al. (2019) Utilization of magnetite as microwave absorber to prepare microwave-heatable aggregate for deicing in cementitious composite. Constr Build Mater 227: 116664. https://doi.org/10.1016/j.conbuildmat.2019.08.045 doi: 10.1016/j.conbuildmat.2019.08.045
[9]	Zhang J, Yan Y, Hu Z, et al. (2018) Utilization of low-grade pyrite cinder for synthesis of microwave heating ceramics and their microwave deicing performance in dense-graded asphalt mixtures. J Cleaner Prod 170: 486–495. https://doi.org/10.1016/j.jclepro.2017.09.175 doi: 10.1016/j.jclepro.2017.09.175
[10]	Liu X, Wei Z, Zhao Y, et al. (2021) Improving the electromagnetic properties of bitumen using SiC-Fe₃O₄ composites. J Mater Civ Eng 33: 04021326. https://doi.org/10.1061/(ASCE)MT.1943-5533.0003953 doi: 10.1061/(ASCE)MT.1943-5533.0003953
[11]	Gao J, Guo H, Wang X, et al. (2019) Microwave deicing for asphalt mixture containing steel wool fibers. J Cleaner Prod 206: 1110–1122. https://doi.org/10.1016/j.jclepro.2018.09.223 doi: 10.1016/j.jclepro.2018.09.223
[12]	Guan B, Liu J, Zhao H, et al. (2019) Investigation of the microwave absorption of asphalt mixtures containing magnetite powder. Coatings 9: 813. https://doi.org/10.3390/coatings9120813 doi: 10.3390/coatings9120813
[13]	Liu Z, Yang X, Wang Y, et al. (2019) Engineering properties and microwave heating induced ice-melting performance of asphalt mixture with activated carbon powder filler. Constr Build Mater 197: 50–62. https://doi.org/10.1016/j.conbuildmat.2018.11.094 doi: 10.1016/j.conbuildmat.2018.11.094
[14]	Wang Z, He Z, Wang Z, et al. (2019) Microwave deicing of functional pavement using sintered magnetically separated fly ash as microwave-heating aggregate. J Mater Civ Eng 31: 04019127. https://doi.org/10.1061/(ASCE)MT.1943-5533.0002771 doi: 10.1061/(ASCE)MT.1943-5533.0002771
[15]	Ding L, Wang X, Zhang W, et al. (2018) Microwave deicing efficiency: Study on the difference between microwave frequencies and road structure materials. Appl Sci 8: 2360. https://doi.org/10.3390/app8122360 doi: 10.3390/app8122360
[16]	Ouyang W, Wang Z, Zhang C, et al. (2025) Electromagnetic shielding and wave absorbing properties of graphene oxide grafted carbon fiber reinforced concrete. Fuller Nanotub Carbon Nanostruct 33: 1201–1213. https://doi.org/10.1080/1536383X.2025.2495813 doi: 10.1080/1536383X.2025.2495813
[17]	Zhao J, Gao Z, Wu W, et al. (2025) Development of a novel cement-based microwave deicing functional overlay using waterborne epoxy resin: Heating properties, influencing factors, and mechanism. Constr Build Mater 492: 142849. https://doi.org/10.1016/J.CONBUILDMAT.2025.142849 doi: 10.1016/J.CONBUILDMAT.2025.142849
[18]	Chen T, Liu J, Wang G, et al. (2025) Experimental study on multi-source coupled microwave deicing of pavement concrete. Constr Build Mater 499: 144074. https://doi.org/10.1016/J.CONBUILDMAT.2025.144074 doi: 10.1016/J.CONBUILDMAT.2025.144074
[19]	Liu J, Xu J, Lu S, et al. (2019) Investigation on dielectric properties and microwave heating efficiencies of various concrete pavements during microwave deicing. Constr Build Mater 225: 55–66. https://doi.org/10.1016/j.conbuildmat.2019.07.249 doi: 10.1016/j.conbuildmat.2019.07.249
[20]	Wang Z, Bai E, Ren B, et al. (2023) Microwave heating efficiency and frost resistance of concrete modified with powder absorbing materials. Constr Build Mater 379: 131145. https://doi.org/10.1016/J.CONBUILDMAT.2023.131145 doi: 10.1016/J.CONBUILDMAT.2023.131145
[21]	Lu S, Bai E, Xu J, et al. (2021) Research on electromagnetic properties and microwave deicing performance of carbon fiber modified concrete. Constr Build Mater 286: 122868. https://doi.org/10.1016/J.CONBUILDMAT.2021.122868 doi: 10.1016/J.CONBUILDMAT.2021.122868
[22]	Liu J, Xu J, Lu S (2017) Investigations on microwave deicing effects on graphite-modified concrete. RSC Adv 7: 39237–39243. https://doi.org/10.1039/c7ra04920j doi: 10.1039/c7ra04920j
[23]	Wang Z, Bai E, Huang H, et al. (2022) Study on the electromagnetic property and microwave heating efficiency of concrete with magnetite aggregate. Constr Build Mater 342: 128080. https://doi.org/10.1016/J.CONBUILDMAT.2022.128080 doi: 10.1016/J.CONBUILDMAT.2022.128080
[24]	Wang Z, Bai E, Ren B, et al. (2024) Mechanical properties and cross-scale synergistic modification mechanism of micro-nano carbon fiber modified concrete. Mater Today Commun 2024: 110401. https://doi.org/10.1016/J.MTCOMM.2024.110401 doi: 10.1016/J.MTCOMM.2024.110401
[25]	Wang Z, Bai E, Liu J, et al. (2025) Research progress on electromagnetic shielding and wave absorption properties of cement-based materials modified by carbon fiber and carbon nanomaterials. Mater Rep 39: 88–96. https://doi.org/10.11896/cldb.24030248 doi: 10.11896/cldb.24030248
[26]	Du Y, Wang Z, Lu S, et al. (2025) Mechanical characteristics of multi-scale carbon nanotube-carbon fiber reinforced concrete and a dynamic constitutive model within an EP damage framework. Case Stud Constr Mater 23: e05616. https://doi.org/10.1016/J.CSCM.2025.E05616 doi: 10.1016/J.CSCM.2025.E05616
[27]	Qiu H, Wu Y, Chen H, et al. (2023) Effect of silicon carbide powder on temperature field distribution characteristics and microwave deicing efficiency of cement concrete containing magnetite (Fe₃O₄) powder. Constr Build Mater 392: 132005. https://doi.org/10.1016/J.CONBUILDMAT.2023.132005 doi: 10.1016/J.CONBUILDMAT.2023.132005
[28]	Bai E, Wang Z, Du Y, et al. (2024) Mechanical properties and strain rate effect of graphene oxide grafted carbon fiber modified concrete under dynamic impact load. Constr Build Mater 445: 137978. https://doi.org/10.1016/J.CONBUILDMAT.2024.137978 doi: 10.1016/J.CONBUILDMAT.2024.137978
[29]	Wang Z, Bai E, Liu C, et al. (2024) Strength, toughness and interface modification of graphene oxide grafted carbon fiber modified concrete. Constr Build Mater 428: 136336. https://doi.org/10.1016/J.CONBUILDMAT.2024.136336 doi: 10.1016/J.CONBUILDMAT.2024.136336
[30]	Wang Z, Bai E, Liang L, et al. (2024) Comparison of dynamic mechanical properties of carbon fiber and graphene oxide grafted carbon fiber modified concrete. J Build Eng 94: 109989. https://doi.org/10.1016/J.JOBE.2024.109989 doi: 10.1016/J.JOBE.2024.109989
[31]	Kumar A, Sachdev VK, Chowdhuri A, et al. (2023) Electromagnetic shielding effectiveness and dielectric study of polystyrene/aluminum composite by addition of graphite and carbon nanofiber powder. J Mater Sci-Mater Electron 34: 11232. https://doi.org/10.1007/S10854-023-11232-W doi: 10.1007/S10854-023-11232-W
[32]	Liu M, Hu J, Wang H, et al. (2023) 3D flower-branch hierarchical carbon nanofiber/ZnO/TiO₂/Ti₃C₂T_x composites for dramatically enhanced electromagnetic absorbing properties. Ceram Int 49: 34062–34073. https://doi.org/10.1016/J.CERAMINT.2023.08.107 doi: 10.1016/J.CERAMINT.2023.08.107
[33]	Xia W, Bai E, Lu S, et al. (2023) Optimal design and experimental study of horn antenna in pavement microwave deicing technology. Cold Reg Sci Tech 205: 103695. https://doi.org/10.1016/J.COLDREGIONS.2022.103695 doi: 10.1016/J.COLDREGIONS.2022.103695
[34]	Liu K, Da Y, Wang F, et al. (2022) An eco-friendly asphalt pavement deicing method by microwave heating and its comprehensive environmental assessments. J Cleaner Prod 373: 133899. https://doi.org/10.1016/J.JCLEPRO.2022.133899 doi: 10.1016/J.JCLEPRO.2022.133899
[35]	Ning Y, Xu J, Huang H, et al. (2022) Effect of carbon fiber admixture and length on microwave deicing efficiency of airport road surface concrete. Adv Mater Sci Eng 2022: 1956040. https://doi.org/10.1155/2022/1956040 doi: 10.1155/2022/1956040
[36]	Lu S, Xu J, Bai E, et al. (2017) Investigating microwave deicing efficiency in concrete pavement. RSC Adv 7: 9152–9159. https://doi.org/10.1039/c6ra27109j doi: 10.1039/c6ra27109j
[37]	Yoo D, Kang M, Choi H, et al. (2020) Influence of chemically treated carbon fibers on the electromagnetic shielding of ultra-high-performance fiber-reinforced concrete. Arch Civ Mech Eng 20: 602–610. https://doi.org/10.1007/s43452-020-00117-y doi: 10.1007/s43452-020-00117-y
[38]	Han J, Wang D, Zhang P (2020) Effect of nano and micro conductive materials on conductive properties of carbon fiber reinforced concrete. Nanotechnol Rev 9: 445–454. https://doi.org/10.1515/ntrev-2020-0034 doi: 10.1515/ntrev-2020-0034
[39]	Liu X, Zhao Y, Yan D, et al. (2023) An environmentally friendly asphalt concrete containing SiC aggregate for microwave heating deicing. J Mater Civ Eng 35: 16230. https://doi.org/10.1061/JMCEE7.MTENG-16230 doi: 10.1061/JMCEE7.MTENG-16230
[40]	Ma L, Wu Y, Wu Z, et al. (2023) Enhanced dielectric loss in N-doped three-dimensional porous carbon for microwave absorption. Mater Today Adv 20: 100434. https://doi.org/10.1016/J.MTADV.2023.100434 doi: 10.1016/J.MTADV.2023.100434
[41]	Chen T, Wang Z, Zhang C, et al. (2025) Electromagnetic properties of carbon nanofiber reinforced concrete and comparison with carbon fiber reinforced concrete. Fuller Nanotub Carbon Nanostruct 33: 819–828. https://doi.org/10.1080/1536383X.2025.2463478 doi: 10.1080/1536383X.2025.2463478
[42]	Lu D, Jiang X, Leng Z, et al. (2023) Dual responsive microwave heating-healing system in asphalt concrete incorporating coal gangue and functional aggregate. J Cleaner Prod 422: 138648. https://doi.org/10.1016/J.JCLEPRO.2023.138648 doi: 10.1016/J.JCLEPRO.2023.138648
[43]	Chen T, Wang Z, Wang A, et al. (2023) Comparative study on the static and dynamic mechanical properties and micro-mechanism of carbon fiber and carbon nanofiber reinforced concrete. Case Stud Constr Mater 18: e01827. https://doi.org/10.1016/j.cscm.2023.e01827 doi: 10.1016/j.cscm.2023.e01827
[44]	Wang T, Xu J, Bai E, et al. (2023) Research on a sustainable concrete synergistic reinforced with carbon fiber and carbon nanofiber: Mechanical properties, durability and environmental evaluation. Int J Hydrog Energy 48: 35366–35386. https://doi.org/10.1016/J.IJHYDENE.2023.05.234 doi: 10.1016/J.IJHYDENE.2023.05.234

Reader Comments

Your name:*

Email:*
© 2026 the Author(s), licensee AIMS Press. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0)
