Effect of repetitive transcranial magnetic stimulation modulating supplementary motor area in stroke rehabilitation: Systematic review of randomized controlled trials

Ayesha Juhi; Shreya Sharma; Dinesh Bhatia; Suman Dhaka; Rajesh Kumar; Deepak Kumar; Rintu Kumar Gayen; Himel Mondal; Ayesha Juhi; Shreya Sharma; Dinesh Bhatia; Suman Dhaka; Rajesh Kumar; Deepak Kumar; Rintu Kumar Gayen; Himel Mondal

doi:10.3934/Neuroscience.2026003

AIMS Neuroscience

2026, Volume 13, Issue 1: 50-63. doi: 10.3934/Neuroscience.2026003

Previous Article Next Article

Review

Effect of repetitive transcranial magnetic stimulation modulating supplementary motor area in stroke rehabilitation: Systematic review of randomized controlled trials

1.
Department of Physiology, All India Institute of Medical Sciences, Deoghar, Jharkhand, India
2.
Neuromodulation Laboratory, Department of Physiology, All India Institute of Medical Sciences, Deoghar, Jharkhand, India
3.
Department of Biomedical Engineering, North-Eastern Hill University, Shillong, Meghalaya, India
4.
School of Liberal Arts and Center for Brain Science and Application, Indian Institute of Technology, Jodhpur, India
5.
Department of Internal Medicine, All India Institute of Medical Sciences, Deoghar, Jharkhand, India
6.
Department of Physical Medicine and Rehabilitation, All India Institute of Medical Sciences, Deoghar, Jharkhand, India
7.
Electronics and Communication Engineering, Institute of Engineering and Management, Kolkata, India

Received: 25 September 2025 Revised: 01 December 2025 Accepted: 06 January 2026 Published: 28 January 2026

Background
Repetitive transcranial magnetic stimulation (rTMS) is a promising adjunct in stroke rehabilitation, with increasing focus on the supplementary motor area (SMA) for its role in motor and language network reorganization. This systematic review evaluated randomized controlled trials (RCTs) assessing rTMS targeting the SMA or modulating its connectivity to improve motor and language outcomes in adults after ischemic or hemorrhagic stroke.
Methods
A comprehensive literature search was performed across PubMed, Web of Science, and Google Scholar, focusing on peer-reviewed RCTs published in English. Studies were eligible if they involved adults with stroke at any recovery stage and assessed rTMS targeting or analyzing the SMA. Two independent reviewers screened records, extracted data, and assessed risk of bias using the Cochrane Risk of Bias 2.0 tool. The review adhered to PRISMA guidelines and was registered in PROSPERO (CRD420251051684).
Results

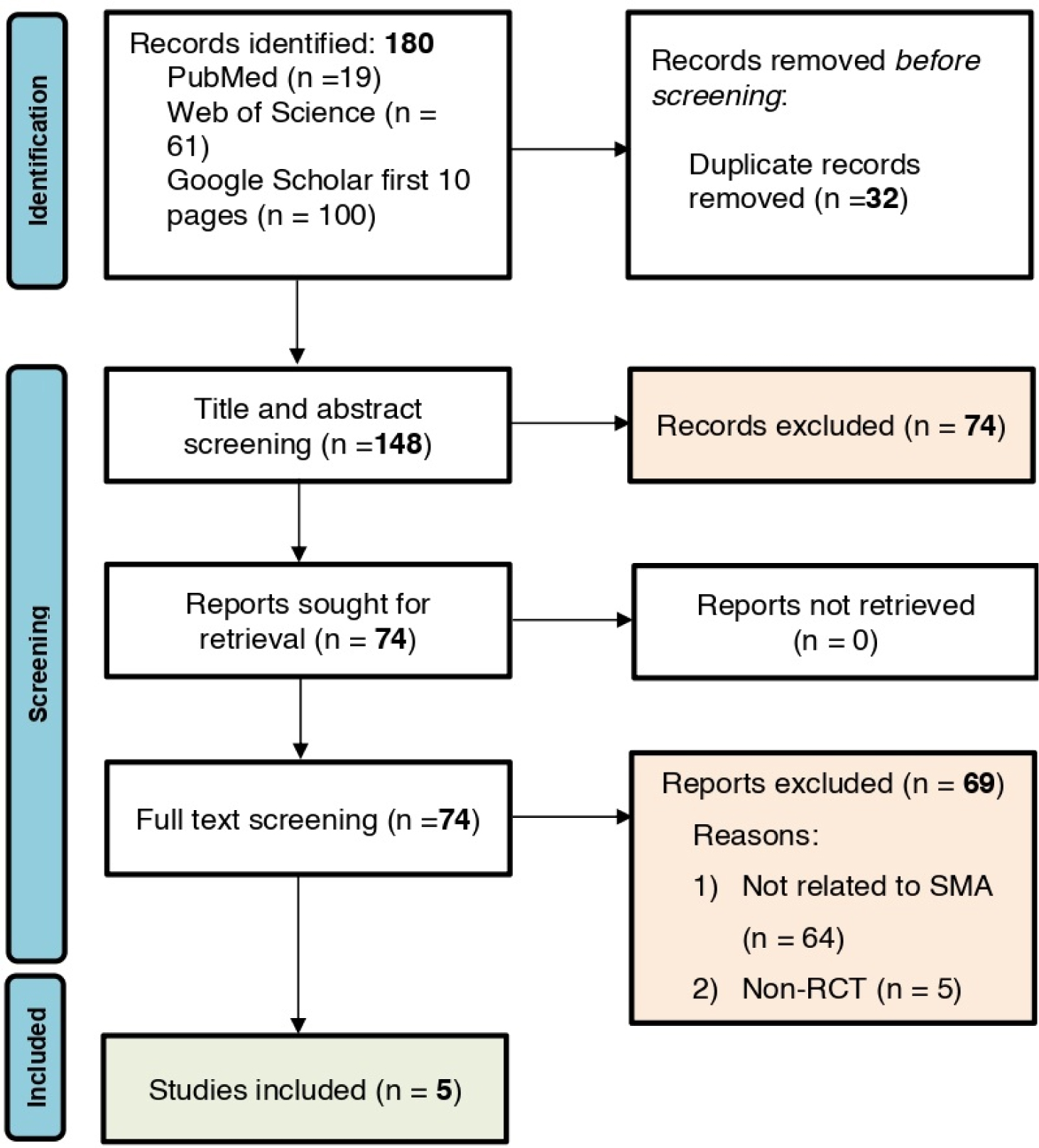

Among 74 screened for full text, five RCTs were included. Across studies, rTMS interventions targeting the SMA or modulating SMA-related networks improved motor and language outcomes in stroke patients. Neuroimaging measures consistently demonstrated increased SMA activation and strengthened SMA-primary motor cortex (M1) connectivity after rTMS, which correlated with clinical improvements. Balance and postural control outcomes showed the most consistent benefits, while upper-limb motor and language improvements varied in magnitude and follow-up duration.
Conclusion
Heterogeneity in studies, small sample sizes, and concerns about randomization and reporting limit our ability to draw definitive conclusions. SMA-targeted or network-level rTMS appears to facilitate functional recovery after stroke, supported by neuroimaging evidence of brain network reorganization. Further large, standardized RCTs are necessary to establish optimal protocols, confirm efficacy, and assess long-term outcomes.
- stroke rehabilitation,
- supplementary motor area,
- repetitive transcranial magnetic stimulation,
- functional connectivity,
- balance,
- motor recovery
Citation: Ayesha Juhi, Shreya Sharma, Dinesh Bhatia, Suman Dhaka, Rajesh Kumar, Deepak Kumar, Rintu Kumar Gayen, Himel Mondal. Effect of repetitive transcranial magnetic stimulation modulating supplementary motor area in stroke rehabilitation: Systematic review of randomized controlled trials[J]. AIMS Neuroscience, 2026, 13(1): 50-63. doi: 10.3934/Neuroscience.2026003

Related Papers:

Abstract

Background

Repetitive transcranial magnetic stimulation (rTMS) is a promising adjunct in stroke rehabilitation, with increasing focus on the supplementary motor area (SMA) for its role in motor and language network reorganization. This systematic review evaluated randomized controlled trials (RCTs) assessing rTMS targeting the SMA or modulating its connectivity to improve motor and language outcomes in adults after ischemic or hemorrhagic stroke.

Methods

A comprehensive literature search was performed across PubMed, Web of Science, and Google Scholar, focusing on peer-reviewed RCTs published in English. Studies were eligible if they involved adults with stroke at any recovery stage and assessed rTMS targeting or analyzing the SMA. Two independent reviewers screened records, extracted data, and assessed risk of bias using the Cochrane Risk of Bias 2.0 tool. The review adhered to PRISMA guidelines and was registered in PROSPERO (CRD420251051684).

Results

Among 74 screened for full text, five RCTs were included. Across studies, rTMS interventions targeting the SMA or modulating SMA-related networks improved motor and language outcomes in stroke patients. Neuroimaging measures consistently demonstrated increased SMA activation and strengthened SMA-primary motor cortex (M1) connectivity after rTMS, which correlated with clinical improvements. Balance and postural control outcomes showed the most consistent benefits, while upper-limb motor and language improvements varied in magnitude and follow-up duration.

Conclusion

Heterogeneity in studies, small sample sizes, and concerns about randomization and reporting limit our ability to draw definitive conclusions. SMA-targeted or network-level rTMS appears to facilitate functional recovery after stroke, supported by neuroimaging evidence of brain network reorganization. Further large, standardized RCTs are necessary to establish optimal protocols, confirm efficacy, and assess long-term outcomes.

Acknowledgments

This work is part of an Indian Council of Medical Research-funded project with project number IIRP–2023–4339.

Conflict of interest

The authors declare no conflict of interest.

Authors' contributions

Ayesha Juhi: Contributed to data acquisition and collection; critically revised the manuscript for intellectual content; approved the final version; agrees to be accountable for all aspects of the work; Shreya Sharma: Led conceptualization, study design, data analysis, and interpretation; drafted and critically revised the manuscript; approved the final version; agrees to be accountable for all aspects of the work; Dinesh Bhatia: Contributed to study design, data analysis, and interpretation; critically revised the manuscript; approved the final version; agrees to be accountable for all aspects of the work; Suman Dhaka: Contributed to data acquisition and collection; critically revised the manuscript; approved the final version; agrees to be accountable for all aspects of the work; Rajesh Kumar: Contributed to data acquisition and collection; critically revised the manuscript; approved the final version; agrees to be accountable for all aspects of the work; Deepak Kumar: Contributed to data acquisition and collection; critically revised the manuscript; approved the final version; agrees to be accountable for all aspects of the work; Rintu Kumar Gayen: Contributed to data acquisition and collection; critically revised the manuscript; approved the final version; agrees to be accountable for all aspects of the work; Himel Mondal: Led conceptualization, study design, data analysis, and interpretation; drafted and critically revised the manuscript; supervised the project; approved the final version; agrees to be accountable for all aspects of the work. All authors approved the final version for publication.

References

[1]	Kim YW (2022) Update on Stroke Rehabilitation in Motor Impairment. Brain Neurorehabil 15: e12. https://doi.org/10.12786/bn.2022.15.e12
[2]	Katan M, Luft A (2018) Global Burden of Stroke. Semin Neurol 38: 208-211. https://doi.org/10.1055/s-0038-1649503
[3]	Stout NL, Santa Mina D, Lyons KD, et al. (2021) A systematic review of rehabilitation and exercise recommendations in oncology guidelines. CA Cancer J Clin 71: 149-175. https://doi.org/10.3322/caac.21639
[4]	Mansfield A, Inness EL, Mcilroy WE (2018) Stroke. Handb Clin Neurol 159: 205-228. https://doi.org/10.1016/B978-0-444-63916-5.00013-6
[5]	Evancho A, Tyler WJ, McGregor K (2023) A review of combined neuromodulation and physical therapy interventions for enhanced neurorehabilitation. Front Hum Neurosci 17: 1151218. https://doi.org/10.3389/fnhum.2023.1151218
[6]	Xie G, Wang T, Deng L, et al. (2025) Repetitive transcranial magnetic stimulation for motor function in stroke: a systematic review and meta-analysis of randomized controlled studies. Syst Rev 14: 47. https://doi.org/10.1186/s13643-025-02794-3
[7]	Cheng S, Xin R, Zhao Y, et al. (2023) Evaluation of fMRI activation in post-stroke patients with movement disorders after repetitive transcranial magnetic stimulation: a scoping review. Front Neurol 14: 1192545. https://doi.org/10.3389/fneur.2023.1192545
[8]	Johnson MD, Lim HH, Netoff TI, et al. (2013) Neuromodulation for brain disorders: challenges and opportunities. IEEE Trans Biomed Eng 60: 610-624. https://doi.org/10.1109/TBME.2013.2244890
[9]	Rahimpour S, Rajkumar S, Hallett M (2021) The Supplementary Motor Complex in Parkinson's Disease. JMD 15: 21-32. https://doi.org/10.14802/jmd.21075
[10]	Zhao L, Chen L, Wang C, et al. (2024) Effects of repetitive transcranial magnetic stimulation at different targets on brain function in stroke patients: a randomized controlled trial. Front Neurol 15: 1454220. https://doi.org/10.3389/fneur.2024.1454220
[11]	Gan L, Huang L, Zhang Y, et al. (2024) Effects of low-frequency rTMS combined with speech and language therapy on Broca's aphasia in subacute stroke patients. Front Neurol 15: 1473254. https://doi.org/10.3389/fneur.2024.1473254
[12]	Xia Y, Tang X, Hu R, et al. (2022) Cerebellum–Cerebrum paired target magnetic stimulation on balance function and brain network of patients with stroke: A functional near-infrared spectroscopy pilot study. Front Neurol 13: 1071328. https://doi.org/10.3389/fneur.2022.1071328
[13]	Guo Z, Jin Y, Bai X, et al. (2021) Distinction of High- and Low-Frequency Repetitive Transcranial Magnetic Stimulation on the Functional Reorganization of the Motor Network in Stroke Patients. Neural Plast 2021: 8873221. https://doi.org/10.1155/2021/8873221
[14]	Li J, Zhang XW, Zuo ZT, et al. (2016) Cerebral Functional Reorganization in Ischemic Stroke after Repetitive Transcranial Magnetic Stimulation: An fMRI Study. CNS Neurosci Ther 22: 952-960. https://doi.org/10.1111/cns.12593
[15]	Jiang T, Wei X, Wang M, et al. (2024) Theta burst stimulation: what role does it play in stroke rehabilitation? A systematic review of the existing evidence. BMC Neurology 24: 52. https://doi.org/10.1186/s12883-023-03492-0
[16]	Martin PI, Naeser MA, Ho M, et al. (2009) Overt Naming fMRI Pre- and Post- TMS: Two Nonfluent Aphasia Patients, with and without Improved Naming Post- TMS. Brain Lang 111: 20-35. https://doi.org/10.1016/j.bandl.2009.07.007
[17]	Chen CL (2025) Unlocking the potential of repetitive transcranial magnetic stimulation to enhance motor function in pediatric cerebral palsy: A comprehensive review. Biomed J 48: 100835. https://doi.org/10.1016/j.bj.2025.100835
[18]	Pinson H, Van Lerbeirghe J, Vanhauwaert D, et al. (2022) The supplementary motor area syndrome: a neurosurgical review. Neurosurg Rev 45: 81-90. https://doi.org/10.1007/s10143-021-01566-6
[19]	Han X, Zhu Z, Luan J, et al. (2023) Effects of repetitive transcranial magnetic stimulation and their underlying neural mechanisms evaluated with magnetic resonance imaging-based brain connectivity network analyses. Eur J Radiol Open 10: 100495. https://doi.org/10.1016/j.ejro.2023.100495
[20]	Davidson B, Bhattacharya A, Sarica C, et al. (2024) Neuromodulation techniques – From non-invasive brain stimulation to deep brain stimulation. Neurotherapeutics 21: e00330. https://doi.org/10.1016/j.neurot.2024.e00330
[21]	Goh HT, Connolly K, Hardy J, et al. (2020) Single session of repetitive transcranial magnetic stimulation to left dorsolateral prefrontal cortex increased dual-task gait speed in chronic stroke: A pilot study. Gait Posture 78: 1-5. https://doi.org/10.1016/j.gaitpost.2020.02.020
[22]	McGuinness LA, Higgins JPT (2020) Risk-of-bias VISualization (robvis): An R package and Shiny web app for visualizing risk-of-bias assessments. Res Synth Methods 12: 55-61. https://doi.org/10.1002/jrsm.1411
[23]	Chen N, Qiu X, Hua Y, et al. (2023) Effects of sequential inhibitory and facilitatory repetitive transcranial magnetic stimulation on neurological and functional recovery of a patient with chronic stroke: A case report and literature review. Front Neurol 14: 1064718. https://doi.org/10.3389/fneur.2023.1064718
[24]	Sterne JAC, Savović J, Page MJ, et al. (2019) RoB 2: a revised tool for assessing risk of bias in randomised trials. BMJ 366: l4898. https://doi.org/10.1136/bmj.l4898
[25]	Sellal F, Cretin B, Musacchio M, et al. (2019) Long-lasting diagonistic dyspraxia suppressed by rTMS applied to the right motor cortex. J Neurol 266: 631-635. https://doi.org/10.1007/s00415-018-09178-9
[26]	Dammekens E, Vanneste S, Ost J, et al. (2014) Neural correlates of high frequency repetitive transcranial magnetic stimulation improvement in post-stroke non-fluent aphasia: a case study. Neurocase 20: 1-9. https://doi.org/10.1080/13554794.2012.713493
[27]	Jiang H, Wang W, Ye S, et al. (2025) Effects of repetitive transcranial magnetic stimulation over the supplementary motor area on balance and postural control in stroke patients: a randomized controlled trial. Top Stroke Rehabil 4: 1-11. https://doi.org/10.1080/10749357.2025.2553596

neurosci-13-01-003-s001.pdf
