A reaction–diffusion delay model for spatial tumor virotherapy with optimal control

Fathalla A. Rihan; Fathalla A. Rihan

doi:10.3934/mbe.2026091

Mathematical Biosciences and Engineering

2026, Volume 23, Issue 8: 2489-2515. doi: 10.3934/mbe.2026091

Previous Article Next Article

Research article Special Issues

A reaction–diffusion delay model for spatial tumor virotherapy with optimal control

Fathalla A. Rihan ^,

Department of Mathematical Sciences, College of Science, UAE University, Al-Ain, 15551, UAE

Received: 09 June 2026 Revised: 19 July 2026 Accepted: 10 August 2026 Published: 18 August 2026

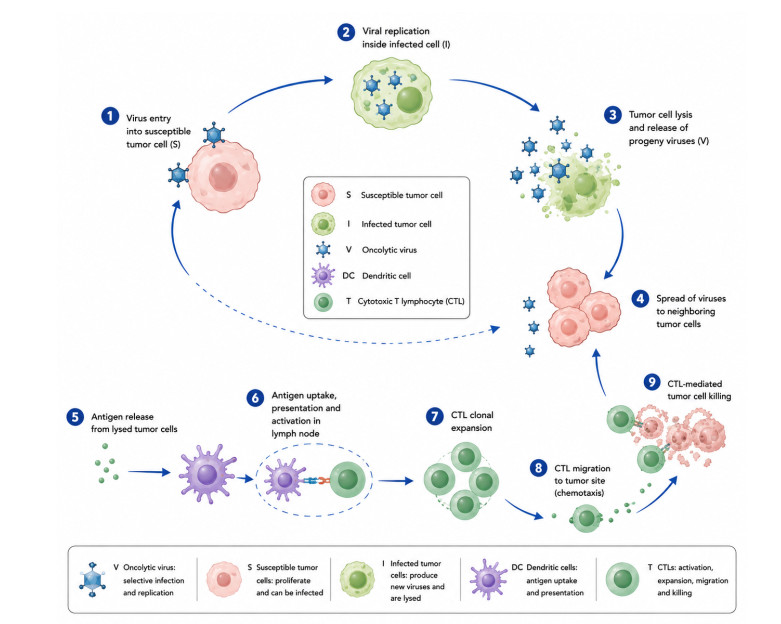

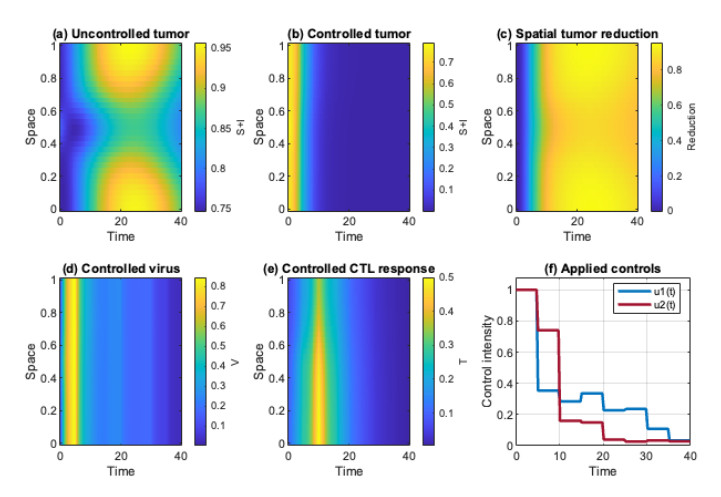

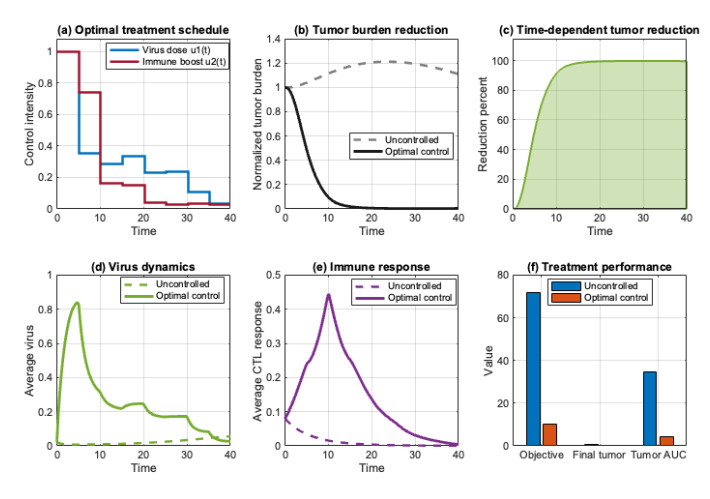

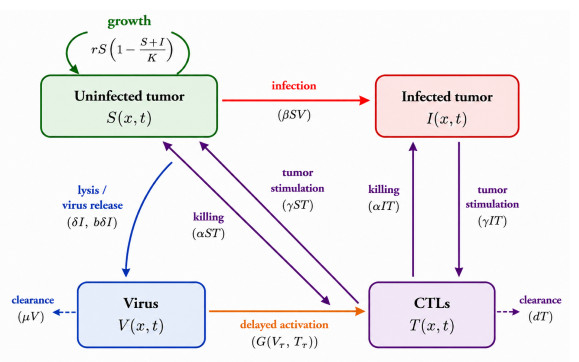

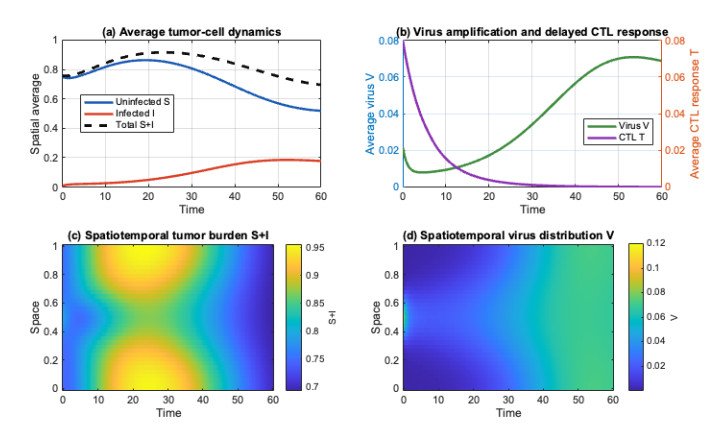

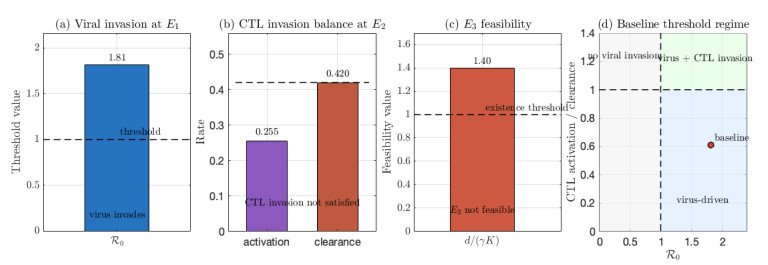

Oncolytic virotherapy uses viruses that selectively infect and lyse tumor cells while promoting antitumor immunity. Because viral spread, tumor growth, and immune-cell migration are spatially heterogeneous, purely temporal models may miss important treatment dynamics. We develop a reaction–diffusion delay model for spatial tumor virotherapy with a virus-induced cytotoxic T-lymphocyte (CTL) response, thereby incorporating tumor growth, infection, lysis, immune-mediated killing, diffusion, and delayed immune activation. We prove positivity, local well-posedness, and global boundedness under explicit sufficient conditions, and analyze spatially homogeneous equilibria and modal stability. Then, we extend the model with a numerical optimal-control formulation for viral administration and immune stimulation, thus minimizing tumor burden, treatment cost, and excessive CTL proliferation. Simulations indicate that tumor–virus–immune dynamics can remain spatially heterogeneous and that the computed optimal control schedules improve tumor suppression for the chosen parameter set.
- oncolytic virotherapy,
- tumor–virus interaction,
- cytotoxic T lymphocytes,
- reaction–diffusion equations,
- delay differential equations,
- optimal control
Citation: Fathalla A. Rihan. A reaction–diffusion delay model for spatial tumor virotherapy with optimal control[J]. Mathematical Biosciences and Engineering, 2026, 23(8): 2489-2515. doi: 10.3934/mbe.2026091

Related Papers:

Abstract

Oncolytic virotherapy uses viruses that selectively infect and lyse tumor cells while promoting antitumor immunity. Because viral spread, tumor growth, and immune-cell migration are spatially heterogeneous, purely temporal models may miss important treatment dynamics. We develop a reaction–diffusion delay model for spatial tumor virotherapy with a virus-induced cytotoxic T-lymphocyte (CTL) response, thereby incorporating tumor growth, infection, lysis, immune-mediated killing, diffusion, and delayed immune activation. We prove positivity, local well-posedness, and global boundedness under explicit sufficient conditions, and analyze spatially homogeneous equilibria and modal stability. Then, we extend the model with a numerical optimal-control formulation for viral administration and immune stimulation, thus minimizing tumor burden, treatment cost, and excessive CTL proliferation. Simulations indicate that tumor–virus–immune dynamics can remain spatially heterogeneous and that the computed optimal control schedules improve tumor suppression for the chosen parameter set.

References

[1]	S. J. Russell, K. W. Peng, J. C. Bell, Oncolytic virotherapy, Nat. Biotechnol., 30 (2012), 658–670. https://doi.org/10.1038/nbt.2287 doi: 10.1038/nbt.2287
[2]	J. C. Bell, S. H. Lichty, B. D. Stojdl, Getting oncolytic virus therapies off the ground, Cancer Cell, 4 (2003), 7–11. https://doi.org/10.1016/s1535-6108(03)00170-3 doi: 10.1016/s1535-6108(03)00170-3
[3]	N. Macedo, J. T. Miller, J. Haq, D. Kaufman, Clinical landscape of oncolytic virus research in 2020, J. ImmunoTher. Cancer, 8 (2003), e001486. https://doi.org/10.1136/jitc-2020-001486 doi: 10.1136/jitc-2020-001486
[4]	D. Xiao, H. Zhang, Y. Liu, Y. Li, G. Li, Y. Ning, Oncolytic viruses: advanced strategies in cancer therapy, Signal Transduction Targeted Ther., 11 (2026), 45. https://doi.org/10.1038/s41392-025-02343-3 doi: 10.1038/s41392-025-02343-3
[5]	R. J. Prestwich, K. J. Harrington, H. S. Pandha, R. G. Vile, A. A. Melcher, F. Errington, Oncolytic viruses: a novel form of immunotherapy, Expert Rev. Anticancer Ther., 8 (2008), 1581–1588. https://doi.org/10.1586/14737140.8.10.1581 doi: 10.1586/14737140.8.10.1581
[6]	D. K. Bhatt, T. Daemen, Molecular circuits of immune sensing and response to oncolytic virotherapy, Int. J. Mol. Sci., 25 (2024), 4691. https://doi.org/10.3390/ijms25094691 doi: 10.3390/ijms25094691
[7]	C. F. Kollmann, N. van Montfoort, P. Cordelier, J. Pol, D. Olagnier, Oncolytic virotherapy: sparking durable anti-tumor immunity through microenvironment modulation, Semin. Immunol., 80 (2025), 101994. https://doi.org/10.1016/j.smim.2025.101994 doi: 10.1016/j.smim.2025.101994
[8]	D. Wodarz, Viruses as antitumor weapons: defining conditions for tumor remission, Cancer Res., 61 (2001), 3501–3507.
[9]	A. Friedman, J. P. Tian, G. Fulci, E. A. Chiocca, J. Wang, Glioma virotherapy: effects of innate immune suppression and increased viral replication capacity, Cancer Res., 66 (2006), 2314–2319. https://doi.org/10.1158/0008-5472.CAN-05-2661 doi: 10.1158/0008-5472.CAN-05-2661
[10]	L. R. Paiva, C. Binny, S. C. Ferreira Jr., M. L. Martins, A multiscale mathematical model for oncolytic virotherapy, Cancer Res., 69 (2009), 1205–1211. https://doi.org/10.1158/0008-5472.CAN-08-2173 doi: 10.1158/0008-5472.CAN-08-2173
[11]	Q. Li, Y. Xiao, Modeling the virus-induced tumor-specific immune response with delay in tumor virotherapy, Commun. Nonlinear Sci. Numer. Simul., 108 (2022), 106196. https://doi.org/10.1016/j.cnsns.2021.106196 doi: 10.1016/j.cnsns.2021.106196
[12]	F. A. Rihan, Delay Differential Equations and Applications to Biology, Forum for Interdisciplinary Mathematics, Springer, Cham, 2nd edition, 2026. https://doi.org/10.1007/978-3-032-08645-7
[13]	F. A. Rihan, Modeling virus–tumor interactions and control in oncolytic virotherapy, in Bioinformatics and Computational Biology, volume 2977 of Communications in Computer and Information Science, Springer, Cham, 2026. https://doi.org/10.1007/978-3-032-26028-4_1
[14]	D. Morselli, M. E. Delitala, F. Frascoli, Agent-based and continuum models for spatial dynamics of infection by oncolytic viruses, Bull. Math. Biol., 85 (2023), 92. https://doi.org/10.1007/s11538-023-01192-x doi: 10.1007/s11538-023-01192-x
[15]	G. E. Mahlbacher, K. C. Reihmer, H. B. Frieboes, Mathematical modeling of tumor-immune cell interactions, J. Theor. Biol., 469 (2019), 47–60. https://doi.org/10.1016/j.jtbi.2019.03.002 doi: 10.1016/j.jtbi.2019.03.002
[16]	S. Marzban, S. Srivastava, S. Kartika, R. Bravo, R. Safriel, A. Zarski, et al., Spatial interactions modulate tumor growth and immune infiltration, npj Syst. Biol. Appl., 10 (2024), 106. https://doi.org/10.1038/s41540-024-00438-1 doi: 10.1038/s41540-024-00438-1
[17]	S. Hussain, M. Sen, V. Volpert, Infection spreading in tissue as a reaction-diffusion wave, Math. Med. Biol., 41 (2024), 169–191. https://doi.org/10.1093/imammb/dqae009 doi: 10.1093/imammb/dqae009
[18]	M. El Younoussi, Z. Hajhouji, K. Hattaf, N. Yousfi, Dynamics of a reaction–diffusion fractional-order model for m1 oncolytic virotherapy with ctl immune response, Chaos, Solitons Fractals, 157 (2022), 111957. https://doi.org/10.1016/j.chaos.2022.111957 doi: 10.1016/j.chaos.2022.111957
[19]	M. El Younoussi, Z. Hajhouji, K. Hattaf, N. Yousfi, A reaction–diffusion fractional model for cancer virotherapy with immune response and Hattaf time-fractional derivative, in Trends in Biomathematics: Modeling Epidemiological, Neuronal, and Social Dynamics (eds. R. P. Mondaini), Springer, Cham, 2023. https://doi.org/10.1007/978-3-031-33050-6_7
[20]	Z. Wang, Modeling oncolytic virus therapy with distributed delay and nonlocal diffusion, Adv. Contin. Discrete Models, 2024 (2024), 59. https://doi.org/10.1186/s13662-024-03859-8 doi: 10.1186/s13662-024-03859-8
[21]	D. K. Bhatt, T. Janzen, T. Daemen, F. J. Weissing, Effects of virus-induced immunogenic cues on oncolytic virotherapy, Sci. Rep., 14 (2024), 28861. https://doi.org/10.1038/s41598-024-80542-8 doi: 10.1038/s41598-024-80542-8
[22]	S. Omer, H. Mambili-Mamboundou, Assessing the impact of immunotherapy on oncolytic virotherapy in the treatment of cancer, J. Appl. Math. Comput., 70 (2024), 4793–4825. https://doi.org/10.1007/s12190-024-02139-8 doi: 10.1007/s12190-024-02139-8
[23]	K. R. Fister, J. H. Donnelly, Immunotherapy: an optimal control theory approach, Math. Biosci. Eng., 2 (2005), 499–510. https://doi.org/10.3934/mbe.2005.2.499 doi: 10.3934/mbe.2005.2.499
[24]	D. Henry, Geometric Theory of Semilinear Parabolic Equations, Springer, Berlin, 1981.
[25]	A. Pazy, Semigroups of Linear Operators and Applications to Partial Differential Equations, Springer, New York, 1983.
[26]	J. K. Hale, S. M. V. Lunel, Introduction to Functional Differential Equations, Springer, New York, 1993.
[27]	H. L. Smith, An Introduction to Delay Differential Equations with Applications to the Life Sciences, Springer, New York, 2011.
[28]	S. Lenhart, J. T. Workman, Optimal Control Applied to Biological Models, Chapman & Hall/CRC, Boca Raton, 2007.
