Computing the area-minimizing surface by the Allen-Cahn equation with the fixed boundary

  • Received: 25 April 2023 Revised: 05 July 2023 Accepted: 13 July 2023 Published: 25 July 2023
  • MSC : 53A10, 65M06, 52B55, 68U05, 35J05, 15A60

  • The Allen-Cahn equation is a famous nonlinear reaction-diffusion equation used to study geometric motion and minimal hypersurfaces. This link has been scrutinized to construct minimal surfaces for many years. The shape of soap film is very interesting, and it can stimulate mathematical inspirations since it explains curvatures and equilibrium shapes in nature. There are many interesting ways to create area-minimizing surfaces with the boundaries, called frame boundaries. However, dealing with surface's ends (boundaries) numerically is not easy for constructing surfaces. This paper presents a mathematical formulation and numerical construction of area-minimizing surfaces, also known as minimal surfaces. We use differential geometry knowledge for numerical verification. The proposed numerical scheme involves fixed frame boundary conditions in the Laplacian operator. We treat the Laplacian with the constraint implicitly and explicitly solve the nonlinear free energy term. This approach ensures stable and efficient construction of area-minimizing surfaces with frame boundaries. In the numerical aspect, we suggest the construction of minimal surfaces by illustrating two classical examples, which are Scherk's minimal surface and catenoid. Both examples have the frame boundaries. Scherk's first surface is a doubly periodic, complete and properly embedded one with parallel ends. The catenoid is formed between two coaxial circular rings and is classified mathematically as the only properly embedded minimal surface with two ends and finite curvature. To be specific, we deal with two different frame boundaries, right angle frame and round frame boundaries, via two examples, Scherk's surface and catenoid.

    Citation: Dongsun Lee. Computing the area-minimizing surface by the Allen-Cahn equation with the fixed boundary[J]. AIMS Mathematics, 2023, 8(10): 23352-23371. doi: 10.3934/math.20231187

    Related Papers:

    [1] Youngjin Hwang, Jyoti, Soobin Kwak, Hyundong Kim, Junseok Kim . An explicit numerical method for the conservative Allen–Cahn equation on a cubic surface. AIMS Mathematics, 2024, 9(12): 34447-34465. doi: 10.3934/math.20241641
    [2] Narcisse Batangouna . A robust family of exponential attractors for a time semi-discretization of the Ginzburg-Landau equation. AIMS Mathematics, 2022, 7(1): 1399-1415. doi: 10.3934/math.2022082
    [3] Chaeyoung Lee, Seokjun Ham, Youngjin Hwang, Soobin Kwak, Junseok Kim . An explicit fourth-order accurate compact method for the Allen-Cahn equation. AIMS Mathematics, 2024, 9(1): 735-762. doi: 10.3934/math.2024038
    [4] Hyun Geun Lee, Youngjin Hwang, Yunjae Nam, Sangkwon Kim, Junseok Kim . Benchmark problems for physics-informed neural networks: The Allen–Cahn equation. AIMS Mathematics, 2025, 10(3): 7319-7338. doi: 10.3934/math.2025335
    [5] Martin Stoll, Hamdullah Yücel . Symmetric interior penalty Galerkin method for fractional-in-space phase-field equations. AIMS Mathematics, 2018, 3(1): 66-95. doi: 10.3934/Math.2018.1.66
    [6] Yangfang Deng, Zhifeng Weng . Barycentric interpolation collocation method based on Crank-Nicolson scheme for the Allen-Cahn equation. AIMS Mathematics, 2021, 6(4): 3857-3873. doi: 10.3934/math.2021229
    [7] Tomoyuki Suzuki, Keisuke Takasao, Noriaki Yamazaki . New approximate method for the Allen–Cahn equation with double-obstacle constraint and stability criteria for numerical simulations. AIMS Mathematics, 2016, 1(3): 288-317. doi: 10.3934/Math.2016.3.288
    [8] Hyun Geun Lee . A mass conservative and energy stable scheme for the conservative Allen–Cahn type Ohta–Kawasaki model for diblock copolymers. AIMS Mathematics, 2025, 10(3): 6719-6731. doi: 10.3934/math.2025307
    [9] Jaeyong Choi, Seokjun Ham, Soobin Kwak, Youngjin Hwang, Junseok Kim . Stability analysis of an explicit numerical scheme for the Allen-Cahn equation with high-order polynomial potentials. AIMS Mathematics, 2024, 9(7): 19332-19344. doi: 10.3934/math.2024941
    [10] Mingliang Liao, Danxia Wang, Chenhui Zhang, Hongen Jia . The error analysis for the Cahn-Hilliard phase field model of two-phase incompressible flows with variable density. AIMS Mathematics, 2023, 8(12): 31158-31185. doi: 10.3934/math.20231595
  • The Allen-Cahn equation is a famous nonlinear reaction-diffusion equation used to study geometric motion and minimal hypersurfaces. This link has been scrutinized to construct minimal surfaces for many years. The shape of soap film is very interesting, and it can stimulate mathematical inspirations since it explains curvatures and equilibrium shapes in nature. There are many interesting ways to create area-minimizing surfaces with the boundaries, called frame boundaries. However, dealing with surface's ends (boundaries) numerically is not easy for constructing surfaces. This paper presents a mathematical formulation and numerical construction of area-minimizing surfaces, also known as minimal surfaces. We use differential geometry knowledge for numerical verification. The proposed numerical scheme involves fixed frame boundary conditions in the Laplacian operator. We treat the Laplacian with the constraint implicitly and explicitly solve the nonlinear free energy term. This approach ensures stable and efficient construction of area-minimizing surfaces with frame boundaries. In the numerical aspect, we suggest the construction of minimal surfaces by illustrating two classical examples, which are Scherk's minimal surface and catenoid. Both examples have the frame boundaries. Scherk's first surface is a doubly periodic, complete and properly embedded one with parallel ends. The catenoid is formed between two coaxial circular rings and is classified mathematically as the only properly embedded minimal surface with two ends and finite curvature. To be specific, we deal with two different frame boundaries, right angle frame and round frame boundaries, via two examples, Scherk's surface and catenoid.



    The Allen–Cahn (AC) equation has its origin in material science [1], but it has been studied in many fields such as partial differential equations [3], geometry [8], scientific computations [4,10,13,19,26,27], image processing [17], computational biology [2,23] and references therein. Introducing the order parameter ϕ and positive and small parameter ϵ in the AC equation, we can observe the constant functions ±ϕ as the solution. That is, we have the domain Ω=Ω+IΩ, where Ω+:={xR3|ϕ(x)=1}, Ω:={xR3|ϕ(x)=1}, and I:={xR3|1<ϕ(x)<1}. It is of interest to analyze the configuration when two phases coexist. The two phases are distinct from each other by taking one of the functions ϕ=±1. The constant function takes values close to 1 in the subdomain Ω+, and the other value takes 1 in the subdomain Ω as illustrated in Figure 1(a). One of the reasons that the AC equation is famous for many applications that it has the intrinsic behavior of phase separation ±1 in the domain Ω.

    Figure 1.  (a) Phase separation on the domain Ω=Ω+IΩ. The domains Ω+ and Ω are represented by ϕ=1 and ϕ=1, respectively. (b) Double-well free energy with two minima 1 and 1.

    Phase separation is the process of a single homogeneous mixture of two or more components spontaneously dividing into two or more distinct phases. The components of a mixture can be separated into different phases based on their different properties, e.g., their solubility or density. The process can occur in a variety of systems, including fluid dynamics [29,30].

    Mathematically, the phase separation induced by the AC equation can be interpreted as the gradient flow of the Ginzburg-Landau energy functional. For the gradient flow which occurs with phase separations, the behavior of the interface between two phases follows the motion by curvature as the interfacial width ϵ goes to 0. As the singular limit, the curvature driven motion provides a link between the solution from the AC equation and minimal hypersurface. Thus, the AC equation has been scrutinized analytically and numerically for geometric analysis [12,15].

    The Allen-Cahn (AC) equation is a semilinear PDE which is closely related to the theory of minimal surface [8]. The AC equation is as follows:

    ϕ(x,t)t=ϵ2Δϕ(x,t)F(ϕ(x,t)),xΩ,t>0,nϕ=0,xΩ. (1.1)

    Here, ϕ is an order parameter, F(ϕ) is the double-well free energy as shown in Figure 1(b), where we have two minima ϕ=1 and ϕ=1, and F(ϕ) is the derivative of F(ϕ) with respect to ϕ. The double-well potential F and its derivative with respect to ϕ are given by

    F(ϕ)=14(ϕ21)2, and F(ϕ)=ϕ3ϕ.

    In terms of the frame constraints to surface, the free angle is implemented at the frame boundaries that surface is attached to the fixed frame all the time, but the angle between surface and frame is free. We implicitly prescribe the frame boundary conditions. but angles in the boundaries are free by maintaining the zero interface of ϕ in the frame boundaries.

    Constructing a minimal surface via a numerical method has been studied for decades [6,9,14]. Most numerical schemes use the level-set. Their works manage to constrain a surface to the frame boundaries by reattaching the surface to the frame boundary iteratively or enforce the surface sticking to the frame boundaries by imposing zero values repeatedly. Yet, in other parts of numerical methods, one can construct minimal surfaces as the weak limit of level sets of a semilinear elliptic PDE. Thus, one of the well-known equations is the AC equation. To secure the frame boundary conditions, we combine the AC's Laplacian operator with the constraint operator. In this way, we can avoid the instability in the frame boundaries, instead of repeatedly imposing the zero values in the frame boundaries explicitly. On the other hand, there are works related the AC equation and minimal surface [16,18,31]. We notice that their numerical works only concern minimal surfaces with free boundary conditions, e.g., triply periodic minimal surfaces.

    It is worth mentioning that minimal surfaces find extensive utility across numerous industrial applications. In the research work [20], the composite scaffold can be formulated by integrating two distinct triply periodic minimal surfaces. Along with advances in additive manufacturing, porous structures are easily manufactured. In that sense, the modified phase-field equation is a popular choice for multiscale and minimizing area topology optimization of porous structures [32].

    In the differential geometric aspect, minimal surfaces as soap films are beautiful geometric objects that can be observed everywhere in nature. Researchers have studied them for the past years with the help of mathematical theories, experiments and even recently computer simulations. Soap film have many interesting properties such as geometric shapes and macroscopic and molecular behaviors. It is minimal because the surface tension reduces its area to a minimum. For that reason, mathematical background for soap films with the frame is mostly related to minimal surface theory. Minimal surfaces have their root in the calculus of variations developed by Euler and Lagrange and in later investigations that have been performed over a few centuries.

    Euler discovered a surface when a catenary is rotated around the x-axis, and one gets a surface which minimizes surface area. This surface is called the catenoid. Later, Meusnier formulated it as a solution of Lagrange's equation. The catenoid has genus zero, two ends and total curvature 4π, i.e., the only properly embedded minimal surface with two ends and finite curvature is the catenoid. Embedded minimal surfaces with ends have been studied in geometry [5,21,22]. A catenoid is created via the equilibrium shape of a soap film, which is stretched between two parallel circular rings. On the one hand, Scherk in 1834 discovered a doubly periodic, complete, and properly embedded minimal surface in Euclidean space. This surface is non-trivial and also spanned into a frame. In fact, Scherk's surface is either parameterized by punctured spheres and then has one translational period or one screw motion period or it is also parameterized by rectangular tori, implying being doubly periodic. Catenoid and Scherk's surface are illustrated in Figure 2.

    Figure 2.  (a) Catenoid, and (b) Scherk's first surface. Two surfaces are generated by the analytic formulations, derived by the Weierstrass-Enneper representation.

    The main contribution of this work is to stably secure the frame boundaries so that the area-minimizing surface with the fixed frame boundary is easily and more efficiently constructed. We believe that the numerical treatment for the frame boundaries provides a foundation to proceed to much deeper understanding of minimal surfaces and the behavior of the AC equation.

    The rest of this manuscript is organized as follows. In Section 2, we present a brief review of differential geometry about the Weierstrass-Enneper representation. By using the representation, we can compare the analytic surface with the numerical surface, and also verify that our numerical surface is minimal. In section 3, we provide the numerical treatment for the frame boundary conditions, and then perform numerical simulations to validate the proposed scheme. In the conclusion, section 5, we summarize our work with further discussions.

    In this paper, we start with the differential geometry knowledge that can be used for numerical verification of the proposed scheme. We give the basics of the Weierstrass-Enneper integral representation of minimal surfaces, demonstrating that Scherk's first surface and catenoid can be described in terms of holomorphic functions of a complex variable. Later, we compare the solutions from the Weierstrass representation with numerical solutions in order to verify our proposed numerical scheme.

    We consider that X:UR3 is a parameterized surface of the form:

    X(u,v)=(x(u,v),y(u,v),z(u,v)).

    With the parameterization X(u,v), it is said to be isothermal if

    XuXu=XvXv,andXuXv=0.

    A minimal surface is a surface M with mean curvature H0 at all points pM. When we suppose E=XuXu, F=XuXv, G=XvXv, as the coefficients of the first fundamental form, and l=Xuun, m=Xuvn, and n=Xvvn as the coefficients of the second fundamental form. Then, the formula of mean curvature is H=(lG2mF+nE)/(2EG2F2). If the parameterization X is isothermal and minimal, then we have

    Xuu+Xvv=2EHn=0.

    The Weierstrass-Enneper representation is well known for the useful way that it creates minimal surfaces. In order to know how it is possible, let M be a minimal surface defined by an isothermal parametrization X(u,v) and z=u+iv, corresponding complex coordinate, with u=(z+ˉz)/2 and v=(i(zˉz))/2. So, we can write

    z=12(uiu),ˉz=12(u+iu).

    Then, we can also know x(z,ˉz)=(x1(z,ˉz),x2(z,ˉz),x3(z,ˉz)), and xi(z,ˉz) is a complex valued function which takes real values. So, xi is xi/z=(xiuixiv)/2 by the definition of /z, and let us define

    ϕdef=xz=(x1z,x2z,x3z).

    Since (xiz)2=(1/4)((xiu)2(xiv)22ixiuxiv), and x(u,v) is isothermal,

    (ϕ)2=14(3j=1(xju)23j=1(xjv)22i3j=1xjuxjv)=14(|xu|2|xv|22ixuxv)=14(EG2iF)=0.

    As we know, if (ϕ)2=0, the parametrization is isothermal. If we suppose M is a surface with parametrization x, ϕ=x/z and (ϕ)2=0, M is minimal, and ϕ2 is holomorphic. In addition, (ϕ)2=0 if and only if each ϕi is holomorphic. This implies that

    ϕˉz=ˉz(ϕz)=14ΔX=0.

    Let (ϕ)2=0 and with the definition above ϕ=X/z, we have the following Weierstrass-Enneper representation.

    Definition 1. The Weierstrass-Enneper representation I

    Suppose f is holomorphic on a domain D, g is meromorphic on D, and fg2 is holomorphic on D. Then, we can get a minimal surface defined by the parametrization x(z,ˉz)=(x1(z,ˉz),x2(z,ˉz),x3(z,ˉz)), where

    x1(z,ˉz)=Re2fgdz,x2(z,ˉz)=Ref(1g2)dz, and x3(z,ˉz)=Reif(1+g2)dz.

    Let us choose one function instead of two, and then we get a holomorphic g which has an inverse function g1(that is holomorphic). So, we define τ=g, which is dτ=gdz, and F(τ)=f/g, which is F(τ)dτ=fdz. Then, we can replace g with τ and fdz with F(τ)dτ.

    Definition 2. For any analytic function F(τ), the Weierstrass-Enneper representation II is given by

    x1(z,ˉz)=Re2τF(τ)dτ,x2(z,ˉz)=Re(1τ2)F(τ)dτ and x3(z,ˉz)=Rei(1+τ2)F(τ)dτ,

    where we define x(z,ˉz)=(x1(z,ˉz),x2(z,ˉz),x3(z,ˉz)).

    According to the Weierstrass-Enneper representation II, we get that

    Φ=(ϕ1,ϕ2,ϕ3)=(τF(τ),12(1τ2)F(τ),i2(1+τ2)F(τ)).

    Let us define τ=:u+iv, and then we use 1+iτ=1v+iu and 1iτ=1+viu. With τ=:u+iv, the Weierstrass-Enneper representation II of Scherk's first surface is given by F(τ)=2/(1τ4). Then, we can find the surface (x1(u,v),x2(u,v),x3(u,v)):

    x1=Re(2τ21τ4)dτ=Re(2ττ2+12ττ21dτ)=Re(ln(τ2+1)ln(τ21))=12ln((u2v2+1)2+4u2v2(u2v21)2+4u2v2),x2=Re(1τ2)21τ4dτ=Re21+τ2dτ=Re(11+iτ+11iτ)dτ=Re[iln(1+iτ)+iln(1iτ)]=Re(i[ln(|1+iτ|)+iarg(1+iτ)]+i[ln(|1iτ|)+iarg(1iτ)])=Re(arg(1+iτ)arg(1iτ))=Re(arg(1v+iu)arg(1+viu))=arctan(u1v)arctan(u1+v)=arctan(2u1v2u2), and x3=Re(i(1+τ2)21τ4)dτ=arctan(2v1v2u2).

    Note that x3 can be computed in a similar fashion as in the part x2, and x1 can be rewritten by x1=ln(cosx3/cosx2). Here, a piece of the surface is constructed within the square domain Ω:=(x2,x3)[π/2,π/2]×[π/2,π/2].

    Next, we see the next example. The Weierstrass-Enneper representation II of the catenoid is given by F(τ)=1/(2τ2). To see the surface, let F(τ)=1/(2τ2) be a holomorphic function. Then, with the substitution τ = ez, we obtain the catenoid x(u,v). Together with holomorphic function F(τ), we get the catenoid by the parameterization x(u,v)=(x1(u,v),x2(u,v),x3(u,v)):

    x1=Re(2(τ12τ2))dτ=Re(1τdτ)=Re(lnτ)=Re(lnez)=Re(z)=u,x2=Re(1τ2)12τ2dτ=Re12(1τ21)dτ=Re(12τ1τ2)=Re(τ1+τ2)=Re(ez+ez2)=Re(coshz)=coshucosv, and x3=Re(i(1+τ2)12τ2)dτ=Re12(iτ2+i)dτ=Re[i2τ1+τi2]=Re(τ1i+τi2)=Re(ezi+ezi2)=Re(sinhzi)=coshusinv.

    For more details, we refer the reader to [7,24].

    The finite difference method is one way of solving a differential equation using an approximate value of a derivative. In other words, this method is an approximate solution for ϕ(x,t) at a finite set of x and t. Note that we discretize the fixed boundary conditions in addition to the operator of the AC equation. Let us consider the 3 dimensional domain Ω=(0,1)×(0,1)×(0,1), and then discretize it as follows: Ωh={(xi,yj,zk)|xi=(i0.5)h,yj=(j0.5)h,zk=(k0.5)h,i=1,,Nx,j=1,,Ny and k=1,,Nz}, where N=Nx=Ny=Nz is a large integer. Therefore, the computational domain Ωh is defined by

    Ωh:={xi,j,kR3|((i0.5)h,(j0.5)h,(k0.5)h):1iNx,1jNy,1kNz}.

    Here, h=1/N=1/Nx=1/Ny=1/Nz is the spatial step size. Let ϕnijk=ϕ(xi,yj,zk,tn), where tn is the discrete time. Let Δt=tn+1tn be a temporal step. For simplicity of exposition, we denote ϕ(xi,j,k,nΔt) by ϕni,j,k, where Δt=T/nT is a temporal step size, T is the final time, and nT is the total number of temporal steps. With these notations, let us consider the fully explicit Euler scheme for the AC equation with the time-dependent interfacial parameter:

    ϕn+1ijkϕnijkΔt=F(ϕnijk)+ϵ2Δnϕnijk, (3.1)

    where the three-dimensional discretization for the Laplace operator is given by

    Δnϕnij=ϕni+1,j,k+ϕni1,j,k+ϕni,j+1,k+ϕni,j1,k+ϕni,j,k+1+ϕni,j,k16ϕnijh2.

    Here, the operator Δn indicates the Laplacian with the Neumann boundary condition. For the sake of notation convenience, we write the discrete operator as the the Neumann Laplacian. We let the interfacial width parameter 0<ϵ1, and ΩRd for d=3, where d is the number of dimensions. The other cases d=1,2 can be considered similarly in general. For constraints, we make the zero-level set of ϕ lie on ΓΩ. In fact, the AC equation can be interpreted as the gradient flow of the Ginzburg-Landau energy functional with constraints

    E(ϕ)=Ω[ϵ|ϕ|22+F(ϕ)ϵ]dx+γ2ΩCg|ϕ|2dx.

    Note that γ>0, and Cg is dependent on the corresponding geometric constraints, which must satisfy the following condition:

    Cg(x):={limh0ϕ(x+hn)+ϕ(xhn)=0,if (x,t)Γ, and n is normal to Γ,0,otherwise.

    This operator Cg is for the frame boundary conditions. Its basis is to attach the surface to the frame by the boundary condition of the surface. Here, the operator Cg is implicitly treated to improve the stability by combining the frame boundary condition with the discrete Laplacian operator. We elaborate on the discretized form of Cg in the subsequent paragraphs.

    To solve Eq (3.1) with the fixed frame boundaries, the operator splitting method is applied:

    ϕt=Δnϕ+γCgϕ, (3.2)
    ϕt=F(ϕ)ϵ2=1ϵ2(ϕϕ3). (3.3)

    If we vectorize ϕni,j,k for numerical purposes, the discrete solution at the n-th temporal step is simply represented by

    ϕn:={ϕni+(j1)Nx++(j1)(k1)NxNy:1iNx,1jNy,1kNz}.

    First, we discretize Eq (3.2) as below:

    ϕϕnΔt=Lnϕ+γCϕ. (3.4)

    We set up a symmetric matrix C such that

    αi,j,kϕi,j,k=βp,q,rϕp,q,rif {(p,q,r):xi,j,k,p,q,rΓ for p=i±1,q=j±1,r=k±1},  (3.5)

    where we define xi,j,k,p,q,r:=(1ωp,q,r)xi,j,k+ωp,q,rxp,q,r. The positive coefficients αp,q,r>0, βp,q,r>0 and 1>ωp,q,r>0 are properly chosen to satisfy ϕ(xi,j,k,p,q,r)=0 and symmetry of matrix C elements.

    Second, we solve equation (3.3) with ϕ analytically using the method of separation of variables introduced in [19,28], but we apply this for the 3 dimensional case:

    ϕn+1i,j,k=ϕi,j,ke2Δtϵ2+(ϕi,j,k)2(1e2Δtϵ2). (3.6)

    For the frame boundaries, we make use of the fixed boundary condition implicitly. Before further proceeding, we observe the Laplacian operator with the frame boundary condition as follows. We combine the geometric constraints with the AC's Laplacian operator for the fixed frame boundaries. Note that the discrete operator Ln approximates the Neumann Laplacian Δn, and we define C by the constraint operator for (3.5). To solve the system of Eqs (3.4) and (3.5), we combine the Neumann Laplacian Ln and boundary constraints C, i.e., Lc:=Ln+C. After vectorizing our computations, we obtain for ϕ

    ϕ=(InΔtLc)1ϕn, where  In   is the  NxNyNz×NxNyNz   identity matrix.

    Lemma 3. The Laplacian with constraints, Lc is symmetric and positive semidefinite. Moreover, the linear operator (InΔtLc) is symmetric and positive definite.

    Proof. As stated above, we describe the symmetric matrix C such that

    αi,j,kϕi,j,k=βp,q,rϕp,q,rif {(p,q,r):xi,j,k,p,q,rΓ for p=i±1,q=j±1,r=k±1},

    where xi,j,k,p,q,r:=(1ωp,q,r)xi,j,k+ωp,q,rxp,q,r. The positive coefficients αp,q,r>0, βp,q,r>0 and 1>ωp,q,r>0 are properly chosen to satisfy ϕ(xi,j,k,p,q,r)=0 and symmetry of matrix C elements. Once the diagonal coefficient ¯αi,j,k is determined for the diagonal index (i,j,k) of C, the off-diagonal coefficient ¯βp,q,r follows (¯βi,j,k2/¯αp,q,r)ϕp,q,r=¯βi,j,kϕi,j,k for the other diagonal index (p,q,r) and off-diagonal index (i,j,k) of C. This implies that the matrix C is symmetric and singular, but the geometric constraints solely influence the specific elements of the matrix C. Since Lc:=Ln+C, we decompose it into the Neumann Laplacian Ln and frame boundary constraints C.

    Let us first look at the eigenvalues of the Neumann Laplacian Ln. With notations θ=πk/Nx, ψ=πl/Ny, and ρ=πl/Nz, the eigenvalues of Ln are of the form

    λk,l,m=2h2(sin2θ2+sin2ψ2+sin2ρ2)0 for 1k,l,mn.

    Then, the combined linear operator Lc is strictly diagonally dominant. Since a symmetric and diagonally dominant matrix |(Lc)i,i|>ij|(Lc)i,j| with real non-negative diagonal entries is positive definite, the Laplacian with constraints operator Lc=Ln+C is also symmetric and positive semidefinite. Furthermore, (InΔtLc) is symmetric and positive definite for Δt>0.

    Theorem 4. For 0<Δth2/(2d+2), the numerical scheme from (3.4), (3.5) and (3.6) preserve the boundedness of numerical solutions by 1. In other words, max|ϕni,j|1 for 0<n and 1i,jNxNy.

    Proof. First, let us define two infinity norms of m-by-n matrix A and n-by-1 vector v. They are respectively defined as follows:

    A=max(nj=1|A1,j|,nj=1|A2,j|,,nj=1|Am,j|)andv=max(vi),for 1in.

    Then, we know that AvAv. Together with Lemma 3 and adding at most 2/h2 to the operator Ln as the constraints, it implies that the size of the Laplacian with constraints is bounded by

    LnLc2d+2h2.

    Next, we assume that ϕn1, and discuss the numerical solution's boundedness by mathematical induction. Again from Lemma 3 and the condition 0<Δth2/(2d+2), we see readily that the linear operator (InΔtLc) is nonsingular. Note that Lc1, and the spectral radius of Lc follows ρ(Lc)1 since (Lc)i,i+ji|(Lc)i,j|1 for all i,j[1,NxNy]. Observe that the infinity norm of (InΔtLc)1 follows from

    Together with ϕ1, we have that |ϕi,j,k|(ϕi,j,k)2+e2Δtϵ2(1(ϕi,j,k)2) since (1(ϕi,j,k)2) and e2Δtϵ2 are always positive. Therefore, the numerical solution satisfies

    ϕn+1i,j,k=ϕi,j,k(ϕi,j,k)2+e2Δtϵ2(1(ϕi,j,k)2)1 for 1iNx,1jNy,1kNz.

    Now, our aim is to construct a surface with boundary Γ and mean curvature zero at all points. We present the two classical examples and one example containing the certain frame boundary as the benchmark cases. In the case of Scherk's surface, the right angle frames on the top of the surface are the main interest of the present work. In the catenoid as the next case example, we consider the round frames in the top and bottom of the surface.

    First, let us consider the numerical construction of Scherk's surface. We set 128×128×128 uniform grid points for the computational domain Ωh:={(xi,yj,zk)(0,1)×(0,1)×(0,1)i,j,k128}. The parameters used are the grid size N=Nx=Ny=Nz=256, spatial step size h=1/N, Δt=h2/16, and ϵ=4h/(22tan1(0.9)).

    The boundary condition as zero constraints is created to form a box frame missing two parallel edges on the top and two parallel edges on the bottom. With the index set S={1,,8} and width parameter a1=20, we define the constraint domains Γ=iSΓi as below:

    Γ1={(xi,yj,(a1+0.5)h):1<i<Nx,1<ja1,},Γ2={(xi,yj,(a1+0.5)h):1<i<Nx,Nya1+1j<Ny,},Γ3={(xi,yj,(Nza1+0.5)h):1<ia1,a1+1jNya1,},Γ4={(xi,yj,(Nza1+0.5)h:Nxa1+1i<Nx,a1+1jNya1,},Γ5={(xi,(a1+0.5)h,zk):1<ia1,a1+1kNza1,},Γ6={(xi,(a1+0.5)h,zk):Nxa1+1i<Nx,a1+1kNza1,},Γ7={(xi,(Nya1+0.5)h,zk):1<ia1,a1+1kNza1,}, andΓ8={(xi,(Nya1+0.5)h,zk):Nxa1+1i<Nx,a1+1kNza1,}.

    Then, the zero constraints on Γ are given by

    ϕ(xi,yj,(a1+1)h)=ϕ(xi,yj,a1h)if (xi,yj,(a1+0.5)h)Γ1,2,ϕ(xi,yj,(Nza1+1)h)=ϕ(xi,yj,(Nza1)h)if (xi,yj,(Nza1+0.5)h)Γ3,4,ϕ(xi,(a1+1),zk)=ϕ(xi,a1h,zk) if (xi,(a1+0.5)h,zk)Γ5,6,ϕ(xi,(Nya1+1),zk)=ϕ(xi,(Nya1)h,zk)if (xi,(Nya1+0.5)h,zk)Γ7,8. (4.1)

    For numerical purposes, let us vectorize ϕi,j,k by concatenating the elements vertically, i.e., ϕi,j,k=ϕi+(j1)Nx+(k1)NxNy. We define Ri:=ji|Ci,j| for 1i,jNxNyNz. Then, the constraint matrix C from (4.1) follows |Ci,i|Rifor 1iNxNyNz, where Ci,j denotes the entry in the i-th row and j-th column. This implies that C is positive semidefinite by the Gershgorin circle theorem.

    Figure 3 shows the zero level contours of numerical solutions. Each surface in Figure 3(a), (c) and (d) is represented by the zero level sets. The shaded regions in Figure 3(b) are imposed with ϕ=0 implicitly as in the equations (4.1).

    Figure 3.  Numerical evolutions for Scherk's surface. (a) With zero constraints, we can make the fixed boundary frame of a box missing four edges. (b) initial datum, (c) t=1.831×101, and (d) t=9.766×101.

    The frame boundaries are represented by black dotted lines in Figure 4. Surfaces are also illustrated by the zero level set of solutions. On the right side of each figure, the curved surface is attached due to the geometric constraints. The dotted lines are construction lines, indicating right angles and straight lines. The yellow colored surface is held up by the frame all the time. To numerically validate the numerical security of the frame boundary, we take a closeup look at the right-top corner of the surface in Figure 4: (a) closeup at time t=0, (b) closeup at time t=1.831×101 and (c) closeup at time t=9.766×101.

    Figure 4.  To numerically validate the numerical security of the frame boundary, we take a closeup look at the right-top corner of the surface. (a) closeup at time t=0, (b) closeup at time t=1.831×101, and (c) closeup at time t=9.766×101.

    Scherk's surface is one of the plateau's surfaces. It forms the shape of a soap film having the boundary of a square which is bent upward on two opposing sides and downward on the other two sides as in Figure 3(a). This surface is represented by {(x,y,z)R3|z=ln(cos(y))ln(cos(x))}. A piece of Scherk's surface defined on 1x1 and 1y1 is plotted in Figure 5(a). Comparison of Figure 5(a) and (b) confirms numerically that the proposed scheme seems to provide almost the same result by the analytic formulation. For comparison purposes, we excluded the frame boundary conditions of the curved surface, and plot the surface in Figure 5(b).

    Figure 5.  (a) Scherk's first surface, which is generated by the analytic formulation, and (b) displays the partial plot of Figure 3 (d). We remove the frame parts since they are not a part of the surface.

    The catenoid is one of the minimal surfaces, and it is readily formed by a soap film stretched across two wire discs, the planes of which are perpendicular to the line joining their centers. The catenoid is a member of the one-parameter family of surfaces of revolution of the catenary y=acosh(x/b), where a and b are constants. The parametric equations for the catenoid are given by

    x=v,y=ccosh(vc)cos(u),andz=ccosh(vc)sin(u).

    We derived the analytic formulation by the Weierstrass representation in the previous section, but we also note that the catenoid can be generated by the calculus of variations. We give an exposition for the completeness of our demonstration.

    Let us begin with the catenary. By assuming a continuous solution in C2, we derive a curve which is called a catenary. We find the minimum surface area of revolution among all the curves joining two points (x1,u1) and (x2,u2). We can obtain the catenary by the calculus of variations. The surface area of revolution is obtained by

    Area(x)=2πyds=2πx2x1y(x)1+(˙y(x))2dx.

    Here, we find y(x)C2([x1,x2]) as a minimizer of above the function Area(x). Let F(y,˙y)=y1+˙y2, and we know that

    dF(y,˙y)dx=Fydydx+F˙yd˙ydxFydydx=dF(y,˙y)dxF˙yd˙ydx.

    Then, the Euler-Lagrange equation implies that

    Fyddx(F˙y)=0[Fy˙yddx(F˙y)˙y]=[Fydydxddx(F˙y)˙y]=(dFdxF˙yd˙ydx)+ddx(F˙y)˙y=ddx(F+˙yF˙y)=0.

    This gives us the first integral:

    C=F+˙yF˙y=y1+(˙y)2+˙yy˙y1+(u)2,where C is a constant.

    Then, the equation reduces to

    y(x)=C1+(˙y(x)2).

    With the arbitrary constants, this differential equation can be solved by

    y(x)=Ccosh(x+C1C).

    Now, let us consider the numerical construction of the catenoid. We perform this test for numerical comparisons between analytic and numerical surfaces. Solutions from the numerical test are radially symmetric, but we are concerned about the connection with zero interface I of the solution and the rounded frame boundaries.

    On the computational unit cubic domain Ωh=(0,1)×(0,1)×(0,1), the parameters used are the grid size N=Nx=Ny=Nz=256, spatial step size h=1/N, Δt=h2/16, and ϵ=4h/(22tan1(0.9)), and the initial data as shown in Figure 6(a) is given by

    ϕ(x,y,z,0)={1if x2+y20.40,and0<z<1,1otherwise.
    Figure 6.  Numerical evolutions of the catenoid. (a) initial datum. (b) With zero constraints, we can make the circular frame boundaries in the bottom and top. (c) Numerical solution at time t=0.0381, and (d) numerical solution at time t=0.9537.

    As the frame boundaries, there are two circular bands positioned on top of each other. The bands are upright, and the faces of the bands face the front. We display the specific frame boundaries in Figure 6(b). The shaded regions are imposed with ϕ=0 implicitly in the same fashion of Scherk's surface. We always attach the solution to the circular bands, using them as geometric constraints. We show the numerical solution with 40000 iterations in 6(c). The surface is bent in the middle part of the cylinder. Then, the bending motion lasts no longer in Figure 6(d). We simulate, resulting in the numerical solution after 1.0×106 iterations at time t=0.9537 when solution converges.

    Figure 7 presents the final shape of the zero level-set of the numerical solution. Since the frame boundaries are not part of the minimal surface, we get rid of the frames for schematic definiteness. The Surface from the numerical solution is overlapped by the gray colored analytic surface. Three different (tilted, side, top) perspectives are illustrated in Figure 7. The left portion of the merged surface is constructed using numerical solutions, with the top and bottom being blocked by representation of the zero level-set. As we can see that, all results are consistent with the analytic surface.

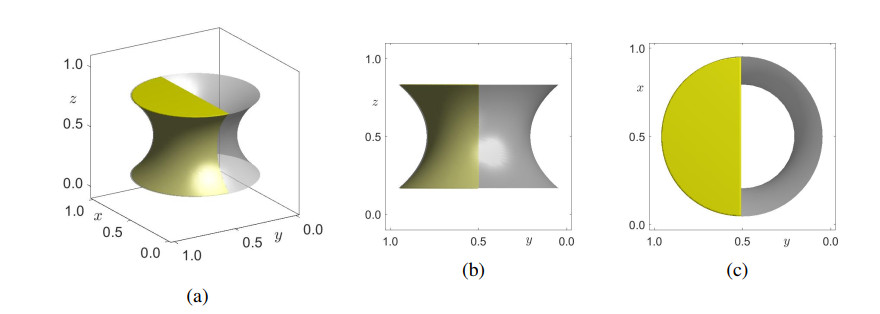

    Figure 7.  Comparison of analytic and numerical surfaces. To verify the difference between them, we divide the surface in half. The shaded region resulted from the analytic formulation. The other, yellow half surface was generated by the proposed scheme.

    So far, we have dealt with surfaces with well-known analytical solutions, i.e., Scherk's surface and catenoid. In this example, we construct a surface by using the proposed numerical method for the case where the analytic solution is unknown. Apart from the surfaces that exhibit the periodicity in three directions, i.e., triply periodic minimal surfaces, there are only a few minimal surfaces with ends in differential geometry. Even if such minimal surfaces are known, the majority of them are highly unstable to construct numerically. For this reason, stability is necessary to be stable in order to find minimal surfaces numerically. In this case, let us examine a surface with stability similar to the catenoid but with the ends forming right angles with straight lines.

    We now consider two parallel band constraints. Two bands are formed by straight lines at right angles. This is a problem that does not have a known solution. However, in this problem, we can approximate the analytic solution as a numerical solution. There are two bands, one on top of the other. The bands are standing upright, and the surfaces of the bands face the front. This is depicted in Figure 8(a). The grayed parts corresponds to the frame boundaries. We restrict the solution based on these bands as the frame boundary conditions, and observe the evolution of the rest of the surface. The initial datum as shown in Figure 8(b) is given by

    ϕ(xi,yj,zk)=1ifa1xiNxa1,anda1yjNya1.
    Figure 8.  Numerical evolutions for top and bottom square constraints. (a) With zero constraints, we can make two band frame boundaries in the bottom and top. (b) The initial datum represented by the zero-level set is set up like a wall on all four sides. (c) Numerical solution at time t=0.0153, and (d) numerical solution at time t=0.1717.

    The boundary condition as zero constraints is created to form two parallel and angled bands. The frame boundary conditions are divided into two parts, one below, Γ1,Γ2,Γ3,Γ4, and one above, Γ5,Γ6,Γ7,Γ8. With the index set S={1,,8} and width parameter a1=20,a2=60, we define the constraint domains Γ=iSΓi as below:

    Γ1={(xi,(a1+0.5)h,zk):a1i<Nxa1,1ka2},Γ2={((a1+0.5)h,yj,zk):a1j<Nya1,1ka2},Γ3={(xi,(Nya1+0.5)h,zk):a1i<Nxa1,1ka2},Γ4={((Nxa1+0.5)h,yj,zk):a1j<Nya1,1ka2},Γ5={(xi,(a1+0.5)h,zk):a1i<Nxa1,Nza2kNz},Γ6={((a1+0.5)h,yj,zk):a1j<Nya1,Nza2kNz},Γ7={(xi,(Nya1+0.5)h,zk):a1i<Nxa1,Nza2kNz}, andΓ8={((Nxa1+0.5)h,yj,zk):a1j<Nya1,Nza2kNz}.

    Then, the zero constraints on Γ are given by

    ϕ(xi,(a1+1)h,zk)=ϕ(xi,a1h,zk,)if (xi,yj,zk)Γ1,5,ϕ((a1+1)h,yj,zk)=ϕ(a1h,yj,zk,)if (xi,yj,zk)Γ2,6,ϕ(xi,(Nya1+1),zk)=ϕ(xi,(Nya1)h,zk)if (xi,yj,zk)Γ3,7,ϕ((Nxa1+1),yj,zk)=ϕ((Nxa1)h,yj,zk)if (xi,yj,zk)Γ4,8. (4.2)

    The AC equation is derived from the Ginzburg-Landau (GL) energy functional

    E(ϕ)=Ω[F(ϕ)ϵ+ϵ|xϕ|22]dx. (4.3)

    The critical points of the above energy functional are of interest for area-minimizing surfaces. By decreasing the GL energy functional (4.3), we can locally minimize the area of each point on the surface. In this regard, there have been several studies on the connection between the Allen-Cahn equation and the minimal surface ([11,12,25] and references therein). In this third example, we can numerically confirm that the surface obtained by the proposed method is a minimal surface, as it decreases the GL energy functional (4.3).

    We discretize the GL energy functional (4.3), and calculate the energy in order to show numerically that the Ginzburg-Landau energy functional decreases. The GL functional can be discretized at time tk as

    Eh(ϕk)=hϕk222ϵ+ϵ41(ϕk)222.

    Figure 9 shows that the GL energy functional decreases over time t, and eventually reaches a point where the decrease stops. The energy is initially high, as illustrated at t=0 in Figure 8(b) and Figure 9; but as it decreases rapidly, the shape of the surface also undergoes a rapid change, as seen in Figure 8(c). From a certain point on, the surface hardly evolves, as seen in Figure 8(d), and the energy also stops decreasing.

    Figure 9.  The discrete energy is illustrated. The GL energy functional decreases over time.

    The connection of the Allen–Cahn (AC) equation and minimal surfaces has been studied over the past decades, and several numerical schemes have been proposed and developed. However, there is an obstacle to dealing with the fixed frame boundary. Often, the frame boundary makes the numerical scheme unstable and unable to construct minimal surfaces. As far as we know, there is no research work on the frame boundary conditions.

    Therefore, we propose a numerical scheme, which is stable and secure for the frame boundaries. We have proven that the AC's Laplacian operator with the frame boundary is still nonsingular, and solutions are bounded by our proposed numerical scheme. In addition, we have demonstrated two classical examples, Scherk's surface and catenoid and one surface for which the analytical solution is unknown. In these cases, we observed the frame boundaries containing right angle and straight lines or rounded frames. As seen before, we have checked that the proposed scheme works well in various frame conditions.

    Last, we notice that the construction of some minimal surfaces can be impossible or unstable due to the geometric properties that the surface inherently has. These instabilities are not related to the frame boundaries. However, there is no consensus on the stability of minimal surfaces. We hope that our ongoing research will guide us to a better understanding of the AC equation and minimal surfaces.

    The authors declare they have not used artificial intelligence (AI) tools in the creation of this article.

    This work was supported by Incheon National University Research Grant in 2021-0357.

    The author confirms that this article content has no conflict of interest.



    [1] S. M. Allen, J. W. Cahn, A microscopic theory for antiphase boundary motion and its application to antiphase domain coarsening, Acta Metall., 27 (1979), 1085–1095. https://doi.org/10.1016/0001-6160(79)90196-2 doi: 10.1016/0001-6160(79)90196-2
    [2] H. Alsayed, H. Fakih, A. Miranville, A. Wehbe, Optimal control of an Allen-Cahn model for tumor growth through supply of cytotoxic drugs, Discrete Cont. Dyn-S., 15 (2022), 3481–3515.
    [3] S. Bartels, Springer International Publishing: Part of: Springer Computational Mathematics, Freiburg, 2015.
    [4] N. Batangouna, A robust family of exponential attractors for a time semi-discretization of the Ginzburg-Landau equation, AIMS Math. 7 (2022), 1399–1415.
    [5] J. Berglund, W. Rossman: Minimal surfaces with catenoid ends, Pacific J. Math., 171 (1995), 353–371. https://doi.org/10.2140/pjm.1995.171.353 doi: 10.2140/pjm.1995.171.353
    [6] E. Bretin, V. Perrier, Phase field method for mean curvature flow with boundary constraints, ESAIM: M2AN, 46 (2012), 1509–1526. https://doi.org/10.1051/m2an/2012014 doi: 10.1051/m2an/2012014
    [7] D. Carmo, P. Manfredo, Differential Geometry of Curves and Surfaces (Second ed.) Dover Publications, New York, 2016.
    [8] O. Chodosh, C. Mantoulidis, Minimal surfaces and the Allen–Cahn equation on 3-manifolds: index, multiplicity, and curvature estimates, Ann. Math., 191 (2020), 213–328.
    [9] D. L. Chopp, Computing minimal surfaces via level set curvature flow, J. Comput. Phys. 106 (1993), 77–91. https://doi.org/10.1006/icar.1993.1159
    [10] Y. Deng, Z. Weng, Barycentric interpolation collocation method based on Crank-Nicolson scheme for the Allen-Cahn equations, AIMS Math., 6 (2021), 3857–3873.
    [11] J. E. Hutchinson, Y. Tonegawa, Convergence of phase interfaces in the van der Waals-Cahn-Hilliard theory, Calc. Var. Partial Dif., 10 (2000), 49–84. https://doi.org/10.1007/BF03229915 doi: 10.1007/BF03229915
    [12] T. Ilmanen, Convergence of the Allen-Cahn equation to Brakke's motion by mean curvature, J. Differ. Geom., 38 (1993), 417–461. https://doi.org/10.1007/BF00007540 doi: 10.1007/BF00007540
    [13] Y. Kim, D. Lee, Numerical investigation into the dependence of the Allen–Cahn equation on the free energy, Adv. Comput. Math., 48 (2022), 1–32.
    [14] Y. LeCun, L. Bottou, Y. Bengio, P. Haffner, Computing Minimal Surfaces via Level Set Curvature Flow, P. IEEE, 86 (1998), 2278–2324. https://doi.org/10.1109/5.726791 doi: 10.1109/5.726791
    [15] D. Lee, J. Kim, Mean curvature flow by the Allen-Cahn equation, Eur. J. Appl. Math., 26 (2015), 535–559. https://doi.org/10.1017/S0956792515000200 doi: 10.1017/S0956792515000200
    [16] D. Lee, J. Kim, Comparison study of the conservative Allen-Cahn and the Cahn-Hilliard equations, Math. Comput. Simul., 119 (2016), 35–56. https://doi.org/10.1016/j.matcom.2015.08.018 doi: 10.1016/j.matcom.2015.08.018
    [17] S. Lee, D. Lee, Image segmentation based on modified fractional Allen-Cahn Equation, Math. Probl. Eng., 2019 (2019), Article ID 3980181, 1–7.
    [18] Y. Li, S. Guo, Triply periodic minimal surface using a modified Allen-Cahn equation, Appl. Math. Comput. Appl., 295 (2017), 84–94. https://doi.org/10.1016/j.amc.2016.10.005 doi: 10.1016/j.amc.2016.10.005
    [19] Y. Li, H. Lee, D. Jeong, J. Kim, An unconditionally stable hybrid numerical method for solving the Allen–Cahn equation, Comput. Math. Appl., 60 (2010), 1591–1606. https://doi.org/10.1016/j.camwa.2010.06.041 doi: 10.1016/j.camwa.2010.06.041
    [20] Y. Li, Q. Xia, S. Yoon, C. Lee, B. Lu, J. Kim, Simple and efficient volume merging method for triply periodic minimal structures, Comput. Phys. Commun., 264 (2011), 107956.
    [21] W. H. Meeks, A survey of the geometric results in the classical theory of minimal surfaces, Bol. Soc. Bras. Mat., 12 (1981), 29–86. https://doi.org/10.1007/BF02588319 doi: 10.1007/BF02588319
    [22] W. H. Meeks, J. Pérez, The classical theory of minimal surfaces, Bull. Amer. Math. Soc., 48 (2011), 325–407. https://doi.org/10.1090/S0273-0979-2011-01334-9 doi: 10.1090/S0273-0979-2011-01334-9
    [23] M. S. Mizuhara, L. Berlyand, V. Rybalko, L. Zhang, On an evolution equation in a cell motility model, Physica D, 318 (2016), 12–25. https://doi.org/10.1002/nba.30170 doi: 10.1002/nba.30170
    [24] J. Oprea, The Mathematics of Soap Films: Explorations with Maple, American Mathematical Society, 10, Rhode Island, 2000. https://doi.org/10.1090/stml/010
    [25] F. Pacard, The role of minimal surfaces in the study of the Allen-Cahn equation, In Geometric analysis: partial differential equations and surfaces, Contemp. Math., 570 (2012), 137–163.
    [26] M. Stoll, H. Yücel, Symmetric interior penalty Galerkin method for fractional-in-space phase-field equations, AIMS Math., 3 (2018), 66–95.
    [27] T. Suzuki, K. Takasao, N. Yamazaki, New approximate method for the Allen-Cahn equation with double-obstacle constraint and stability criteria for numerical simulations, AIMS Math., 1 (2016), 288–317.
    [28] Z. Weng, L. Tang, Analysis of the operator splitting scheme for the Allen–Cahn equation, Numer. Heat Tr. B-Fundam., 70 (2016), 123847.
    [29] Q. Xia, J. Kim, B. Xia, Y. Li, An unconditionally energy stable method for binary incompressible heat conductive fluids based on the phase–field model, Comput. Math. Appl., 123 (2022), 26–39.
    [30] Q. Xia, J. Yang, Y. Li, On the conservative phase-field method with the N-component incompressible flows, Phys. Fluids, 35 (2023), 012120. https://doi.org/10.1063/5.0135490 doi: 10.1063/5.0135490
    [31] S. Yang, H. Lee, J. Kim, A phase-field approach for minimizing the area of triply periodic surfaces with volume constraint, Comput. Phys. Commun., 181 (2010), 1037–1046. https://doi.org/10.1016/j.cpc.2010.02.010 doi: 10.1016/j.cpc.2010.02.010
    [32] Q. Yu, Q. Xia, Y. Li, A phase field-based systematic multiscale topology optimization method for porous structures design, J. Comput. Phys., 466 (2022), 111383. https://doi.org/10.1016/j.jcp.2022.111383 doi: 10.1016/j.jcp.2022.111383
  • This article has been cited by:

    1. Jaeyong Choi, Seokjun Ham, Soobin Kwak, Youngjin Hwang, Junseok Kim, Stability analysis of an explicit numerical scheme for the Allen-Cahn equation with high-order polynomial potentials, 2024, 9, 2473-6988, 19332, 10.3934/math.2024941
    2. Soobin Kwak, Seokjun Ham, Jian Wang, Hyundong Kim, Junseok Kim, Effective perpendicular boundary conditions in phase-field models using Dirichlet boundary conditions, 2025, 0177-0667, 10.1007/s00366-025-02109-z
    3. Hyun Geun Lee, Yibao Li, Junxiang Yang, Soobin Kwak, Youngjin Hwang, Seokjun Ham, Hyundong Kim, Yunjae Nam, Junseok Kim, A review of the numerical methods for solving the binary Allen–Cahn equation, 2025, 670, 03784371, 130625, 10.1016/j.physa.2025.130625
  • Reader Comments
  • © 2023 the Author(s), licensee AIMS Press. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0)
通讯作者: 陈斌, bchen63@163.com
  • 1.

    沈阳化工大学材料科学与工程学院 沈阳 110142

  1. 本站搜索
  2. 百度学术搜索
  3. 万方数据库搜索
  4. CNKI搜索

Metrics

Article views(2030) PDF downloads(79) Cited by(3)

Figures and Tables

Figures(9)

Other Articles By Authors

/

DownLoad:  Full-Size Img  PowerPoint
Return
Return

Catalog
