Vaccination and transmission interplay in HAV-HIV co-infection: A predictive study backed by simulation

Shaiza Irum; Kashif Ali Khan; Nauman Raza; Waleed M. Abdelfattah; Wedad Albalawi; Ahmed M. Shehata; Gamal M. Ismail; Shaiza Irum; Kashif Ali Khan; Nauman Raza; Waleed M. Abdelfattah; Wedad Albalawi; Ahmed M. Shehata; Gamal M. Ismail

doi:10.3934/math.2026953

AIMS Mathematics

2026, Volume 11, Issue 8: 23663-23686. doi: 10.3934/math.2026953

Previous Article Next Article

Research article

Vaccination and transmission interplay in HAV-HIV co-infection: A predictive study backed by simulation

1.
Department of Mathematics, University of Engineering and Technology, Lahore, Pakistan
2.
Institute of Mathematics, University of the Punjab, Lahore, Pakistan
3.
College of Engineering, University of Business and Technology, Jeddah 23435, Saudi Arabia
4.
Department of Engineering Mathematics and Physics, Faculty of Engineering, Zagazig University, Zagazig 44519, Egypt
5.
Department of Mathematical Sciences, College of Science, Princess Nourah bint Abdulrahman University, P.O. Box 84428, Riyadh 11671, Saudi Arabia
6.
Department of Mathematics, College of Sciences, University of Bisha, Bisha 61922, Saudi Arabia
7.
Department of Mathematics, Faculty of Science, Islamic University of Madinah, Madinah 42351, Saudi Arabia

Received: 31 January 2026 Revised: 08 May 2026 Accepted: 29 May 2026 Published: 03 August 2026
MSC : 37G35, 37N25

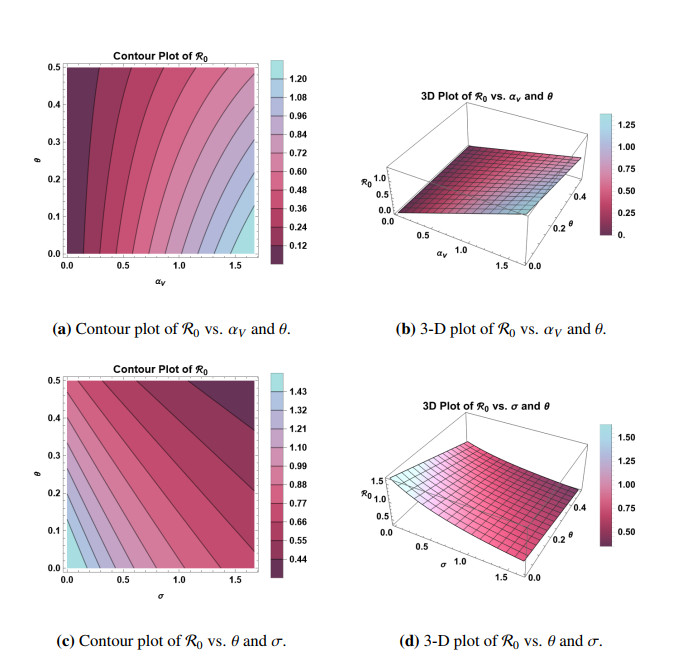

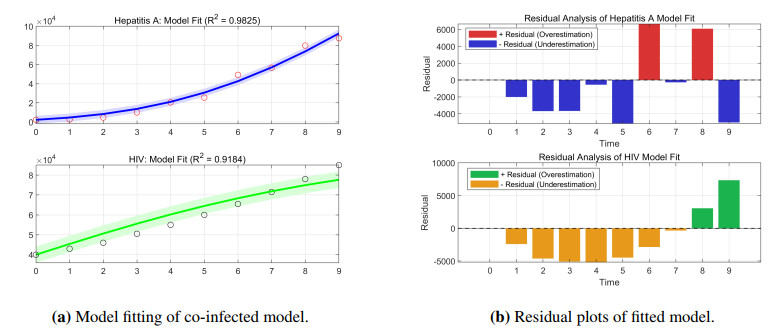

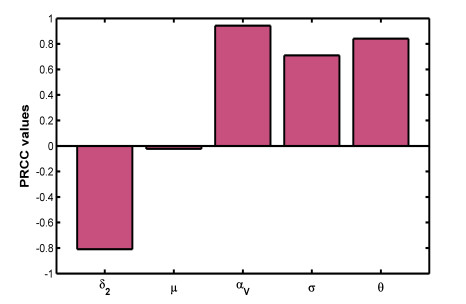

This study proposes an epidemiological model for hepatitis A virus (HAV) and human hmmunodeficiency virus (HIV) co-infection in the United States of America, incorporating an integer-order derivative. The model's mathematical properties, including non-negativity and boundedness, are carefully examined and confirmed. Additionally, equilibrium points at the disease-free states are determined, along with the calculation of the reproduction number. With the aid of partial rank correlation coefficient (PRCC) and Latin hypercube sampling (LHS), sensitivity analyses of the basic reproduction numbers are performed using 1200 simulations. Local and global stability of the disease-free equilibrium point are established by employing a Lyapunov function and LaSalle's invariance principle. Using generated HIV and HAV data for the United States from 2014 to 2023, the model reproduces co-infection dynamics, and the MATLAB's built-in routine bvp4c is used to study the effects of vaccination, transmission, and co-infection on both diseases. These results further support the conclusion that if vaccination coverage increases, co-infection may reduce and disease control improves. To this end, these results show important thresholds that concern how disease persists, and highlight the need to research intervention strategies more and allocate targeted resources to control outbreaks.
- antiretroviral therapy,
- HAV and HIV co-infection,
- sensitivity analysis and parameter estimation
Citation: Shaiza Irum, Kashif Ali Khan, Nauman Raza, Waleed M. Abdelfattah, Wedad Albalawi, Ahmed M. Shehata, Gamal M. Ismail. Vaccination and transmission interplay in HAV-HIV co-infection: A predictive study backed by simulation[J]. AIMS Mathematics, 2026, 11(8): 23663-23686. doi: 10.3934/math.2026953

Related Papers:

Abstract

This study proposes an epidemiological model for hepatitis A virus (HAV) and human hmmunodeficiency virus (HIV) co-infection in the United States of America, incorporating an integer-order derivative. The model's mathematical properties, including non-negativity and boundedness, are carefully examined and confirmed. Additionally, equilibrium points at the disease-free states are determined, along with the calculation of the reproduction number. With the aid of partial rank correlation coefficient (PRCC) and Latin hypercube sampling (LHS), sensitivity analyses of the basic reproduction numbers are performed using 1200 simulations. Local and global stability of the disease-free equilibrium point are established by employing a Lyapunov function and LaSalle's invariance principle. Using generated HIV and HAV data for the United States from 2014 to 2023, the model reproduces co-infection dynamics, and the MATLAB's built-in routine bvp4c is used to study the effects of vaccination, transmission, and co-infection on both diseases. These results further support the conclusion that if vaccination coverage increases, co-infection may reduce and disease control improves. To this end, these results show important thresholds that concern how disease persists, and highlight the need to research intervention strategies more and allocate targeted resources to control outbreaks.

References

[1]	S. M. Lemon, Hepatitis A: Current view of an ancient disease, J. Hepatol., 77 (2022), 243–244. https://doi.org/10.1016/j.jhep.2021.09.028 doi: 10.1016/j.jhep.2021.09.028
[2]	Z. Feng, S. M. Lemon, Hepatitis A virus, In: The picornaviruses, 2010, 383–396. https://doi.org/10.1128/9781555816698.ch24
[3]	O. Gholizadeh, S. Akbarzadeh, M. G. Hashemi, M. Gholami, P. Amini, Z. Yekanipour, et al., Hepatitis: Viral structure, classification, life cycle, clinical symptoms, diagnosis error, and vaccination, Can. J. Infect. Dis. Med. Microbiol., 2023 (2023), 4263309. https://doi.org/10.1155/2023/4263309 doi: 10.1155/2023/4263309
[4]	H. E. Huang, O. Colasanti, T. F. Li, V. Lohmann, Limited impact of hepatitis A virus 3C protease-mediated cleavage on the functions of NEMO in human hepatocytes, J. Virol., 99 (2025), e02264-24. https://doi.org/10.1128/jvi.02264-24 doi: 10.1128/jvi.02264-24
[5]	Centers for disease control and prevention, Hepatitis A. Available from: https://www.cdc.gov/hepatitis-a/index.html.
[6]	Wikipedia contributors, Hepatitis A. Available from: https://en.wikipedia.org/wiki/Hepatitis_A
[7]	Food & Wine, Most viral foodborne illnesses according to the World Health Organization. Available from: https://www.foodandwine.com/most-viral-foodborne-illnesses-world-health-organization-8767812
[8]	S. D. Lawn, S. T. Butera, T. M. Folks, Contribution of immune activation to the pathogenesis and transmission of human immunodeficiency virus type 1 infection, Clin. Microbiol. Rev., 14 (2001), 753–777. https://doi.org/10.1128/cmr.14.4.753-777.2001 doi: 10.1128/cmr.14.4.753-777.2001
[9]	M. Haris, R. Abbas, Four decades of HIV: Global trends, testing assays, treatment, and challenges, Zoonoses, , 4 (2024), 997. https://doi.org/10.15212/ZOONOSES-2023-0039 doi: 10.15212/ZOONOSES-2023-0039
[10]	S. Nyamweya, A. Hegedus, A. Jaye, S. Rowland-Jones, K. L. Flanagan, D. C. Macallan, Comparing HIV-1 and HIV-2 infection: Lessons for viral immunopathogenesis, Rev. Med. Virol. 23 (2013), 221–240. https://doi.org/10.1002/rmv.1739 doi: 10.1002/rmv.1739
[11]	R. D. Sloan, M. A. Wainberg, The role of unintegrated DNA in HIV infection, Retrovirology, 8 (2011), 52. https://doi.org/10.1186/1742-4690-8-52 doi: 10.1186/1742-4690-8-52
[12]	N. Oliver, E. Chiao, Malignant diseases in HIV, In: Fundamentals of HIV medicine: (CME edition), Oxford Academic, 2017, 351–338. https://doi.org/10.1093/med/9780190493097.003.0033
[13]	L. Lin, T. Li, Multidisciplinary collaborative integrated management of increasingly prominent HIV complications in the post-CART era, HIV Med., 21 (2020), 683–691. https://doi.org/10.1111/hiv.13022 doi: 10.1111/hiv.13022
[14]	A. Turab, R. Shafqat, S. Muhammad, M. Shuaib, M. F. Khan, M. Kamal, Predictive modeling of hepatitis B viral dynamics: A Caputo derivative-based approach using artificial neural networks, Sci. Rep., 14 (2024), 21853. https://doi.org/10.1038/s41598-024-70788-7 doi: 10.1038/s41598-024-70788-7
[15]	W. Sintunavarat, A. Turab, Mathematical analysis of an extended SEIR model of COVID-19 using the ABC-fractional operator, Math. Comput. Simul., 198 (2022), 65–84. https://doi.org/10.1016/j.matcom.2022.02.009 doi: 10.1016/j.matcom.2022.02.009
[16]	H. Q. Zhang, B. Z. Cao, Q. T. Cao, M. Hun, L. Cao, M. Y. Zhao, An analysis of reported cases of hemophagocytic lymphohistiocytosis (HLH) after COVID-19 vaccination, Hum. Vaccin. Immunother., 19 (2023), 2263229. https://doi.org/10.1080/21645515.2023.2263229 doi: 10.1080/21645515.2023.2263229
[17]	Y. Jia, B. Fu, L. Dong, M. Zhao, Sweet syndrome induced by SARS-CoV-2 vaccines: A systematic review of patient-report studies, Hum. Vaccin. Immunother., 19 (2023), 2217076. https://doi.org/10.1080/21645515.2023.2217076 doi: 10.1080/21645515.2023.2217076
[18]	K. Xu, B. Gao, J. Li, Y. Xiang, L. Cao, M. Zhao, Clinical features, diagnosis, and management of COVID-19 vaccine-associated Vogt-Koyanagi-Harada disease, Hum. Vaccin. Immunother., 19 (2023), 2220630. https://doi.org/10.1080/21645515.2023.2220630 doi: 10.1080/21645515.2023.2220630
[19]	J. Brown, K. Benedict, B. J. Park, G. R. Thompson Ⅲ, Coccidioidomycosis: Epidemiology, Clin. Epidemiol., 2013 (2013), 185–197. https://doi.org/10.2147/CLEP.S34434 doi: 10.2147/CLEP.S34434
[20]	World Health Organization, Chronic comorbidities & coinfections. Available from: https://www.who.int/teams/global-hiv-hepatitis-and-stis-programmes/hiv/treatment/chronic-comorbidities-and-coinfections
[21]	T. J. Nagu, M. Bakari, M. Matee, Hepatitis A, B and C viral co-infections among HIV-infected adults presenting for care and treatment at Muhimbili National Hospital in Dar es Salaam, Tanzania, BMC Public Health, 8 (2008), 416. https://doi.org/10.1186/1471-2458-8-416 doi: 10.1186/1471-2458-8-416
[22]	I. Cropley, J. Main, Hepatitis C virus infection: co-infection with HIV and HBV, Best Pract. Res. Clin. Gastroenterol., 14 (2000), 265–275. https://doi.org/10.1053/bega.1999.0075 doi: 10.1053/bega.1999.0075
[23]	I. Maier, G. Y. Wu, Hepatitis C and HIV co-infection: A review, World J. Gastroenterol., 8 (2002), 577–579. http://dx.doi.org/10.3748/wjg.v8.i4.577 doi: 10.3748/wjg.v8.i4.577
[24]	L. I. Backus, D. Boothroyd, L. R. Deyton, HIV, hepatitis C and HIV/hepatitis C virus co-infection in vulnerable populations, AIDS, 19 (2005), S13–S19. https://doi.org/10.1097/01.aids.0000192065.09281.01 doi: 10.1097/01.aids.0000192065.09281.01
[25]	E. A. Operskalski, A. Kovacs, HIV/HCV co-infection: Ppathogenesis, clinical complications, treatment, and new therapeutic technologies, Curr. HIV/AIDS Rep., 8 (2011), 12–22. https://doi.org/10.1007/s11904-010-0071-3 doi: 10.1007/s11904-010-0071-3
[26]	Worldometer, United States population. Available from: https://www.worldometers.info/world-population/us-population/.
[27]	P. A. Naik, B. M. Yeolekar, S. Qureshi, M. Yeolekar, A. Madzvamuse, Modeling and analysis of the fractional-order epidemic model to investigate mutual influence in HIV/HCV co-infection, Nonlinear Dyn., 112 (2024), 11679–11710. https://doi.org/10.1007/s11071-024-09653-1 doi: 10.1007/s11071-024-09653-1
[28]	P. van den Driessche, J. Watmough, Reproduction numbers and sub-threshold endemic equilibria for compartmental models of disease transmission, Math. Biosci., 180 (2002), 29–48. https://doi.org/10.1016/S0025-5564(02)00108-6 doi: 10.1016/S0025-5564(02)00108-6
[29]	J. C. Helton, F. J. Davis, Illustration of sampling-based methods for uncertainty and sensitivity analysis, Risk Anal., 22 (2002), 591–622. https://doi.org/10.1111/0272-4332.00041 doi: 10.1111/0272-4332.00041
[30]	A. Ahmad, M. Farman, P. A. Naik, E. Hincal, E. Iqbal, Z. Huang, Bifurcation and theoretical analysis of a fractional-order hepatitis B epidemic model incorporating different chronic stages of infection, J. Appl. Math. Comput., 71 (2025), 1543–1564. https://doi.org/10.1007/s12190-024-02301-2 doi: 10.1007/s12190-024-02301-2
[31]	J. P. LaSalle, The stability of dynamical systems, Philadelphia: SIAM, 1976.
[32]	Centers for Disease Control and Prevention, Hepatitis A surveillance 2020. Available from: https://www.cdc.gov/hepatitis-surveillance-2020/about/index.html.
