A state-switching PDE model for contact separation induced response amplification in girder bridges under bidirectional seismic excitation

Shutong Chen; Jieqin Liu; Leilei Li; Xuerong Liu; Fuxing Ding; Shutong Chen; Jieqin Liu; Leilei Li; Xuerong Liu; Fuxing Ding

doi:10.3934/math.2026843

AIMS Mathematics

2026, Volume 11, Issue 7: 20746-20772. doi: 10.3934/math.2026843

Previous Article Next Article

Research article Special Issues

A state-switching PDE model for contact separation induced response amplification in girder bridges under bidirectional seismic excitation

1.
School of Intelligent Manufacturing and Construction, Jiangxi Polytechnic Institute (JPI), Xinyu 338000, China
2.
School of Civil Engineering, Universiti Sains Malaysia (USM), Engineering Campus, Nibong Tebal 14300, Malaysia
3.
School of Digital Industry, Jiangxi Metallurgical Vocational and Technical College, Xinyu 338000, China

Received: 26 May 2026 Revised: 22 June 2026 Accepted: 30 June 2026 Published: 14 July 2026
MSC : 74H45

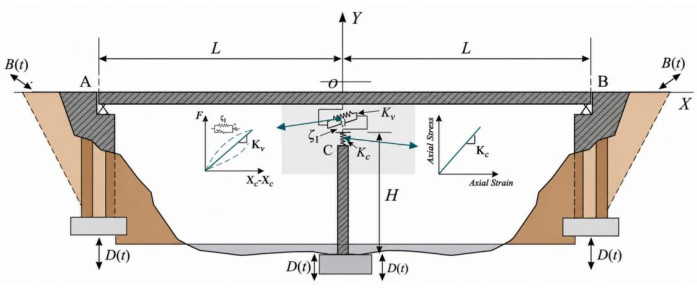

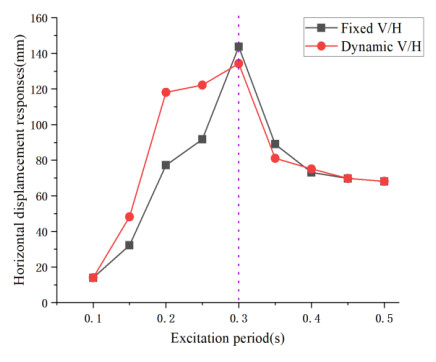

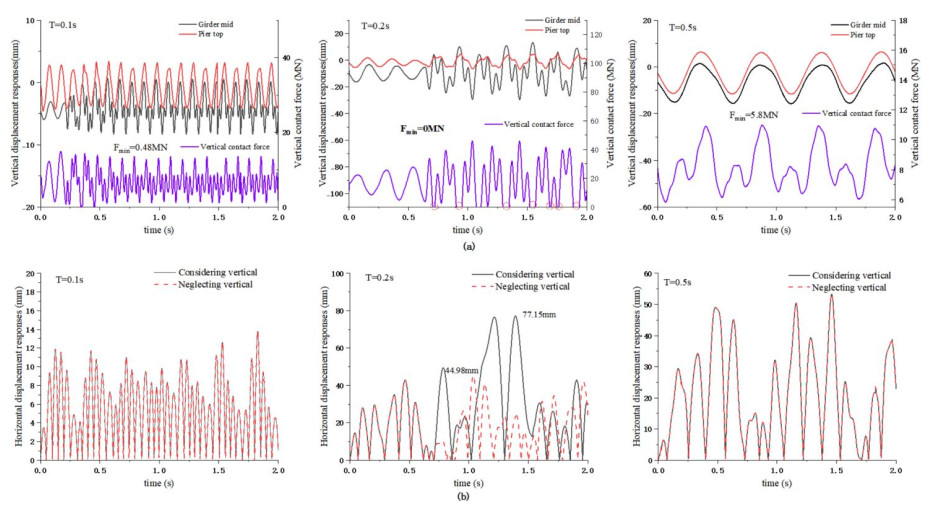

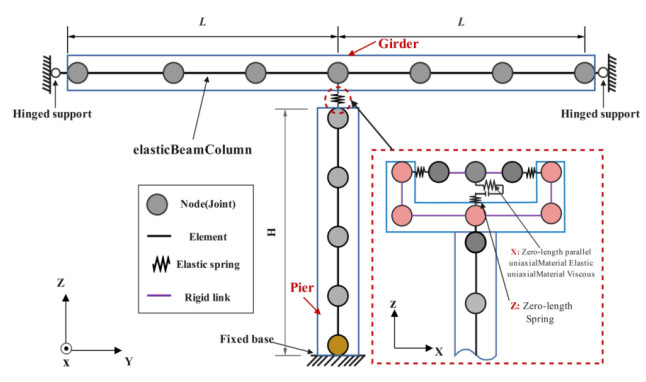

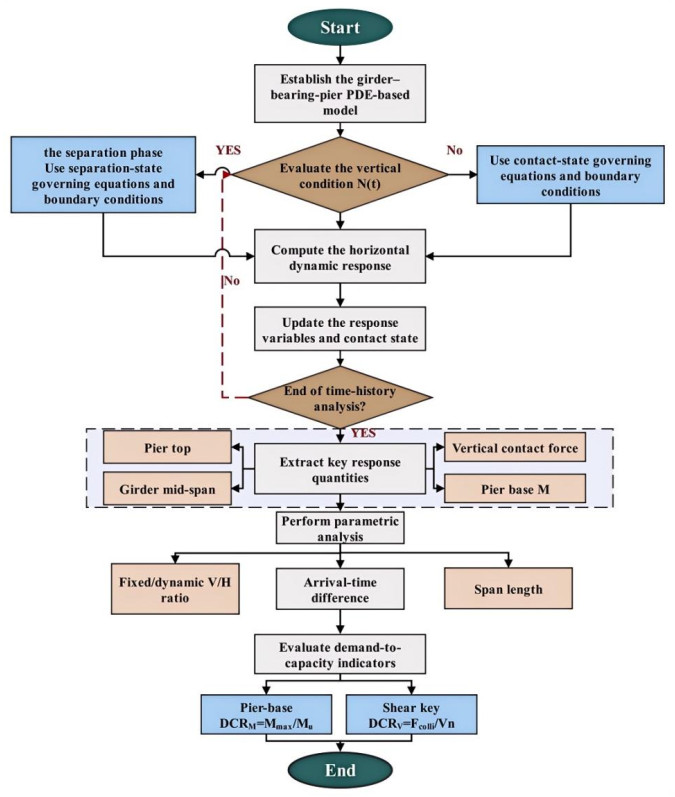

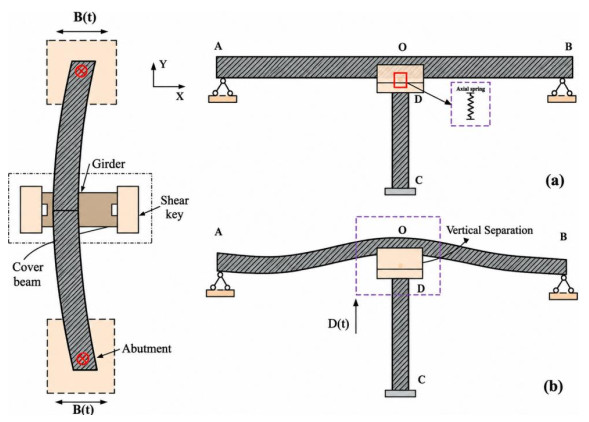

In this study, we develop a state-switching partial differential equation (PDE) model to investigate contact–separation-induced response amplification in girder bridges subjected to bidirectional seismic excitation. The girder and pier were idealized as Euler–Bernoulli beams, while the bearing was modeled as a Kelvin–Voigt element in the horizontal direction and a compression-only unilateral constraint in the vertical direction. A complementarity condition was introduced to describe the vertical girder–bearing interaction, and the horizontal transient response was formulated through state-dependent beam-type PDEs under contact and separation states. Based on modal expansion and state-switching conditions, a semi-analytical solution procedure was established to reveal the coupling mechanism between vertical contact loss and horizontal response amplification. Our numerical results showed that vertical excitation had a limited influence when continuous contact is maintained. However, when the excitation period approached the first vertical natural period, contact loss could occur and cause boundary-condition switching, leading to a significant increase in horizontal displacement. The dynamic V/H model produced stronger amplification than the fixed V/H assumption in the short-period range, while increasing span length further intensified the response. Local demand–capacity indicators, including the pier-base flexural demand ratio and the shear-key impact demand ratio, also increased when vertical excitation was considered. An OpenSees finite element (FE) comparison confirmed that the proposed analytical model could reasonably reproduce the main horizontal response characteristics. The proposed framework provides an effective reduced-order approach for analyzing state-dependent bridge dynamics under bidirectional seismic excitation.
- state-switching model,
- PDE-based model,
- girder bridge,
- transient dynamic response,
- contact and separation,
- horizontal response
Citation: Shutong Chen, Jieqin Liu, Leilei Li, Xuerong Liu, Fuxing Ding. A state-switching PDE model for contact separation induced response amplification in girder bridges under bidirectional seismic excitation[J]. AIMS Mathematics, 2026, 11(7): 20746-20772. doi: 10.3934/math.2026843

Related Papers:

Abstract

In this study, we develop a state-switching partial differential equation (PDE) model to investigate contact–separation-induced response amplification in girder bridges subjected to bidirectional seismic excitation. The girder and pier were idealized as Euler–Bernoulli beams, while the bearing was modeled as a Kelvin–Voigt element in the horizontal direction and a compression-only unilateral constraint in the vertical direction. A complementarity condition was introduced to describe the vertical girder–bearing interaction, and the horizontal transient response was formulated through state-dependent beam-type PDEs under contact and separation states. Based on modal expansion and state-switching conditions, a semi-analytical solution procedure was established to reveal the coupling mechanism between vertical contact loss and horizontal response amplification. Our numerical results showed that vertical excitation had a limited influence when continuous contact is maintained. However, when the excitation period approached the first vertical natural period, contact loss could occur and cause boundary-condition switching, leading to a significant increase in horizontal displacement. The dynamic V/H model produced stronger amplification than the fixed V/H assumption in the short-period range, while increasing span length further intensified the response. Local demand–capacity indicators, including the pier-base flexural demand ratio and the shear-key impact demand ratio, also increased when vertical excitation was considered. An OpenSees finite element (FE) comparison confirmed that the proposed analytical model could reasonably reproduce the main horizontal response characteristics. The proposed framework provides an effective reduced-order approach for analyzing state-dependent bridge dynamics under bidirectional seismic excitation.

References

[1]	D. K. Keefer, Statistical analysis of an earthquake-induced landslide distribution–the 1989 Loma Prieta, California event, Eng. Geol., 58 (2000), 231–249. https://doi.org/10.1016/S0013-7952(00)00037-5
[2]	Y. Fukushima, K. Irikura, T. Uetake, H. Matsumoto, Characteristics of observed peak amplitude for strong ground motion from the 1995 Hyogoken Nanbu (Kobe) earthquake, Bull. Seismol. Soc. Amer., 90 (2000), 545–565. https://doi.org/10.1785/0119990066 doi: 10.1785/0119990066
[3]	S. W. Geng, X. X. Tao, The ratios of vertical to horizontal acceleration response spectra, Earthq. Eng. Eng. Vib., 24 (2004), 33–38. https://doi.org/10.3969/j.issn.1000-1301.2004.05.007 doi: 10.3969/j.issn.1000-1301.2004.05.007
[4]	Y. Bozorgnia, K. W. Campbell, Vertical Ground Motion: Characteristics, Modeling, and Applications in Seismic Design; California: University of California: Berkeley, 2004.
[5]	Y. Bozorgnia, K. W. Campbell, The vertical-to-horizontal response spectral ratio and tentative procedures for developing simplified V/H and vertical design spectra, Earthq. Eng. Eng. Vib., 8 (2004), 175–207. https://doi.org/10.1080/13632460409350486 doi: 10.1080/13632460409350486
[6]	K. H. Luo, K. W. Yang, Research and application progress of vertical seismic response spectrum, J. Civil, Architect. Environ. Eng., 32 (2010), 198–201.
[7]	A. J. Papazoglou, A. S. Elnashai, Analytical and field evidence of the damaging effect of vertical earthquake ground motion, Earthq. Eng. Struct. Dyn., 25 (1996), 1109–1137. https://doi.org/10.1002/(SICI)1096-9845(199610)25:10<1109::AID-EQE604>3.0.CO;2-0 doi: 10.1002/(SICI)1096-9845(199610)25:10<1109::AID-EQE604>3.0.CO;2-0
[8]	K. Bi, H. Hong, N. Chow, Required separation distance between decks and at abutments of bridge crossing a canyon site to avoid seismic pounding, Earthq. Eng. Struct. Dyn., 39 (2010), 303–323. https://doi.org/10.1002/eqe.943 doi: 10.1002/eqe.943
[9]	S. Tanimura, H. Heya, T. Umeda, K. Mimura, O. Yoshikawa, 3-Dimensional analysis of dynamic behavior of bearing of Nielsen bridge, JSME Int. J, 2 (2002), 190–198. https://doi.org/10.1299/jsmea.45.190 doi: 10.1299/jsmea.45.190
[10]	C. J. Wang, M. H. Shih, Performance study of a bridge involving sliding decks and pounded abutment during a violent earthquake, Eng. Struct., 29 (2007), 802–812. https://doi.org/10.1016/j.engstruct.2006.05.026 doi: 10.1016/j.engstruct.2006.05.026
[11]	N. Chouw, H. Hao, Pounding damage to buildings and bridges in the 22 February 2011 Christchurch Earthquake, Int. J. Prot. Struct., 3 (2011), 123–139. https://doi.org/10.1260/2041-4196.3.2.123 doi: 10.1260/2041-4196.3.2.123
[12]	A. C. Eringen, E. S. Suhubi, Elastodynamics, New York: Academic Press, 1975.
[13]	B D. St. venant, M. Flamant, Résistance vive ou dynamique des solids, Resprésentation Graphique Longitudinal, 97 (1883), 127–353.
[14]	S. Timoshenko, D. H. Young, W. J. R. Weaver, Vibration Problems in Engineering, New York: John Wiley and Sons, 1974.
[15]	A. Tian, X. Yin, Transient dynamics analysis for multiple-impact of flexible-rods, in Chinese, Chin. J. Mech. Eng., 44 (2008), 43–48.
[16]	R. Xu, X. C. Yin, Transient wave response analysis of a bridge under vertical earthquakes, J. Vibr. Shock, 31 (2012), 49–55.
[17]	R. Xu, X. C. Yin, Calculations of multiple pounding forces between girder and pier of bridges under vertical earthquakes, Eng. Mech., 27 (2010), 124–130.
[18]	H. B. Yang, X. C. Yin, R. Xu, Effect of bridge bearings on vertical pounding in bridges under near-fault vertical earthquake, Eng. Mech., 31 (2014), 183–189. https://doi.org/10.1002/eqe.2601 doi: 10.1002/eqe.2601
[19]	H. B. Yang, X. C. Yin, Transient responses of girder bridges with vertical poundings under near-fault vertical earthquake, Earthq. Eng. Struct. Dyn., 44 (2015), 2647–2657. https://doi.org/10.6052/j.issn.1000-4750.2012.12.1020 doi: 10.6052/j.issn.1000-4750.2012.12.1020
[20]	W. J. An, L. Zhou, M. Kang, H. L. Yang, L. Y. Mo, Failure mode analysis of bridge pier due to eccentric impact based on separation of pier and beam, Sustainability, 2 (2023), 1435. https://doi.org/10.3390/su15021435 doi: 10.3390/su15021435
[21]	W. An, P. Zhou, P. Wang, Z. Zheng, H. Yang, Analysis of dynamic interaction and response in multispan girder bridges subjected to near-fault earthquakes, Structures, 58 (2023), 105622. https://doi.org/10.1016/j.istruc.2023.105622 doi: 10.1016/j.istruc.2023.105622
[22]	Ministry of Housing and Urban-Rural Development of China. Code for Seismic Design of Buildings 2016, GB 50011-2010.
[23]	Z. Zhai, Y. Li, S. Zhu, C. Cai, An efficient strong seismic analysis model for running safety thresholds of train-track-high pier bridge dynamic system, Eng. Struct., 357 (2026), 122476. https://doi.org/10.1016/j.engstruct.2026.12247622 doi: 10.1016/j.engstruct.2026.12247622
