Cost-effective strategies for controlling date palm mite infestations: an optimal control approach

Saleh Fahad Aljurbua; Moustafa El-Shahed; Saleh Fahad Aljurbua; Moustafa El-Shahed

doi:10.3934/math.20261058

AIMS Mathematics

2026, Volume 11, Issue 8: 26359-26396. doi: 10.3934/math.20261058

Previous Article Next Article

Research article

Cost-effective strategies for controlling date palm mite infestations: an optimal control approach

Saleh Fahad Aljurbua ^{1
,
,},
Moustafa El-Shahed ^1,2

1.
Department of Mathematics, College of Science, Qassim University, Saudi Arabia
2.
Department of Computer Science, College of Engineering and Information Technology, Onaizah Colleges, Qassim 56447, Saudi Arabia

Received: 06 April 2026 Revised: 02 August 2026 Accepted: 18 August 2026 Published: 24 August 2026
MSC : 92D25, 49J15, 49K15, 93C95, 92D40

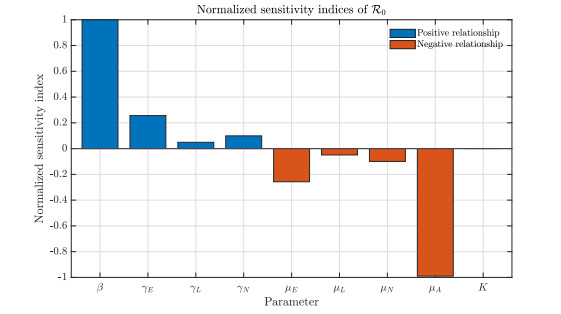

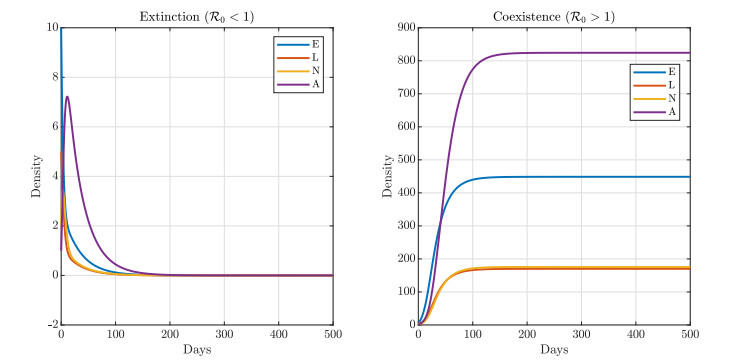

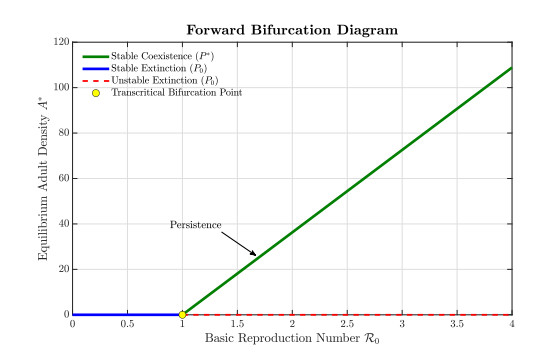

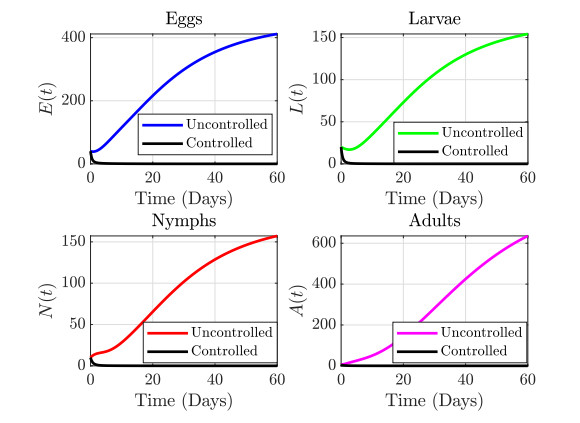

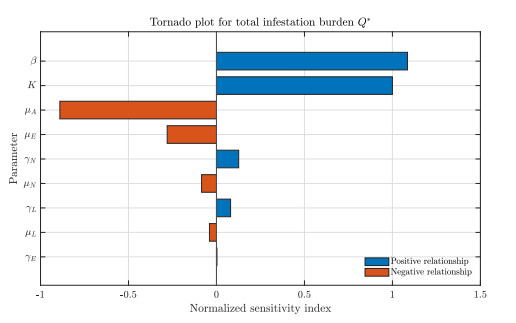

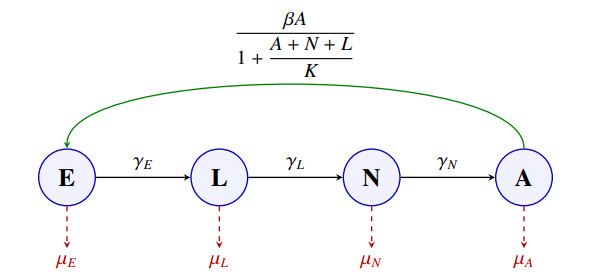

This paper develops and analyzes a stage-structured mathematical model for the population dynamics of date palm mite infestations, incorporating density-dependent saturation in egg production and explicitly accounting for the egg, larval, nymphal, and adult stages. A population reproduction threshold is derived to characterize the transition between the pest's extinction and persistence. Stability analysis shows that the extinction equilibrium is locally and globally asymptotically stable when the reproduction threshold remains below unity. Conversely, when this threshold exceeds one, a unique positive coexistence equilibrium emerges. The model is further shown to undergo a forward bifurcation at the critical threshold, indicating a smooth transition from extinction to persistence. The global stability of the coexistence equilibrium is established using persistence theory and the Li–Muldowney geometric approach. In addition, a sensitivity analysis identifies the key biological parameters governing the long-term dynamics of the mite population. An optimal control framework is formulated to minimize the infestation while balancing the implementation costs of mechanical, biological, and chemical interventions. The necessary optimality conditions are derived using Pontryagin's maximum mrinciple. Numerical simulations support the theoretical findings, and the subsequent cost-effectiveness analysis identifies the most economically efficient control strategy. Overall, the proposed framework provides useful insights into the development of sustainable and cost-effective integrated pest management strategies for date palm protection.
- mathematical model,
- optimization problems,
- sensitivity analysis,
- Lyapunov function,
- date palm mite
Citation: Saleh Fahad Aljurbua, Moustafa El-Shahed. Cost-effective strategies for controlling date palm mite infestations: an optimal control approach[J]. AIMS Mathematics, 2026, 11(8): 26359-26396. doi: 10.3934/math.20261058

Related Papers:

Abstract

This paper develops and analyzes a stage-structured mathematical model for the population dynamics of date palm mite infestations, incorporating density-dependent saturation in egg production and explicitly accounting for the egg, larval, nymphal, and adult stages. A population reproduction threshold is derived to characterize the transition between the pest's extinction and persistence. Stability analysis shows that the extinction equilibrium is locally and globally asymptotically stable when the reproduction threshold remains below unity. Conversely, when this threshold exceeds one, a unique positive coexistence equilibrium emerges. The model is further shown to undergo a forward bifurcation at the critical threshold, indicating a smooth transition from extinction to persistence. The global stability of the coexistence equilibrium is established using persistence theory and the Li–Muldowney geometric approach. In addition, a sensitivity analysis identifies the key biological parameters governing the long-term dynamics of the mite population. An optimal control framework is formulated to minimize the infestation while balancing the implementation costs of mechanical, biological, and chemical interventions. The necessary optimality conditions are derived using Pontryagin's maximum mrinciple. Numerical simulations support the theoretical findings, and the subsequent cost-effectiveness analysis identifies the most economically efficient control strategy. Overall, the proposed framework provides useful insights into the development of sustainable and cost-effective integrated pest management strategies for date palm protection.

References

[1]	S. Ben Chaaban, S. Ben Maachia, Z. Rached, K. Mahjoubi, A. Namsi, Integrated pest management strategies for Oligonychus afrasiaticus (Acari: Tetranychidae) in Tunisia, Euro-Mediterr. J. Environ. Integr., 10 (2025), 5115–5128. https://doi.org/10.1007/s41207-025-00898-9 doi: 10.1007/s41207-025-00898-9
[2]	M. Mohammed, H. El-Shafie, M. Munir, Development and validation of innovative machine learning models for predicting date palm mite infestation on fruits, Agronomy, 13 (2023), 494. https://doi.org/10.3390/agronomy13020494 doi: 10.3390/agronomy13020494
[3]	J. H. Mirza, M. Kamran, F. J. Alatawi, Phenology and abundance of date palm mite Oligonychus afrasiaticus (McGregor) (Acari: Tetranychidae) in Riyadh, Saudi Arabia, Saudi J. Biol. Sci., 28 (2021), 4348–4357. https://doi.org/10.1016/j.sjbs.2021.04.023 doi: 10.1016/j.sjbs.2021.04.023
[4]	L. R. Jeppson, H. H. Keifer, E. W. Baker, Mites injurious to economic plants, Berkeley: University of California Press, 1975. https://doi.org/10.1525/9780520335431
[5]	E. M. Yahia, A. A. Kader, Date (Phoenix dactylifera L.), In: Postharvest biology and technology of tropical and subtropical fruits, Elsevier, 2011. https://doi.org/10.1533/9780857092885.41
[6]	S. A. Ghani, M. M. Al-Azzazy, S. S. Alhewairini, M. A. Al-Deghairi, The miticidal activity of silver nanoparticles towards date palm mite (Oligonychus afrasiaticus (McGregor)): efficacy, selectivity, and risk assessment, Braz. J. Biol., 84 (2024), e261262. https://doi.org/10.1590/1519-6984.261262 doi: 10.1590/1519-6984.261262
[7]	S. A. Aldosari, Occurrence of dust mite, Oligonychus afrasiaticus on fruits, leaflets of some date palm trees and evaluation the efficiency of botanical compound (BIACO) as compared with some acaricides, Assiut Univ. Bull. Environ. Res., 12 (2009), 69–76.
[8]	F. J. Alatawi, Field studies on occurrence, alternate hosts and mortality factors of date palm mite, Oligonychus afrasiaticus (McGregor) (Acari: Tetranychidae), J. Saudi Soc. Agric. Sci., 19 (2020), 146–150. https://doi.org/10.1016/j.jssas.2018.08.003 doi: 10.1016/j.jssas.2018.08.003
[9]	L. Zhu, T. Zheng, Pattern dynamics analysis and application of West Nile virus spatiotemporal models based on higher-order network topology, Bull. Math. Biol., 87 (2025), 121. https://doi.org/10.1007/s11538-025-01501-6 doi: 10.1007/s11538-025-01501-6
[10]	J. Shi, L. Zhu, Turing pattern theory on homogeneous and heterogeneous higher-order temporal network system, J. Math. Phys., 66 (2025), 042706. https://doi.org/10.1063/5.0211728 doi: 10.1063/5.0211728
[11]	C. I. Nkeki, I. A. Mbarie, On mathematical study of juvenile delinquency with precautionary measure, public education and intervention programs as control strategies, J. Nonlinear Dyn. Appl., 2 (2026), 20–38. https://doi.org/10.62762/JNDA.2025.195550 doi: 10.62762/JNDA.2025.195550
[12]	Y. K. Park, Y. Nam, W. I. Choi, Modeling pine caterpillar, Dendrolimus spectabilis (Lepidoptera: Lasiocampidae), population dynamics with a stage-structured matrix model based on field observations, Insects, 17 (2026), 56. https://doi.org/10.3390/insects17010056 doi: 10.3390/insects17010056
[13]	M. Pobożniak, M. Olczyk, Biocontrol in integrated pest management in fruit and vegetable field production, Horticulturae, 11 (2025), 522. https://doi.org/10.3390/horticulturae11050522 doi: 10.3390/horticulturae11050522
[14]	I. R. Fitri, F. Hanum, A. Kusnanto, T. Bakhtiar, Optimal pest control strategies with cost-effectiveness analysis, Sci. World J., 2021 (2021), 6630193. https://doi.org/10.1155/2021/6630193 doi: 10.1155/2021/6630193
[15]	W. Zhou, Y. Arcot, R. F. Medina, J. Bernal, L. Cisneros-Zevallos, M. E. S. Akbulut, Integrated pest management: an update on the sustainability approach to crop protection, ACS Omega, 9 (2024), 41130–41147. https://doi.org/10.1021/acsomega.4c06628 doi: 10.1021/acsomega.4c06628
[16]	R. J. H. Beverton, S. J. Holt, On the dynamics of exploited fish populations, Ministry of Agriculture, Fisheries and Food, Fisheries Investigations, Series II, Vol. 19, 1957.
[17]	H. K. Kindsvater, M. Mangel, J. D. Reynolds, N. K. Dulvy, Ten principles from evolutionary ecology essential for effective marine conservation, Ecol. Evol., 6 (2016), 2125–2138. https://doi.org/10.1002/ece3.2012 doi: 10.1002/ece3.2012
[18]	B. van Poorten, J. Korman, C. Walters, Revisiting Beverton–Holt recruitment in the presence of variation in food availability, Rev. Fish Biol. Fish., 28 (2018), 607–624. https://doi.org/10.1007/s11160-018-9521-6 doi: 10.1007/s11160-018-9521-6
[19]	S. Ben Chaaban, B. Chermiti, S. Kreiter, Comparative demography of the spider mite, Oligonychus afrasiaticus, on four date palm varieties in southwestern Tunisia, J. Insect Sci., 11 (2011), 136. https://doi.org/10.1673/031.011.13601 doi: 10.1673/031.011.13601
[20]	E. A. Coddington, N. Levinson, Theory of ordinary differential equations, New York: McGraw–Hill, 1955.
[21]	J. K. Hale, Ordinary differential equations, New York: Dover Publications, 2009.
[22]	P. van den Driessche, J. Watmough, Reproduction numbers and sub-threshold endemic equilibria for compartmental models of disease transmission, Math. Biosci., 180 (2002), 29–48. https://doi.org/10.1016/S0025-5564(02)00108-6 doi: 10.1016/S0025-5564(02)00108-6
[23]	O. Diekmann, J. A. P. Heesterbeek, M. G. Roberts, The construction of next-generation matrices for compartmental epidemic models, J. R. Soc. Interface, 7 (2010), 873–885. https://doi.org/10.1098/rsif.2009.0386 doi: 10.1098/rsif.2009.0386
[24]	J. K. Hale, P. Waltman, Persistence in infinite-dimensional systems, SIAM J. Math. Anal., 20 (1989), 388–395. https://doi.org/10.1137/0520025 doi: 10.1137/0520025
[25]	H. L. Smith, H. R. Thieme, Dynamical systems and population persistence, Graduate Studies in Mathematics, Vol. 118, Providence, RI: American Mathematical Society, 2011. https://doi.org/10.1090/gsm/118
[26]	X. Q. Zhao, Dynamical systems in population biology, New York: Springer, 2003. https://doi.org/10.1007/978-0-387-21761-1
[27]	H. I. Freedman, P. Waltman, Persistence in models of three interacting predator–prey populations, Math. Biosci., 68 (1984), 213–231. https://doi.org/10.1016/0025-5564(84)90032-4 doi: 10.1016/0025-5564(84)90032-4
[28]	M. Y. Li, J. S. Muldowney, A geometric approach to global-stability problems, SIAM J. Math. Anal., 27 (1996), 1070–1083. https://doi.org/10.1137/S0036141094266449 doi: 10.1137/S0036141094266449
[29]	F. R. Gantmacher, The theory of matrices, Vol. 2, New York: Chelsea Publishing, 1959.
[30]	C. Castillo-Chavez, B. Song, Dynamical models of tuberculosis and their applications, Math. Biosci. Eng., 1 (2004), 361–404. https://doi.org/10.3934/mbe.2004.1.361 doi: 10.3934/mbe.2004.1.361
[31]	W. H. Fleming, R. W. Rishel, Deterministic and stochastic optimal control, New York: Springer, 1975. https://doi.org/10.1007/978-1-4612-6380-7
[32]	L. S. Pontryagin, V. G. Boltyanskii, R. V. Gamkrelidze, E. F. Mishchenko, The mathematical theory of optimal processes, New York: Interscience Publishers, 1962.
[33]	S. Lenhart, J. T. Workman, Optimal control applied to biological models, Chapman & Hall/CRC, Boca Raton, FL, 2007. https://doi.org/10.1201/9781420011418
[34]	G. Zhang, Y. Shen, B. Chen, Positive periodic solutions in a non-selective harvesting predator–prey model with multiple delays, J. Math. Anal. Appl., 395 (2012), 298–306. https://doi.org/10.1016/j.jmaa.2012.05.045 doi: 10.1016/j.jmaa.2012.05.045
