Research article

A degree-one Vassiliev invariant for planar knotoids via $ 0 $-smoothing

  • Published: 20 August 2026
  • MSC : 57K12, 57K14, 57K16

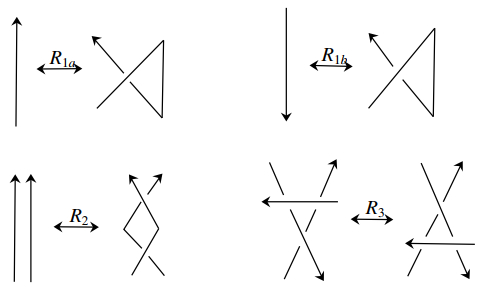

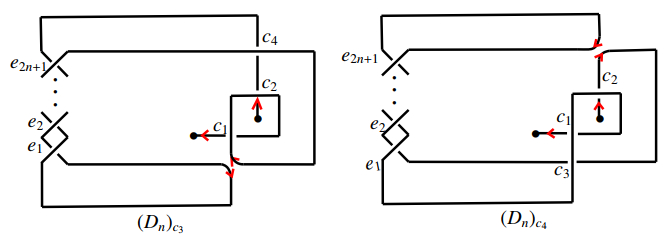

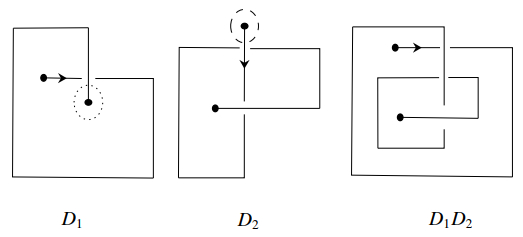

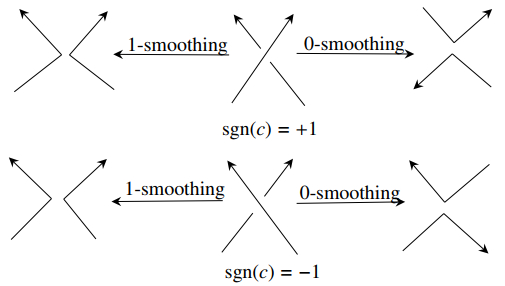

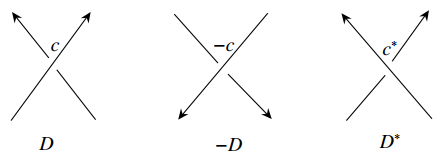

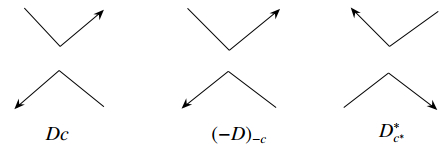

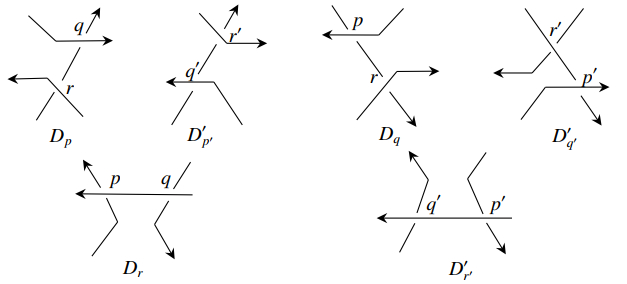

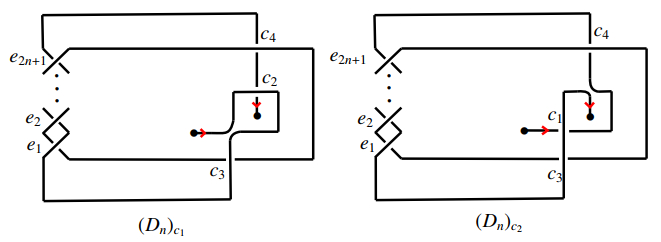

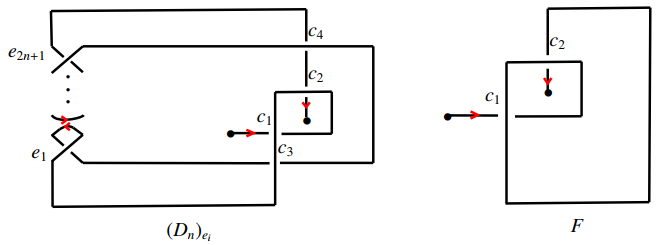

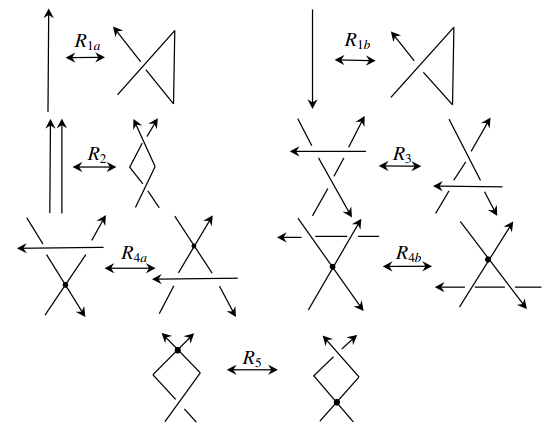

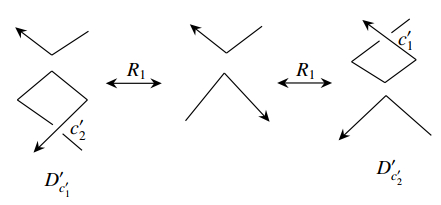

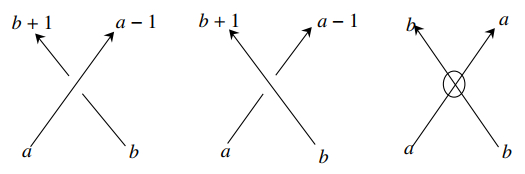

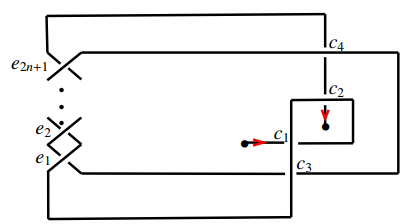

  • We introduce a smoothing-based Laurent polynomial invariant for oriented planar knotoids by combining affine index weights with endpoint winding data. For a planar knotoid diagram $ D $, we first define an auxiliary ordered winding Laurent polynomial $ H_D(x, y) $, whose summands record the affine index weight of each classical crossing together with the homology class of the associated lobe in the twice-punctured plane. We then apply $ 0 $-smoothing against the orientation at each crossing and define $ F_D(x, y) $ by combining the resulting changes in $ H_D(x, y) $ with a writhe correction. We prove that both $ H_D(x, y) $ and $ F_D(x, y) $ are invariant under planar isotopy and the classical Reidemeister moves performed away from the endpoints. We also determine their behavior under orientation reversal and mirror image and establish an additivity formula for $ F_D(x, y) $ under the planar product, subject to the specified exterior region condition. To illustrate the information supplied by smoothing, we construct an infinite family of planar knotoids for which the affine index polynomial and $ H_D(x, y) $ are independent of the parameter, whereas $ F_D(x, y) $ distinguishes all members of the family. Finally, by extending $ F_D(x, y) $ to singular planar knotoids through the Vassiliev skein relation, we prove that it is a finite-type invariant of degree exactly one. These results provide a connection between affine index methods, endpoint winding information, and smoothing operations in planar knotoid theory.

    Citation: Liang Liang, Fangyu Jin, Liyuan Ma. A degree-one Vassiliev invariant for planar knotoids via $ 0 $-smoothing[J]. AIMS Mathematics, 2026, 11(8): 25874-25896. doi: 10.3934/math.20261037

    Related Papers:

  • We introduce a smoothing-based Laurent polynomial invariant for oriented planar knotoids by combining affine index weights with endpoint winding data. For a planar knotoid diagram $ D $, we first define an auxiliary ordered winding Laurent polynomial $ H_D(x, y) $, whose summands record the affine index weight of each classical crossing together with the homology class of the associated lobe in the twice-punctured plane. We then apply $ 0 $-smoothing against the orientation at each crossing and define $ F_D(x, y) $ by combining the resulting changes in $ H_D(x, y) $ with a writhe correction. We prove that both $ H_D(x, y) $ and $ F_D(x, y) $ are invariant under planar isotopy and the classical Reidemeister moves performed away from the endpoints. We also determine their behavior under orientation reversal and mirror image and establish an additivity formula for $ F_D(x, y) $ under the planar product, subject to the specified exterior region condition. To illustrate the information supplied by smoothing, we construct an infinite family of planar knotoids for which the affine index polynomial and $ H_D(x, y) $ are independent of the parameter, whereas $ F_D(x, y) $ distinguishes all members of the family. Finally, by extending $ F_D(x, y) $ to singular planar knotoids through the Vassiliev skein relation, we prove that it is a finite-type invariant of degree exactly one. These results provide a connection between affine index methods, endpoint winding information, and smoothing operations in planar knotoid theory.



    加载中


    [1] V. Turaev, Knotoids, Osaka J. Math., 49 (2012), 195–223.
    [2] N. Gügümcü, S. Nelson, N. Oyamaguchi, Biquandle brackets and knotoids, J. Knot Theory Ramifications, 30 (2021), 2150064. https://doi.org/10.1142/S0218216521500644 doi: 10.1142/S0218216521500644
    [3] N. Gügümcü, S. Nelson, Biquandle coloring invariants of knotoids, J. Knot Theory Ramifications, 28 (2019), 1950029. https://doi.org/10.1142/S0218216519500299 doi: 10.1142/S0218216519500299
    [4] N. Gügümcü, L. H. Kauffman, New invariants of knotoids, Eur. J. Combin., 65 (2017), 186–229. https://doi.org/10.1016/j.ejc.2017.06.004 doi: 10.1016/j.ejc.2017.06.004
    [5] K. Bataineh, New polynomial invariants of knotoids and the theory of polar knots, Mediterr. J. Math., 19 (2022), 40. https://doi.org/10.1007/s00009-021-01974-4 doi: 10.1007/s00009-021-01974-4
    [6] A. Henrich, A sequence of degree one Vassiliev invariants for virtual knots, J. Knot Theory Ramifications, 19 (2010), 461–487. https://doi.org/10.1142/S0218216510007917 doi: 10.1142/S0218216510007917
    [7] M. Manouras, S. Lambropoulou, L. H. Kauffman, Finite type invariants for knotoids, Eur. J. Combin., 98 (2021), 103402. https://doi.org/10.1016/j.ejc.2021.103402 doi: 10.1016/j.ejc.2021.103402
    [8] N. Gügümcü, L. H. Kauffman, Quantum invariants of knotoids, Commun. Math. Phys., 387 (2021), 1681–1728. https://doi.org/10.1007/s00220-021-04081-3 doi: 10.1007/s00220-021-04081-3
    [9] S. Kim, Y. H. Im, S. Lee, A family of polynomial invariants for knotoids, J. Knot Theory Ramifications, 27 (2018), 1843001. https://doi.org/10.1142/S0218216518430010 doi: 10.1142/S0218216518430010
    [10] Y. Feng, F. Li, The $F$-polynomial invariant for knotoids, J. Knot Theory Ramifications, 33 (2024), 2450032. https://doi.org/10.1142/S0218216524500329 doi: 10.1142/S0218216524500329
    [11] K. Bataineh, F. Batayneh, A. H. Alkasasbeh, A new invariant of planar knotoids and finite-type invariants, J. Knot Theory Ramifications, 32 (2023), 2350077. https://doi.org/10.1142/S0218216523500773 doi: 10.1142/S0218216523500773
    [12] D. Kutluay, Winding homology of knotoids, Ph.D. Thesis, Indiana University, 2020.
    [13] N. Gügümcü, L. H. Kauffman, S. Lambropoulou, A survey on knotoids, braidoids and their applications, In: C. C. Adams, C. M. Gordon, V. F. R. Jones, L. H. Kauffman, S. Lambropoulou, K. C. Millett, et al., Knots, low-dimensional topology and applications, Springer, 2019,389–409. https://doi.org/10.1007/978-3-030-16031-9_19
    [14] K. Bataineh, M. Elhamdadi, M. Hajij, W. Youmans, Generating sets of Reidemeister moves of oriented singular links and quandles, J. Knot Theory Ramifications, 27 (2018), 1850064. https://doi.org/10.1142/S0218216518500645 doi: 10.1142/S0218216518500645
    [15] M. Polyak, Minimal generating sets of Reidemeister moves, Quantum Topol., 1 (2010), 399–411. https://doi.org/10.4171/QT/10 doi: 10.4171/QT/10
    [16] L. H. Kauffman, An affine index polynomial invariant of virtual knots, J. Knot Theory Ramifications, 22 (2013), 1340007. https://doi.org/10.1142/S0218216513400075 doi: 10.1142/S0218216513400075
    [17] Z. Cheng, H. Gao, A polynomial invariant of virtual links, J. Knot Theory Ramifications, 22 (2013), 1341002. https://doi.org/10.1142/S0218216513410022 doi: 10.1142/S0218216513410022
    [18] M. Elhamdadi, W. Moltmaker, M. Saito, Planar equivalence of knotoids and quandle invariants, Topol. Appl., 369 (2025), 109407. https://doi.org/10.1016/j.topol.2025.109407 doi: 10.1016/j.topol.2025.109407
