To mitigate ionic transport through connected pores in anodic aluminum oxide (AAO), a multicomponent silica sol-gel sealing process was applied to AA6061. By varying concentrations of nano-silicon dioxide (SiO2)—specifically, 0, 2, 4, and 8 g·L-1—the relationships among coating microstructure, electrochemical response, and corrosion resistance were systematically evaluated. The results indicate that the response to a SiO2 concentration of 2 g·L-1 is the most favorable among the tested concentrations. The number of open pores decreased, pore apertures narrowed, and cross-sectional densification was enhanced by this concentration. The total resistance, contributed by both porous and barrier layers, was 191 kΩ·cm2. The corrosion current density decreased to 0.61 μA·cm-2. The sealed coating showed a lower corrosion rate in phosphoric acid immersion and maintained surface integrity after 720 h of neutral salt spray exposure. These findings indicate that silica is incorporated within the pores, effectively filling and extending diffusion pathways. As a result, the pores become less accessible, and the connectivity of the pore network is reduced. The results indicate an effective range of SiO2 concentration for anodized AA6061, where improved corrosion resistance and enhanced protective characteristics of the anodic oxide layer contribute to greater material durability in corrosive environments.
Citation: Chengxuan Lu, Sanchen Xu, Peikun Wang, Xuefei Li, Haijun Ma, Hua Tong, Xinyi Zhou, Jiamin Zhao. Enhancing corrosion resistance of anodized aluminum alloy 6061 via multicomponent silica sol-gel sealing[J]. AIMS Materials Science, 2026, 13(1): 120-140. doi: 10.3934/matersci.2026007
To mitigate ionic transport through connected pores in anodic aluminum oxide (AAO), a multicomponent silica sol-gel sealing process was applied to AA6061. By varying concentrations of nano-silicon dioxide (SiO2)—specifically, 0, 2, 4, and 8 g·L-1—the relationships among coating microstructure, electrochemical response, and corrosion resistance were systematically evaluated. The results indicate that the response to a SiO2 concentration of 2 g·L-1 is the most favorable among the tested concentrations. The number of open pores decreased, pore apertures narrowed, and cross-sectional densification was enhanced by this concentration. The total resistance, contributed by both porous and barrier layers, was 191 kΩ·cm2. The corrosion current density decreased to 0.61 μA·cm-2. The sealed coating showed a lower corrosion rate in phosphoric acid immersion and maintained surface integrity after 720 h of neutral salt spray exposure. These findings indicate that silica is incorporated within the pores, effectively filling and extending diffusion pathways. As a result, the pores become less accessible, and the connectivity of the pore network is reduced. The results indicate an effective range of SiO2 concentration for anodized AA6061, where improved corrosion resistance and enhanced protective characteristics of the anodic oxide layer contribute to greater material durability in corrosive environments.
| [1] |
Ofoegbu SU, Fernandes FAO, Pereira AB (2020) The sealing step in aluminum anodizing: A focus on sustainable strategies for enhancing both energy efficiency and corrosion resistance. Coatings 10: 226. https://doi.org/10.3390/coatings10030226 doi: 10.3390/coatings10030226
|
| [2] |
Razzouk E, Koncz-Horváth D, Török TI (2024) Critical challenges in the anodizing process of aluminium-silicon cast alloys—A review. Crystals 14: 617. https://doi.org/10.3390/cryst14070617 doi: 10.3390/cryst14070617
|
| [3] |
Paz Martínez-Viademonte M, Abrahami ST, Hack T, et al. (2020) A review on anodizing of aerospace aluminum alloys for corrosion protection. Coatings 10: 1106. https://doi.org/10.3390/coatings10111106 doi: 10.3390/coatings10111106
|
| [4] |
Jo H, Lee S, Kim D, et al. (2020) Low temperature sealing of anodized aluminum alloy for enhancing corrosion resistance. Materials 13: 4904. https://doi.org/10.3390/ma13214904 doi: 10.3390/ma13214904
|
| [5] |
Ono S (2021) Nanostructure analysis of anodic films formed on aluminum-focusing on the effects of electric field strength and electrolyte anions. Molecules 26: 7270. https://doi.org/10.3390/molecules26237270 doi: 10.3390/molecules26237270
|
| [6] |
Ono S, Asoh H (2021) Mechanism of hot water sealing of anodic films formed on aluminum. Corros Sci 181: 109221. https://doi.org/10.1016/j.corsci.2020.109221 doi: 10.1016/j.corsci.2020.109221
|
| [7] |
Capelossi VR, Poelman M, Recloux I, et al. (2014) Corrosion protection of clad 2024 aluminum alloy anodized in tartaric-sulfuric acid bath and protected with hybrid sol-gel coating. Electrochim Acta 124: 69-79. https://doi.org/10.1016/j.electacta.2013.09.004 doi: 10.1016/j.electacta.2013.09.004
|
| [8] |
Agustín-Sáenz C, Martín-Ugarte E, Pérez-Allende B, et al. (2021) Effect of ethylene glycol dimethacrylate on VOC reduction, rheological, mechanical and anticorrosion properties of a hybrid sol-gel coating on AA2024-T3 and sulfuric acid anodized AA2024-T3. Prog Org Coat 159: 106408. https://doi.org/10.1016/j.porgcoat.2021.106408 doi: 10.1016/j.porgcoat.2021.106408
|
| [9] |
Collazo A, Ezpeleta I, Figueroa R, et al. (2020) Corrosion protection properties of anodized AA2024T3 alloy sealing with organic-based species. Prog Org Coat 147: 105779. https://doi.org/10.1016/j.porgcoat.2020.105779 doi: 10.1016/j.porgcoat.2020.105779
|
| [10] |
Covelo A, Rodil S, Nóvoa XR, et al. (2022) Development and characterization of sealed anodizing as a corrosion protection for AA2024-T3 in saline media. Mater Today Commun 31: 103468. https://doi.org/10.1016/j.mtcomm.2022.103468 doi: 10.1016/j.mtcomm.2022.103468
|
| [11] |
Scampone G, Timelli G (2023) The influence of sealing processes and machining operations on the scratch and wear resistance of anodized AlSi9Cu3(Fe) diecasting alloy. JOM 76: 196-208. https://doi.org/10.1007/s11837-023-06241-3 doi: 10.1007/s11837-023-06241-3
|
| [12] |
Yasakau KA, Kuznetsova A, Kallip S, et al. (2018) A novel bilayer system comprising LDH conversion layer and sol-gel coating for active corrosion protection of AA2024. Corros Sci 143: 299-313. https://doi.org/10.1016/j.corsci.2018.08.039 doi: 10.1016/j.corsci.2018.08.039
|
| [13] |
Druart ME, Recloux I, Thai TT, et al. (2016) Impact of the addition of cerium salts (Ce(III) and Ce(IV)) on formation and ageing of a silica sol-gel layer. Surf Coat Technol 304: 40-50. https://doi.org/10.1016/j.surfcoat.2016.07.006 doi: 10.1016/j.surfcoat.2016.07.006
|
| [14] |
del Olmo R, López E, Matykina E, et al. (2023) Hybrid PEO/sol-gel coatings loaded with Ce for corrosion protection of AA2024-T3. Prog Org Coat 182: 107667. https://doi.org/10.1016/j.porgcoat.2023.107667 doi: 10.1016/j.porgcoat.2023.107667
|
| [15] |
del Olmo R, Tiringer U, Milošev I, et al. (2021) Hybrid sol-gel coatings applied on anodized AA2024-T3 for active corrosion protection. Surf Coat Technol 419: 127251. https://doi.org/10.1016/j.surfcoat.2021.127251 doi: 10.1016/j.surfcoat.2021.127251
|
| [16] |
Hou MY, Pan CC, Wang MY, et al. (2024) Improving the cavitation corrosion resistance of 6061 aluminum alloy by anodizing. Electrochim Acta 503: 144890. https://doi.org/10.1016/j.electacta.2024.144890 doi: 10.1016/j.electacta.2024.144890
|
| [17] |
Yasakau KA, Starykevich M, Ferreira MGS, et al. (2021) A critical look at interpretation of electrochemical impedance spectra of sol-gel coated aluminium. Electrochim Acta 378: 138091. https://doi.org/10.1016/j.electacta.2021.138091 doi: 10.1016/j.electacta.2021.138091
|
| [18] |
AlShamaileh E, Altwaiq AM, Esaifan M, et al. (2022) Study of the microstructure, corrosion and optical properties of anodized aluminum for solar heating applications. Metals 12: 1635. https://doi.org/10.3390/met12101635 doi: 10.3390/met12101635
|
| [19] |
Yu S, Wang L, Wu C, et al. (2020) Studies on the corrosion performance of an effective and novel sealing anodic oxide coating. J Alloys Compd 817: 153257. https://doi.org/10.1016/j.jallcom.2019.153257 doi: 10.1016/j.jallcom.2019.153257
|
| [20] |
Hao XL, Zhao N, Jin HH, et al. (2020) Nickel-free sealing technology for anodic oxidation film of aluminum alloy at room temperature. Rare Met 40: 968-974. https://doi.org/10.1007/s12598-020-01410-8 doi: 10.1007/s12598-020-01410-8
|
| [21] |
Li W, Liu P, Meng J, et al. (2016) Microstructure and mechanical property of TiSiN nanocomposite film with inserted CrAlN nanomultilayers. Surf Coat Technol 286: 313-318. https://doi.org/10.1016/j.surfcoat.2015.12.033 doi: 10.1016/j.surfcoat.2015.12.033
|
| [22] |
Wang YB, Huang QY, Zhou BT, et al. (2021) Corrosion protection of 6061 aluminum alloys by sol-gel coating modified with ZnLaAl-LDHs. Coatings 11: 478. https://doi.org/10.3390/coatings11040478 doi: 10.3390/coatings11040478
|
| [23] |
Li J, Wang LY, Bai HH, et al. (2023) Development of an eco-friendly waterborne polyurethane/catecholamine/sol-gel composite coating for achieving long-lasting corrosion protection on Mg alloy AZ31. Prog Org Coat 183: 107732. https://doi.org/10.1016/j.porgcoat.2023.107732 doi: 10.1016/j.porgcoat.2023.107732
|
| [24] |
Li J, Li S, Chen C, et al. (2023) Dopamine self-polymerized sol-gel coating for corrosion protection of AZ31 Mg alloy. Colloids Surf A 666: 131283. https://doi.org/10.1016/j.colsurfa.2023.131283 doi: 10.1016/j.colsurfa.2023.131283
|
| [25] |
Chen ZG, Zhang GF, Bobaru F (2015) The influence of passive film damage on pitting corrosion. J Electrochem Soc 163: C19-C24. https://doi.org/10.1149/2.0521602jes doi: 10.1149/2.0521602jes
|
| [26] |
Poznyak A, Pligovka A, Turavets U, et al. (2020) On-aluminum and barrier anodic oxide: Meeting the challenges of chemical dissolution rate in various acids and solutions. Coatings 10: 875. https://doi.org/10.3390/coatings10090875 doi: 10.3390/coatings10090875
|
| [27] |
Park J, Son K, Lee J, et al. (2021) Effects of anodizing conditions on thermal properties of Al 20XX alloys for aircraft. Symmetry 13: 433. https://doi.org/10.3390/sym13030433 doi: 10.3390/sym13030433
|
| [28] |
Macera L, Pullini D, Boschetto A, et al. (2023) Sol-gel silica coatings for corrosion protection of aluminum parts manufactured by selective laser melting (SLM) technology. Coatings 13: 1081. https://doi.org/10.3390/coatings13061081 doi: 10.3390/coatings13061081
|
| [29] |
Lu BJ, Lin KT, Kuo YM, et al. (2021) Preparation of high-transparency, superhydrophilic visible photo-induced photocatalytic film via a rapid plasma-modification process. Coatings 11: 784. https://doi.org/10.3390/coatings11070784 doi: 10.3390/coatings11070784
|
| [30] |
Poznyak A, Pligovka A, Laryn T, et al. (2021) Porous alumina films fabricated by reduced temperature sulfuric acid anodizing: morphology, composition and volumetric growth. Materials 14: 767. https://doi.org/10.3390/ma14040767 doi: 10.3390/ma14040767
|
| [31] |
Whelan M, Cassidy J, Duffy B (2013) Sol-gel sealing characteristics for corrosion resistance of anodised aluminium. Surf Coat Technol 235: 86-96. https://doi.org/10.1016/j.surfcoat.2013.07.018 doi: 10.1016/j.surfcoat.2013.07.018
|
| [32] |
Merino E, Durán A, Ceré S, et al. (2022) Hybrid epoxy-alkyl sol-gel coatings reinforced with SiO2 nanoparticles for corrosion protection of anodized AZ31B Mg alloy. Gels 8: 242. https://doi.org/10.3390/gels8040242 doi: 10.3390/gels8040242
|
| [33] |
Godja N, Munteanu FD (2025) Environmentally friendly solutions as potential alternatives to chromium-based anodization and chromate sealing for aeronautic applications. Coatings 15: 439. https://doi.org/10.3390/coatings15040439 doi: 10.3390/coatings15040439
|
| [34] |
Prada Ramirez OM, Kremmer TM, Marin JH, et al. (2023) Ce nanoparticles and sol-gel hybrid organic-inorganic coatings maximize corrosion protection in the anodized AA2024-T3. Corros Sci 221: 111330. https://doi.org/10.1016/j.corsci.2023.111330 doi: 10.1016/j.corsci.2023.111330
|
| [35] |
Zandi Zand R, Verbeken K, Adriaens A (2012) Corrosion resistance performance of cerium doped silica sol-gel coatings on 304L stainless steel. Prog Org Coat 75: 463-473. https://doi.org/10.1016/j.porgcoat.2012.06.008 doi: 10.1016/j.porgcoat.2012.06.008
|
| [36] |
Adel M, Fathy DS, El-Eneen OA (2025) Environmentally sustainable epoxy nanocomposite coating reinforced with chitosan derived nitrogen doped graphene for enhanced corrosion resistance and mechanical performance. Sci Rep 15: 30617. https://doi.org/10.1038/s41598-025-11204-6 doi: 10.1038/s41598-025-11204-6
|
| [37] |
Fori B, Taberna PL, Arurault L, et al. (2012) Electrophoretic impregnation of porous anodic aluminum oxide film by silica nanoparticles. Colloids Surf A 415: 187-194. https://doi.org/10.1016/j.colsurfa.2012.09.011 doi: 10.1016/j.colsurfa.2012.09.011
|
| [38] |
He T, Wang YC, Zhang YJ, et al. (2009) Super-hydrophobic surface treatment as corrosion protection for aluminum in seawater. Corros Sci 51: 1757-1761. https://doi.org/10.1016/j.corsci.2009.04.027 doi: 10.1016/j.corsci.2009.04.027
|
| [39] |
Qin JR, Zhou XR, Curioni M (2023) Investigation of oxide growth during hard anodizing using in-situ and ex-situ EIS measurements. Surf Coat Technol 470: 129851. https://doi.org/10.1016/j.surfcoat.2023.129851 doi: 10.1016/j.surfcoat.2023.129851
|
| [40] |
Dabiri Havigh M, Marcoen K, Wouters B, et al. (2024) Application of operando ORP-EIS for the in-situ monitoring of acid anion incorporation during anodizing. Electrochim Acta 493: 144395. https://doi.org/10.1016/j.electacta.2024.144395 doi: 10.1016/j.electacta.2024.144395
|
| [41] | ASTM International (2023) Standard practice for calculation of corrosion rates and related information from electrochemical measurements. ASTM G102-23. West Conshohocken, PA: ASTM International. https://doi.org/10.1520/G0102-23 |
| [42] |
Zhang C, Zhang DZ, Pan XZ, et al. (2022) Mechanism, application, and research progress of sealing technology for anodic oxide films on aluminum and its alloys. Electroplat Finish 41: 1305-1312. https://doi.org/10.19289/j.1004-227x.2022.18.007 doi: 10.19289/j.1004-227x.2022.18.007
|
| [43] | ASTM International (2011) Standard practice for operating salt spray (fog) apparatus. ASTM B117-11. West Conshohocken, PA: ASTM International. https://doi.org/10.1520/B0117-11 |
| [44] |
Totaro P, Khusid B (2022) Effect of current density ramping on the growth rate and structure of AA2024-T3. Materials 15: 3258. https://doi.org/10.3390/ma15093258 doi: 10.3390/ma15093258
|
| [45] |
Yanagimoto H, Saito K, Takahashi H, et al. (2022) Changes in the structure and corrosion protection ability of porous anodic oxide films on pure Al and Al alloys by pore sealing treatment. Materials 15: 8544.. https://doi.org/10.3390/ma15238544 doi: 10.3390/ma15238544
|
| [46] |
Kang YX, Li ZI, Yan SF, et al. (2024) Optimization of anodizing conditions and hole sealing treatments for enhanced anti-corrosion properties of magnesium alloys. Ceram Int 50: 25667-25678. https://doi.org/10.1016/j.ceramint.2024.04.302 doi: 10.1016/j.ceramint.2024.04.302
|
| [47] |
Yang EH, Yang RX, Wei W, et al. (2024) Corrosion resistance and antibacterial properties of hydrophobic modified Ce-doped micro-arc oxidation coating. J Mater Res Technol 29: 3303-3316. https://doi.org/10.1016/j.jmrt.2024.02.052 doi: 10.1016/j.jmrt.2024.02.052
|
| [48] |
Robinson KJ, Thissen H (2024) Selecting the best surface analysis method for your materials/samples. J Vac Sci Technol A 42: 040801. https://doi.org/10.1116/6.0003576 doi: 10.1116/6.0003576
|
| [49] |
Chen C, Yu M, Zhan ZW, et al. (2023) Effect of pH on the structure and corrosion protection properties of sol-gel coatings. Corros Sci 212: 110955. https://doi.org/10.1016/j.corsci.2022.110955 doi: 10.1016/j.corsci.2022.110955
|
| [50] |
Ferraris M, Benelli A, Casalegno V, et al. (2024) Joining and coating of plasma electrolytic oxydated aluminum using a silica preceramic polymer. Coatings 14: 757. https://doi.org/10.3390/coatings14060757 doi: 10.3390/coatings14060757
|
| [51] |
Catauro M, Blanco I, Fiorentino M, et al. (2022) Synthesis by sol‐gel route, chemical, and biological characterization of hybrid material composed by Fe(II)C and poly(ε‐caprolactone). Macromol Symp 404: 404. https://doi.org/10.1002/masy.202100263 doi: 10.1002/masy.202100263
|
| [52] |
Ramasamy SP, Veeraswamy D, Ettiyagounder P, et al. (2023) New insights into method development and characterization of amorphous silica from wheat straw. Silicon 15: 5049-5063. https://doi.org/10.1007/s12633-023-02396-5 doi: 10.1007/s12633-023-02396-5
|
| [53] |
Catauro M, D'Angelo A, Viola V, et al. (2023) Antibacterial and cytotoxic silica-polycaprolactone-chlorogenic acid hybrids by sol-gel route. Molecules 28: 3486. https://doi.org/10.3390/molecules28083486 doi: 10.3390/molecules28083486
|
| [54] |
Ghaffari Y, Saifuddin M, Kim S, et al. (2022) A novel metal-containing mesoporous silica composite for the decolorization of Rhodamine B: Effect of metal content on structure and performance. Nanomaterials 12: 4108. https://doi.org/10.3390/nano12234108 doi: 10.3390/nano12234108
|
| [55] |
Jafari-Tarzanagh Y, Seifzadeh D, Khodayari A, et al. (2022) Active corrosion protection of AA2024 aluminum alloy by sol-gel coating containing inhibitor-loaded mesoporous SBA-15. Prog Org Coat 173: 107166. https://doi.org/10.1016/j.porgcoat.2022.107166 doi: 10.1016/j.porgcoat.2022.107166
|
| [56] |
Mopon ML, Garcia JS, Manguerra DM, et al. (2021) Corrosion behavior of AA 1100 anodized in gallic-sulfuric acid solution. Coatings 11: 405. https://doi.org/10.3390/coatings11040405 doi: 10.3390/coatings11040405
|
| [57] |
Shao LL, Li HT, Jiang BL, et al. (2018) A comparative study of corrosion behavior of hard anodized and micro-arc oxidation coatings on 7050 aluminum alloy. Metals 8: 165. https://doi.org/10.3390/met8030165 doi: 10.3390/met8030165
|
| [58] |
Hirschorn B, Orazem ME, Tribollet B, et al. (2010) Determination of effective capacitance and film thickness from constant-phase-element parameters. Electrochim Acta 55: 6218-6227. https://doi.org/10.1016/j.electacta.2009.10.065 doi: 10.1016/j.electacta.2009.10.065
|
| [59] |
Cabral-Miramontes J, Cabral-Miramontes N, Nieves-Mendoza D, et al. (2024) Anodizing of AA2024 aluminum-copper alloy in citric-sulfuric acid solution: Effect of current density on corrosion resistance. Coatings 14: 816. https://doi.org/10.3390/coatings14070816 doi: 10.3390/coatings14070816
|
| [60] |
Zeng DP, Liu ZY, Bai S, et al. (2019) Influence of sealing treatment on the corrosion resistance of PEO coated Al-Zn-Mg-Cu alloy in various environments. Coatings 9: 867. https://doi.org/10.3390/coatings9120867 doi: 10.3390/coatings9120867
|
| [61] |
Singh H, Xiong Y, Rani E, et al. (2022) Unveiling nano-scaled chemical inhomogeneity impacts on corrosion of Ce-modified 2507 super-duplex stainless steels. npj Mater Degrad 6: 54. https://doi.org/10.1038/s41529-022-00263-z doi: 10.1038/s41529-022-00263-z
|
| [62] |
Zheng SX, Li JH (2010) Inorganic-organic sol gel hybrid coatings for corrosion protection of metals. J Sol-Gel Sci Technol 54: 174-187. https://doi.org/10.1007/s10971-010-2173-1 doi: 10.1007/s10971-010-2173-1
|
| [63] |
Xu XC, Liu DX, Zhang XH, et al. (2020) Effects of ultrasonic surface rolling on the localized corrosion behavior of 7B50-T7751 aluminum alloy. Materials 13: 738. https://doi.org/10.3390/ma13030738 doi: 10.3390/ma13030738
|
| [64] |
Akbarzadeh S, Paint Y, Olivier MG (2023) A comparative study of different sol-gel coatings for sealing the plasma electrolytic oxidation (PEO) layer on AA2024 alloy. Electrochim Acta 443: 141930. https://doi.org/10.1016/j.electacta.2023.141930 doi: 10.1016/j.electacta.2023.141930
|
| [65] |
Usman BJ, Scenini F, Curioni M (2020) The effect of exposure conditions on performance evaluation of post-treated anodic oxides on an aerospace aluminium alloy: Comparison between salt spray and immersion testing. Surf Coat Technol 399: 126157. https://doi.org/10.1016/j.surfcoat.2020.126157 doi: 10.1016/j.surfcoat.2020.126157
|
| [66] |
Wang C, Sun SN, Ling YH, et al. (2024) The corrosion resistance of tartaric-sulfuric acid anodic films on the 2024 Al alloy sealed using different methods. Coatings 14: 733. https://doi.org/10.3390/coatings14060733 doi: 10.3390/coatings14060733
|

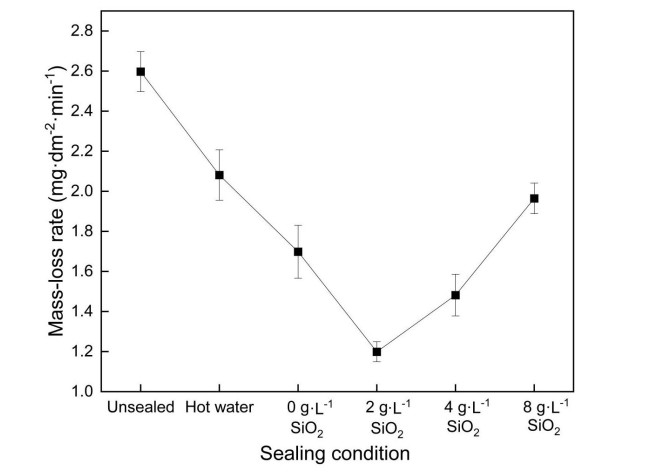

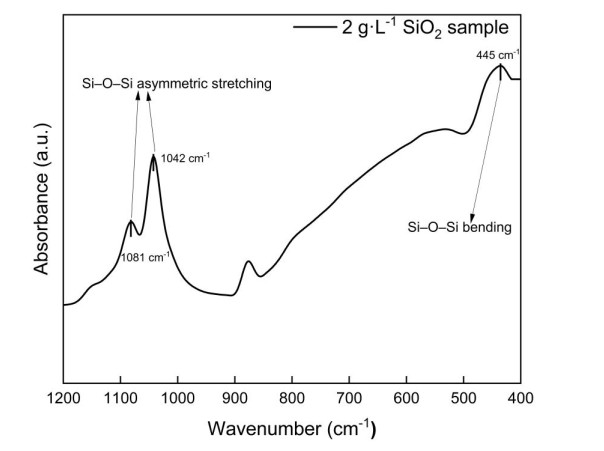

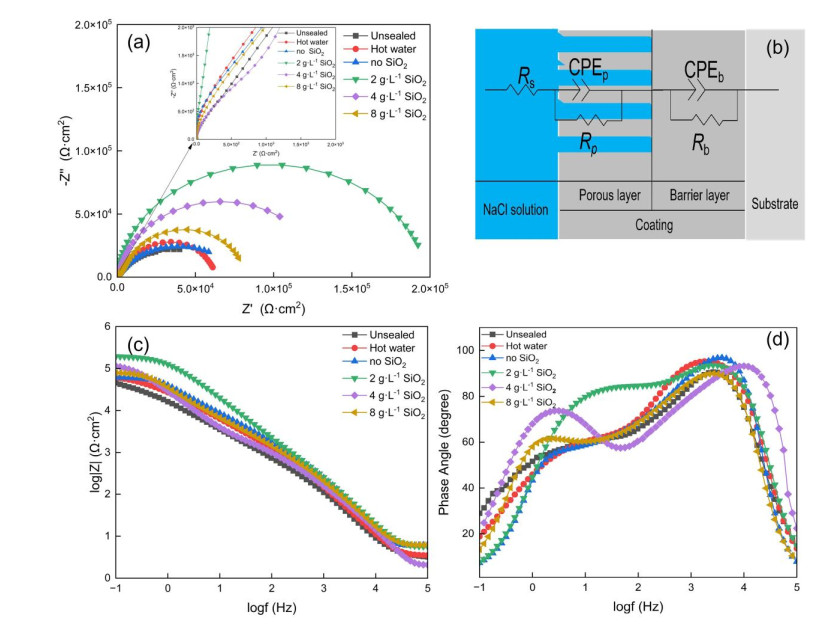

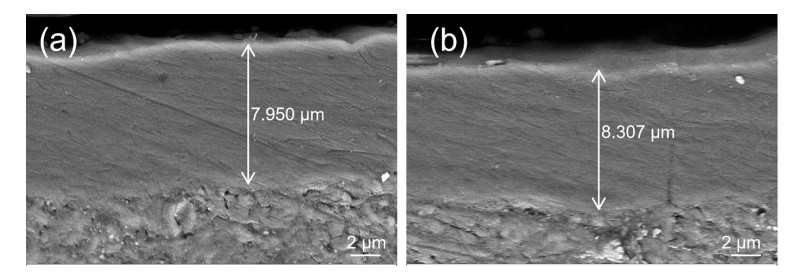

Figures(7) / Tables(3)
Chengxuan Lu, Sanchen Xu, Peikun Wang, Xuefei Li, Haijun Ma, Hua Tong, Xinyi Zhou, Jiamin Zhao. Enhancing corrosion resistance of anodized aluminum alloy 6061 via multicomponent silica sol-gel sealing[J]. AIMS Materials Science, 2026, 13(1): 120-140. doi: 10.3934/matersci.2026007
DownLoad:
