Experimental study on the mechanical properties of red clay stabilized by cement and multi-source solid wastes

Xunan Li; Xiang Zhou; Michael Adeyemi; Xunan Li; Xiang Zhou; Michael Adeyemi

doi:10.3934/matersci.2026025

AIMS Materials Science

2026, Volume 13, Issue 3: 518-537. doi: 10.3934/matersci.2026025

Previous Article Next Article

Research article

Experimental study on the mechanical properties of red clay stabilized by cement and multi-source solid wastes

School of Civil Engineering, Xijing University, Xian, Shaanxi Province, 710123, China

Received: 11 March 2026 Revised: 20 May 2026 Accepted: 02 June 2026 Published: 09 June 2026

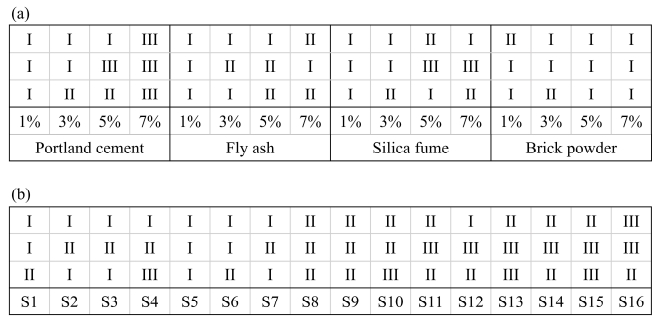

Red clay exhibits unfavorable engineering properties that limit its direct use as subgrade fill material. This study investigated the stabilization of red clay using cement, fly ash, silica fume, and brick powder. Uniaxial compression tests were conducted on single-stabilizer and multi-component mixtures to evaluate their mechanical behavior. Results show that cement provides the highest strength improvement, followed by silica fume, fly ash, and brick powder. Multi-component mixtures with cement as the primary binder, combined with silica fume and fly ash, achieved the highest strengths from 2.0 to 2.4 MPa, representing a 40% increase over single-stabilizer treatments. Three distinct failure modes were identified: ductile fragmentation, X-shaped conjugate shear bands, and single-plane brittle shear. Their evolution is governed by the dominant stabilization mechanism. Range analysis revealed the influence weights of the four stabilizers on strength development as 0.594 for cement, 0.183 for silica fume, 0.135 for fly ash, and 0.088 for brick powder. A predictive model based on a comprehensive strengthening coefficient was proposed and validated against experimental data. The findings demonstrate that the synergistic use of cement and multi-source solid waste provides an effective approach for red clay improvement.
- red clay,
- multi-source solid waste,
- stabilization,
- uniaxial compression,
- failure mode
Citation: Xunan Li, Xiang Zhou, Michael Adeyemi. Experimental study on the mechanical properties of red clay stabilized by cement and multi-source solid wastes[J]. AIMS Materials Science, 2026, 13(3): 518-537. doi: 10.3934/matersci.2026025

Related Papers:

Abstract

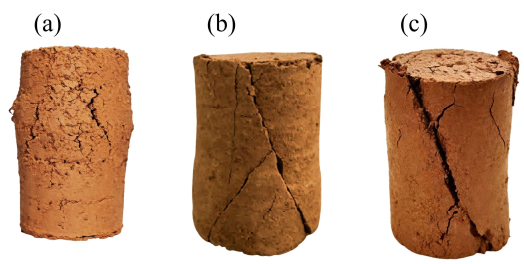

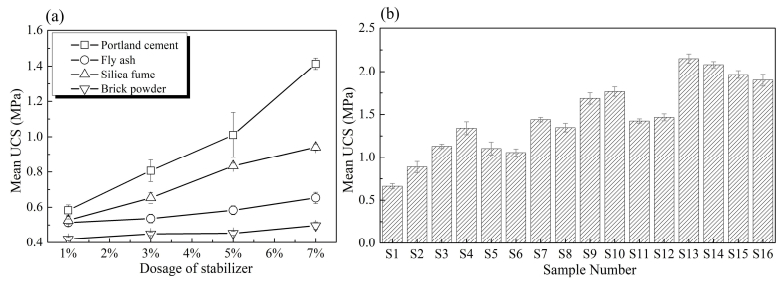

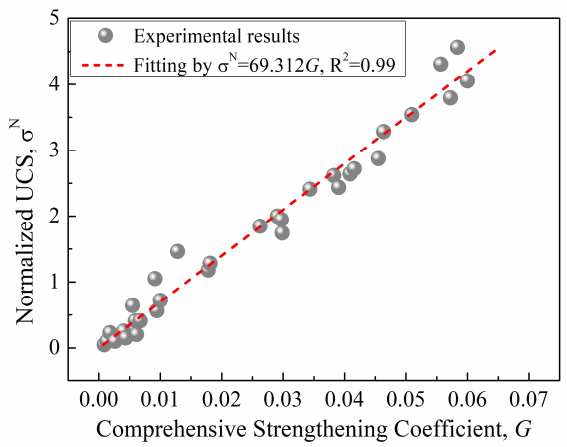

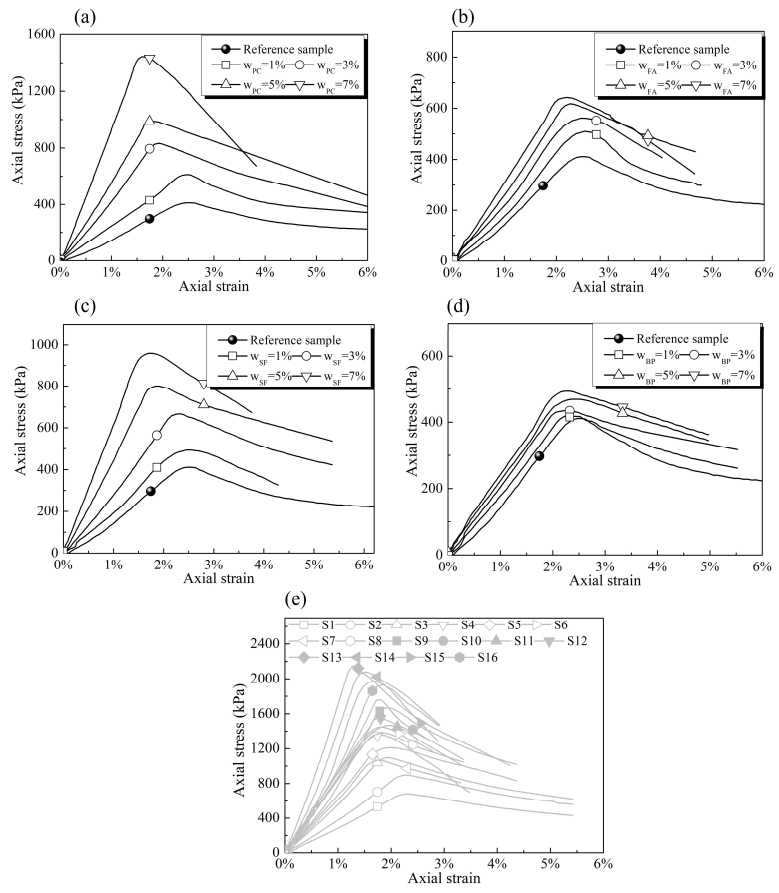

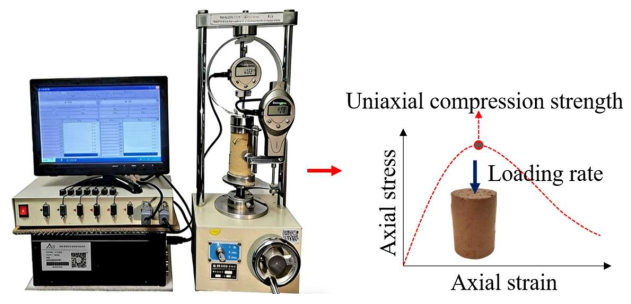

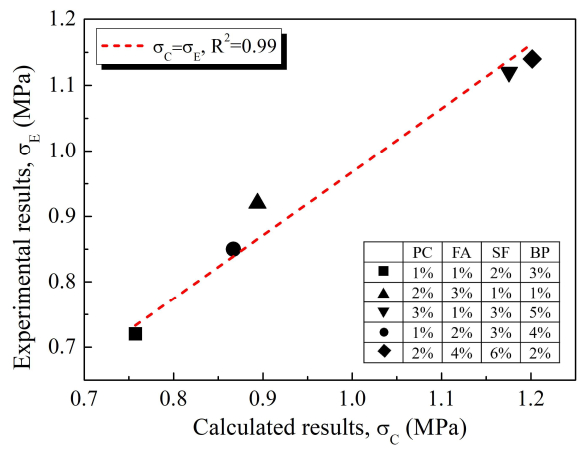

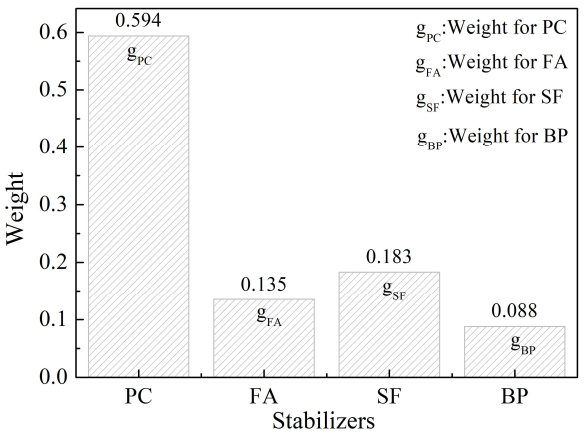

Red clay exhibits unfavorable engineering properties that limit its direct use as subgrade fill material. This study investigated the stabilization of red clay using cement, fly ash, silica fume, and brick powder. Uniaxial compression tests were conducted on single-stabilizer and multi-component mixtures to evaluate their mechanical behavior. Results show that cement provides the highest strength improvement, followed by silica fume, fly ash, and brick powder. Multi-component mixtures with cement as the primary binder, combined with silica fume and fly ash, achieved the highest strengths from 2.0 to 2.4 MPa, representing a 40% increase over single-stabilizer treatments. Three distinct failure modes were identified: ductile fragmentation, X-shaped conjugate shear bands, and single-plane brittle shear. Their evolution is governed by the dominant stabilization mechanism. Range analysis revealed the influence weights of the four stabilizers on strength development as 0.594 for cement, 0.183 for silica fume, 0.135 for fly ash, and 0.088 for brick powder. A predictive model based on a comprehensive strengthening coefficient was proposed and validated against experimental data. The findings demonstrate that the synergistic use of cement and multi-source solid waste provides an effective approach for red clay improvement.

References

[1]	Sun Y, Yu C, Jiang S, et al. (2025) Disintegration behaviors of red clay under wet-dry cycles. JRMGE 17: 5875–5892. https://doi.org/10.1016/j.jrmge.2024.09.005 doi: 10.1016/j.jrmge.2024.09.005
[2]	Luo XW, Lu Z, Zhang JB, et al. (2024) Study on performance of geocell-reinforced red clay subgrade. Geosynth Int 31: 968–980. https://doi.org/10.1680/jgein.23.00068 doi: 10.1680/jgein.23.00068
[3]	Li LY, Zhang QS, Cao WQ, et al. (2024) Model tests on red clay foundation reinforced by coir geotextiles. J Mater Civ Eng 36: 06024002. https://doi.org/10.1061/JMCEE7.MTENG-16717 doi: 10.1061/JMCEE7.MTENG-16717
[4]	Souhassou H, Fahoul Y, El-Mrabet I, et al. (2024) Optimization of basic red 29 dye removal onto a natural red clay using response surface methodology. J Iran Chem Soc 21: 275–291. https://doi.org/10.1007/s13738-023-02924-5 doi: 10.1007/s13738-023-02924-5
[5]	Wang X, Wu B, Cui K, et al. (2024) A modified critical state model and its application in Haikou red clay, In: Hazarika H, Haigh SK, Chaudhary B, et al. Natural Geo-Disasters and Resiliency. IC-CREST 2023. Lecture Notes in Civil Engineering, Singapore: Springer. https://doi.org/10.1007/978-981-99-9223-2_35
[6]	Liu BC, Zhou HF, Wang XB, et al. (2024) Effect of modifiers on the disintegration characteristics of red clay. Sustainability 16: 4551. https://doi.org/10.3390/su16114551 doi: 10.3390/su16114551
[7]	Gu C, Sun Q, Zhang L, et al. (2024) Effect of temperature on the radon release characteristics of red clay. J Environ Radioact 280: 107565. https://doi.org/10.1016/j.jenvrad.2024.107565 doi: 10.1016/j.jenvrad.2024.107565
[8]	Wang ZY, Sun Q, Geng JS, et al. (2025) Fracture pattern and damage characteristics of red clay under freezing effects. Eng Fract Mech 327: 111468. https://doi.org/10.1016/j.engfracmech.2025.111468 doi: 10.1016/j.engfracmech.2025.111468
[9]	Zhao FT, Liu J, Wang Y, et al. (2024) Dynamic mechanical properties of unsaturated red clay subjected to impact loading, In: Wang S, Huang R, Azzam R, et al. Engineering Geology for a Habitable Earth: IAEG XIV Congress 2023 Proceedings, Chengdu, China. IAEG 2023. Environmental Science and Engineering, Singapore: Springer. https://doi.org/10.1007/978-981-99-9057-3_39
[10]	Wang MY, Li MD, Dai RH, et al. (2024) Mechanical properties of tire chip and cement stabilised red clay. Geomech Geoeng 19: 868–878. https://doi.org/10.1080/17486025.2024.2324876 doi: 10.1080/17486025.2024.2324876
[11]	Liu Y, Chen K, Jian H, et al. (2024) Road properties of cement-phosphogypsum-red clay under dry and wet cycles. PLoS ONE 19: e0314276. https://doi.org/10.1371/journal.pone.0314276 doi: 10.1371/journal.pone.0314276
[12]	Ding JW, Wan X, Jiao N, et al. (2024) Collaborative effects of red mud and phosphogypsum on geotechnical behavior of cement-stabilized dredged clay. Bull Eng Geol Environ 83: 200. https://doi.org/10.1007/s10064-024-03699-6 doi: 10.1007/s10064-024-03699-6
[13]	Zhao XS, Deng Q, Yang QJ, et al. (2025) Study on compressive strength characteristics of lime-fly ash composite improved mottled red clay. Arab J Geosci 18: 145. https://doi.org/10.1007/s12517-025-12285-3 doi: 10.1007/s12517-025-12285-3
[14]	Aqel R, Attom M, El-Emam M, et al. (2024) Piping stabilization of clay soil using lime. Geosciences 14: 122. https://doi.org/10.3390/geosciences14050122 doi: 10.3390/geosciences14050122
[15]	Govindasamy P, Taha MR (2024) Changes in chemical concentration of silty clay added with lime and nanolime, In: Ismail A, Zulkipli FN, Mohd Daril MA, et al. Engineering Frontiers, Cham: Springer. https://doi.org/10.1007/978-3-031-56844-2_9
[16]	Oloimutie JP, Nzimbi PK (2025) Mechanical and microstructural properties of clay tile waste concrete treated with silica fume. Adv Mater Sci Eng 15: 4341855. https://doi.org/10.1155/amse/4341855 doi: 10.1155/amse/4341855
[17]	Almuaythir S, Zaini MSI, Hasan M (2025) Shear strength, compressibility, and consolidation behaviour of expansive clay soil stabilized with lime and silica fume. Sci Rep 15: 26185. https://doi.org/10.1038/s41598-025-10642-6 doi: 10.1038/s41598-025-10642-6
[18]	Joyklad P, Suriwong T, Inyai T, et al. (2024) Environmentally friendly binders from calcium carbide residue and silica fume and feasibility for soft clay stabilization. Case Stud Constr Mat 20: e03117. https://doi.org/10.1016/j.cscm.2024.e03117 doi: 10.1016/j.cscm.2024.e03117
[19]	Pranav S, Tyagi G, Lahoti M, et al. (2025) Novel lime-silica fume-modified limestone calcined clay cement (LC3) binder system for sustainable pavement construction. Clean Techn Environ Policy 27: 6433–6448. https://doi.org/10.1007/s10098-025-03284-9 doi: 10.1007/s10098-025-03284-9
[20]	Meng C, Yang W, Ren XJ, et al. (2023) In-situ soil texture classification and physical clay content measurement based on multi-source information fusion. Int J Agr Boil Eng 16: 203–213. https://doi.org/10.25165/j.ijabe.20231601.6918 doi: 10.25165/j.ijabe.20231601.6918
[21]	Feng LX, Zhao ZF, Yang HY, et al. (2025) Clay-hosted lithium exploration in the Wenshan region of Southeastern Yunnan Province, China, using multi-source remote sensing and structural interpretation. Minerals 15: 826. https://doi.org/10.3390/min15080826 doi: 10.3390/min15080826
[22]	Kusniadi W, Apriyanti Y, Sandy BDA (2024) The effect of adding fly ash on the shear strength of clay soil considering the age of fly ash. IOP Conf Ser Earth Environ Sci 1419: 012006. https://doi.org/10.1088/1755-1315/1419/1/012006 doi: 10.1088/1755-1315/1419/1/012006
[23]	As M, Cokca E (2025) Stabilization of an expansive clay containing sulfate with Soma fly ash. Arab J Geosci 18: 170. https://doi.org/10.1007/s12517-025-12315-0 doi: 10.1007/s12517-025-12315-0
[24]	Raja K, Sampathkumar V, Anandaraj S, et al. (2024) Comparative study on stabilisation of Bentonite clay using municipal incinerated bottom ash and fly ash, In: Reddy KR, Ravichandran PT, Ayothiraman R, et al. Recent Advances in Civil Engineering. ICC IDEA 2023. Lecture Notes in Civil Engineering, Singapore: Springer. https://doi.org/10.1007/978-981-99-6229-7_30
[25]	Pittman R, Hu B, Webster K (2021) Improvement of soil property mapping in the great clay belt of northern Ontario using multi-source remotely sensed data. Geoderma 381: 114761. https://doi.org/10.1016/j.geoderma.2020.114761 doi: 10.1016/j.geoderma.2020.114761
[26]	Ma R, Guo LP, Sun W, et al. (2025) Well-dispersed silica fume by surface modification and the control of cement hydration. Adv Civ Eng 2018: 6184105. https://doi.org/10.1155/2018/6184105 doi: 10.1155/2018/6184105
[27]	Uddin MA, Bashir MT, Khan AM, et al. (2024) Effect of silica fume on compressive strength and water absorption of the Portland cement–silica fume blended mortar. Arab J Sci Eng 49: 4803–4811. https://doi.org/10.1007/s13369-023-08204-x doi: 10.1007/s13369-023-08204-x
[28]	JTG 3430-2020 (2020) Test methods of soils for highway engineering. Bejjing, China: Highway Science Research Institute and Ministry of Communications. ISBN 9787114168284.
[29]	Wu H, Gao J, Liu C, et al. (2024) Reusing waste clay brick powder for low-carbon cement concrete and alkali-activated concrete: A critical review. J Clean Prod 449: 141755. https://doi.org/10.1016/j.jclepro.2024.141755 doi: 10.1016/j.jclepro.2024.141755
[30]	Sengul T, Akray N, Vitosoglu Y (2023) Investigating the effects of stabilization carried out using fly ash and polypropylene fiber on the properties of highway clay soils. Constr Build Mater 400: 132590. https://doi.org/10.1016/j.conbuildmat.2023.132590 doi: 10.1016/j.conbuildmat.2023.132590
[31]	Li ZS, Zhang YN, Janiszewski M, et al. (2022) Radial deformation and failure of stabilised soft clay under uniaxial compression. Soils Found 62: 101213. https://doi.org/10.1016/j.sandf.2022.101213 doi: 10.1016/j.sandf.2022.101213
[32]	Erarslan N, Aliha MRM (2025) Fracture and damage analysis of cement-stabilized fine and coarse grain soils under static and cyclic loading using chevron-notched SCB specimen. Fatigue Fract Eng Mater Struct 48: 2708–2724. https://doi.org/10.1111/ffe.14598 doi: 10.1111/ffe.14598
