Stability and bifurcation analyses of p53 gene regulatory network with time delay

  • Received: 29 September 2021 Revised: 27 November 2021 Accepted: 28 November 2021 Published: 01 March 2022
  • In this paper, based on a p53 gene regulatory network regulated by Programmed Cell Death 5(PDCD5), a time delay in transcription and translation of Mdm2 gene expression is introduced into the network, the effects of the time delay on oscillation dynamics of p53 are investigated through stability and bifurcation analyses. The local stability of the positive equilibrium in the network is proved through analyzing the characteristic values of the corresponding linearized systems, which give the conditions on undergoing Hopf bifurcation without and with time delay, respectively. The theoretical results are verified through numerical simulations of time series, characteristic values and potential landscapes. Furthermore, combined effect of time delay and several typical parameters in the network on oscillation dynamics of p53 are explored through two-parameter bifurcation diagrams. The results show p53 reaches a lower stable steady state under smaller PDCD5 level, the production rates of p53 and Mdm2 while reaches a higher stable steady state under these larger ones. But the case is the opposite for the degradation rate of p53. Specially, p53 oscillates at a smaller Mdm2 degradation rate, but a larger one makes p53 reach a low stable steady state. Besides, moderate time delay can make the steady state switch from stable to unstable and induce p53 oscillation for moderate value of these parameters. Theses results reveal that time delay has a significant impact on p53 oscillation and may provide a useful insight into developing anti-cancer therapy.

    Citation: Jianmin Hou, Quansheng Liu, Hongwei Yang, Lixin Wang, Yuanhong Bi. Stability and bifurcation analyses of p53 gene regulatory network with time delay[J]. Electronic Research Archive, 2022, 30(3): 850-873. doi: 10.3934/era.2022045

    Related Papers:

    [1] Xin Du, Quansheng Liu, Yuanhong Bi . Bifurcation analysis of a two–dimensional p53 gene regulatory network without and with time delay. Electronic Research Archive, 2024, 32(1): 293-316. doi: 10.3934/era.2024014
    [2] Fang Yan, Changyong Dai, Haihong Liu . Oscillatory dynamics of p53 pathway in etoposide sensitive and resistant cell lines. Electronic Research Archive, 2022, 30(6): 2075-2108. doi: 10.3934/era.2022105
    [3] Yongwei Yang, Yang Yu, Chunyun Xu, Chengye Zou . Passivity analysis of discrete-time genetic regulatory networks with reaction-diffusion coupling and delay-dependent stability criteria. Electronic Research Archive, 2025, 33(5): 3111-3134. doi: 10.3934/era.2025136
    [4] Weijie Ding, Xiaochen Mao, Lei Qiao, Mingjie Guan, Minqiang Shao . Delay-induced instability and oscillations in a multiplex neural system with Fitzhugh-Nagumo networks. Electronic Research Archive, 2022, 30(3): 1075-1086. doi: 10.3934/era.2022057
    [5] Yulin Zhao, Fengning Liang, Yaru Cao, Teng Zhao, Lin Wang, Jinhui Xu, Hong Zhu . MRI-based model for accurate prediction of P53 gene status in gliomas. Electronic Research Archive, 2024, 32(5): 3113-3129. doi: 10.3934/era.2024142
    [6] Xiaochen Mao, Weijie Ding, Xiangyu Zhou, Song Wang, Xingyong Li . Complexity in time-delay networks of multiple interacting neural groups. Electronic Research Archive, 2021, 29(5): 2973-2985. doi: 10.3934/era.2021022
    [7] Rui Ma, Xin-You Meng . Dynamics of an eco-epidemiological model with toxicity, treatment, time-varying incubation. Electronic Research Archive, 2025, 33(5): 3074-3110. doi: 10.3934/era.2025135
    [8] Fengrong Zhang, Ruining Chen . Spatiotemporal patterns of a delayed diffusive prey-predator model with prey-taxis. Electronic Research Archive, 2024, 32(7): 4723-4740. doi: 10.3934/era.2024215
    [9] Xiaowen Zhang, Wufei Huang, Jiaxin Ma, Ruizhi Yang . Hopf bifurcation analysis in a delayed diffusive predator-prey system with nonlocal competition and schooling behavior. Electronic Research Archive, 2022, 30(7): 2510-2523. doi: 10.3934/era.2022128
    [10] Mengting Sui, Yanfei Du . Bifurcations, stability switches and chaos in a diffusive predator-prey model with fear response delay. Electronic Research Archive, 2023, 31(9): 5124-5150. doi: 10.3934/era.2023262
  • In this paper, based on a p53 gene regulatory network regulated by Programmed Cell Death 5(PDCD5), a time delay in transcription and translation of Mdm2 gene expression is introduced into the network, the effects of the time delay on oscillation dynamics of p53 are investigated through stability and bifurcation analyses. The local stability of the positive equilibrium in the network is proved through analyzing the characteristic values of the corresponding linearized systems, which give the conditions on undergoing Hopf bifurcation without and with time delay, respectively. The theoretical results are verified through numerical simulations of time series, characteristic values and potential landscapes. Furthermore, combined effect of time delay and several typical parameters in the network on oscillation dynamics of p53 are explored through two-parameter bifurcation diagrams. The results show p53 reaches a lower stable steady state under smaller PDCD5 level, the production rates of p53 and Mdm2 while reaches a higher stable steady state under these larger ones. But the case is the opposite for the degradation rate of p53. Specially, p53 oscillates at a smaller Mdm2 degradation rate, but a larger one makes p53 reach a low stable steady state. Besides, moderate time delay can make the steady state switch from stable to unstable and induce p53 oscillation for moderate value of these parameters. Theses results reveal that time delay has a significant impact on p53 oscillation and may provide a useful insight into developing anti-cancer therapy.



    The most important tumor suppressor p53 has a key role in regulating a number of cellular responses upon various stresses including DNA damage and oncogene activation [1,2]. Depending on the type and severity of the damage, p53-mediated responses include cell cycle arrest, cellular senescence and apoptosis, which can be triggered through regulating the expression of different downstream genes [3,4]. These responses are closely related to p53 dynamics, where p53 keeps low level in unstressed cells, whereas a high level of p53 induces apoptosis to destroy irreparably damaged cells [5,6]. More interestingly, the oscillation dynamics of p53 may initiate cell cycle arrest or apoptosis depending on the number of p53 pulses [7,8]. Therefore, it is meaningful to explore p53 dynamics for understanding cellular response in response to different conditions. Furthermore, p53 dynamics can be investigated through simulating the mathematical models of p53 gene regulatory network with p53, it upstream regulators, downstream target genes and feedback loops [9,10].

    A number of mathematical models depicting p53 gene regulatory network have been established to explore p53 dynamics in response to different conditions from theoretical analyses and numerical simulations [7,8,11]. Typically, an integrated model of p53 gene regulatory network with four modules was proposed by Zhang et al., who demonstrated that the number of p53 pulses determined cell fates upon DNA damage [7,8]. Based on the integrated model and experiment results, a mathematical model of p53 gene regulatory network regulated by Programmed Cell Death 5(PDCD5) has been developed so as to reveal that PDCD5 modulates cell fate decisions as a co-activator of p53 [12,13]. Furthermore, the effects of rate constants in the p53 gene regulatory network on p53 dynamics are explored through bifurcation analyses and potential landscapes [14,15]. However, the transcriptional and translational processes in the model are seen as instant. Actually, slow and complex transcriptional and translational processes as the basic steps of gene expression in cells are usually related to long time delay [16]. Time delays in various networks, such as neural networks and disc dynamos with viscous friction, have important impact on the dynamics in the network, which are explored through stability and bifurcation analyses [17,18,19,20]. Also, more researches explore the effect of time delays in some p53 gene regulatory networks on p53 oscillation [21]. However, the effect of time delay on p53 oscillation in p53 gene regulatory network regulated by PDCD5 has not been considered.

    Inspired by these considerations, we introduce a time delay of the transcriptional and translational processes of Mdm2 activated by p53 into p53 gene regulatory network regulated by PDCD5 in ref. [22]. The local stability of positive equilibrium of the model are demonstrated through analyzing the characteristic equations of the corresponding linearized system for two cases without and with time delay. Also, these stability are verified through time series, the distribution of characteristic roots, one-parameter bifurcation diagram and potential landscapes. Then, two-parameter bifurcation diagrams of time delay with the concentration of PDCD5 and four typical rate parameters, vp53, dp53, vMdm2 and dMdm2 are carried out to explore their effect on the oscillation dynamic of p53.

    This paper is organized as follows. The p53 gene regulatory network regulated by PDCD5 is given in Section 2. In Section 3, we analyze the local stability of positive equilibrium of the model by means of stability theory for two cases without and with time delay. Then numerical simulations and bifurcation analyses are given in Section 4. Finally, we conclude the paper in Section 5.

    The model of p53 gene regulatory network regulated by PDCD5 is illustrated in Figure 1, which was established in Ref. [22]. Double strand breaks (DSBs) induced by various stresses activate ATM monomers, which further phosphorylate p53 at Ser-15 in the nucleus(p53) and Mdm2 at Ser-395 in the cytoplasm (Mdm2395Pcyt). Phosphorylated p53 in the nucleus inhibits ATM activity through activating it inhibitor Wip1 [23,24,25]. Additionally, Mdm2 protein in the cytoplasm(Mdm2cyt) transforms with Mdm2395Pcyt and Mdm2 protein in the nucleus (Mdm2nuc). Furthermore, Mdm2395Pcyt stimulates p53 translation through interacting with p53 mRNA while Mdm2nuc promotes p53 degradation by binding p53 and increasing it ubiquitination [26]. Besides, PDCD5 functions as a positive regulator of p53 through accelerating the degradation of Mdm2nuc and inhibiting the degradation of p53 by Mdm2nuc [22]. Here, phosphorylated p53 accelerates the production of Mdm2cyt through promoting the expression of Mdm2 gene. As we know, it takes some time from gene transcription to protein production, so we introduce a time delay into the interaction of p53 with Mdm2cyt. The model equations of the p53 gene regulatory network with time delay are given as follows.

    {dx(t)dt=vp53f1(m(t))f2(z(t))dp53f3(w(t))x(t),dy(t)dt=vMdm2f4(x(tτ))dMdm2y(t)kiny(t)+koutw(t)kpf5(m(t))y(t)+kqz(t),dz(t)dt=kpf5(m(t))y(t)kqz(t)g0dMdm2z(t),dw(t)dt=kiny(t)koutw(t)(1+r2p)dMdm2w(t),dm(t)dt=vAdATMf6(x(t))m(t), (2.1)
    Figure 1.  (Color online) Illustration of the PDCD5-mediated p53-Mdm2 pathway. State transitions are represented by arrow-headed solid lines, degradation is represented by dashed-lines, and the promotion and inhibition are separately denoted by solid-circle headed and bar-headed lines, respectively.

    where

    f1(m(t))=(1ρ0)+ρ0m4(t)K40+m4(t),f2(z(t))=(1ρ1)+ρ1z4(t)K41+z4(t),f3(w(t))=(1ρ2)+ρ2w4(t)K42(p)+w4(t),K2(p)=¯k0((1r1)+r1(αp)41+(αp)4),f4(x(t))=(1ρ3)+ρ3x4(t)K43+x4(t),f5(m(t))=(1ρ4)+ρ4m2(t)K24+m2(t),f6(x(t))=(1ρ5)+ρ5x4(t)K45+x4(t).

    Here x(t), y(t), z(t), w(t) and m(t) represent the concentration at time t of active p53, Mdm2cyt, Mdm2395Pcyt, Mdm2nuc and ATM proteins. The biological significance and values of all parameters in the model are given in Table 1.

    Table 1.  Typical parameter values. Cs= simulated concentration units [22].
    Parameters Description Value
    vp53 Maximum p53 production rate 0.8 Csmin1
    ρ0 Regulation strength of p53 activation by ATM 0.9
    K0 EC50 of p53 activation by ATM 0.3 Cs
    ρ1 Regulation strength of p53 translation by Mdm2395Pcyt 0.98
    K1 EC50 of p53 translation by Mdm2395Pcyt 0.057 Cs
    dp53 Maximum degradation rate of p53 0.53 min1
    ρ2 Regulation strength of p53 degradation by Mdm2nuc 0.97
    ¯k0 Maximum EC50 of p53 degradation by Mdm2nuc 0.09 Cs
    r1 Strength of EC50 K2 by PDCD5 0.8
    α Regulation efficiency of PDCD5 to the EC50 K2 3.3 C1s
    vMdm2 Maximum production rate of Mdm2cyt 0.135 min1
    ρ3 Regulation strength of Mdm2 production by p53 0.98
    K3 EC50 of Mdm2 production by p53 4.43 Cs
    kin Shuttle rate of Mdm2 into nucleus 0.14 min1
    kout Shuttle rate of Mdm2 out of nucleus 0.01 min1
    kp Maximum phosphorylation rate of Mdm2 at Ser395 0.65 min1
    ρ4 Regulation strength of Mdm2 phosphorylation by ATM 0.9
    K4 EC40 of Mdm2 phosphorylation by ATM 1 Cs
    kq ATM dephosphorylation rate 0.24 min1
    dMdm2 Mdm2 degradation rate 0.034 min1
    g0 Increase factor of Mdm2 degradation rate by phosphorylation 3.58
    r2 PDCD5 dependent Mdm2 degradation rate coefficient 1.5 C1S
    p PDCD5 level during DNA damage 1.6 Cs
    dATM Active ATM degradation rate 0.53
    ρ5 Regulation strength of active ATM degradation by p53 0.9
    K5 EC50 of active ATM degradation by p53 1 Cs
    vA Active ATM production rate during DNA damage 1.2 min1

     | Show Table
    DownLoad: CSV

    In this section, the local stability of positive equilibrium E=(X,Y,Z,W,M) are analyzed through stability theory for without and with time delay. Let ¯x(t)=x(t)X, ¯y(t)=y(t)Y, ¯z(t)=z(t)Z, ¯w(t)=w(t)W, ¯m(t)=m(t)M, the linearization of system (2.1) at E is given as follows,

    {d¯x(t)dt=B1¯x(t)+B2¯z(t)+B3¯w(t)+B4¯m(t),d¯y(t)dt=B16¯x(tτ)+B5¯y(t)+B6¯z(t)+B7¯w(t)+B8¯m(t),d¯z(t)dt=B9¯y(t)+B10¯z(t)+B11¯m(t),d¯w(t)dt=B12¯y(t)+B13¯w(t),d¯x(t)dt=B14¯x(t)+B15¯m(t), (3.1)

    where

    B1=dp53f3(W),B2=vp53f1(M)f2(Z),B3=dp53f3(W)X,B4=vp53f1(M)f2(Z),B5=(dMdm2+kin+kpf5(M)),B6=kq,B7=kout,B8=kpf5(M)Y,B9=kpf5(M),B10=(kq+g0dMdm2),B11=kpf5(M)Y,B12=kin,B13=(kout+(1+r2p)dMdm2),B14=dATMf6(X)M,B15=dATMf6(X),B16=vMdm2f4(X).

    The system (3.1) can be written as the form of matrix:

    (˙¯x(t)˙¯y(t)˙¯z(t)˙¯w(t)˙¯m(t))=D1(¯x(t)¯y(t)¯z(t)¯w(t)¯m(t))+D2(¯x(tτ)¯y(tτ)¯z(tτ)¯w(tτ)¯m(tτ)), (3.2)

    where

    D1=(B10B2B3B40B5B6B7B80B9B100B110B120B130B14000B15),D2=(00000B160000000000000000000).

    Using Laplace transform,

    L[f(tT)]=esTF(s),L[f(t)]=F(s),L[f(t)]=sF(s)F(0),

    Eq (3.2) can be given as follows:

    λ(ˆx(t)ˆy(t)ˆz(t)ˆw(t)ˆm(t))(ˆx(0)ˆy(0)ˆz(0)ˆw(0)ˆm(0))=D1(ˆx(t)ˆy(t)ˆz(t)ˆw(t)ˆm(t))+D2eλτ(ˆx(t)ˆy(t)ˆz(t)ˆw(t)ˆm(t)). (3.3)

    Without loss of generality, let

    (ˆx(0)ˆy(0)ˆm(0)ˆw(0)ˆs(0))=0.

    Then, the characteristic equation of the linear system (3.1) is give as follows:

    det(λID2eλτD1)=0. (3.4)

    That is:

    λ5+a1λ4+a2λ3+a3λ2+a4λ+a5+(A2λ2+A1λ+A0)eλτ=0, (3.5)

    where

    a1=(B1+B5+B10+B13+B15),a2=B4B14B7B12B6B9+B13B15+B10B15+B10B13+B1B15+B1B10+B5B15+B5B13+B5B10+B1B5+B1B13,a3=B2B11B14+B4B5B14+B4B10B14+B4B13B14+B7B12B15B1B10B15B1B13B15B1B10B13B5B13B15B5B10B15B5B10B13+B1B7B12+B1B6B9B1B5B15+B6B9B13+B6B9B15B10B13B15B1B5B13B1B5B10+B7B10B12,a4=B12B3B8B14+B12B4B7B14+B2B5B11B14+B2B11B13B14B4B5B10B14+B1B5B10B13B4B10B13B14B7B10B12B15B1B7B10B12B1B6B9B13B1B6B9B15B2B8B9B14B6B9B13B15+B5B10B13B15+B1B5B13B15+B1B5B10B15B4B5B13B14B1B7B12B15+B1B10B13B15+B4B6B9B14,a5=B3B6B11B12B14B2B5B11B13B14+B2B8B9B13B14+B4B5B10B13B14+B1B7B10B12B15+B1B6B9B13B15+B12B3B8B10B14B12B4B7B10B14+B2B7B11B12B14B4B6B9B13B14B1B5B10B13B15,A0=B3B10B12B15B16B2B9B13B15B16,A1=B3B12B15B16+B3B10B12B16+B2B9B13B16+B2B9B15B16,A2=B3B12B16B2B9B16.

    For τ=0, Eq (3.5) becomes

    λ5+a1λ4+a2λ3+(a3+A2)λ2+(a4+A1)λ+a5+A0=0. (3.6)

    The conditions for local stability of E=(X,Y,Z,W,M) are give in Theorem 3.1 according to the Routh-Hurwitz criterion [27].

    Theorem 3.1. E=(X,Y,Z,W,M) is locally asymptotically stable when all roots of Eq (3.6) have negative real parts, the following conditions (H) should be satisfied.

    (H):

    Δ1=a1>0,Δ2=a1a2a3A2>0,Δ3=(a3+A2)(a1a2a3A2)a1(a1(a4+A1)a5A0)>0,Δ4=(a5+A0)(a2a3+a2A2a5A0a1(a22a4A1))+(a4+A1)(a1(a2a3+a2A2)a21(a4+A1)(a3+A2)2+a1(a5+A0))>0,Δ5=a5+A0>0.

    For τ0, let iω(ω>0) be a root of Eq (3.5), so ω satisfies the following equation:

    iω5+a1ω4ia2ω3a3ω2+ia4ω+a5+(A0A2ω2+iA1ω)(cos(ωτ)isin(ωτ))=0.

    Separating the real and imaginary parts, we have

    {a1ω4a3ω2+a5=(A0A2ω2)cos(ωτ)A1ωsin(ωτ),ω5a2ω3+a4ω=A1ωcos(ωτ)+(A0A2ω2)sin(ωτ). (3.7)

    Squaring both sides of each equation and then adding them up leads to

    ω10+(a212a2)ω8+(a22+2a42a1a3)ω6+(a232a2a4+2a1a5A22)ω4+(a242a3a5A21+2A0A2)ω2+a25A20=0. (3.8)

    Let z=w2, p=a212a2, q=a22+2a42a1a3, r=a232a2a4+2a1a5A22, u=a242a3a5A21+2A0A2 and v=a25A20. Then Eq (3.8) can be written as

    z5+pz4+qz3+rz2+uz+v=0. (3.9)

    Some lemmas for establishing the distribution of positive real roots of Eq (3.9) are given as follows [28].

    Lemma 3.2. If v<0, then Eq (3.9) has at least one positive root.

    Proof. Denote h(z)=z5+pz4+qz3+rz2+uz+v. Since h(0)=v<0 and limz+h(z)=+. Hence, there exists a z0>0 such that h(z0)=0. The proof is complete.

    For v0, considering the following equation:

    h(z)=5z4+4pz3+3qz2+2rz+u=0. (3.10)

    Let z=yp5, then Eq (3.10) is changed into:

    y4+p1y2+q1y+r1=0, (3.11)

    where

    p1=625p2+35q,q1=8125p3+625pq+25r,r1=3625p4+3125p2q225pr+15u.

    If q1=0, then the four roots of Eq (3.11) are as follows:

    y1=p1+Δ02,y2=p1+Δ02,y3=p1Δ02,y4=p1Δ02,

    where Δ0=p214r1. Thus zi=yip5, i=1,2,3,4 are the roots of Eq (3.10). Then we have the following lemma.

    Lemma 3.3. Suppose that v0 and q1=0.

    (i) If Δ0<0, then Eq (3.9) has no positive real roots.

    (ii) If Δ00, p10 and r1>0, then Eq (3.9) has no positive real roots.

    (iii) If (i) and (ii) are not satisfied, then Eq (3.9) has positive real roots if and only if there exists at least one z{z1,z2,z3,z4} such that z>0 and h(z)0.

    Proof. (ⅰ) If Δ0<0, then Eq (3.10) has no real roots. Since limz+h(z)=+, so h(z)>0 for zR. Hence, h(0)=v0 leads to h(z)0 when z(0,+).

    (ⅱ) If Δ00, p10 and r1>0, then h(z) has no zero in (,+). It is similar to (ⅰ) that h(z)0 for any z(0,+).

    (ⅲ) The sufficiency holds obviously. We will prove the necessity. If Δ00, then Eq (3.11) has only four roots y1,y2,y3,y4, so Eq (3.10) has only four roots z1,z2,z3,z4 at least z1 is a real root. We assume that z1,z2,z3,z4 are all real. This means that h(z) has at most four stationary points at z1,z2,z3,z4. If it is not true, we will have that either z10 or z1>0 and min{h(zi):zi0,i=1,2,3,4}>0. If z10, then h(z)0 in (0,+). Since h(0)=v0 is the strict minimum of h(z) for z0 which means h(z)>0 when z(0,+). If z1>0 and min{h(zi):zi0,i=1,2,3,4}>0, since h(z) is the derivable function and limz+h(z)=+, then we have minz>0h(z)=min{h(zi):zi0,i=1,2,3,4}>0. The proof of the necessity is done. We finish the proof.

    If q10. Thinking about the solution of Eq (3.11):

    q214(sp1)(s24r1)=0, (3.12)

    that is

    s3p1s24r1s+4p1r1q21=0.

    Let

    p2=13p214r1,q2=227p31+83p1r1q21,Δ1=127p32+14q22,σ=12+32i.

    So, Eq (3.12) has the following three roots

    s1=3q22+Δ1+3q22Δ1+p13,s2=σ3q22+Δ1+σ23q22Δ1+p13,s3=σ23q22+Δ1+σ3q22Δ1+p13.

    Let s=s1p1 (since p1 is not a root of Eq (3.12)). Equation (3.11) is equivalent to

    y4+sy2+(s)24[(sp1)y2q1y+(s)24r1]=0. (3.13)

    For Eq (3.13), Eq (3.12) indicates that the formula in square brackets is a perfect square.

    If s>p1, then Eq (3.13) is

    (y2+s2)2(sp1yq12sp1)2=0.

    After factorization, we get

    y2+sp1yq12sp1+s2=0

    and

    y2sp1y+q12sp1+s2=0.

    Let

    Δ2=sp1+2q1sp1,Δ3=sp12q1sp1.

    Then we obtain the four roots of Eq (3.11)

    y1=sp1+Δ22,y2=sp1Δ22,y3=sp1+Δ32,y4=sp1Δ32.

    So zi=yip5, i=1,2,3,4 are the roots of Eq (3.10). Thus we can get the following lemma.

    Lemma 3.4. Suppose that v0, q10 and s>p1.

    (i) If Δ2<0 and Δ3<0, then Eq (3.9) has no positive real roots.

    (ii) If (i) is not satisfied, then Eq (3.9) has positive real roots if and only if there exists at least one z{z1,z2,z3,z4} such that z>0 and h(z)0.

    Proof. We omit the proof since it is similar to Lemma 3.3.

    Finally, if s<p1, then Eq (3.13) is

    (y2+s2)2+(p1syq12p1s)2=0. (3.14)

    Let ¯z=q12(p1s)p5, we have the following lemma.

    Lemma 3.5. Suppose that v0, q10 and s<p1, then Eq (3.9) has positive real roots if and only if q214(p1s)2+s2=0, ¯z>0 and h(¯z)0.

    Proof. If Eq (3.13) has a real root y0, which satisfies

    y0=q12(p1s),y20=s2,

    so

    q214(p1s)2+s2=0.

    Therefore, Eq (3.13) has a real root y0 if and only if q214(p1s)2+s2=0. The rest of the proof is similar to Lemma 3.3, we omit it.

    Lemmas 3.2, 3.3, 3.4 and 3.5 give the sufficient and necessary conditions of existence of positive roots of Eq (3.9).

    Suppose that Eq (3.9) has five positive roots zk,i=1,2,3,4,5. Then Eq (3.8) has five positive roots ωk=zk, i=1,2,3,4,5. From Eq (3.8), we obtain the corresponding τ(k)j>0 and the characteristic equation (3.5) has purely imaginary roots.

    τ(k)j=1ωk[arccos((A2a1A1)ω6(A0A2ω2)2+A21ω2+(A1a2A0a1A2a3)ω4(A0A2ω2)2+A21ω2+(A0a3+A2a5A1a4)ω2A0a5(A0A2ω2)2+A21ω2)+2jπ],k=1,2,3,4,5,j=0,1,2,.

    It is obvious that limjτ(k)j= for k=1,2,3,4,5. Next we can define

    τ0=τk0j0=min1k5,j1τ(k)j,ω0=ωk0,z0=zk0. (3.15)

    On the basis of the above analysis, we obtain the conditions that all roots of Eq (3.5) have negative real parts in the following lemma.

    Lemma 3.6. (i) If one of the followings holds:(a) v<0; (b) v0, q1=0, Δ00 and p1<0 or r10 and there exist z{z1,z2,z3,z4} such that z>0 and h(z)0; (c) v0, q10, s>p1, Δ20 or Δ30 and there exist z{z1,z2,z3,z4} such that z>0 and h(z)0; (d) v0, q10, s<p1, q214(p1s)2+s2=0, ¯z>0 and h(¯z)0, then all roots of the characteristic equation (3.5) have negative real parts when τ(0,τ0).

    (ii) If the conditions (a)-(d) of (i) are all not satisfied, then all roots of Eq (3.5) have negative real parts for all τ>0.

    Proof. Lemmas 3.2, 3.3, 3.4 and 3.5 shows that Eq (3.5) has no roots with zero real part for all τ>0 if the conditions (a)–(d) of (ⅰ) are not satisfied. If one of (a)–(d) holds, when ττ(k)j, Eq (3.5) has no roots with zero real part and τ0 is the minimum value of τ, which make equation (3.5) has purely imaginary roots. We get the conclusion of the lemma.

    Next, we want to prove the system (2.1) can undergo Hopf bifurcation at τ=τ0.

    Let

    λ(τ)=α(τ)+iω(τ) (3.16)

    be the root of Eq (3.5) satisfying α(τ0)=0, ω(τ0)=ω0. We have the next lemma.

    Lemma 3.7. Suppose h(z0)0. If τ=τ0, then ±iω0 is a pair of simple purely imaginary roots of Eq (3.5).

    Proof. If iω0 is not simple, then ω0 must satisfy

    ddλ[λ5+a1λ4+a2λ3+a3λ2+a4λ+a5+(A2λ2+A1λ+A0)eλτ]|λ=iω0=0.

    This implies that

    {5ω403a2ω20+a4=(τA0A2ω20τA1)cos(ω0τ0)+(A1ω0τ2A2ω0)sin(ω0τ0),4a1ω30+2a3ω0=(A1ω0τ2A2ω0)cos(ω0τ0)(τA0A2ω20τA1)sin(ω0τ0). (3.17)

    Meanwhile, from Eq (3.7) we konw that ω0 satisfies

    {a1ω40a3ω20+a5=(A0A2ω20)cos(ω0τ)A1ω0sin(ω0τ),ω50a2ω30+a4ω0=A1ω0cos(ω0τ)+(A0A2ω20)sin(ω0τ). (3.18)

    Thus, we have

    (A22ω40+A21ω202A0A2ω20+A20)[5ω80+4(a212a2)ω60+3(a22+2a42a1a3)ω40+2(a232a2a4+2a1a5A22)ω20+(a242a3a5A21+2A0A2)]+(2A0A22A22ω20A21)[ω100+(a212a2)ω80+(a22+2a42a1a3)ω60+(a232a2a4+2a1a5A22)ω40+(a242a3a5A21+2A0A2)ω20+(a25A20)]=0. (3.19)

    According to Eq (3.9) and ω20=z0, Eq (3.19) becomes

    (A22z2+A21z2A0A2z+A20)(5z4+4pz3+3qz2+2rz+u)+(2A0A22A22zA21)(z5+pz4+qz3+rz2+uz+v)=0. (3.20)

    Notice that h(z)=z5+pz4+qz3+rz2+uz+v and h(z)=5z4+4pz3+3qz2+2rz+u, Eq (3.20) becomes ((A0A2z0)2+A21z0)h(z0)=0. we obtain a contradiction to the condition h(z0)0. This proves the conclusion.

    Next, we will get the conditions for dRe(λ(τ0))dτ>0 in Lemma 3.8.

    Lemma 3.8. If the conditions of Lemma 3.6 (i) are satisfied, then dRe(λ(τ0))dτ>0.

    Proof. Differentiating both sides of Eq (3.5) with respect to τ gives

    (d(λ(τ))dτ)1=5λ4+4a1λ3+3a2λ2+2a3λ+a4+eλτ(2A2λ+A1)eλτ(A2λ3+A1λ2+A0λ)τλ. (3.21)

    Therefore

    [d(Re(λ(τ)))dτ]1|τ=τ0=5ω80+4pω60+3qω40+2rω20+u(A0A2ω20)2+A21ω20=h(z0)(A0A2ω20)2+A21ω200. (3.22)

    If dReλ(τ0)dτ<0, then equation (3.5) has a root with positive real part for τ<τ0 and close to τ0, which contradicts Lemma 3.6 (ⅰ). This completes the proof.

    To sum up, we get the following theorems.

    Theorem 3.9. Let ω0, z0, τ0, and λ(τ) be defined by Eq (3.15) and (3.16), respectively.

    (i) If the conditions (a)–(d) of Lemma 3.6 are not satisfied, then all the roots of Eq (3.5) have negative real parts for all τ>0.

    (ii) If one of the conditions (a)–(d) of Lemma 3.6 is satisfied, then all the roots of Eq (3.5) have negative real parts when τ(0,τ0); when τ=τ0 and h(z0)0, then ±iω0 is a pair of simple purely imaginary roots of Eq (3.5) and all other roots have negative real parts. In addition, dReλ(τ0)dτ>0 and Eq (3.5) has at least one root with positive real part when τ(τ0,τ1), when τ1 is the first value of τ>τ0 such that Eq (3.5) has purely imaginary root.

    Theorem 3.10. Let ω0, z0, τ0, and λ(τ) be defined by Eq (3.15) and (3.16), respectively.

    (i) If the conditions (a)–(d) of Lemma 3.6 are not satisfied, then the positive equilibrium point E=(X,Y,Z,W,M) of system (2.1) is asymptotically stable for all τ>0;

    (ii) If one of the conditions (a)–(d) of Lemma 3.6 is satisfied, then the positive equilibrium point E=(X,Y,Z,W,M) of system (2.1) is asymptotically stable when τ(0,τ0);

    (iii) If conditions (a)–(d) of Lemma 3.6 is satisfied, and h(z0)0, system (2.1) undergoes a Hopf bifurcation at E=(X,Y,Z,W,M) when τ=τ0.

    In summary, Theorems 3.1 and 3.10 give the local stability of positive equilibrium E=(X,Y,Z,W,M) of system (2.1) and the conditions undergoing Hopf bifurcation without and with time delay, respectively. In the following, some numerical simulations are given to verify the correctness of these theorems.

    In this section, Theorems 3.1 and 3.10 are verified through time series of the concentrations of active p53(x), total Mdm2(y+z+w), ATM(m) and the eigenvalues of Eq (3.5) for τ=0 and τ0. Besides, one-parameter bifurcation diagram of the concentrations of active p53(x) with respect to τ and potential landscapes of active p53(x) and total Mdm2(y+z+w) are given to verify the correctness of Theorem 3.10. These figures are realized by MATLAB software.

    In case Ⅰ of τ=0, a positive equilibrium E=(3.0492,0.0770,0.1184,0.0858,2.2877) of system (2.1) is obtained for parameters in Table 1. Substituting these parameters into Δi(i=1,2,3,4,5), we have Δ1=1.9910>0, Δ2=2.2370>0, Δ3=0.6136>0, Δ4=0.0197>0 and Δ5=0.0134>0. The condition (H) in Theorem 3.1 is satisfied, so the positive equilibrium E is asymptotically stable, which is verified through numerical simulations in Figure 2. Figure 2(a) shows that the concentrations of x, y+z+w and m firstly increase and then converge to the positive equilibrium E. Also, all roots of the characteristic equation (3.6) at the positive equilibrium point E have negative real parts, as shown in Figure 2(b).

    Figure 2.  (Color online) (a) Time series of the concentrations of active p53(x), total Mdm2 (y+z+w) and ATM(m) without time delay(τ=0). (b) Roots of characteristic equation (3.6) at E=(X,Y,Z,W,M). (λ) and (λ) are real and imaginary parts of these roots.

    For case Ⅱ τ0, substituting the same positive equilibrium E with τ=0 and the parameters in Table 1 into Eq (3.8), we get

    ω10+1.2866ω8+0.3695ω6+0.0246ω44.4345×104ω21.2282×104=0. (4.1)

    Equation (4.1) has a positive root ω0=0.2342, then z0=ω20=0.0548 and τ0=2.1217 from Eq (3.8). Note that v=1.2282×104<0 and h(z0)=0.00650, the conditions (ⅱ) and (ⅲ) in Theorem 3.10 are satisfied, so the positive equilibrium E is asymptotically stable when τ(0,τ0) and system (2.1) undergoes Hopf bifurcation at τ0=2.1217, where E loses stability and a stable limit cycle appears. The correctness of Theorem 3.10 is verified by the following numerical simulations in Figures 36. Figure 3(a) describes one-parameter bifurcation diagram of x with respect to τ, where black solid and dashed lines are stable and unstable equilibria, and green solid dots are the maxima and minima of the stable limit cycle. As is shown in Figure 3(a), system (2.1) converges to the positive equilibrium E for τ<τ0 and undergoes Hopf bifurcation at HB point with τ=τ0, then the positive equilibrium E loses stability and a stable limit cycle appears for τ>τ0. Also, the stability of the positive equilibrium E is further verified through the maximum real part of the eigenvalues of the characteristic equation (3.5) in Figure 3(b), where maximum real part is negative for τ<τ0 and zero at τ=τ0 then positive for τ>τ0.

    Figure 3.  (Color online) (a) One-parameter bifurcation diagram of the concentration of active p53(x) with respect to τ. Black solid and dashed lines are stable and unstable equilibria, and green solid dots are the maxima and minima of the stable limit cycle. (b) The maximum real part of the eigenvalues of the characteristic equation (3.5) with respect to τ. HB is Hopf bifurcation point.
    Figure 4.  (Color online) Time series of the concentrations of active p53(x), total Mdm2 (y+z+w) and ATM(m) for τ=1(a), τ=2.1217(b), τ=2.5(c).
    Figure 5.  (Color online) The roots of characteristic equation (3.5) at E=(X,Y,Z,W,M) for τ=1(a), τ=2.1217(b), τ=2.5(c). (λ) and (λ) are real and imaginary parts of the roots. Green, blue and red dots represent the roots with negative, zero and positive real part, respectively.
    Figure 6.  (Color online) The potential landscapes of the concentrations of active p53(x) and total Mdm2 (y+z+w) at τ=1(a), τ=2.1217(b), τ=2.5(c).

    Next, Figures 4 and 5 show time series of the concentrations of active p53(x), total Mdm2(y+z+w), ATM(m) and the eigenvalues of Eq (3.5) for three typical time delays τ=1<τ0, τ=2.1217=τ0 and τ=2.5>τ0 to further verify the stability of system (2.1). As shown in Figure 4, system (2.1) converges to the stable equilibrium E at τ=1 (Figure 4(a)) and shows damped oscillation at τ=τ0 (Figure 4(b)), then is in a continuous oscillating state at τ=2.5 (Figure 4(c)). Accordingly, all roots of the characteristic equation (3.5) have negative real part at τ=1 (Figure 5(a)), and a pair of roots with zero real part appear at τ=2.1217 (Figure 5(b)), and some roots have positive real part at τ=2.5(Figure 5(c)).

    Furthermore, the global stability of p53 dynamics are explored through the potential landscapes of active p53(x) and total Mdm2(y+z+w) in Figure 6. The potential landscape U=ln(Pss) proposed by Wang et al. is related with the the steady state probability distribution Pss of the system (2.1) [29]. Pss can be obtained through simulating the corresponding stochastic differential equations of system (2.1) for a long time over many independent runs. The stochastic differential equations are obtained through adding Gaussian and white noise ζ(t) into right hand of each equation of system (2.1), where <ζ(t)ζ(t)>=2Dδ(tt), and <ζ(t)>=0, D is noise strength.As shown in the Figure 6(a), the potential landscape has a global minimum that corresponds to the global stable steady state. However, the potential landscapes in Figure 6(b) and 6(c) exhibit closed ring valleys which correspond to the stable limit cycle in system (2.1). The potential landscape at τ=2.1217 has wider attractive regions than the one at τ=2.5 since system (2.1) shows damped oscillation at τ=2.1217 and continuous oscillation at τ=2.5>τ0.

    Numerical simulations in this section are in agreement with the theoretical results in Section 3. In the following, we will further explore the effect of time delay τ and typical parameters on the oscillation dynamics of p53 from bifurcation perspective.

    To investigate how time delay τ affect p53 oscillation, we perform two-parameter bifurcation analyses with respect to time delay τ and several typical parameters, including the concentration of PDCD5(p), maximum production and degradation rates of p53 and Mdm2: vp53, dp53, vMdm2, dMdm2. Figures 711(a) show two-parameter bifurcation diagrams, where black solid lines hb represent Hopf bifurcation curves. For each two-parameter bifurcation diagram, several typical one-parameter bifurcation diagrams are given in Figures 711(b)(e), where black solid and dashed lines are stable and unstable steady states, respectively, and green solid dots are maxima and minima of stable limit cycles.

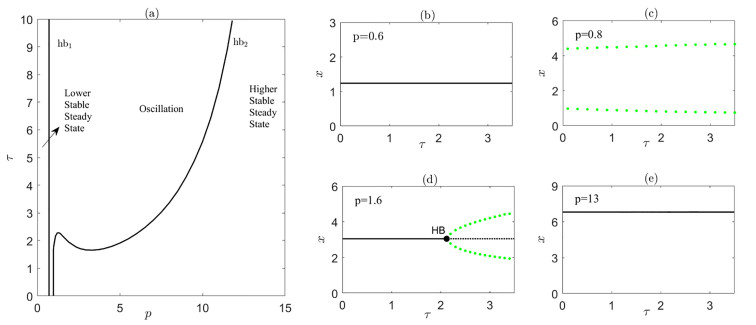

    Figure 7.  (Color online) (a) Two-parameter bifurcation diagram with respect to τ and the concentration of PDCD5(p). hb1 and hb2 represent Hopf bifurcation curves. Typical one-parameter bifurcation diagram of the concentration of active p53(x) with respect to τ for p=0.6(b), p=0.8(c), p=1.6(d), p=13(e). Black solid and dashed lines are stable and unstable equilibria, and green solid dots are the maxima and minima of the stable limit cycle. HB is Hopf bifurcation point.

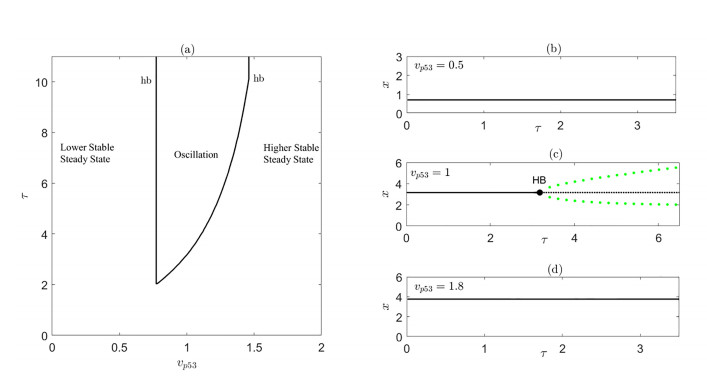

    Figure 8.  (Color online) (a) Two-parameter bifurcation diagram with respect to τ and the maximum production rate of p53(vp53). hb represents Hopf bifurcation curve. Typical one-parameter bifurcation diagram of the concentration of active p53(x) with respect to τ for vp53=0.5(b), vp53=1(c), vp53=1.8(d). Black solid and dashed lines are stable and unstable equilibria, and green solid dots are the maxima and minima of the stable limit cycle. HB is Hopf bifurcation point.
    Figure 9.  (Color online)(a) Two-parameter bifurcation diagram with respect to τ and the maximum degradation rate of p53(dp53). hb represents Hopf bifurcation curve. Typical one-parameter bifurcation diagram of the concentration of active p53(x) with respect to τ for dp53=0.2(b), dp53=0.4(c), dp53=0.6(d). Black solid and dashed lines are stable and unstable equilibria, and green solid dots are the maxima and minima of the stable limit cycle. HB is Hopf bifurcation point.

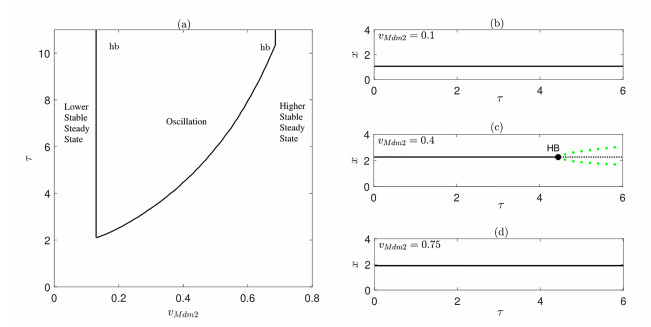

    Figure 10.  (Color online) (a) Two-parameter bifurcation diagram with respect to τ and the maximum production rate of Mdm2(vMdm2). hb represents Hopf bifurcation curve. Typical one-parameter bifurcation diagram of the concentration of active p53(x) with respect to τ for vMdm2=0.1(b), vMdm2=0.4(c), vMdm2=0.75(d). Black solid and dashed lines are stable and unstable equilibria, and green solid dots are the maxima and minima of the stable limit cycle. HB is Hopf bifurcation point.
    Figure 11.  (Color online)(a) Two-parameter bifurcation diagram with respect to τ and the maximum degradation rate of Mdm2(dMdm2). hb represents Hopf bifurcation curve. Typical one-parameter bifurcation diagram of the concentration of active p53(x) with respect to τ for dMdm2=0.01(b), dMdm2=0.03(c), dMdm2=0.04(d). Black solid and dashed lines are stable and unstable equilibria, and green solid dots are the maxima and minima of the stable limit cycle. HB is Hopf bifurcation point.

    Figure 7(a) shows two-parameter bifurcation diagram with time delay τ and the concentration of PDCD5(p). Hopf bifurcation curves hb1 and hb2 on the figure divide the parameter region into three parts. p53 reaches a lower stable steady state for parameters on the left of the curve hb1, where p is less than 0.710 regardless of the value of τ. Then p53 oscillation appears for parameters between these two curves hb1 and hb2, where p53 always oscillates for any τ when 0.710<p<0.974 while p53 can oscillate when τ increases to certain value for 0.974<p<11.9. Also the value of τ on Hopf bifurcation curve is more larger for larger p. However, p53 reaches a higher stable steady state for any τ when p>11.9. For intuitiveness, one-parameter bifurcation diagrams of p53 concentration with respect to τ for four typical p are given in Figure 7(b)(e).

    Figures 810(a) show similar two-parameter bifurcation diagrams with respect to τ and vp53, dp53, vMdm2, respectively, where the Hopf bifurcation curves hb divides the parameter plane into two parts. p53 exhibits oscillation inside the curve hb and reaches a stable steady state outside the curve hb. As shown in Figures 810(a), time delay can induce p53 oscillation for moderate value of the rate constants while it has no effect on p53 dynamics for smaller and larger value of these parameters. Also, the value of time delay on Hopf bifurcation curve increases with the increase of vp53 and vMdm2 while the value of time delay decreases with the increase of dp53. Furthermore, from one-parameter bifurcation diagrams in Figures 810(b)(d), p53 reaches a lower stable steady state for smaller vp53 and vMdm2 and a higher stable steady state for larger vp53 and vMdm2, while the case is opposite for dp53.

    Besides, two-parameter bifurcation diagram with respect to τ and dMdm2 is shown in Figure 11(a), where p53 exhibits oscillation for any τ when dMdm2 is less than 0.0146 and reaches a stable steady state for any τ when dMdm2 is larger than 0.0355 while p53 changes from a stable steady state to oscillation with the increase of τ when dMdm2 varies between 0.0146 and 0.0355. These dynamics are shown on one-parameter bifurcation diagrams in Figure 11(b)(d).

    Therefore, bifurcation analyses further explore the effect of time delay τ on p53 oscillation.

    The oscillation dynamics of p53 plays a key role in deciding cell fate after DNA damage. The time delay in transcriptional and translational processes is an important factor to induce oscillation. In this study, we explore the effect of time delay of Mdm2 gene express in p53 gene regulatory network regulated by PDCD5 on p53 oscillation through stability theory and bifurcation analyses. Firstly, we give theorems that provide the conditions on the appearance of p53 oscillation for without and with time delays through stability analysis theory. Then, these theorems are verified through numerical simulations, including time series of p53 concentrations, one-parameter bifurcation diagram of p53 concentration versus time delay, the roots of the characteristic equations, and the potential landscapes of p53 and total Mdm2 concentrations. Furthermore, the effect of time delay and several typical parameters p, vp53, dp53, vMdm2 and dMdm2 in system (2.1) on p53 oscillation are explored through two-parameter bifurcation diagrams, which give boundary curves of p53 oscillation. Our results show that time delay can induce p53 oscillation for moderate value of most parameters while it has no effect on p53 dynamics for smaller and larger value of these parameters. Taken together, analyzing the effect of time delay on p53 oscillation will help us understand the mechanism of p53 oscillation.

    In this study, we explore the effect of time delay of Mdm2 gene express in p53 gene regulatory network regulated by PDCD5 on p53 oscillation. Our results have demonstrated that suitable time delay can induce p53 oscillation for moderate value of most parameters. However, the effect of multiple time delays in p53 gene regulatory network on p53 oscillation should be further explored. Besides, noise is common in gene regulatory work, it is worthwhile to explore the combined effect of noise and time delay on p53 dynamics. Also, it is meaningful to investigate the dynamics of the other gene regulatory networks or neural networks with time delay and noise for understanding their biological mechanism.

    This work is supported by the National Natural Science Foundation of China (Nos. 12062017 and 11702149), Natural Science Foundation of Inner Mongolia Autonomous Region of China (Grant 2021ZD01) and Collaborative Innovation Center for Grassland Ecological Security (Jointly Supported by the Ministry of Education of China and Inner Mongolia Autonomous Region). The authors acknowledge the reviewers for their valuable reviews and kind suggestions.

    The authors declare there is no conflicts of interest.



    [1] A. J. Levine, M. Oren, The first 30 years of p53: growing ever more complex, Nat. Rev. Cancer, 9 (2009), 749–758. https://doi.org/10.1038/nrc2723 doi: 10.1038/nrc2723
    [2] K. T. Bieging, S. S. Mello, L. D. Attardi, Unravelling mechanisms of p53-mediated tumour suppression, Nat. Rev. Cancer, 14 (2014), 359–370. https://doi.org/10.1038/nrc3711 doi: 10.1038/nrc3711
    [3] M. H. Kubbutat, S. N. Jones, K. H. Vousden, Regulation of p53 stability by Mdm2, Nature, 387 (1997), 299–303. https://doi.org/10.1038/387299a0 doi: 10.1038/387299a0
    [4] Y. Aylon, M. Oren, Living with p53, dying of p53, Cell, 130 (2007), 597–600. https://doi.org/10.1016/j.cell.2007.08.005 doi: 10.1016/j.cell.2007.08.005
    [5] R. L. Bar-Or, R. Maya, L. A. Segel, U. Alon, A. J. Levine, M. Oren, Generation of oscillations by the p53-Mdm2 feedback loop: a theoretical and experimental study, Proc. Natl. Acad. Sci., 97 (2000), 11250–11255.
    [6] Y. Wang, X. Li, L. Wang, P. Ding, Y. Zhang, W. Han, et al., An alternative form of paraptosis-like cell death, triggered by TAJ/TROY and enhanced by PDCD5 overexpression, J. Cell Sci., 117 (2004), 1525–1532. https://doi.org/10.1242/jcs.00994 doi: 10.1242/jcs.00994
    [7] X. Zhang, F. Liu, Z. Cheng, W. Wang, Cell fate decision mediated by p53 pulses, Proc. Natl. Acad. Sci., 106 (2009), 12245–12250.
    [8] X. Zhang, F. Liu, Z. Cheng, W. Wang, Two-phase dynamics of p53 in the DNA damage response, Proc. Natl. Acad. Sci., 108 (2011), 8990–8995. https://doi.org/10.1073/pnas.1100600108 doi: 10.1073/pnas.1100600108
    [9] E. Batchelor, C. S. Mock, I. Bhan, A. Loewer, G. Lahav, Recurrent initiation: a mechanism for triggering p53 pulses in response to DNA damage, Mol. Cell, 30 (2008), 277–289. https://doi.org/10.1016/j.molcel.2008.03.016 doi: 10.1016/j.molcel.2008.03.016
    [10] C. Wang, F. Yan, H. Hai, Y. Zhang, Theoretical study on the oscillation mechanism of p53-mdm2 network, Int. J. Biomath., 11 (2018), 1850112. https://doi.org/10.1142/S1793524518501127 doi: 10.1142/S1793524518501127
    [11] N. Geva-Zatorsky, N. Rosenfeld, S. Itzkovitz, R. Milo, A. Sigal, E. Dekel, et al., Oscillations and variability in the p53 system, Mol. Syst. Biol., 2 (2006), 0030. https://doi.org/10.1038/msb4100068 doi: 10.1038/msb4100068
    [12] L. Xu, J. Hu, Y. Zhao, J. Hu, J. Xiao, Y. Wang, et al., PDCD5 interacts with p53 and functions as a positive regulator in the p53 pathway, Apoptosis, 17 (2012), 1235–1245. https://doi.org/10.1007/s10495-012-0754-x doi: 10.1007/s10495-012-0754-x
    [13] Y. Bi, Q. Liu, L. Wang, W. Yang, X. Wu, Bifurcation and Potential Landscape of p53 Dynamics Depending on PDCD5 Level and ATM Degradation Rate, Int. J. Bifurcation Chaos Appl. Sci. Eng., 30 (2020), 2050134. https://doi.org/10.1142/S0218127420501345 doi: 10.1142/S0218127420501345
    [14] N. A. Monk, Oscillatory expression of Hes1, p53, and NF-B driven by transcriptional time delays, Curr. Biol., 13 (2003), 1409–1413. https://doi.org/10.1016/S0960-9822(03)00494-9 doi: 10.1016/S0960-9822(03)00494-9
    [15] Y. Cao, X. He, Y. Hao, Q. Wang, Transition Dynamics of Epileptic Seizures in the Coupled Thalamocortical Network Model, Int. J. Bifurcation Chaos Appl. Sci. Eng., 28 (2018), 1850104. https://doi.org/10.1142/S0218127418501043 doi: 10.1142/S0218127418501043
    [16] A. Audibert, D. Weil, F. Dautry, In vivo kinetics of mRNA splicing and transport in mammalian cells, Mol. Cell. Biol., 22 (2002), 6706–6718.
    [17] Z. Wei, B. Zhu, J. Yang, M. Perc, M. Slavinec, Bifurcation analysis of two disc dynamos with viscous friction and multiple time delays, Appl. Math. Comput., 347 (2019), 265–281. https://doi.org/10.1016/j.amc.2018.10.090 doi: 10.1016/j.amc.2018.10.090
    [18] Y. Li, Z. Wei, W. Zhang, M. Perc, R. Repnik, Bogdanov - Takens singularity in the Hindmarsh - Rose neuron with time delay, Appl. Math. Comput., 354 (2019), 180–188. https://doi.org/10.1016/j.amc.2019.02.046 doi: 10.1016/j.amc.2019.02.046
    [19] X. Mao, X. Li, W. Ding, S. Wang, X. Zhou, L. Qiao, Dynamics of a multiplex neural network with delayed couplings, Appl. Math. Mech., 42 (2021), 441–456. https://doi.org/10.1007/S10483-021-2709-6 doi: 10.1007/S10483-021-2709-6
    [20] D. Michael, M. Oren, The p53-Mdm2 module and the ubiquitin system, in Semin. Cancer Biol., Academic Press, 13 (2003), 49–58.
    [21] C. Gao, F. Chen, Dynamics of p53 regulatory network in DNA damage response, Appl. Math. Model., 88 (2020), 701–714. https://doi.org/10.1016/j.apm.2020.06.057 doi: 10.1016/j.apm.2020.06.057
    [22] C. Zhuge, X. Sun, Y. Chen, J. Lei, PDCD5 functions as a regulator of p53 dynamics in the DNA damage response, J. Theor. Biol., 388 (2016), 1–10. https://doi.org/10.1016/j.jtbi.2015.09.025 doi: 10.1016/j.jtbi.2015.09.025
    [23] Y. Bi, Z. Yang, C. Zhuge, J. Lei, Bifurcation analysis and potential landscapes of the p53-Mdm2 module regulated by the co-activator programmed cell death 5, Chaos, 25 (2015), 113103. https://doi.org/10.1063/1.4934967 doi: 10.1063/1.4934967
    [24] C. Prives, Signaling to p53: breaking the MDM2-p53 circuit, Cell, 95 (1998), 5–8. https://doi.org/10.1016/S0092-8674(00)81774-2 doi: 10.1016/S0092-8674(00)81774-2
    [25] P. Chene, Inhibiting the p53-MDM2 interaction: an important target for cancer therapy, Nat. Rev. Cancer, 3 (2003), 102–109. https://doi.org/10.1038/nrc991 doi: 10.1038/nrc991
    [26] P. J. Hamard, J. J. Manfredi, Mdm2's dilemma: to degrade or to translate p53?, Cancer cell, 21 (2012), 3–5. https://doi.org/10.1016/j.ccr.2011.12.018 doi: 10.1016/j.ccr.2011.12.018
    [27] P. C. Parks, A new proof of of the Routh-Hurwitz stability criterion using the second method of Liapunov, Math. Proc. Cambridge Philos. Soc., 58 (1962), 694–702. https://doi.org/10.1017/S030500410004072X doi: 10.1017/S030500410004072X
    [28] T. Zhang, H. Jiang, Z. Teng, On the distribution of the roots of a fifth degree exponential polynomial with application to a delayed neural network model, Neurocomputing, 72 (2009), 1098–1104. https://doi.org/10.1016/j.neucom.2008.03.003 doi: 10.1016/j.neucom.2008.03.003
    [29] J. Wang, L. Xu, E. Wang, Potential landscape and flux framework of nonequilibrium networks: robustness, dissipation, and coherence of biochemical oscillations, Proc. Natl. Acad. Sci., 105 (2008), 12271–12276. https://doi.org/10.1016/B978-0-444-53835-2.00001-8 doi: 10.1016/B978-0-444-53835-2.00001-8
  • This article has been cited by:

    1. Xin Du, Quansheng Liu, Yuanhong Bi, Bifurcation analysis of a two–dimensional p53 gene regulatory network without and with time delay, 2023, 32, 2688-1594, 293, 10.3934/era.2024014
  • Reader Comments
  • © 2022 the Author(s), licensee AIMS Press. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0)
通讯作者: 陈斌, bchen63@163.com
  • 1.

    沈阳化工大学材料科学与工程学院 沈阳 110142

  1. 本站搜索
  2. 百度学术搜索
  3. 万方数据库搜索
  4. CNKI搜索

Metrics

Article views(2346) PDF downloads(105) Cited by(1)

Figures and Tables

Figures(11)  /  Tables(1)

/

DownLoad:  Full-Size Img  PowerPoint
Return
Return

Catalog
