Energetics of pPF1 plasmid kinks

Ludmila V. Yakushevich ^{1
,
,},
Larisa A. Krasnobaeva ²

1.
Institute of Cell Biophysics, Russian Academy of Sciences, 142290 Pushchino. Institutskaya str. 3, Moscow region, Russia
2.
Siberian State Medical University, 634050 Tomsk, Moscow traсt 2, Russia

Received: 22 May 2025 Revised: 05 August 2025 Accepted: 11 August 2025 Published: 15 August 2025

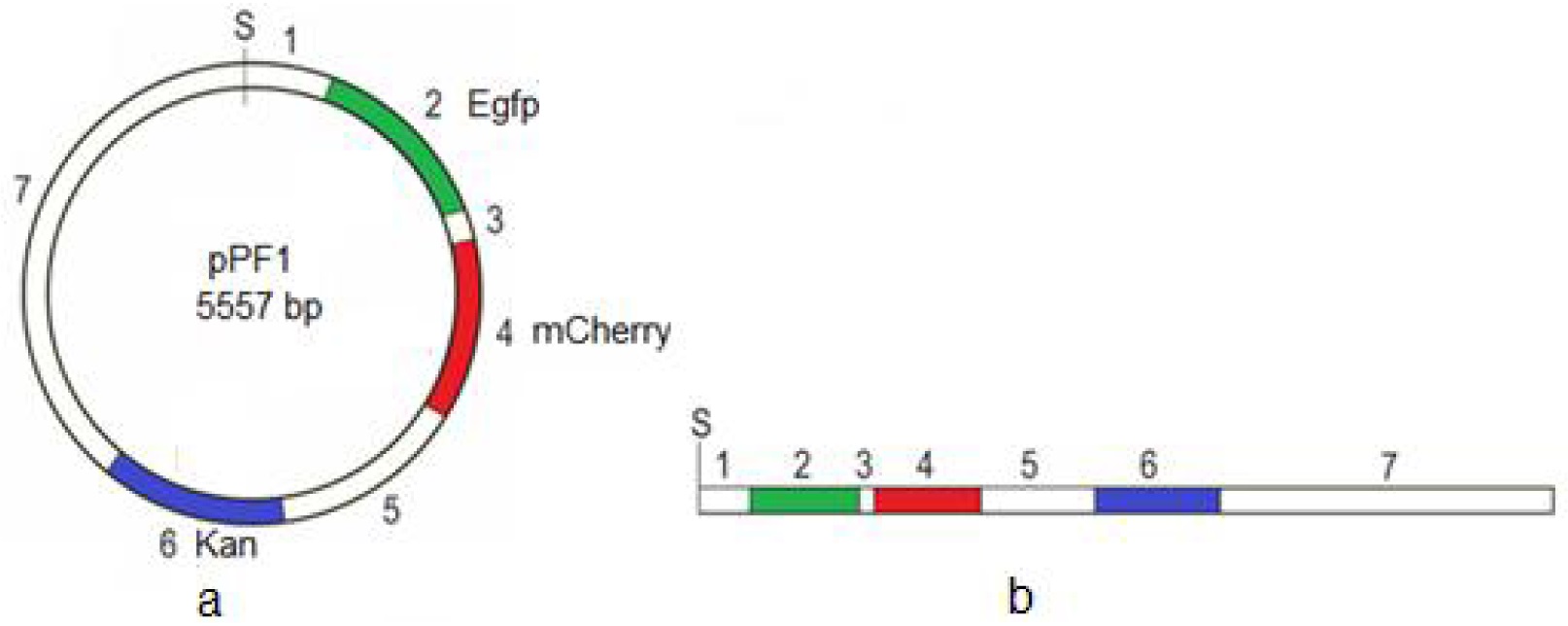

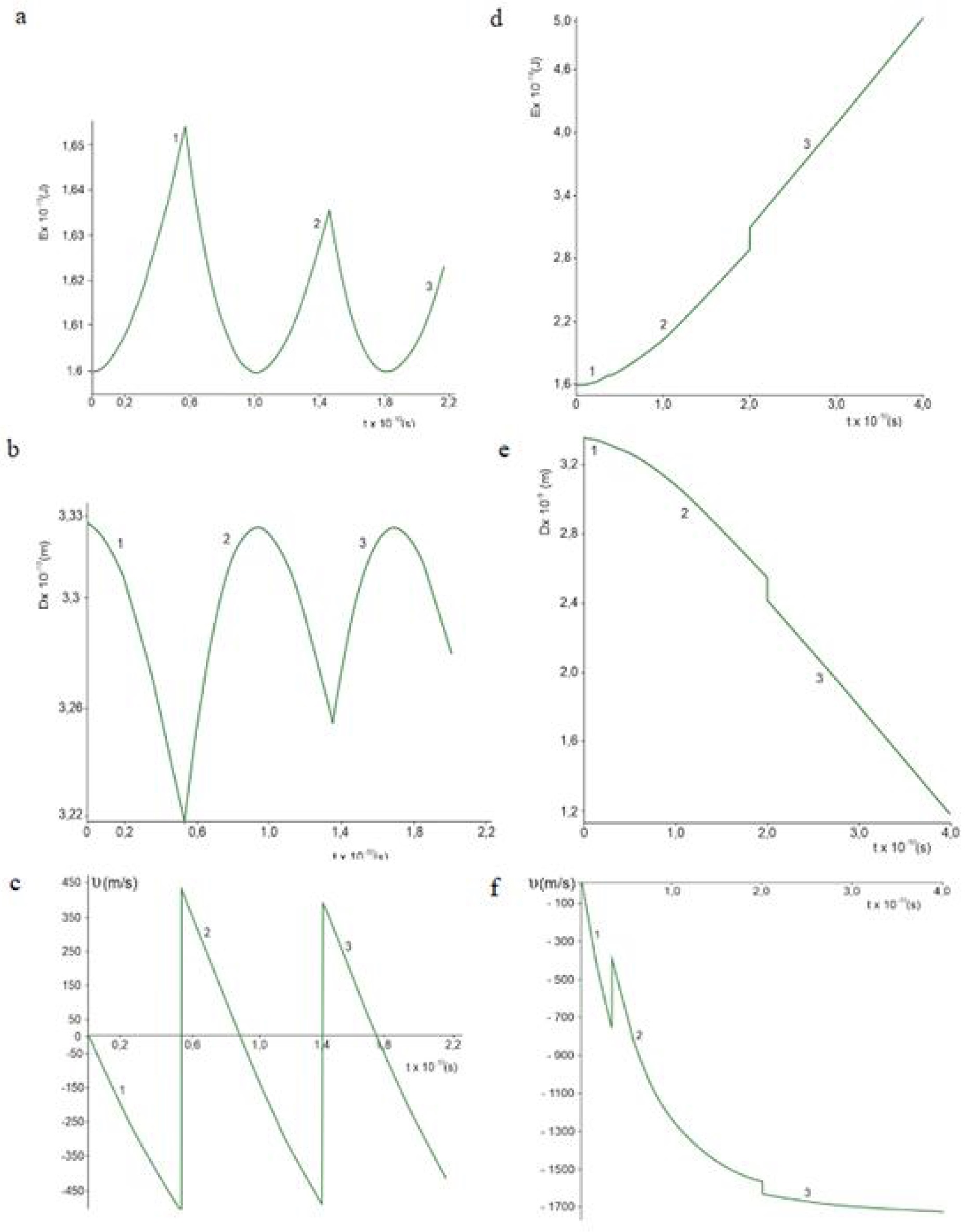

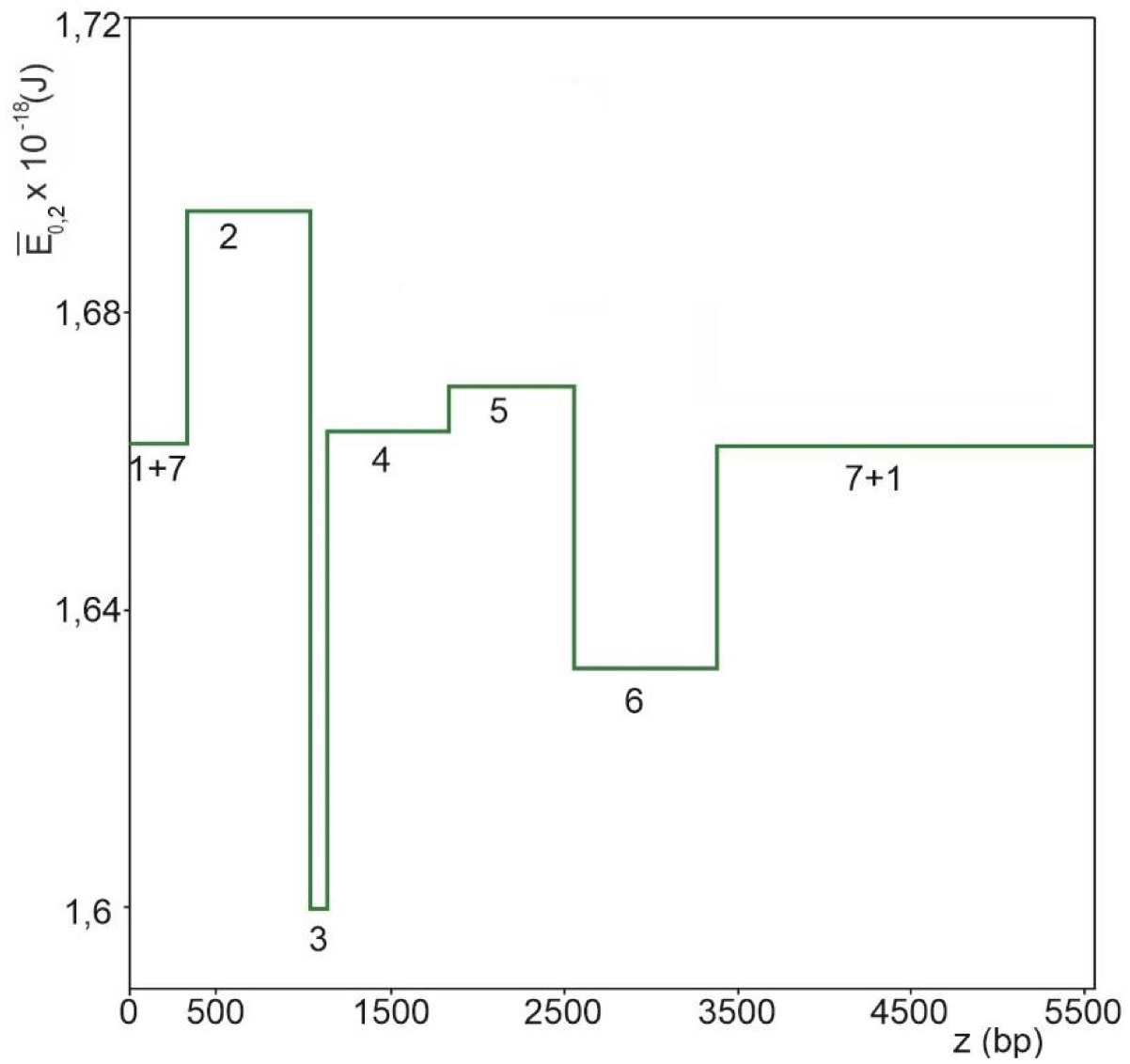

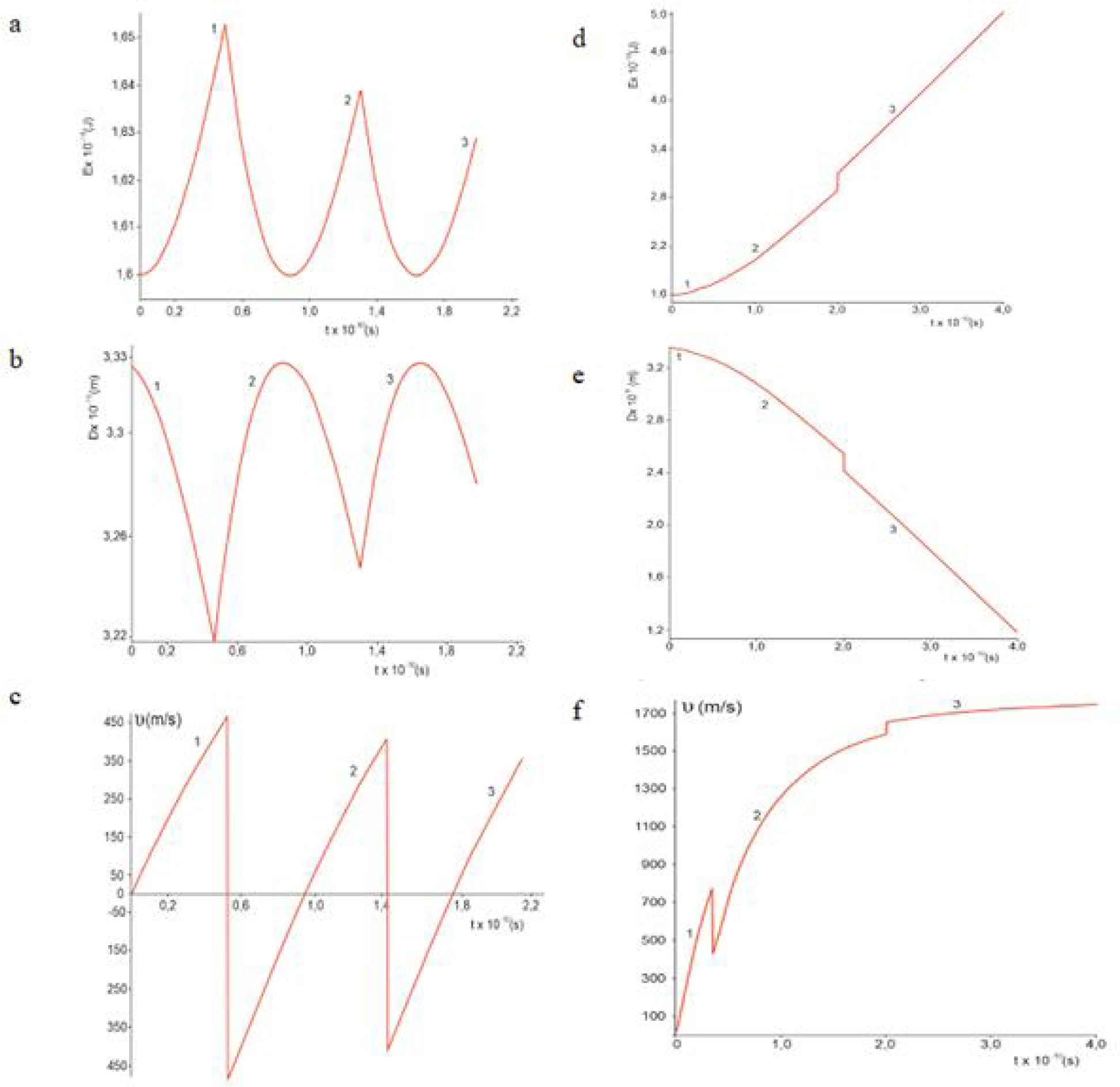

Kinks are known in mathematics as special solutions of nonlinear partial differential equations (NLPDEs) and in biology as models of open states of DNA formed during replication, transcription, and denaturation. The characteristics of the formation and movement of kinks in various DNAs are currently being actively studied. However, the dynamic behavior of kinks formed and propagated in the recently synthesized plasmid pPF1 remains poorly understood, and the issue of kink energetics has not yet been considered. This paper considers the energetics of kinks moving in the potential field of the plasmid pPF1, the sequence of which consists of 5557 base pairs and includes the genes of fluorescent proteins Egfp and mCherry, separated by a small intermediate region, as well as the gene of resistance to kanamycin (Kan). The paper presents the calculations of the energy profiles of the plasmid potential field, as well as the time dependence of the energy, size, and propagation velocity of kinks along these strands. Considerable attention is paid to the study of the influence of DNA torque on the energy of kinks. It is shown that the form of the curves of dependence on time is completely determined by the magnitude of the torque. Thus, at torque values below threshold values, the energy curves have the form of damped oscillations; at torque values above the threshold values, the energy curves change smoothly. Estimates of these threshold values are provided.
- pPF1 plasmid,
- DNA open states,
- kink energy,
- kink size,
- kink velocity
Citation: Ludmila V. Yakushevich, Larisa A. Krasnobaeva. Energetics of pPF1 plasmid kinks[J]. AIMS Bioengineering, 2025, 12(3): 383-396. doi: 10.3934/bioeng.2025018

Related Papers:

Abstract

Kinks are known in mathematics as special solutions of nonlinear partial differential equations (NLPDEs) and in biology as models of open states of DNA formed during replication, transcription, and denaturation. The characteristics of the formation and movement of kinks in various DNAs are currently being actively studied. However, the dynamic behavior of kinks formed and propagated in the recently synthesized plasmid pPF1 remains poorly understood, and the issue of kink energetics has not yet been considered. This paper considers the energetics of kinks moving in the potential field of the plasmid pPF1, the sequence of which consists of 5557 base pairs and includes the genes of fluorescent proteins Egfp and mCherry, separated by a small intermediate region, as well as the gene of resistance to kanamycin (Kan). The paper presents the calculations of the energy profiles of the plasmid potential field, as well as the time dependence of the energy, size, and propagation velocity of kinks along these strands. Considerable attention is paid to the study of the influence of DNA torque on the energy of kinks. It is shown that the form of the curves of dependence on time is completely determined by the magnitude of the torque. Thus, at torque values below threshold values, the energy curves have the form of damped oscillations; at torque values above the threshold values, the energy curves change smoothly. Estimates of these threshold values are provided.

Conflict of interest

All authors declare no conflicts of interest in this paper.

References

[1]	Zdravković S (2022) Nonlinear dynamics of DNA chain. Nonlinear Dynamics of Nanobiophysics . Singapore: Springer 29-66. https://doi.org/10.1007/978-981-19-5323-1_3
[2]	Zoli M (2022) Non-linear Hamiltonian models for DNA. Eur Biophys J 51: 431-447. https://doi.org/10.1007/s00249-022-01614-z
[3]	Englander W, Kallenbach NR, Heeger AJ, et al. (1980) Nature of the open state in long polynucleotide double helices: possibility of soliton excitations. Proc Natl Acad Sci USA 77: 7222-7226. https://doi.org/10.1073/pnas.77.12.7222
[4]	Yomosa S (1983) Soliton excitations in deoxyribonucleic acid (DNA) double helices. Phys Rev A 27: 2120-2125. https://doi.org/10.1103/PhysRevA.27.2120
[5]	Takeno S, Homma S (1983) Topological solitons and modulated structure of bases in DNA double helices. Prog Theor Phys 70: 308-311. https://doi.org/10.1143/PTP.70.308
[6]	Krumhansl JA, Alexander DM (1983) Nonlinear dynamics and conformational excitations in biomolecular materials. Structure and dynamics: nucleic acids and proteins . New York: Adenine Press 61-80.
[7]	Fedyanin VK, Gochev I, Lisy V (1986) Nonlinear dynamics of bases in continual model of DNA double helices. Stud Biophys 116: 59-64.
[8]	Yakushevich LV (1989) Nonlinear DNA dynamics: a new model. Phys Lett A 136: 413-417.
[9]	Grinevich AA, Yakushevich LV (2018) The influence of the DNA torque on the dynamics of transcription bubbles in plasmid PTTQ18. J Theor Biol 453: 68-77. https://doi.org/10.1016/j.jtbi.2018.04.036
[10]	Masulis IS, Babaeva ZS, Chernyshov SV, et al. (2015) Visualizing the activity of Escherichia coli divergent promoters and probing their dependence on superhelical density using dual-colour fluorescent reporter vector. Sci Rep 5: 11449. https://doi.org/10.1038/srep11449
[11]	Shavkunov KS, Masulis IS, Tutukina MN, et al. (2009) Gains and unexpected lessons from genome-scale promoter mapping. Nucleic Acids Res 37: 4919-4931. https://doi.org/10.1093/nar/gkp490
[12]	Masulis IS, Grinevich AA, Yakushevich LV (2024) Dynamics of open states and promoter functioning in the appY_red and appY_green genetic constructions based on the pPF1 plasmid. Front Biosci-Landmark 29: 155. https://doi.org/10.31083/j.fbl2904155
[13]	Grinevich AA, Masulis IS, Yakushevich LV (2021) Mathematical modeling of transcription bubble behavior in the pPF1 plasmid and its modified versions: the link between the plasmid energy profile and the direction of transcription. Biophysics 66: 209-217. https://doi.org/10.1134/S000635092102007X
[14]	Krasnobaeva LA, Yakushevich LV (2022) DNA kinks behavior in the potential pit-trap. AIMS Biophys 9: 130-146. https://doi.org/10.3934/biophy.2022012
[15]	Krasnobaeva LA, Yakushevich LV (2024) Trajectories of solitons movement in the potential field of pPF1 plasmid with non-zero initial velocity. Math Model 19: 232-247. https://doi.org/10.17537/2024.19.232
[16]	The red protein mCherry sequence and map. Available from: https://www.fpbase.org/protein/mcherry/
[17]	The green protein Egfp sequence and map. Available from: https://www.fpbase.org/protein/egfp/
[18]	The kanamycin sequence and map. Available from: https://go.drugbank.com›drugs/DB01172/
[19]	Cao Y, Malomed BA, He J (2018) Two (2+1)-dimensional integrable nonlocal nonlinear Schrödinger equations: breather, rational and semi-rational solutions. Chaos Solitons Fractals 114: 99-107. https://doi.org/10.1016/j.chaos.2018.06.029
[20]	Bhatti MM, Lu DQ (2019) Hydroelastic solitary wave during the head-on collision process in a stratified fluid. Proc Inst Mech Eng Part C 233: 6135-6148. https://doi.org/10.1177/0954406219861135
[21]	Younas U, Younis M, Seadawy AR, et al. (2021) Diverse exact solutions for modified nonlinear Schrödinger equation with conformable fractional derivative. Results Phys 20: 103766. https://doi.org/10.1016/j.rinp.2020.103766
[22]	Eslami M (2016) Trial solution technique to chiral nonlinear Schrödinger's equation in (1+2)-dimensions. Nonlinear Dyn 85: 813-816. https://doi.org/10.1007/s11071-016-2724-2
[23]	Aslan I (2014) Exact solutions of a fractional-type differential-difference equation related to discrete MKdv equation. Commun Theor Phys 61: 595. https://doi.org/10.1088/0253-6102/61/5/09
[24]	El-Rashidy K, Seadawy AR, Althobaiti S, et al. (2020) Multiwave kinky breathers and multi-peak soliton solutions for the nonlinear Hirota dynamical system. Results Phys 19: 103678. https://doi.org/10.1016/j.rinp.2020.103678
[25]	McLaughlin DW, Scott AC (1978) Perturbation analysis of fluxon dynamics. Phys Rev A 18: 1652. https://doi.org/10.1103/PhysRevA.18.1652
