Encephalomalacia/gliosis, deep venous thrombosis, and cancer in Arg393His antithrombin Hanoi and the potential impact of the β-amyloid precursor protein (APP) on thrombosis and cancer

Khue Vu Nguyen; Khue Vu Nguyen

doi:10.3934/Neuroscience.2022010

AIMS Neuroscience

2022, Volume 9, Issue 2: 175-215. doi: 10.3934/Neuroscience.2022010

Previous Article Next Article

Review

Encephalomalacia/gliosis, deep venous thrombosis, and cancer in Arg393His antithrombin Hanoi and the potential impact of the β-amyloid precursor protein (APP) on thrombosis and cancer

Khue Vu Nguyen ^{1,2
,
,}

Former Institution Attended:
1.
Department of Medicine, Biochemical Genetics and Metabolism, The Mitochondrial and Metabolic Disease Center, School of Medicine, University of California, San Diego, Building CTF, Room C-103, 214 Dickinson Street, San Diego, CA 92103-8467, USA
2.
Department of Pediatrics, University of California, San Diego, School of Medicine, San Diego, La Jolla, CA 92093-0830, USA

Received: 25 October 2021 Revised: 15 April 2022 Accepted: 18 April 2022 Published: 21 April 2022

A heterozygous Arg393His point mutation at the reactive site of antithrombin (AT) gene causing thrombosis in a Vietnamese patient is reported and named as Arg393His in AT-Hanoi. The present variant is characterized by a severe reduction of functionally active AT plasma concentration to 42% of normal resulting in multiple severe thrombotic events such as cerebral venous thrombosis (CVT) (encephalomalacia/gliosis), recurrent deep venous thrombosis (DVT) and the development of kidney cancer. Today the complexity of thrombophilia has grown with appreciation that multiple inherited and acquired risk factors may interact to result in a clinically thrombotic phenotype. This article focuses on the following issues: (1) pathophysiology and clinical conditions of Arg393His in AT-Hanoi; (2) “two way association” between cancer and thrombosis in which venous thromboembolism (VTE) can be both a presenting sign and a complication of cancer; (3) efficacy of anticoagulants used for the prevention of cancer-related thrombosis; (4) conditions of acquired risk factors such as cancer or genetic disorders via epigenetic modifications in gene-gene (epistasis) and/or gene-environment interactions such as in Lesch-Nyhan disease (LND), in which the β-amyloid precursor protein (APP) that may interact to predispose a patient to thrombosis and cancer. It is also necessary to study the hypoxanthine-guanine phosphoribosyltransferase (HGprt) enzyme, AT, and APP using expression vectors for exploring their impact on LND, thrombosis as well as other human diseases, especially the ones related to APP such as Alzheimer's disease (AD) and cancer. For such a purpose, the construction of expression vectors for HGprt and APP, with or without the glycosyl-phosphatidylinositol (GPI) anchor, was performed as described in Ref. #148 (Nguyen, K. V., Naviaux, R. K., Nyhan, W. L. Lesch-Nyhan disease: I. Construction of expression vectors for hypoxanthine-guanine phosphoribosyltransferase (HGprt) enzyme and amyloid precursor protein (APP). Nucleosides Nucleotides Nucleic Acids 2020, 39: 905–922). In the same manner, the construction of expression vectors for AT and APP can be performed as shown in Figure 6. These expressions vectors, with or without GPI anchor, could be used as tools for (a) studying the effects of Arg393His mutation in AT; (b) studying the emerging role of Arg393His mutation in AT and cancer; (c) studying intermolecular interactions between APP and AT.

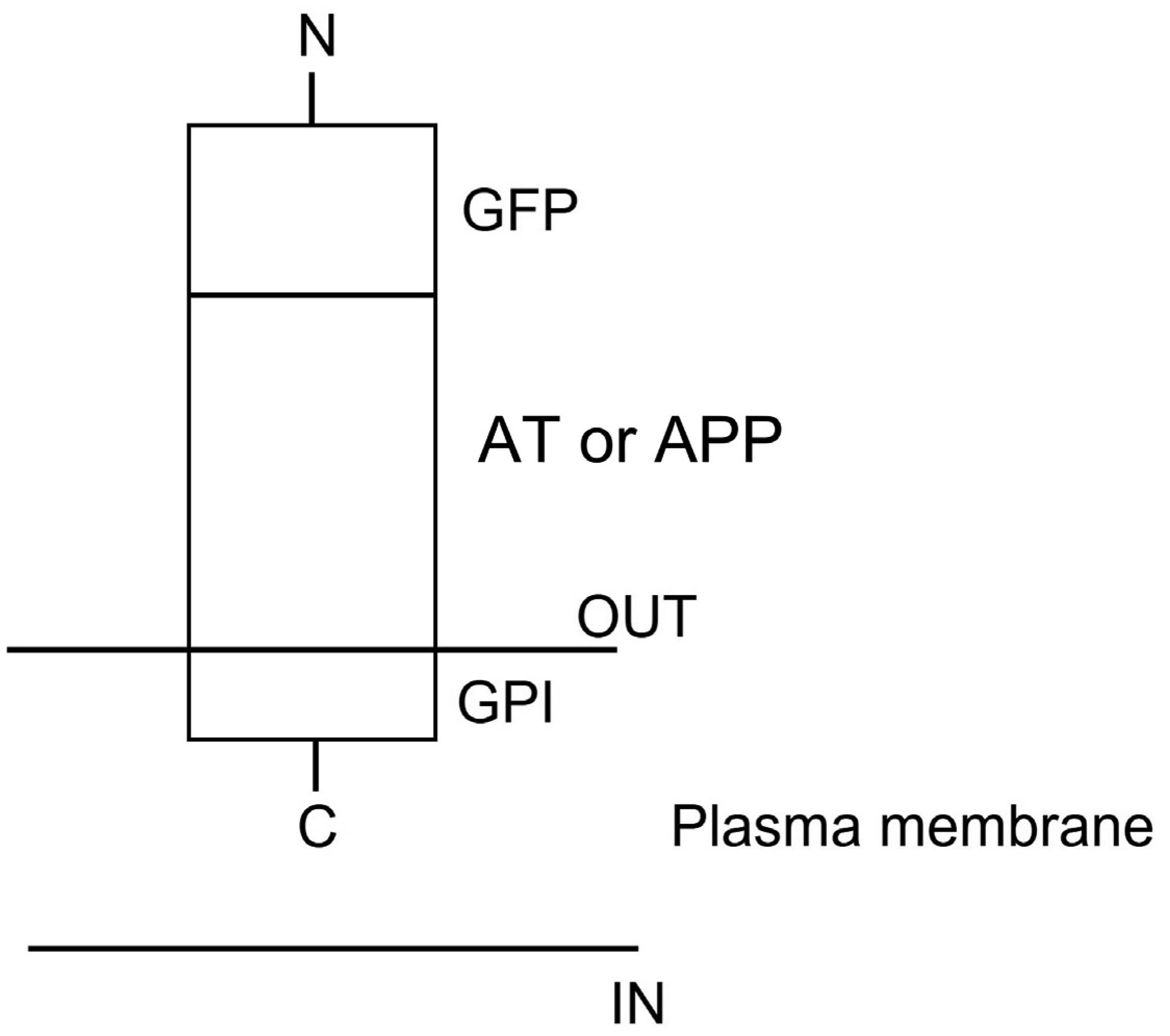

Furthermore, the construction of expression vectors as described in Ref. #148, especially the one with GPI, can be used as a model for the construction of expression vectors for any protein targeting to the cell plasma membrane for studying intermolecular interactions and could be therefore useful in the vaccines as well as antiviral drugs development (studying intermolecular interactions between the spike glycoprotein of the severe acute respiratory syndrome coronavirus 2, SARS-CoV-2, as well as its variants and the angiotensin-converting enzyme 2, ACE2, in coronavirus disease 2019 (COVID-19) [155],[156], for example).

Keywords:

Citation: Khue Vu Nguyen. Encephalomalacia/gliosis, deep venous thrombosis, and cancer in Arg393His antithrombin Hanoi and the potential impact of the β-amyloid precursor protein (APP) on thrombosis and cancer[J]. AIMS Neuroscience, 2022, 9(2): 175-215. doi: 10.3934/Neuroscience.2022010

Related Papers:

[1]	Teh Raihana Nazirah Roslan, Sharmila Karim, Siti Zulaiha Ibrahim, Ali Fareed Jameel, Zainor Ridzuan Yahya . Stochastic pricing formulation for hybrid equity warrants. AIMS Mathematics, 2022, 7(1): 398-424. doi: 10.3934/math.2022027
[2]	Guiwen Lv, Ping Xu, Yanxue Zhang . Pricing of vulnerable options based on an uncertain CIR interest rate model. AIMS Mathematics, 2023, 8(5): 11113-11130. doi: 10.3934/math.2023563
[3]	Din Prathumwan, Thipsuda Khonwai, Narisara Phoochalong, Inthira Chaiya, Kamonchat Trachoo . An improved approximate method for solving two-dimensional time-fractional-order Black-Scholes model: a finite difference approach. AIMS Mathematics, 2024, 9(7): 17205-17233. doi: 10.3934/math.2024836
[4]	Min-Ku Lee, Jeong-Hoon Kim . Closed-form approximate solutions for stop-loss and Russian options with multiscale stochastic volatility. AIMS Mathematics, 2023, 8(10): 25164-25194. doi: 10.3934/math.20231284
[5]	Ashish Awasthi, Riyasudheen TK . An accurate solution for the generalized Black-Scholes equations governing option pricing. AIMS Mathematics, 2020, 5(3): 2226-2243. doi: 10.3934/math.2020147
[6]	Xiuxian Chen, Zhongyang Sun, Dan Zhu . Mean-variance investment and risk control strategies for a dynamic contagion process with diffusion. AIMS Mathematics, 2024, 9(11): 33062-33086. doi: 10.3934/math.20241580
[7]	Kazem Nouri, Milad Fahimi, Leila Torkzadeh, Dumitru Baleanu . Numerical method for pricing discretely monitored double barrier option by orthogonal projection method. AIMS Mathematics, 2021, 6(6): 5750-5761. doi: 10.3934/math.2021339
[8]	Chao Yue, Chuanhe Shen . Fractal barrier option pricing under sub-mixed fractional Brownian motion with jump processes. AIMS Mathematics, 2024, 9(11): 31010-31029. doi: 10.3934/math.20241496
[9]	Xun Lu, Wei Shi, Changhao Yang, Fan Yang . Exponential integral method for European option pricing. AIMS Mathematics, 2025, 10(6): 12900-12918. doi: 10.3934/math.2025580
[10]	Kanagaraj Muthuselvan, Baskar Sundaravadivoo, Kottakkaran Sooppy Nisar, Fahad Sameer Alshammari . New technique for solving the numerical computation of neutral fractional functional integro-differential equation based on the Legendre wavelet method. AIMS Mathematics, 2024, 9(6): 14288-14309. doi: 10.3934/math.2024694

Abstract

Abbreviations

Aβ:

β-amyloid peptide;

ACE2:

angiotensin-converting enzyme 2;

ACT:

activated clotting time;

AD:

Alzheimer's disease;

APC:

activated protein C;

aPL:

antiphospholipid;

APLP1:

β-amyloid precursor-like protein 1;

APLP2:

β-amyloid precursor-like protein 2;

APP:

β-amyloid precursor protein;

APP-mRNA:

β-amyloid precursor protein messenger RNA;

APPsα:

soluble APP fragment released from APP following the cleavage by α-secretase;

aPTT or APTT:

activated partial thromboplastin time;

AS:

alternative splicing;

ASCO:

American society of clinical oncology;

AT:

anthithrombin;

AT I:

antithrombin I;

AT II:

antithrombin II;

AT III:

antithrombin III;

AT IV:

antithrombin IV;

ATP:

adenosine-5′-triphosphate;

CAPS:

catastrophic antiphospholipid syndrome;

cdk2:

cyclin-dependent kinase 2;

COVID-19:

coronavirus disease 2019;

CNS:

central nervous system;

CT:

computed tomography;

CTA:

computed tomography angiography;

CUS:

compression ultrasound;

CVT:

cerebral venous thrombosis;

DVT:

deep venous thrombosis;

EGFR-R776H:

epidermal growth factor receptor-Arg776His;

FFP:

fresh frozen plasma;

GPI:

glycosyl-phosphatidylinositol;

GTP:

guanosine-5′-triphosphate;

HBS:

heparin binding site;

HDM2:

human homologue of the murine double minute 2 protein;

HGprt:

hypoxanthine-guanine phosphoribosyltransferase;

HIT:

heparin-induced thrombocytopenia;

HIV:

human immunodeficiency virus;

HND:

HGprt-related neurological dysfunction;

HPRT1:

hypoxanthine phosphoribosyltransferase 1;

HPRT1-mRNA:

hypoxanthine phosphoryltransferase 1 messenger RNA;

HRH:

HGprt-related hyperuricemia;

INDELS:

deletion followed by an insertion;

INR:

international normalized ratio;

KPI:

Kunitz protease inhibitor;

LMWH:

low-molecular-weight heparin;

LND:

Lesch-Nyhan disease;

LNV:

Lesch-Nyhan variant;

MIM:

Mendelian inheritance in man;

mRNA:

messenger RNA;

NET:

neutrophil extracellular trap;

NOAC:

non-vitamin K antagonist oral anticoagulant;

NSAID:

nonsteroidal anti-inflammatory drug;

P21/WAF1:

also known as cyclin-dependent kinase inhibitor 1 or CDK-interacting; protein 1, is a cyclin-dependent kinase inhibitor (CKI) that is capable; of inhibiting all cyclin/CDK complexes, and thus function as a regulator; of cell cycle progression at G1 and S phase;

PCR:

polymerase chain reaction;

PD:

pharmacodynamics;

PE:

pulmonary embolism;

pHi:

pH intracellular;

PK:

pharmacokinetics;

PN-2:

protease nexin-2;

PT:

prothrombin time;

PTT:

partial thromboplastin time;

RS:

reactive site;

SARS-CoV-2:

severe acute respiratory syndrome coronavirus 2;

siRNA:

small interfering RNA;

TAD:

trans-activation domain;

TF:

tissue factor;

TFPI:

tissue factor pathway inhibitor;

TK1:

thymidine kinase 1;

TP53:

tumor suppressor protein 53;

UFH:

unfractionated heparin;

VKA:

vitamin K antagonist;

VTE:

venous thromboembolism;

WARF:

Wisconsin alumni research foundation;

WNV:

West Nile virus

1. Introduction

Modeling derivative products in mathematical finance usually starts with a system of stochastic differential equation that correspond to state variables like stock, interest rate and volatility. For financial analysts, economic auditors and risk managers in financial organizations, securities analysis is very important, thus in last decades they have tried to design new models that help to change markets react and solve some problems in the market. Modeling challenges has created a common link between applied mathematicians and financial researchers as the production of knowledge in this area ^[4,15].

As an important model in the original Black–Scholes option valuation theory the volatility and the interest rate are both assumed constant. A popular expansion of the Black–Scholes model has been proposed by Heston. This expansion allows also for correlation between the volatility and the asset price, so that one can capture skewness effects ^[16]. In addition to the volatility the values of many practically important securities are sensitive to interest rates, necessitating the construction of interest rate models ^[17].

Consider an agent who at each time has a portfolio valued at $X(t).$ This portfolio invests in a money market account paying a constant rate of interest $r,$ and in a stock modeled by the geometric Brownian motion,

$\begin{equation} dS(t) = \alpha S(t)dt+\delta S(t)dW(t), \end{equation}$

(1.1)

Suppose at each time $t,$ the investor holds $\Delta(t)$ shares of stock. The position $\Delta(t)$ can be random but must be adapted to the filtration associated with the Brownian motion $W(t), t\geq0.$ The remainder of the portfolio value, $X(t)-\Delta(t) S(t),$ is invested in the money market account ^[12].

In addition to, we consider the following model which presents the system of three SDEs which they have composed from different assets called hybrid model. The asset price model in following can be viewed as an extension of the popular Heston stochastic volatility model where the interest rate is not constant but also follows a stochastic process, described here by the Hull–White model.

$\begin{equation} dS_\tau = R_\tau S_\tau d_\tau+S_\tau\sqrt{V_\tau} dW_{\tau}^1, S(0) \gt 0, \end{equation}$

(1.2)

$\\dV_\tau = k(\eta-V_\tau)d\tau+\delta_1\sqrt{V_\tau}dW_{\tau}^2,V(0) \gt 0,$

$\\dR_\tau = a(b(\tau)-R_\tau)d\tau+\delta_2\sqrt{R_\tau}dW_{\tau}^3,R(0) \gt 0,$

In this model for $0 < \tau\leq T$ with $T > 0$ the given maturity time of an option. The stocks process $S_\tau, V_\tau,$ and $R_\tau$ denote random variables that represent the asset price, its variance, and the interest rate, at time $\tau$ respectively. The variance process $V_\tau$ was proposed by Heston and interest rate process $R_\tau,$ by Cox, Ingersoll and Ross in Eq.(1.2). Parameters $k, \eta, \delta_1, \delta_2,$ and $a,$ are given positive real numbers and $dW_{\tau}^1, dW_{\tau}^2, dW_{\tau}^3$ are Brownian motions with given correlation factors $\rho_1, \rho_2, \rho_3\in[-1, 1].$ Also $b,$ is a given deterministic positive function of time which can be chosen such that to match the current term structure of interest rates ^[12,13].

The introduction of Legendre wavelet method for the variational problems by Razzaghi and Yousefi in 2000 and 2001 ^[3,11,14], several works applying this method were born. The Legendre wavelets method (LWM) is transformed a boundary value problem (BVP) into a system of algebraic equations ^[14]. The unknown parameter of this system is the vector that its components are the decomposition coefficients of the BVP solution into Legendre wavelets basis. In this paper we apply the multi- Legendre wavelet method to solve B-S and HCIR partial differential equations.

This paper is organized as follows: In section 2, PDE models of Black-Scholes equation and Heston-Cox-Ingersoll-Ross equation have derived from SDE models, Section 3 has described properties and formulation of Legendre wavelet and Multi-dimensional Legendre Wavelet, Section4, metodology of multi-dimensional LWM is applied on PDEs that use in section 2. In section 5, numerical results and figures are presented and section 6, Conclusion is used to review.

2. Deriving PDE models of B-S and HCIR

In his section we discuss about the B-S PDE model and HCIR PDE model that they have derived from SDE models ^[1,2,19].

Theorem 2.1. (Ito-Doeblin formula for Brownian motion). Let $f (t, x)$ be a function for which the partial derivatives $f_{t}(t, x), f_{x}(t, x)$ and $f_{xx}(t, x)$ are defined and continues and let $W(t)$ be a Brownian motion. Then for every $T\geq0,$

$\begin{equation} f(t,W(t)) = f(0,W(0))+\int_{0}^{T}f_{t}(t,W(t))dt \end{equation}$

(2.1)

$+\int_{0}^{T}f_{x}(t,W(t))dt+\int_{0}^{T}f_{xx}(t,W(t))dt,$

Proof: see ^[6].

Remark 2.1: In the Ito- Doeblin formula we can write in differential form ^[6],

$\begin{equation} df(t,W(t)) = f_{t}(t,W(t))+f_{t}(t,W(t))dW(t)+\frac{1}{2}f_{t}(t,W(t))dW(t)dW(t),\\ \;\;\;\;\;\;\;\;\;\;\;\;\;\;\;\;\;\;+f_{tx}(t,W(t))dtdW(t)+\frac{1}{2}f_{xx}(t,W(t))dtdt, \end{equation}$

(2.2)

But

$\begin{equation} dW(t)dW(t) = d(t), d(t)dW(t) = dW(t)d(t) = 0, d(t)d(t) = 0, \end{equation}$

(2.3)

And the Ito- Doeblin formula in differential form simplifies to

$\begin{equation} df(t,W(t)) = f_{t}(t,W(t))dt+f_{x}(t,W(t))dW(t)+\frac{1}{2}f_{xx}dt. \end{equation}$

(2.4)

Definition 2.1: let $W(t), t\geq0$ be a Brownian motion and let $F(t), t\geq0$ be an associated filtration. An Ito process as the form following

$\begin{equation} X(t) = X(0)+\int_{0}^{t}\bigtriangleup(u)dW(u)+\int_{0}^{t}\theta(u)d(u), \end{equation}$

(2.5)

Where $X(0)$ is nonrandom and $\triangle(u)$ and $\theta(u)$ are adapted stochastic process.

Lemma 2.1: the quadratic variation of the Ito process Eq.(2.5) is

$\begin{equation} [X,X](t) = \int_{0}^{t}\triangle^{2}(u)du. \end{equation}$

(2.6)

Proof: see ^[6].

Definition 2.2: let $X(t), t\geq0$ be an Ito process as described in Definition 2.1 and let $\Gamma(t), t\geq0$ be an adapted process. We define the integral with respect to an Ito process,

$\begin{equation} \int_{0}^{t}\Gamma(u) dX(u) = \int_{0}^{t}\Gamma(u) \triangle(u)dW(u)+\int_{0}^{t}\Gamma(u)\theta(u)du. \end{equation}$

(2.7)

Theorem 2.2. (Ito-Doeblin formula for an Ito process). Let $X(t), t\geq0$ be an Ito process as described in Definition 2.1 and let $f(t, x)$ be a function for which the partial derivatives $f_{t}(t, x), f_{x}(t, x)$ and $f_{xx}(t, x)$ are defined and continues. Then for every $T \geq0,$

$\begin{equation} f(T,X(T)) = f(0,X(0))+\int_{0}(T)f_{t}(t,X(t))dt \end{equation}$

(2.8)

$+\int_{0}^{T}f_{x}(t,X(t))dX(t)+\frac{1}{2}\int_{0}^{T}f_{xx}(t,X(t))d[X,X](t) =$

$f(0,X(0))+\int_{0}^{T}f_{t}(t,X(t))dt+\int_{0}^{T}f_{x}(t,X(t)) \triangle(t)dW(t)dt$

$+\int_{0}^{T}f_{x}(t,X(t)) \theta dt+\frac{1}{2}\int_{0}^{T}f_{xx}(t,X(t))\triangle(t)^{2}(t)$

We may rewrite Eq.(2.8),

$\begin{equation} df(t,x(t)) = f_{t}(t,X(t))dt+f_{x}(t,X(t))dX(t)+\frac{1}{2}f_{xx}(t,X(t))dX(t)dX(t). \end{equation}$

(2.9)

proof: See ^[6].

A SDE has defined as te following

$\begin{equation} dX(u) = \beta(u,X(u))du+\gamma(u,X(u))dW(u). \end{equation}$

(2.10)

The functions $\beta(u, X(u))$ and $\gamma(u, X(u))$ called drift and diffusion respectively. Where $t\geq0$ final goal in these problems is to find a stochastic proces $X(T)$ which is governed by

$\begin{equation} X(t) = x, \end{equation}$

(2.11)

$\begin{equation} X(t) = X(t)+\int_{t}^{T}\beta(u,X(u))du+\int_{t}^{T}\gamma(u,X(u))dW(u), \end{equation}$

(2.12)

Under conditions of the functions $\beta(u, x)$ and $\gamma(u, x)$ there exists a unique process $X(T), T\geq t$ Satisfying Eq.(2.11) and Eq.(2.12) and generally this is a SDE form of following

$\begin{equation} dX(u) = (a(u)+b(u)X(u))du+(\gamma(u)+\delta(u)X(u))dW(u), \end{equation}$

(2.13)

Where $a(u), b(u), \delta(u)$ and $\gamma(u)$ are non-random functions of time and we permit on the right- hand side of Eq.(2.10) is the randomness inherent in the solution $X(u)$ and in the driving Brownian motion $W(u).$ Then the stochastic differential equation for geometric Brownian motion is

$\begin{equation} dS(u) = \alpha S(u) du+\gamma S(u) dW(u), \end{equation}$

(2.14)

The rate of change $\frac{dS}{S},$ can be decomposed in to two parts in Eq.(2.14): One is deterministic, the other one is random.

The deterministic part can be modeled by $\frac{dS}{S} = \mu dt,$ where $\mu$ is a measure of the growth rate of the asset and random part modeled by a Brownian motion $\delta dW(t)$ that $\delta$ is the variance of the return and is called the volatility. The overall asset price model is then given by

$\begin{equation} \frac{dS}{S} = \mu dt+\gamma dW(t), \end{equation}$

(2.15)

Eq.(2.15), is a SDE and it can be expressed as follows

$\begin{equation} dS(t) = \mu (S(t))dt+\delta(S(t))dW_{s}(t). \end{equation}$

(2.16)

An important lemma for finding their solution is the following Ito lemma.

Lemma 2.2: Suppose $S(t)$ satisfies the stochastic differential Eq.(2.16), and $u(S, t)$ is a smooth function. Then $u(S(t), t)$ satisfies the following stochastic differential equation ^[8].

$\begin{equation} du = (u_{t}+\mu u_{s}+\frac{1}{2} \delta^{2} u_{ss})dt+\delta u_{s} dW_{s}. \end{equation}$

(2.17)

By expanding Eq.(2.17) with applying different variables in Ito lemma to earn B-S PDE and HCIR PDE equations, as following Black-Scholes PDE equation ^[1].

Option transaction contract is divided into different types which the most important types are call option and put option. call option contract means that buyer have to buy the certain asset with given price in certain time, as the same way the put option contract leads to sale of asset with given price and certain time by seller. Maturity validity includes American option and European option ^[5]. Where $W(t),$ is a standard Brownian motion. We also assume that interest rate are constant so that one unit of currency invested in the cash account at time $0$ , will be worth

$B(t) = exp(rt),$

at time $t.$ We will value of call option or put option at time $t.$ By Ito Lemma we know that,

$\begin{equation} du(S,t) = (\mu S(t) \frac{\partial u}{\partial S}+ \frac{\partial u}{\partial t} + \frac{1}{2} \delta^{2} S^{2}(t) \frac{\partial^{2}u}{\partial S^2})dt+\delta S(t) \frac{\partial u}{\partial S} dW(t), \end{equation}$

(2.18)

Let us now consider a self-financing trading strategy where at each time $t,$ we hold units $x_{t},$ of the cash account and $y_{t},$ units of the stock. Then $p_{t},$ value of this strategy satisfies,

$\begin{equation} p_{t} = x_{t}B_{t}+y_{t}S_{t}, \end{equation}$

(2.19)

We will choose $x_{t}$ and $y_{t}$ in such a way that the strategy replicates the value of the option the self-financing assumption implies that

$\begin{equation} dp_{t} = x_{t} dB_{t}+y_{t} dS_{t}, \end{equation}$

(2.20)

$\begin{equation} = rx_{t}B_{t} dt+y_{t}(\mu S_{t} dt+\delta S_{t} dWt) \end{equation}$

(2.21)

$= ( rx_{t}B_{t} dt+y_{t}\mu S_{t}) dt+y_{t}\delta S_{t} dWt,$

Note that Eq.(2.20) is consistent with our earlier definition of financing. In particular gains or losses on the portfolio are due entirely to gain or losses in the underlying securities i.e. the cash account and stock and not due to change in holding $x_{t},$ and $y_{t}.$

Returning to our derivation, we can equate times in Eq.(2.18), to obtain

$\begin{equation} y_{t} = \frac{\partial u}{\partial S}, \end{equation}$

(2.22)

$rx_{t}B_{t} = \frac{\partial u}{\partial S}+\frac{1}{2} \delta^{2} S^{2} \frac{\partial^2(u)}{\partial S^2},$

If we set

$C_{0} = P_{0},$

that $C$ and $P$ are call option and put option in finance, the interval value of strategy, then it must be the case that

$C_{t} = P_{t},$

since call option or put option have the same dynamics this is true by construction after we equate terms in Eq.(2.19), with the corresponding terms in Eq.(2.22).

Substituting Eq.(2.22) into Eq.(2.19), we obtain the Black-Scholes PDE

$\begin{equation} rS_{t} \frac{\partial u}{\partial S}+ \frac{\partial u}{\partial t}+\frac{1}{2} \delta^{2} S^{2} \frac{\partial^2(u)}{\partial S^2} -ru = 0. \end{equation}$

(2.23)

In order to solve Eq.(2.23), boundary conditions must be provided in the case of call option or put option.

By applying system of Eq.(1.1) in Eq.(2.17), for construction of PDE model we need part of deterministic section of a stochastic differential equation model as,

$\begin{equation} du(S,v,r,t) = u_{t}(S,v,r,t)dt+u_{s}(S,v,r,t)d(S(t))+u_{r}(S,v,r,t)d(r(t))+u_{v}(S,v,r,t)d(v(t)) \\ \;\; \; +\frac{1}{2} u_{ss} (S,v,r,t)d(S(t))d(S(t))+\frac{1}{2} u_{rr} (S,v,r,t)d(r(t))d(r(t))+\frac{1}{2} u_{vv} (S,v,r,t)d(v(t))d(v(t)) \\\;\; \;\;\;+u_{sv}(S,v,r,t)d(S(t))d(v(t))+u_{sr}(S,v,r,t)d(S(t))d(r(t))+u_{vr}(S,v,r,t)d(v(t))d(r(t)). \end{equation}$

(2.24)

Heston-Cox-Ingersoll-Ross PDE equation ^[6,7,8,9],

$\begin{equation} \frac{du}{dt} = rS\frac{du}{dS}+k(\eta -v)\frac{du}{dv}+a(b(t-T)-r)\frac{du}{dr}+\frac{1}{2}S^{2}v\frac{\partial^{2} u}{\partial S^2}+\frac{1}{2}\delta{1}^{2}v\frac{\partial^{2} u}{\partial v^2} \end{equation}$

(2.25)

$+\frac{1}{2}\delta_{2}^{2}r \frac{\partial^{2} u}{\partial r^2}+\rho_{12}\delta_{1}Sv \frac{\partial^{2} u}{\partial S\partial v}+\rho_{13}S \sqrt{vr}\frac{\partial^{2} u}{\partial S\partial r}+\rho_{23}\delta_{1}\delta_{2}\sqrt{vr} \frac{\partial^{2} u}{\partial v\partial r}-ru.$

By Eq.(2.25) we are obtained PDE model of the HCIR equation.

3. Construction of multi-dimensional Legendre wavelet

In this study Legendre wavelet well-addressed in ^[5,10,18], are employed.The wavelet basis is constructed from a single function, which is called the mother wavelet. These basis functions are called wavelets and they are an orthonormal set. One of the most important wavelets is Legendre wavelets. The Legendre wavelets are obtained from Legendre polynomials. In the past decade special attention has been given to applications of wavelets. The main characteristic of Legendre wavelet is that it reduces to a system of algebraic equation.

The function $\psi (x) \in L^2 (R)$ is a mother wavelet and $\psi (x)_{uv} = \vert u\vert ^\frac{-1}{2}\psi(\frac{x-v}{u})$ which $u, v\in R$ and $u\neq 0$ is a family of continuous wavelets. If we choose the dilation parameter $u = a^{-n}$ and the translation parameter $v = ma^{-n} b$ where $a > 1, b > 0, n$ and $m$ are positive integer, we have the discrete orthogonal wavelets set.

$\lbrace \psi (x)_{n,m} = \vert a\vert ^\frac{n}{2}\psi (a^{n}x-mb): m,n\in Z\rbrace$

The Legendre wavelet is constructed from Legendre function ^[4,15]. One dimension Legendre wavelets over the interval $[0, 1]$ are defined as,

$\begin{equation} \psi_{m,n}(t) = \sqrt{(m+\frac{1}{2})}2^{\frac{k}{2}}P_{m}(2^{k}x-2n+1) , \frac{\widehat{n}-1}{2^{k-1}} 0 , o.w \end{equation}$

(3.1)

With $n = 1, 2..., 2k-1, m = 0, 1, 2, ..., M-1.$ In Eq.(3.1) $P_{m}$ are ordinary Legendre functions of order defined over the interval [-1, 1]. Legendre wavelet is an orthonormal set as,

$\begin{equation} \int_{0}^{1} \psi (x)_{n,m} \psi (x)_{n^\prime, m^\prime}dx = \delta_{n,n^\prime}\delta_{m,m^\prime}, \end{equation}$

(3.2)

The function $f(x) \in L^{2}([0, 1] \times [0, 1]),$ may be expanded as the following,

$\begin{equation} f(x)\cong \sum\limits_{n = 1}^{ 2^{k}-1} \sum\limits_{m = 0}^{ M-1} c_{n,m} \psi (x)_{n,m}, \end{equation}$

(3.3)

Now we defined four dimensions Legendre wavelets in $L^{4} ([0, 1]\times[0, 1]\times[0, 1]\times[0, 1]),$ as the form

$\begin{equation} \psi_{n_{1,2,3,4},m_{1,2,3,4}}(x) = \begin{cases} A_{m_{1,2,3,4}}(\prod\limits_{i = 1}^{4}P_{m_{i}}(2^{k_{i}}x_{i}-2n_{i}+1)),&\frac{{n_{i}}-1}{2^{k_{i}-1}}\leq x_{i} \leq \frac{{n_{i}}}{2^{n_{i}-1}}, i = 1,..,4\\ 0 , & o.w \end{cases} \end{equation}$

(3.4)

that

$A_{m_{1,2,3,4}} = \sqrt{\prod\limits_{i = 1}^{4}(m_{i}+\frac{1}{2})}2^{\frac{\sum\limits_{i = 1}^{4}k_{i}}{2}},\\\\\\\\ m_{i} = 0,1,...,M_{i}-1, n_{i} = 1,2,...,2^{k_{1}-1} {,i = 1,..,4}$

Four dimensions Legendre wavelets are orthonormal set over $[0, 1]\times[0, 1]\times[0, 1]\times[0, 1].$

$\begin{equation} \int_{0}^{1}\int_{0}^{1}\int_{0}^{1}\int_{0}^{1}\psi_{n_{1,2,3,4},m_{1,2,3,4}}(x,y,z,q)\psi_{n^{\prime}_{1,2,3,4},m^{\prime}_{1,2,3,4}}(x,y,z,q)dxdydzdq = \end{equation}$

(3.5)

$\delta _{n_{1},n^{\prime}_{1}},\delta _{n_{2},n^{\prime}_{2}},\delta _{n_{3},n^{\prime}_{3}},\delta _{n_{4},n^{\prime}_{4}},\delta _{m_{1},m^{\prime}_{1}},\delta _{m_{2},m^{\prime}_{2}},\delta _{m_{3},m^{\prime}_{3}},\delta _{m_{4},m^{\prime}_{4}}.$

The function $u(x, y, z, q)\in L^{4}([0, 1]\times[0, 1]\times[0, 1]\times[0, 1]),$ can be expanded as fallows

$\begin{equation} u(x,y,z,q) = X(x)Y(y)Z(z)Q(q)\cong \prod\limits_{i = 1}^{4}(\sum\limits_{n_{i} = 1}^{ 2^{k_{i}}-1}\sum\limits_{m_{i} = 1}^{ 2^{M_{i}}-1} c_{n_{i},m_{i}}\psi _{n_{i},m_{i}}(x,y,z,q)). \end{equation}$

(3.6)

Where

$c_{n_{1,2,3,4},m_{1,2,3,4}} = \int_{0}^{1}\int_{0}^{1}\int_{0}^{1}\int_{0}^{1} X(x)Y(y)Z(z)Q(q) \psi _{n_{1,2,3,4},m_{1,2,3,4}}dxdydzdq.$

The truncated version of Eq.(3.6), can be expressed as the following,

$\begin{equation} u(x,y,z,q) = C^{T}\Psi (x,y,z,q), \end{equation}$

(3.7)

Where $C$ and $\Psi (x, y, z, q),$ are coefficients matrix and wavelets vector matrix, respectively. The dimensions of those are $\lbrace\prod _{i = 1}^{4}(2^{k_{i}-1}M_{i})\rbrace\times1,$ and are given as the form

$C = [ c_{10101010},...,c_{1010101M_{1}-1},c_{10101020},...,c_{1010102M_{2}-1},c_{10101030},...,c_{1010103M_{3}-1},$

$c_{1010102^{k_{1}-1}0},...,c_{1010102^{k_{1}-1}M_{1}-1},...,c_{1110101M_{1}-1},...,c_{1120},...,c_{112 M_{1}-1},$

$...,c_{2^{k_{1}-1} M_{{1}-1}2^{k_{2}-1} 0 2^{k_{3}-1} 0 2^{k_{4}-1} 0},...,c_{2^{k_{1}-1} M_{{1}-1} 2^{k_{2}-1} M_{{2}-1}2^{k_{3}-1} M_{{3}-1}2^{k_{4}-1} M_{{4}-1},...} ]^T,$

and also

$\Psi = [ \psi_{10101010},...,\psi_{1010101M_{1}-1},\psi_{10101020},...,\psi_{1010102M_{2}-1},\psi_{10101030},...,\psi_{1010103M_{3}-1},$

$\psi_{1010102^{k_{1}-1}0},...,\psi_{1010102^{k_{1}-1}M_{1}-1},...,\psi_{1110101M_{1}-1},...,\psi_{1120},...,\psi_{112 M_{1}-1},$

$...,\psi_{2^{k_{1}-1} M_{{1}-1}2^{k_{2}-1}0 2^{k_{3}-1}0 2^{k_{4}-1} 0},...,\psi_{2^{k_{1}-1} M_{{1}-1}2^{k_{2}-1} M_{{2}-1}2^{k_{3}-1} M_{{3}-1}2^{k_{4}-1} M_{{4}-1},... ]^T}.$

The integration of the product of four Legendre wavelet function vectors is obtained as

$\begin{equation} \int_{0}^{1}\int_{0}^{1}\int_{0}^{1}\int_{0}^{1}\Psi (x,y,z,q)\Psi^{T} (x,y,z,q) = I. \end{equation}$

(3.8)

Where $I,$ is diagonal unit matrix.(All of procedures in section 3, are established)

Lemma 3.1: if $h\in C ([0, T], L^{2}[0, 1])$ then the functions $C_{n, m}(t)$ are continuous on $[0, 1]$ ^[13].

Lemma 3.2: if $h\in C^{1} ((0, T), L^{2}[0, 1])$ then the function $C_{n, m}(t)$ coefficient belong to $C^{1} (0, T),$ furthermore if $\frac{\partial h}{\partial t} \in L^{2}((0, T), L^{2}[0, 1])$ then,

$\begin{equation} \frac{dC_{n,m}(t)}{dt} = \int_{0}^{1}\frac{\partial h(t,x)}{\partial t}\psi_{n,m} (x)dx. \end{equation}$

(3.9)

Proof: see ^[13].

3.1. Operational matrix of integration

The integration matrix for one variable $x,$ define as follows

$\begin{equation} \int_{0}^{x}\Psi ({x^{\prime}},y,z,q) dx^{\prime} = P_{x} \Psi (x,y,z,q). \end{equation}$

(3.10)

In which

$\\P_{x} = \frac{1} {M_{1}2^{k_{1}}}\begin{bmatrix} \ L & F & F& \cdots &F \\0 &L & F &\cdots &F\\ \vdots & \vdots & \ddots & \ddots & \vdots \\ 0 & 0 & 0& \cdots & L \end{bmatrix},\\$

$P_{x},$ is a $2^{k_{1}-1}2^{k_{2}-1}2^{k_{3}-1}2^{k_{4}-1} M_{1}M_{2}M_{3}M_{4}\times 2^{k_{1}-1}2^{k_{2}-1}2^{k_{3}-1}2^{k_{4}-1} M_{1}M_{2}M_{3}M_{4}$ matrix and $L, F$ and $O,$ are $2^{k_{1}-1} \times M_{1} \times2^{k_{2}-1} \times M_{2} \times 2^{k_{3}-1} \times M_{3}\times 2^{k_{4}-1} \times M_{4}$ matrices ^[14]. (In case of two variables Eq.(3.10), is established clearly).

Theorem 3.1. A function $f(x, y, z, l) \in L^{4}([0, 1)\times [0, 1)\times[0, 1)\times[0, 1))$ is with bounded second derivative say $\vert f^{\prime\prime }(x, y, z, l) \leq M,$ can be expanded as an infinite sum of Legendre wavelets and the series converges uniformly to the function $f(x, y, z, l)$ that is ^[15],

$\begin{equation} f(x,y,z,l) = \sum\limits _{n_{1} = 1}^{\infty}\sum\limits _{m_{1} = 0}^{\infty} \sum\limits _{n_{2} = 1}^{\infty}\sum\limits _{m_{2} = 0}^{\infty}\sum\limits _{n_{3} = 1}^{\infty}\sum\limits _{m_{3} = 0}^{\infty}\sum\limits _{n_{4} = 1}^{\infty}\sum\limits _{m_{4} = 0}^{\infty}c_{n_{1,..,4} ,m_{1,..,4}} \psi _{n_{1,..,4} ,m_{1,..,4}} (x,y,z,l) , \end{equation}$

(3.11)

Proof:

we have proved this theorem for multi-dimension states as following,

$c_{n_{1,..,4}, m_{1,..,4}} = \int _{0}^{1}\int _{0}^{1}\int _{0}^{1}\int _{0}^{1}f(x,y,z,l) dxdydzdl =$

${\int _{\frac{\widehat{n_{1}}-1}{2^{k}}}^{\frac{\widehat{n_{1}}+1}{2^{k}}}{\int _{\frac{\widehat{n_{2}}-1}{2^{k}}}^{\frac{\widehat{n_{2}}+1}{2^{k}}}{\int _{\frac{\widehat{n_{3}}-1}{2^{k}}}^{\frac{\widehat{n_{3}}+1}{2^{k}}}{\int _{\frac{\widehat{n_{4}}-1}{2^{k}}}^{\frac{\widehat{n_{4}}+1}{2^{k}}} f(x,y,z,l) (\frac{2m_{1}+1}{2})^\frac{1}{2} (\frac{2m_{2}+1}{2})^\frac{1}{2} (\frac{2m_{3}+1}{2})^\frac{1}{2} (\frac{2m_{4}+1}{2})^\frac{1}{2}}}}}$

$2^\frac{k_{1}+k_{2}+k_{3}+k_{4}}{2} P(2^{k_{1}}x-\widehat{n})P(2^{k_{2}}x-\widehat{n})P(2^{k_{3}}x-\widehat{n})P(2^{k_{4}}x-\widehat{n})dxdydzdl.$

Now let,

$2^{k_{1}}x-\widehat{n} = t_{1},2^{k_{2}}x-\widehat{n} = t_{2},2^{k_{3}}x-\widehat{n} = t_{3},2^{k_{4}}x-\widehat{n} = t_{4},$

then,

$dx = \frac{1}{2^{k_{1}}} dt_{1},dy = \frac{1}{2^{k_{2}}} dt_{2},dz = \frac{1}{2^{k_{3}}} dt_{3},dl = \frac{1}{2^{k_{4}}} dt_{4}.$

$c_{n_{1,..,4}, m_{1,..,4}} = \int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1} f(\frac{\widehat{n_{1}}+t_{1}}{2^{k_{1}}}) f(\frac{\widehat{n_{2}}+t_{2}}{2^{k_{2}}})f(\frac{\widehat{n_{3}}+t_{3}}{2^{k_{3}}})f(\frac{\widehat{n_{4}}+t_{4}}{2^{k_{4}}}) (\frac{2m_{1}+1}{2})^ \frac{1}{2}$

$(\frac{2m_{2}+1}{2})^ \frac{1}{2}(\frac{2m_{3}+1}{2})^ \frac{1}{2}(\frac{2m_{4}+1}{2})^ \frac{1}{2} 2^{\frac{k_{1}+k_{2}+k_{3}+k_{4}}{2}} P(t_{1})P(t_{2})P(t_{3})P(t_{4}) \frac{dxdydzdl}{2^{k_{1}+k_{2}+k_{3}+k_{4}}} =$

with get out the constants as followes

$(\frac{2m_{1}+1}{2^{k_{1}+1}})^ \frac{1}{2} (\frac{2m_{2}+1}{2^{k_{2}+1}})^ \frac{1}{2} (\frac{2m_{3}+1}{2^{k_{3}+1}})^ \frac{1}{2} (\frac{2m_{4}+1}{2^{k_{4}+1}})^ \frac{1}{2} \int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1} f(\frac{\widehat{n_{1}}+t_{1}}{2^{k_{1}}})$

$f(\frac{\widehat{n_{2}}+t_{2}}{2^{k_{2}}})f(\frac{\widehat{n_{3}}+t_{3}}{2^{k_{3}}})f(\frac{\widehat{n_{4}}+t_{4}}{2^{k_{4}}}) P_{m_{1}}(t_{1})P_{m_{2}}(t_{2})P_{m_{3}}(t_{3}) P_{m_{4}}(t_{4})dt_{1}dt_{2}dt_{3}dt_{4} =$

and polynomials are substituted

$( \frac{1}{2^{k_{1}+1}(2m_{1}+1)})^\frac{1}{2}( \frac{1}{2^{k_{2}+1}(2m_{2}+1)})^\frac{1}{2}( \frac{1}{2^{k_{3}+1}(2m_{3}+1)})^\frac{1}{2}( \frac{1}{2^{k_{4}+1}(2m_{4}+1)})^\frac{1}{2}$

$\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1} f(\frac{\widehat{n_{1}}+t_{1}}{2^{k_{1}}}) f(\frac{\widehat{n_{2}}+t_{2}}{2^{k_{2}}})f(\frac{\widehat{n_{3}}+t_{3}}{2^{k_{3}}})f(\frac{\widehat{n_{4}}+t_{4}}{2^{k_{4}}}) d(P_{m_{1}+1}(t_{1})-P_{m_{1}-1}(t_{1}))$

$d(P_{m_{2}+1}(t_{2})-P_{m_{2}-1}(t_{2}))d(P_{m_{3}+1}(t_{3})-P_{m_{3}-1}(t_{3}))d(P_{m_{4}+1}(t_{4})-P_{m_{4}-1}(t_{4})) =$

$(\frac{2m_{1}+1}{2^{k_{1}+1}})^ \frac{1}{2} (\frac{2m_{2}+1}{2^{k_{2}+1}})^ \frac{1}{2} (\frac{2m_{3}+1}{2^{k_{3}+1}})^ \frac{1}{2} (\frac{2m_{4}+1}{2^{k_{4}+1}})^ \frac{1}{2} f(\frac{\widehat{n_{1}}+t_{1}}{2^{k_{1}}}) f(\frac{\widehat{n_{2}}+t_{2}}{2^{k_{2}}}) f(\frac{\widehat{n_{3}}+t_{3}}{2^{k_{3}}}) f(\frac{\widehat{n_{4}}+t_{4}}{2^{k_{4}}})$

$(P_{m_{1}+1}(t_{1})-P_{m_{1}-1}(t_{1})) (P_{m_{2}+1}(t_{2})-P_{m_{2}-1}(t_{2})) (P_{m_{3}+1}(t_{3})-P_{m_{3}-1}(t_{3}))$

$(P_{m_{4}+1}(t_{4})-P_{m_{4}-1}(t_{4}))\vert_{-1}^{1} \vert_{-1}^{1}\vert_{-1}^{1}\vert_{-1}^{1} = -(\frac{1}{2^{3k_{1}+1}(2m_{1}+1)})^\frac{1}{2}$

Constants in terms of polynomials are calculated with the others,

$(\frac{1}{2^{3k_{2}+1}(2m_{2}+1)})^\frac{1}{2}(\frac{1}{2^{3k_{3}+1}(2m_{3}+1)})^\frac{1}{2} (\frac{1}{2^{3k_{4}+1}(2m_{4}+1)})^\frac{1}{2}\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}f(\frac{\widehat{n_{1}}+t_{1}}{2^{k_{1}}})$

$f(\frac{\widehat{n_{2}}+t_{2}}{2^{k_{2}}})f(\frac{\widehat{n_{3}}+t_{1}}{2^{k_{3}}})f(\frac{\widehat{n_{4}}+t_{4}}{2^{k_{4}}}) d( \frac{P_{m_{1}+2}(t_{1})-P_{m_{1}}(t_{1})} {2m_{1}+3} -\frac{P_{m_{1}}(t_{1})-P_{m_{1}-2}(t_{1})}{2m_{1}-1})$

$d( \frac{P_{m_{2}+2}(t_{2})-P_{m_{2}}(t_{2})} {2m_{2}+3} -\frac{P_{m_{2}}(t_{2})-P_{m_{2}-2}(t_{2})}{2m_{2}-1}) d( \frac{P_{m_{3}+2}(t_{3})-P_{m_{3}}(t_{3})} {2m_{3}+3} -\frac{P_{m_{3}}(t_{3})-P_{m_{3}-2}(t_{3})}{2m_{3}-1})$

$d( \frac{P_{m_{4}+2}(t_{4})-P_{m_{4}}(t_{4})} {2m_{4}+3} -\frac{P_{m_{4}}(t_{4})-P_{m_{4}-2}(t_{4})}{2m_{4}-1})$

that,

$= \vert \int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1} f^{\prime\prime}(\frac{\widehat{n_{1}}+t_{1}}{2^{k_{1}}})f^{\prime\prime}(\frac{\widehat{n_{2}}+t_{2}}{2^{k_{2}}})f ^{\prime\prime} (\frac{\widehat{n_{3}}+t_{1}}{2^{k_{3}}}) f ^{\prime\prime}(\frac{\widehat{n_{4}}+t_{4}}{2^{k_{4}}})$

$( \frac{P_{m_{1}+2}(t_{1})- P_{m_{1}}(t_{1})} {2m_{1}+3} -\frac{P_{m_{1}}(t_{1})-P_{m_{1}-2}(t_{1})}{2m_{1}-1}) ( \frac{P_{m_{2}+2}(t_{2})-P_{m_{2}}(t_{2})} {2m_{2}+3} -\frac{P_{m_{2}}(t_{2})-P_{m_{2}-2}(t_{2})}{2m_{2}-1})$

$( \frac{P_{m_{3}+2}(t_{3})-P_{m_{3}}(t_{3})} {2m_{3}+3} -\frac{P_{m_{3}}(t_{3})-P_{m_{3}-2}(t_{3})}{2m_{3}-1}) ( \frac{P_{m_{4}+2}(t_{4})-P_{m_{4}}(t_{4})} {2m_{4}+3} -\frac{P_{m_{4}}(t_{4})-P_{m_{4}-2}(t_{4})}{2m_{4}-1})\vert ^2$

$\vert \int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1} f^{\prime\prime}(\frac{\widehat{n_{1}}+t_{1}}{2^{k_{1}}})f^{\prime\prime}(\frac{\widehat{n_{2}}+t_{2}}{2^{k_{2}}})f ^{\prime\prime} (\frac{\widehat{n_{3}}+t_{1}}{2^{k_{3}}}) f ^{\prime\prime}(\frac{\widehat{n_{4}}+t_{4}}{2^{k_{4}}})$

$( \frac{(2m_{1}-1)P _{m_{1}+2}(t_{1})-(4m_{1}+2)P_{m_{1}}(t_{1})+(2m_{1}+3)}{2m_{1}+3})...$

Using integration properties as following,

$( \frac{(2m_{4}-1)P _{m_{4}+2}(t_{4})-(4m_{4}+2)P_{m_{4}}(t_{4})+(2m_{1}+3)}{2m_{4}+3})dt_{1} dt_{2}dt_{3}dt_{4} \vert ^2 \leq$

$\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1} \vert ( \frac{(2m_{1}-1)P _{m_{1}+2}(t_{1})-(4m_{1}+2)P_{m_{1}}(t_{1})+(2m_{1}+3)}{2m_{1}+3})... dt_{1} dt_{2}dt_{3}dt_{4} \vert ^2$

$2M^{2}2M^{2}2M^{2}2M^{2} \int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}\int _{-1}^{1}( \frac{(2m_{1}-1)P _{m_{1}+2}(t_{1})-(4m_{1}+2)P_{m_{1}}(t_{1})+(2m_{1}+3)}{2m_{1}+3})$

$... dt_{1} dt_{2}dt_{3}dt_{4} =$

Upper bounds are noted as,

$\frac{16 M^{16}}{(2m_{1}+3)^{2}(2m_{1}-1)^{2}...(2m_{4}+3)^{2} (2m_{4}-1)^{2} } ( (2m_{1}-1)^{2} \frac{2}{2m_{1}+5}+$

$(4m_{1}+2)^{2}\frac{2}{2m_{1}+1} + (2m_{1}+3)^{2}\frac{2}{2m_{1}-3})...((2m_{4}-1)^{2}\frac{2}{2m_{4}+5}+$

$(4m_{4}+2)^{2}\frac{2}{2m_{4}+1}+(2m_{4}+3)^{2}\frac{2}{2m_{4}-3}) \lt$

Now $(2m_{1}-1)^{2} < (2m_{1}+3)^{2},$ and $(2m_{1}+1)^{2} < (2m_{1}+3)^{2},$ then

$= \frac{331776M^{16}}{(2m_{1}-1)((2m_{1}-3)...(2m_{4}-1)(2m_{4}-3))^{2}}.$

Therefore we have,

$\vert c_{n_{1,..,4} ,m_{1,..,4}}\vert \lt (576) ^\frac{1}{2} \frac{1 }{(2n)^\frac{1}{2}} \frac{1}{(2m_{1}-3)^{2}...(2m_{4}-3)^{2}}.$

Thus the series $\sum _{n_{1} = 1}^{\infty}\sum _{m_{1} = 0}^{\infty} \sum _{n_{2} = 1}^{\infty}\sum _{m_{2} = 0}^{\infty}\sum _{n_{3} = 1}^{\infty}\sum _{m_{3} = 0}^{\infty}\sum _{n_{4} = 1}^{\infty}\sum _{m_{4} = 0}^{\infty}c_{n_{1, .., 4}, m_{1, .., 4}},$ is ab-solute convergent, it follows that

$\sum\limits _{n_{1} = 1}^{\infty}\sum\limits _{m_{1} = 0}^{\infty} \sum\limits _{n_{2} = 1}^{\infty}\sum\limits _{m_{2} = 0}^{\infty}\sum\limits _{n_{3} = 1}^{\infty}\sum\limits _{m_{3} = 0}^{\infty}\sum\limits _{n_{4} = 1}^{\infty}\sum\limits _{m_{4} = 0}^{\infty}c_{n_{1,..,4} ,m_{1,..,4}} \psi _{n_{1,..,4} ,m_{1,..,4}} (x,y,z,l) ,$

convergence to the function $f(x, y, z, l),$ uniformly.

Notice: This result for two dimensions in theorem $(3.1),$ is calculated as upper bound,

$\vert c_{n_{1}n_{2}m_{1}m_{2}}\vert \lt (288)^{\frac{1}{2}}\frac{1}{2n^{\frac{5}{2}}}\frac{1}{(2m_{1}-3)^{2}(2m_{2}-3)^{2}} .$

4. Methodology for B-S and HCIR PDEs

In this methodology section, the Black-Scholes model for American put problem have used in the form of moving-boundary problem.

Lemma 4.1: For American options, we have ^[5,6]

ⅰ) The optimal exercise time for American call option is $T$ and we have

$C = c,$

ⅱ) The optimal exercise time for American put option as earlier as possible, i.e. $t$ and we have

$P \geq p,$

ⅲ) The put-call parity for American option:

$S-K \lt C-P \lt S-ke^{-t(T-t)},$

As a consequence,

$P\leq K.$

Letting $S$ be the price of an asset $A$ at time $t$ the American early exercise constraint leads to the following model for the value $P(S, t)$ of an American put option to sell the asset $A.$

$\begin{equation} \frac{\partial P}{\partial t}+ \frac{1}{2} \delta^{2} S^{2} \frac{\partial^{2} P} {\partial S^{2}}+rS \frac{\partial P}{\partial S}-rP = 0, 0\leq t \lt T \end{equation}$

(4.1)

$P( S,T) = max ( E-S,0), S\geqslant 0,$

$\frac{\partial P} {\partial S} ( \overline{S}, t) = -1,$

$P(S,t) = E-S, 0 \leq S \lt S(\overline{t}).$

Where $S(\overline{t})$ represent the free boundary. The parameters $\delta, r$ and $E$ represent the volatility of the underlying asset, the interest rate, and the exercise price of the option. And the partial differential equation (PDE) associated with Eq.(2.25) for the fair values of European- style options forms a time- dependent connection- diffusion- reaction equation with mixed spatial- derivative terms.

$\begin{equation} \frac{\partial u}{\partial t} = \frac{1}{2} S^{2} v\frac{\partial^{2} u} {\partial S^{2}}+\frac{1}{2}\delta_{1}^{2} v\frac{\partial^{2} u} {\partial v^{2}} +\frac{1}{2}\delta_{2}^{2} r\frac{\partial^{2} u} {\partial r^{2}}+\rho _{12} \delta_{1}Sv \frac{\partial^{2} u} {\partial S \partial v}+\rho _{13} \delta_{2}S\sqrt{vr} \frac{\partial^{2} u} {\partial S \partial r} \end{equation}$

(4.2)

$\rho _{23} \delta_{1}\delta_{2}\sqrt{vr} \frac{\partial^{2} u} {\partial v \partial r}+rS \frac{\partial u}{\partial S}+k(\eta -v) \frac{\partial u}{\partial v} + a(b(T-t)-r)\frac{\partial u}{\partial r} -ru.$

On the unbounded three- dimensional spatial domain $S > 0, v > 0, r > 0$ with $0 < t\leq T.$ $u(S, v, r, t)$ denotes the fair value of a European- style option if at the time $\tau = T-t$ the asset price, its variance, and the interest rate be equal to $S, v$ and $r$ respectively. Eq.(4.2) is known as the Heston- Cox- Ingersoll- Ross (HCIR) PDE. This equation usually appears with initial and boundary conditions which are determined by the specific option under consideration. Initial conditions in European call options equation is usually as follows,

$\begin{equation} u(S,v,r,T) = max (0,S-k). \end{equation}$

(4.3)

With a given strike price $k > 0.$

In this methodology section the Eq.(4.1) and Eq.(4.2), have been solved using two dimensional and four dimensional Legendre wavelets respectively,

First we assume for B-S PDE,

$\begin{equation} \frac{\partial P}{\partial t} = -\alpha \frac{\partial^{2} P}{\partial S^{2}}-\alpha \frac{\partial P}{\partial S}+\alpha P, \end{equation}$

(4.4)

With boundary condition $P(S, 0) = \beta_{1} (S, t),$ and $\frac{\partial P(S, 0)}{\partial t} = \beta_{2}(S, t).$

Those coefficients of $\alpha_{i}$ the same parameters and variables which be in Eq.(4.1), in practice they will be calculate with this technique in follow.

$\begin{equation} \frac{\partial P}{\partial t} = C_{1}^{T}(S,t) \Psi (S,t), \end{equation}$

(4.5)

Integrating (4.4) with respect to second variable over $[0, t],$ we get

$\begin{equation} P(S,t) = C_{1}^{T}(S,t) P \Psi (S,t)+ \beta_{2} (S,t), \end{equation}$

(4.6)

And also

$\begin{equation} \frac{\partial P}{\partial S} = \frac{d C^{T}(S,t)}{dS} P\Psi (S,t)+\frac{d \beta _{2}(S,t)}{dS}, \end{equation}$

(4.7)

$\frac{\partial ^{2} P}{\partial S^{2}} = \frac{d^{2} C^{T}(S,t)}{dS^{2}} P \Psi (S,t)+\frac{d ^{2}\beta _{2}(S,t)}{dS^{2}},$

We have also

$\begin{equation} 1 = d^{T} \Psi (x), x = e^{T} \Psi (x). \end{equation}$

(4.8)

Substituting Eqs.(4.4) to (4.8) in Eq.(4.1), we obtain

$\begin{equation} C_{1}^{T}(S,t) \Psi = -\alpha_{1}(\frac{d ^{2} C^{T}(S,t)}{dS^{2}} P \Psi +\frac{d ^{2}\beta _{2}(S,t)}{dS^{2}}d^{T}\Psi )-\alpha_{2} (\frac{d C^{T}(S,t)}{dS} P \Psi +\frac{d \beta _{2}(S,t)}{dS}d^{T}\Psi ) \end{equation}$

(4.9)

$+\alpha_{3} (C_{1}^{T}(S,t)P \Psi+\beta_{2}d^{T}\Psi).$

The solution of B-S PDE, $P(S, t)$ can be calculate when Eq.(4.9) can be solved For unknown coefficients of the vector $C(S, t).$

$C = [ 0.12177112177-0.2214022140e-1t, -0.1661746162+0.3451318952t, 0.7030464532e-1-\\0.1278266279e-1t, -0.9594095941e-1+0.1992619926t]^T.$

Let for HCIR PDE in Eq.(4.2), we assume as following,

$\begin{equation} \frac{\partial u}{\partial t} = \alpha _{1}\frac{\partial ^{2} u}{\partial S^{2}} +\alpha _{2}\frac{\partial ^{2} u}{\partial v^{2}}+\alpha _{3}\frac{\partial ^{2} u}{\partial r^{2}}+\alpha _{4}\frac{\partial ^{2} u}{\partial S \partial v}+\alpha _{5}\frac{\partial ^{2} u}{\partial S \partial r}+\alpha _{6}\frac{\partial ^{2} u}{\partial v \partial r}+\alpha _{7}\frac{\partial u}{\partial S } \end{equation}$

(4.10)

$+\alpha _{8}\frac{\partial u}{ \partial v}+\alpha _{9}\frac{\partial u}{\partial r}+\alpha _{10} u.$

Also with boundary condition

$u(S,v,r,t) = \beta_{1} (S,v,r,t),$

and

$\frac{\partial u(S,v,r,0)}{\partial t} = \beta _{2}(S,v,r,t).$

Parameters of Eq.(4.2), by using method as following,

$\begin{equation} \frac{\partial u}{\partial t} = C_{1}^{T}(S,v,r,t) \Psi (S,v,r,t), \end{equation}$

(4.11)

Integrating right hand side in Eq.(4.10), with respect to differential equations over [0, t] we get As well as

$\begin{equation} \frac{\partial u}{\partial S} = \frac {d C ^{T}(S,v,r,t)}{dS} P\Psi (S,v,r,t)+\frac {d \beta ^{2}(S,v,r,t)}{dS}, \end{equation}$

(4.12)

$\frac{\partial u}{\partial v} = \frac {d C ^{T}(S,v,r,t)}{dv} P\Psi (S,v,r,t)+\frac {d \beta ^{2}(S,v,r,t)}{dv},$

$\frac{\partial u}{\partial r} = \frac {d C ^{T}(S,v,r,t)}{dr} P\Psi (S,v,r,t)+\frac {d \beta ^{2}(S,v,r,t)}{dr}.$

We have

$\begin{equation} \frac{\partial^{2} u}{\partial S^{2}} = \frac {d^{2} C ^{T}(S,v,r,t)}{dS^{2}} P\Psi (S,v,r,t)+\frac {d ^{2}\beta ^{2}(S,v,r,t)}{dS^{2}}, \end{equation}$

(4.13)

$\frac{\partial^{2} u}{\partial v^{2}} = \frac {d^{2} C ^{T}(S,v,r,t)}{dv^{2}} P\Psi (S,v,r,t)+\frac {d ^{2}\beta ^{2}(S,v,r,t)}{dv^{2}},$

$\frac{\partial^{2} u}{\partial r^{2}} = \frac {d^{2} C ^{T}(S,v,r,t)}{dr^{2}} P\Psi (S,v,r,t)+\frac {d ^{2}\beta ^{2}(S,v,r,t)}{dr^{2}}.$

And also

$\begin{equation} \frac{\partial^{2} u}{\partial S\partial v} = \frac{d}{dS}\frac {d C ^{T}(S,v,r,t)}{dv} P\Psi (S,v,r,t)+\frac{d}{dS}\frac {d \beta ^{2}(S,v,r,t)}{dv}, \end{equation}$

(4.14)

$\frac{\partial^{2} u}{\partial S\partial r} = \frac{d}{dS}\frac {d C ^{T}(S,v,r,t)}{dr} P\Psi (S,v,r,t)+\frac{d}{dS}\frac {d \beta ^{2}(S,v,r,t)}{dr},$

$\frac{\partial^{2} u}{\partial v\partial r} = \frac{d}{dv}\frac {d C ^{T}(S,v,r,t)}{dr} P\Psi (S,v,r,t)+\frac{d}{dv}\frac {d \beta ^{2}(S,v,r,t)}{dr}.$

Substituting (4.11) to (4.14) in (48), we obtain

$\begin{equation} C^{T}(S,v,r,t) \Psi = \alpha_{1}(\frac{\partial^{2} C^{T}(S,v,r,t)}{\partial S^{2}}P \Psi+ \frac{d^{2} \beta_{2}(S,v,r,t)}{dS^{2}}d^{T}\Psi ) \end{equation}$

(4.15)

$+\alpha_{2}(\frac{\partial^{2} C^{T}(S,v,r,t)}{\partial v^{2}}P \Psi+ \frac{d^{2} \beta_{2}(S,v,r,t)}{dv^{2}}d^{T}\Psi)+\alpha_{3}(\frac{\partial^{2} C^{T}(S,v,r,t)}{\partial r^{2}}P \Psi+ \frac{d^{2} \beta_{2}(S,v,r,t)}{dr^{2}}d^{T}\Psi)$

$+\alpha_{4}(\frac {d}{dS} \frac{dC^{T}(S,v,r,t)}{dv} P \Psi+ \frac{d}{dS} \frac{d\beta_{2}(S,v,r,t)}{dv}d^{T}\Psi)+\alpha_{5}(\frac {d}{dS} \frac{dC^{T}(S,v,r,t)}{dr}P \Psi+ \frac{d}{dS} \frac{d\beta_{2}(S,v,r,t)}{dr}d^{T}\Psi)$

$+\alpha_{6}(\frac {d}{dv} \frac{dC^{T}(S,v,r,t)}{dr}P \Psi+ \frac{d}{dv} \frac{d\beta_{2}(S,v,r,t)}{dr}d^{T}\Psi)+\alpha_{7}(\frac { \partial C^{T}(S,v,r,t) }{\partial S} P \Psi+ \frac{d\beta_{2}(S,v,r,t)}{dS}d^{T}\Psi)$

$+\alpha_{8}(\frac { \partial C^{T}(S,v,r,t) }{\partial v} P \Psi+ \frac{d\beta_{2}(S,v,r,t)}{dv}d^{T}\Psi)+\alpha_{9}(\frac { \partial C^{T}(S,v,r,t) }{\partial r} P \Psi+ \frac{d\beta_{2}(S,v,r,t)}{dr}d^{T}\Psi)$

$-\alpha_{10}( C^{T}(S,v,r,t) P \Psi+ \beta_{2} d^{T} \Psi) .$

This system can be solved for unknown coefficients, which are calculated,

$C[1,1] = 0.1816780437e-2\times sqrt(v) \times s \times t+.2310089049-0.3191757882e-2 \times s \times t^2-\\0.2243167683e-2 \times sqrt(v) \times s-0.3663030704 \times s \times t+0.5319596471e-3 \times t^2+0.4571378943 \times \\s+0.8386506682e-2 \times t,$

$C[1,2] = -0.4720134035e-3 \times sqrt(v) \times s \times t+0.8292430227e-3 \times s \times t^2+0.5827920594e-3 \times\\ sqrt(v) \times s+0.9516832935e-1\times s \times t-0.1382071705e-3 \times t^2-0.1187679088 \times s-\\0.2178878351e-2 \times t+0.1997897471,$

$C [1,3] = 0,C [1,4] = 0, \;\;\;C [1,5] = 0.2097293811,\\ C [1,6] = 0.1705107084,\;\;\;C [1,7] = 0,C [1,8] = 0, \\ C[1,9] = -0.04660652914, \;\;\; C[1,10] = -0.3789126853e-1,\\ C[1,11] = 0, C[1,12] = 0, \;\;\;C[1,13] = -0.4036243822e-1,\\ C[1,14] = -0.3281480113e-1 , \;\;\; C[1,15] = 0,C[1,16] = 0.$

5. Numerical results

In this section, values of parameters are used in B-S PDE model (): $k_{1} = k_{2} = 1, r = 0.2, E = 0.2, \delta = 0.001,$ and HCIR PDE model ( and ): $k = 0.1, \eta = 0.12, \rho_{12} = 0.6, \rho_{13} = 0.2, \rho_{23} = 0.4, \delta_{1} = 0.04, \delta_{2} = 0.03,$ respectively. Appling values of parameters in models, numerical results are calculated. Due to the accuracy and convergence of spectral method which has been reviewed in $[0, 1],$ the numerical results obtained from this method can be assured. Therefore it can be used for future scams to compare with the same methods.

Figure 1. Figure of solution B-S PDE model by multi-LWM.

DownLoad: Full-Size Img PowerPoint

Figure 2. Figure of solution HCIR PDE model by multi-LWM.

DownLoad: Full-Size Img PowerPoint

Figure 3. Figure of solution HCIR PDE model by ADM.

DownLoad: Full-Size Img PowerPoint

By choosing $M = 2, 4$ and $k = 1$ in Eq.(2.23) and $M = 1, 2$ in Eq.(2.25) the models are solved from the coefficients vector of C that was found. Then the results were compared by Adomian decomposition method (ADM), as a semi-analytical method ^[20,21]. Tables 1 and 2 give values of pricing options solutions in B-S and HCIR models.

Table 1. Corresponding solution of Black-Scholes PDE by LWM, ADM.

$t$	$P_{(LWM, M=2)}$	$P_{(LWM, M=4)}$	$P_{(ADM)}$	$Error$
$0.1$	$0.3060753725$	$0.3060954392$	$0.3068021827$	$0.000726810$
$0.2$	$0.02615249781$	$0. 02664386902$	$0.02613346987$	$0.000019028$
$0.4$	$0.04431200702$	$0.04942003420$	$0.04430950409$	$0.000005503$
$0.6$	$0.05847852762$	$0.05882487996$	$0.05862488320$	$0.000146355$
$0.8$	$0.08565205963$	$0.08534345864$	$0.08534345864$	$0.000308601$
$1$	$0.05083260299$	$0.0509281709$	$0.05075733333$	$0.000075268$

| Show Table

DownLoad: CSV

Table 2. Corresponding solution of Heston-Cox-Ingersoll-Ross PDE by LWM, ADM.

$(t, s)$	$U_{(LWM, M=1)}$	$U_{(LWM, M=2)}$	$U_{(ADM)}$	$Error$
$(5, 50)$	$0.1950128206e+3$	$0.1955141009e+3$	$0.1951180661e+3$	$0.0003960348$
$(10,100)$	$0.2721204331e+4$	$0.2725170985e+4$	$0.2789681554e+4$	$0.0064510569$
$(12,150)$	$0.6421235221e+4$	$0.6430612189e+4$	$0.6448380051e+4$	$0.0017767862$
$(15,200)$	$0.1461103897e+5$	$0.1470153697e+5$	$0.1486797294e+5$	$0.0016643597$
$(17,250)$	$0.2471265331e+5$	$0.2474067533e+5$	$0.2471107229e+5$	$0.0002960304$
$(19,300)$	$0.3852234601e+5$	$0.3858603408e+5$	$0.3807240307e+5$	$0.0051363101$
$(22,380)$	$0.6881012512e+5$	$0.6890201411e+5$	$0.6860384740e+5$	$0.0029816671$

| Show Table

DownLoad: CSV

6. Conclusion

The multi-dimensional Legendre wavelet method has been applied to solve the Black-Scholes and Heston-Cox-Ingersoll-Ross models which these PDE equations have been derived from stochastic differential equations by using one of the important stochastic calculous Lemma named Ito. Generally the present method (LWM) reduces the partial differential equation into a set of algebraic equation and it can be useful in high degree derivatives problems, therefore considering the properties and using structure of LWM leads to save the time. Multi- dimensional Legendre wavelet is orthonormal set and its integration of the product is a diagonal matrix as in the case of the one dimension Legendre wavelet. In addition the Theorem 3.1 has been proved in paper which it could be determine an upper bound for coefficients of vector $C$ . Also in this work results of LWM have been compared with the Adomian Decomposition Method (ADM) as a semi-analytical method and they have been shown for different parameters in Tables 1–2 and Figures 1–3, finally.

Conflict of interest

The authors declare that there is no conflicts of interest in this paper.

Conflict of interest

The authors declare no conflict of interest.

References

[1]	Seegers WH, Johnson JF, Fell C (1954) An antthrombin reaction to prothrombin activation. Am J Physiol 176: 97-103. https://doi.org/10.1152/ajplegacy.1953.176.1.97
[2]	Egeberg O (1965) Inherited antithrombin deficiency causing thrombophilia. Thromb Diath Haemorrh 13: 516-530. https://doi.org/10.1055/s-0038-1656297
[3]	Griffin JH, Evatt B, Zimmerman TS, et al. (1981) Deficiency of protein C in congenital thrombotic disease. J Clin Invest 68: 1370-1373. https://doi.org/10.1172/JCI110385
[4]	Comp PC, Esmon C (1984) Recurrent venous thromboembolism in patients with a partial deficiency of protein S. N Engl J Med 311: 1525-1528. https://doi.org/10.1056/NEJM198412133112401
[5]	Schwarz HP, Fischer M, Hopmeier P, et al. (1984) Plasma protein S deficiency in familial thrombotic disease. Blood 64: 1297-1300. https://doi.org/10.1182/blood.V64.6.1297.1297
[6]	Conard J, Brosstad F, Lie Larsen M, et al. (1983) Molar antithrombin concentration in normal human plasma. Haemostasis 13: 363-368. https://doi.org/10.1159/000214823
[7]	Collen D, Schetz J, de Cock F, et al. (1977) Holmer, E., Verstraete, M. Metabolism of antithrombin III (heparin cofactor) in man: effects of venous thrombosis of heparin administration. Eur J Clin Invest 7: 27-35. https://doi.org/10.1111/j.1365-2362.1977.tb01566.x
[8]	Maclean PS, Tait RC (2007) Hereditary and acquired antithrombin deficiency: epidemiology, pathogenesis and treatment options. Drugs 67: 1429-1440. https://doi.org/10.2165/00003495-200767100-00005
[9]	Wells PS, Blajchman MA, Henderson P, et al. (1994) Prevalence of antithrombin deficiency in healthy blood donors: a cross-sectional study. Am J Hematol 45: 321-324. https://doi.org/10.1002/ajh.2830450409
[10]	Tait RC, Walker ID, Perry DJ, et al. (1994) Prevalence of antithrombin deficiency in the healthy population. Br J Haematol 87: 106-112. https://doi.org/10.1111/j.1365-2141.1994.tb04878.x
[11]	Picard V, Nowark-Gottl U, Biron-Andreani C, et al. (2006) Molecular bases of antithrombin deficiency: twenty-two novel mutations in the antithrombin gene. Hum Mutat 27: 600. https://doi.org/10.1002/humu.9425
[12]	Khor B, Van Cott EM (2010) Laboratory tests for antithrombin deficiency. Am J Hematol 85: 947-950. https://doi.org/10.1002/ajh.21893
[13]	Patnaik MM, Moll S (2008) Inherited antithrombin deficiency: a review. Haemophilia 14: 1229-1239. https://doi.org/10.1111/j.1365-2516.2008.01830.x
[14]	Dahlback B (2008) Advances in understanding pathogenic mechanisms of thrombophilic disorders. Blood 112: 19-27. https://doi.org/10.1182/blood-2008-01-077909
[15]	Rodgers GM (2009) Role of antithrombin concentrate in treatment of hereditary antithrombin deficiency. An update. Thromb Haemost 101: 806-812. https://doi.org/10.1160/TH08-10-0672
[16]	Nguyen KV (2012) Antithrombin Hanoi: Arg393 to His missense point mutation in antithrombin gene and cancer. WebmedCentral: International Journal of Medicine and Molecular Medicine 3: WMC003720.
[17]	Bock SC (2001) Anthithrombin III and heparin cofactor II. Hemostasis and Thrombosis: Basic Principles and Clinical Practice . Philadelphia, Pa: Lippincott Williams & Wilkins pp. 321-333.
[18]	Walker CPR, Royston D (2002) Thrombin generation and its inhibition: a review of the scientific basis and mechanism of action of anticoagulant therapies. Br J Anaesth 88: 848-863. https://doi.org/10.1093/bja/88.6.848
[19]	Morawitz P (1905) Die Chemie der Blutgerinnung. Ergeb Physiol 4: 307-319. https://doi.org/10.1007/BF02321003
[20]	Quick AJ (1938) The normal antithrombin of the blood and its relation to heparin. Am J Physiol 123: 712-719. https://doi.org/10.1152/ajplegacy.1938.123.3.712
[21]	Fell C, Ivanovic N, Johnson SA, et al. (1954) Differenciation of plasma antithrombin activities. Proc Soc Exp Biol Med 85: 199-202. https://doi.org/10.3181/00379727-85-20829
[22]	Sakuragawa N (1997) Regulation of thrombosis and hemostasis by antithrombin. Semin Thromb Hemost 23: 557-562. https://doi.org/10.1055/s-2007-996136
[23]	Mammen EF (1998) Antithrombin: its physiological importance and role in DIC. Semin Thromb Hemost 24: 19-25. https://doi.org/10.1055/s-2007-995819
[24]	Bock SC, Harris JF, Balazs I, et al. (1985) Assignment of the human antithrombin III structural gene to chromosome 1q23-25. Cytogenet Cell Genet 39: 67-69. https://doi.org/10.1159/000132105
[25]	Olds RJ, Lane DA, Chowdhury V, et al. (1993) Complete nucleotide sequence of the antithrombin gene: evidence for homologous recombination causing thrombophilia. Biochemistry 32: 4216-4224. https://doi.org/10.1021/bi00067a008
[26]	Van Boven HH, Lane DA (1997) Antithrombin and its inherited deficiency states. Semin Hematol 34: 188-204.
[27]	Bock SC, Marriman JA, Radziejewska E (1998) Antithrombin III Utah: proline- 407 to leucine mutation in a highly conserved region near the inhibitor reactive site. Biochemistry 27: 6171-6178. https://doi.org/10.1021/bi00416a052
[28]	Petersen TE, Dulek-Wojciechowski G, Sottrup-Jensen L, et al. (1979) Primary structure of antithrombin III (heparin cofactor): partial homology between alpha 1 antitrypsin and antithrombin III. The physiology inhibitors of blood coagulation and fibrinolysis . Amsterdam, The Netherlands: Elsevier Science pp. 43-54.
[29]	Bock SC, Wion KL, Vehar GA, et al. (1982) Cloning and expression of the cDNA for human antithrombin III. Nucleic Acids Res 10: 8113-8125. https://doi.org/10.1093/nar/10.24.8113
[30]	Prochownik EV, Orkin SH (1984) In vivo transcription of a human antithrombin III “minigene”. J Biol Chem 259: 15386-15392. https://doi.org/10.1016/S0021-9258(17)42561-0
[31]	Patston PA, Gettins P, Beechem J, et al. (1991) Mechanism of serpin action: evidence thet C1 inhibitor functions as a suicide substrate. Biochemistry 30: 8876-8882. https://doi.org/10.1021/bi00100a022
[32]	Bjork J, Jackson CM, Jornvall H, et al. (1982) The active site of antithrombin. Release of the same proteolytically cleaved form of the inhibitor from complexes with factor IXa, factor Xa, and thrombin. J Biol Chem 257: 2406-2411. https://doi.org/10.1016/S0021-9258(18)34938-X
[33]	Marchant KK, Ducan A (2002) Antithrombin deficiency. Issue in laboratory diagnosis. Arch Pathol Lab Med 126: 1326-1336. https://doi.org/10.5858/2002-126-1326-AD
[34]	Perry DJ (1994) Antithrombin and its inherited deficiencies. Blood Rev 8: 37-55. https://doi.org/10.1016/0268-960X(94)90006-X
[35]	Lane DA, Olds RJ, Thein SL (1994) Antithrombin and its deficiency. Hemostasis and thrombosis . Edinburgh: Churchils Livingstone pp. 655-670.
[36]	Hirsh J, Piovella F, Pini M (1989) Congenital antithrombin III deficiency: incidence and clinical features. Am J Med 87: 34S-38S. https://doi.org/10.1016/0002-9343(89)80529-7
[37]	Koide T, Odani S, Takahashi K, et al. (1984) Antithrombin III Toyama: replacement of arginine-47 by cysteine in hereditary abnormal antithrombin III that lacks heparin-binding ability. Proc Natl Acad Sci USA 81: 289-293. https://doi.org/10.1073/pnas.81.2.289
[38]	Chang JY, Tran TH (1986) Antithrombin III Basel. Identification of a pro-leu substitution in a hereditary abnormal antithrombin with impaired heparin cofactor activity. J Biol Chem 261: 1174-1176. https://doi.org/10.1016/S0021-9258(17)36071-4
[39]	Owen MC, Borg JY, Soria C, et al. (1987) Heparin binding defect in a new antithrombin III variant: Rouen, 47 Arg to His. Blood 69: 1275-1279. https://doi.org/10.1182/blood.V69.5.1275.1275
[40]	Stephens AW, Thalley BS, Hirs CHW (1987) Antithrombin-III Denver, a reactive site variant. J Biol Chem 262: 1044-1048. https://doi.org/10.1016/S0021-9258(19)75747-0
[41]	Lane DA, Flynn A, Ireland H, et al. (1987) Antithrombin III Nortwick Park: demonstration of an inactive high MW complex with increased affinity for heparin. Br J Haematol 65: 451-456. https://doi.org/10.1111/j.1365-2141.1987.tb04149.x
[42]	Erdjument H, Lane DA, Ireland H, et al. (1987) Formation of a covalent disulfide- linked antithrombin-albumin complex by an antithrombin variant, antithrombin “Northwick Park”. J Biol Chem 262: 13381-13384. https://doi.org/10.1016/S0021-9258(19)76436-9
[43]	Lane DA, Lowe GDO, Flynn A, et al. (1987) Antithrombin III Glasgow: a variant with increased heparin affinity and reduced ability to inactivate thrombin, associated with familial thrombosis. Br J Haematol 66: 523-527. https://doi.org/10.1111/j.1365-2141.1987.tb01338.x
[44]	Owen MC, Beresford CH, Carrell RW (1988) Antithrombin Glasgow, 393 Arg to His: a P1 reactive site variant with increased heparin affinity but no thrombin inhibitory activity. FEBS Lett 231: 317-320. https://doi.org/10.1016/0014-5793(88)80841-X
[45]	Lane DA, Erdjument AF, Flynn A, et al. (1989) Antithrombin Sheffield: amino acid substitution at the reactive site (Arg393 to His) causing thrombosis. Br J Haematol 71: 91-96. https://doi.org/10.1111/j.1365-2141.1989.tb06280.x
[46]	Kenji O, Hiroki A, Masako W, et al. (1995) Antithrombin III Kumamoto: a single mutation at Arg393-His increases the affinity of Antithrombin III for heparin. Am J Hematol 48: 12-18. https://doi.org/10.1002/ajh.2830480104
[47]	Ulivi L, Squitieri M, Cohen H, et al. (2020) Cerebral venous thrombosis: a practical guide. Pract Neurol 20: 356-367. https://doi.org/10.1136/practneurol-2019-002415
[48]	Betts MJ, Russell RB (2003) Amino acid properties and consequences of substitutions. Bioinformatics for geneticists . John Wiley & Sons, Ltd pp. 289-316. https://doi.org/10.1002/0470867302.ch14
[49]	Kyrle PA, Minar E, Hirschl M, et al. (2000) High plasma levels of Factor VIII and the risk of recurrent venous thromboembolism. N Engl J Med 343: 457-462. https://doi.org/10.1056/NEJM200008173430702
[50]	Kamphuisen PW, Eikenboom JCJ, Bertina RM (2001) Elevated factor VIII levels and the risk of thrombosis. Arterioscler Thromb Vasc Biol 21: 731-738. https://doi.org/10.1161/01.ATV.21.5.731
[51]	Garcia JH, Williams JP, Tanaka J (1975) Spontaneous thrombosis of deep cerebral veins: a complication of arteriovenous malformation. Stroke 6: 164-171. https://doi.org/10.1161/01.STR.6.2.164
[52]	Shah Sid “Stroke pathophysiology.” Foundation for education and research in neurological emergencies. [FERNE]: 1–14. web (2013). Available from: http://tigger.uic.edu/com/ferne/pdf2/saem_0501/shah_stroke_0501.pdf
[53]	Ord-Mackenzi SA (1898) Transient and recurring paresis in acute cerebral softening. Br Med J 1: 140. https://doi.org/10.1136/bmj.1.1933.140
[54]	Fourrier F, Lestavel P, Chopin C, et al. (1990) Meningococcemia and purpura fulminants in adults: acute deficiencies of proteins C and S and early treatment with antithrombin III concentrates. Intensive Care Med 16: 121-124. https://doi.org/10.1007/BF02575306
[55]	Bozzola E, Bozzola M, Colafati GS, et al. (2014) Multiple cerebral sinus thromboses complicating meningococcal meningitis: a pediatric case report. BMC Pediatrics 14: 147. https://doi.org/10.1186/1471-2431-14-147
[56]	Fawcett JW, Asher RA (1999) The glial scar and central nervous system repair. Brain Res Bull 49: 377-391. https://doi.org/10.1016/S0361-9230(99)00072-6
[57]	Heparin antifactor Xa assay (2009). (http://www2.massgeneral.org/pathology/coagbook/CO005000.htm) Archived (https://archive.is/20090808194520/ http://www2.massgeneral.org/pathology/coagbook/CO005000.htm) 2009- 08-08 at Archive.today Page Updated: September 18, 2009
[58]	Refael M, Xing L, Lim W, et al. (2017) Management of venous thromboembolism in patients with hereditary antithrombin deficiency and pregnancy: case report and review of the literature. Case Rep Hematol : Article ID: 9261351. https://doi.org/10.1155/2017/9261351
[59]	Ansell J, Hirsh, Hylek E, et al. (2008) Pharmacology and management of the vitamin K antagonists: American college Chest physicians evidence-based clinical practice guidelines (8^th edition). Chest 133: 160S-198S. https://doi.org/10.1378/chest.08-0670
[60]	Ageno W, Gallus AS, Wittkowsky A, et al. (2012) Oral anticoagulant therapy: antithrombotic therapy and prevention of thrombosis, 9^th ed.: American college Chest physicians evidence-based clinical 141: practice guidelines. Chest 141: e44S-e88S. https://doi.org/10.1378/chest.11-2292
[61]	. Coumadin (https//www.drugs.com/monograph/coumadin.htlm). The American society of health-system pharmacists. Archived (https//web.archive.org/web/20110203081242/ http://www.drugs.com/monograph/coumadin.html) from the original on 3 February 2011. Retrieved 3 April 2011.
[62]	. Warfarin sodium (https://www.drugs.com/monograph/warfarin-sodium.html). The American society of health-system pharmacists. Archived (https://web.archive.org/web/20180612143838/ https://www.drugs.com/monograph/warfarin-sodium.html) from the original on 12 June 2018. Retrieved 8 January 2017.
[63]	Weathermor R, Crabb DW (1999) Alcohol and medication interactions. Alcohol Res Health 23: 40-54.
[64]	Clinically significant drug interactions - American family physician (2016). (http://www.aafp.org/afp/2000/0315/p1745.html#sec-1) Archived (https://web.archive.org/web/20160507065339/http://www.aafp.org/afp/2000/0315/p1745.html) 7 May 2016 at the Wayback Machine
[65]	Wang KL, Yap ES, Goto S, et al. (2018) The diagnosis and treatment of venous thromboembolism in Asian patients. Thromb J 16: 4. https://doi.org/10.1186/s12959-017-0155-z
[66]	Darvall KAL, Sam RC, Silverman SH, et al. (2007) Obesity and thrombosis. Eur J Vasc Surg 33: 223-233. https://doi.org/10.1016/j.ejvs.2006.10.006
[67]	Ridker PM, Miletich JP, Hennekens CH, et al. (1997) Ethnic distribution of factor V Leiden in 4047 men and women. Implications for venous thromboembolism screening. JAMA 277: 1305-1307. https://doi.org/10.1001/jama.1997.03540400055031
[68]	Varga EA, Moll S (2004) Prothrombin 20210 mutation (factor II mutation). Circulation 110: e15-e18. https://doi.org/10.1161/01.CIR.0000135582.53444.87
[69]	Weinberger J, Cipolle M (2016) Mechanism prophylaxix for post-traumatic VTE: stockings and pumps. Curr Trauma Rep 2: 35-41. https://doi.org/10.1007/s40719-016-0039-x
[70]	Liew NC, Chang YH, Choi G, et al. (2012) Asian venous thrombosis forum. Asian venous thromboembolism guidelines: prevention of venous thromboembolism. Int Angiol 31: 501-516.
[71]	ISTH Steering Committee for World Thrombosis Day.Thrombosis: a major contributor to global disease burden. Thromb Haemost (2014) 112: 843-852. https://doi.org/10.1160/th14-08-0671
[72]	Hotoleanu C (2020) Association between obesity and venous thromboembolism. Med Pharm Rep 93: 162-168. https://doi.org/10.15386/mpr-1372
[73]	Aksu K, Donmez A, Keser G (2012) Inflammation-induced thrombosis: mechanism, disease associations management. Curr Pharma Des 18: 1478-1493. https://doi.org/10.2174/138161212799504731
[74]	Middellorp S, Coppens M, van Happs F (2020) Incidence of venous thromboembolism in hospitalized patients with COVID-19. J Thromb Haemost 18: 1995-2002. https://doi.org/10.1111/jth.14888
[75]	Connors JM, Levy JH (2020) COVID-19 and its implications for thrombosis and anticoagulation. Blood 135: 2033-2040. https://doi.org/10.1182/blood.2020006000
[76]	Vinogradova Y, Coupland C, Hippisley-Cox J (2019) Use of hormone replacement therapy and risk of venous thromboembolism: nested case-control studies using the QResearch and CPRD databases. BMJ 364: k4810. https://doi.org/10.1136/bmj.k4810
[77]	Ye F, Bell LN, Mazza J, et al. (2018) Variation in definitions of immobility in pharmacological thromboprophylaxis clinical trials in medical inpatients: a systemic review. Clin Appl Thromb Hemost 24: 13-21. https://doi.org/10.1177/1076029616677802
[78]	Fernandes CJ, Morinaga LTK, Alves JL, et al. (2019) Cancer-associated thrombosis: the when, how and why. Eur Respir Rev 28: 180119. https://doi.org/10.1183/16000617.0119-2018
[79]	Noble S, Pasi J (2010) Epidemiology and pathophysiology of cancer-associated thrombosis. Br J Cancer 102: S2-S9. https://doi.org/10.1038/sj.bjc.6605599
[80]	Bouillaud JB, Bouillaud S (1823) De l'Obliteration des veines et de son influence sur la formation des hydropisies partielles: consideration sur la hydropisies passive et general. Arch Gen Med 1: 188-204.
[81]	Trousseau A (1865) Phlegmasia alba dolens. Clinique medicale de l'Hotel- Dieu de Paris . Paris: Balliere pp. 654-712.
[82]	Trousseau A (1877) Ulcere chronique simple de l'estomac. Clinique medicale de l'Hotel-Dieu de Paris . Paris: Bailliere J.-B. et fils pp. 80-107.
[83]	Trousseau A (1877) Phlegmasia alba dolens. Clinique medicale de l'Hotel-Dieu de Paris . Paris: Bailliere J.-B. et fils pp. 695-739.
[84]	Illtyd James T, Matheson N (1935) Thromboplebitis in cancer. Practitioner 134: 683-684.
[85]	Gore JM, Appelbaum JS, Greene HL, et al. (1982) Occult cancer in patients with acute pulmonary embolism. Ann Intern Med 96: 556-560. https://doi.org/10.7326/0003-4819-96-5-556
[86]	Prandoni P, Lensing AWA, Buller HR, et al. (1992) Deep-vein thrombosis and the incidence of subsequent symptomatic cancer. N Engl J Med 327: 1128-1133. https://doi.org/10.1056/NEJM199210153271604
[87]	Lee AYY, Levine MN (2003) Venous thrombosis and cancer: risks and outcomes. Circulation 107: I-17-I-21. https://doi.org/10.1161/01.CIR.0000078466.72504.AC
[88]	Dotsenko O, Kakkar AK (2006) Thrombosis and cancer. Ann Oncol 17: x81-x84. https://doi.org/10.1093/annonc/mdl242
[89]	Buller HR, Van Doormaal FF, Van Sluis GL, et al. (2007) Cancer and thrombosis: from molecular mechanisms to clinical presentations. J Thromb Haemost 5: 246-254. https://doi.org/10.1111/j.1538-7836.2007.02497.x
[90]	Sorensen HT, Mellemkjaer L, Olsen JH, et al. (2000) Prognosis of cancers associated with venous thromboembolism. N Engl J Med 343: 1846-1850. https://doi.org/10.1056/NEJM200012213432504
[91]	Tincani A, Taraborelli M, Cattaneo R (2010) Antiphospholipid antibodies and malignancies. Autoimmun Rev 9: 200-202. https://doi.org/10.1016/j.autrev.2009.04.001
[92]	Angchaisuksiri P (2016) Cancer-associated thrombosis in Asia. Thromb J 14: 26. https://doi.org/10.1186/s12959-016-0110-4
[93]	Zacharski LR, Henderson WG, Rickles FR, et al. (1979) Rationale and experimental design for the VA cooperative study of anticoagulation (warfarin) in the treatment of cancer. Cancer 44: 732-741. https://doi.org/10.1002/1097-0142(197908)44:2<732::AID-CNCR2820440246>3.0.CO;2-Y
[94]	Falanga A, Zacharski LR (2005) Deep vein thrombosis in cancer: the scale of the problem and approaches to management. Ann Oncol 16: 696-701. https://doi.org/10.1093/annonc/mdi165
[95]	Elyamany G, Alzahran AM, Burkhary E (2014) Clinical medicine insights: oncology. Cancer-associated thrombosis: an overview. Libertas Academia Limited 8: 129-137. https://doi.org/10.4137/CMO.S18991
[96]	Wallis CJD, Juvet T, Lee Y, et al. (2017) Association between use of antithrombotic medication and hematuria-related complications. JAMA 318: 1260-1271. https://doi.org/10.1001/jama.2017.13890
[97]	Petitjean A, Achatz MIW, Borresen-Dale AL, et al. (2007) TP53 mutations in human cancers: functional selection and impact on cancer prognosis and outcomes. Oncogene 26: 2157-2165. https://doi.org/10.1038/sj.onc.1210302
[98]	Surget S, Khoury MP, Bourdon JC (2013) Uncoverring the role of p53 splice variants in human malignancy: a clinical perspective. Onco Targets Ther 7: 57-68. https://doi.org/10.2147/OTT.S53876
[99]	Evans SC, Viswanathan M, Grier JD, et al. (2001) An alternative spliced HDM2 product increases p53 activity by inhibiting HDM2. Oncogene 20: 4041-4049. https://doi.org/10.1038/sj.onc.1204533
[100]	Wade M, Wong ET, Tang M, et al. (2006) Hdmx modulates the outcome of p53 activation in human tumor cells. J Biol Chem 281: 33036-33044. https://doi.org/10.1074/jbc.M605405200
[101]	Hamzehloie T, Mojarrad M, Hasanzadeh-Nazarabadi M, et al. (2012) Common human cancers and targeting the murine double minute 2-p53 Interaction for cancer therapy. Iran J Sci 37: 3-8.
[102]	White KA, Ruiz DG, Szpiech ZA, et al. (2017) Cancer-associated arginine-to- histidine mutations confer a gain in pH sensing to mutant proteins. Sci Signal 10: eaam9931. https://doi.org/10.1126/scisignal.aam9931
[103]	Zacharski LR, O'donnell JR, Henderson WG, et al. (1981) Effect of warfarin on survival in small cell carcinoma of the lung. Veterans administration study No. 75. JAMA 245: 831-835. https://doi.org/10.1001/jama.1981.03310330021017
[104]	Schulman S, Lindmarker P (2000) Incidence of cancer after prophylaxis with warfarin against recurrent venous thromboembolism. Duration of anticoagulation trial. N Engl J Med 342: 1953-1958. https://doi.org/10.1056/NEJM200006293422604
[105]	Tagalakis V, Tamim H, Blostein M, et al. (2007) Use of warfarin and risk of urogenital cancer: a population-based, nested case-control study. Lancet Oncol 8: 395-402. https://doi.org/10.1016/S1470-2045(07)70046-3
[106]	. Detection, evaluation and treatment of high blood cholesterol in adults (adult treatment panel III) final report (https://www.nhibi.nih.gov/files/docs/resources/heart/atp-3-cholesterol-full-report.pdf) (PDF). National Institutes of Health, National Heart, Lung, and Blood Institute. 1 September 2002. Retrieved 27 October 2008
[107]	Raso AG, Ene G, Miranda C, et al. (2014) Association between venous thrombosis and dyslipidemia. Med Clin (Barc) 143: 1-5.
[108]	Mi Y, Yan S, Lu Y, et al. (2016) Venous thromboembolism has the same risk factors as atherosclerosis. Medicine 96: 32(e4495). https://doi.org/10.1097/MD.0000000000004495
[109]	Stout JT, Caskey CT (1985) HPRT: gene structure, expression, and mutation. Ann Rev Genet 19: 127-148. https://doi.org/10.1146/annurev.ge.19.120185.001015
[110]	Patel PI, Framson PE, Caskey CT, et al. (1986) Fine structure of the human hypoxanthine phosphoribosyl transferase gene. Mol Cell Biol 6: 396-403. https://doi.org/10.1128/mcb.6.2.393-403.1986
[111]	Lesch M, Nyhan WL (1964) A familial disorder of uric acid metabolism and central nervous system function. Am J Med 36: 561-570. https://doi.org/10.1016/0002-9343(64)90104-4
[112]	Seegmiller JE, Rosenbloom FM, Kelley WN (1967) Enzyme defect associated with a sex-linked human neurological disorder and excessive purine synthesis. Science 155: 1682-1684. https://doi.org/10.1126/science.155.3770.1682
[113]	Morton NE, Lalouel JM (1977) Genetic epidemiology of Lesch-Nyhan disease. Am J Hum Genet 29: 304-311.
[114]	Fu R, Ceballos-Picot I, Torres RJ, et al. (2014) For the Lesch-Nyhan disease international study group. Genotype-phenotype correlation in neurogenetics: Lesch-Nyhan disease as a model disorder. Brain 137: 1282-1303. https://doi.org/10.1093/brain/awt202
[115]	Micheli V, Bertelli M, Jacomelli G, et al. (2018) Lesch-Nyhan disease: a rare disorder with many unresolved aspects. Medical University 1: 13-24. https://doi.org/10.2478/medu-2018-0002
[116]	Gottle M, Prudente CN, Fu R, et al. (2014) Loss of dopamine phenotype among midbrain neurone in Lesch-Nyhan disease. Ann Neurol 76: 95-107. https://doi.org/10.1002/ana.24191
[117]	Ceballos-Picot I, Mockel L, Potier MC, et al. (2009) Hypoxanthine-guanine phosphoribosyltransferase regulates early development programming of dopamine neurons: implication for Lesch-Nyhan disease pathogenesis. Hum Mol Genet 18: 2317-2327. https://doi.org/10.1093/hmg/ddp164
[118]	Connolly GP, Duley JA, Stacey NC (2001) Abnormal development of hypoxanthine-guanine phosphoribosyltransferase-deficient CNS neuroblastoma. Brain Res 918: 20-27. https://doi.org/10.1016/S0006-8993(01)02909-2
[119]	Stacey NC, Ma MHY, Duley JA, et al. (2000) Abnormalities in cellular adhesion of neuroblastoma and fibroblast models of Lesch-Nyhan syndrome. Neuroscience 98: 397-401. https://doi.org/10.1016/S0306-4522(00)00149-4
[120]	Harris JC, Lee RR, Jinnah HA, et al. (1998) Craniocerebral magnetic resonance imaging measurement and findings in Lesch-Nyhan syndrome. Arch Neurol 55: 547-553. https://doi.org/10.1001/archneur.55.4.547
[121]	Schretlen DJ, Varvaris M, Ho TE, et al. (2013) Regional brain volume abnormalities in Lesch-Nyhan disease and its variants: a cross-sectional study. Lancet Neurol 12: 1151-1158. https://doi.org/10.1016/S1474-4422(13)70238-2
[122]	Schretlen DJ, Varvaris M, Tracy D, et al. (2015) Brain white matter volume abnormalities in Lesch-Nyhan disease and its variants. Neurology 84: 190-196. https://doi.org/10.1212/WNL.0000000000001128
[123]	Kang TH, Friedmann T (2015) Alzheimer's disease shares gene expression aberrations with purinergic dysregulation of HPRT deficiency (Lesch-Nyhan disease). Neurosci Lett 590: 35-39. https://doi.org/10.1016/j.neulet.2015.01.042
[124]	Tuner PR, O'Connor K, Tate WP, et al. (2003) Roles of amyloid precursor protein and its fragments in regulating neural activity, plasticity and memory. Prog Neurobiol 70: 1-32. https://doi.org/10.1016/S0301-0082(03)00089-3
[125]	Zheng H, Koo EH (2006) The amyloid precursor protein: beyond amyloid. Mol Neurodegener 1: 5. https://doi.org/10.1186/1750-1326-1-5
[126]	Nguyen KV (2014) Epigenetic regulation in amyloid precursor protein and the Lesch-Nyhan syndrome. Biochem Biophys Res Commun 446: 1091-1095. https://doi.org/10.1016/j.bbrc.2014.03.062
[127]	Nguyen KV (2015) Epigenetic regulation in amyloid precursor protein with genomic rearrangements and the Lesch-Nyhan syndrome. Nucleosides Nucleotides Nucleic Acids 34: 674-690. https://doi.org/10.1080/15257770.2015.1071844
[128]	Nguyen KV, Nyhan WL (2017) Quantification of various APP-mRNA isoforms and epistasis in Lesch-Nyhan disease. Neurosci Lett 643: 52-58. https://doi.org/10.1016/j.neulet.2017.02.016
[129]	Imamura A, Yamanouchi H, Kurokawa T (1992) Elevated fibrinopeptide A (FPA) in patients with Lech-Nyhan syndrome. Brain Dev 14: 424-425. https://doi.org/10.1016/S0387-7604(12)80355-X
[130]	Riaz IB, Husnain M, Ateeli H (2014) Recurrent thrombosis in a patient with Lesch-Nyhan syndrome. Am J Med 127: e11-e12. https://doi.org/10.1016/j.amjmed.2014.01.033
[131]	Tewari N, Mathur VP, Sardana D, et al. (2017) Lesch-Nyhan syndrome: the saga of metabolic abnormality and self-injurious behavior. Intractable Rare Dis Res 6: 65-68. https://doi.org/10.5582/irdr.2016.01076
[132]	Canobbio I, Visconte C, Momi S, et al. (2017) Platelet amyloid precursor protein is a modulator of venous thromboembolism in mice. Blood 130: 527-536. https://doi.org/10.1182/blood-2017-01-764910
[133]	Townsend MH, Anderson MD, Weagel EG, et al. (2017) Non-small-cell lung cancer cell lines A549 and NCI-H460 express hypoxanthine guanine phosphoribosyltransferase on the plasma membrane. Onco Targets Ther 10: 1921-1932. https://doi.org/10.2147/OTT.S128416
[134]	Weagel EG, Townsend MH, Anderson MD, et al. (2017) Abstract 2149: Unusual expression of HPRT on the surface of the colorectal cancer cell lines HT29 and SW620. Cancer Res 77: 2149. https://doi.org/10.1158/1538-7445.AM2017-2149
[135]	Townsend MH, Felsted AM, Ence ZE, et al. (2017) Elevated expression of hypoxanthine guanine phosphoribosyltransferase within malignant tissue. Cancer Clin Oncol 6: 19. https://doi.org/10.5539/cco.v6n2p19
[136]	Townsend MH, Felsted AM, Burrup W, et al. (2018) Examination of hypoxanthine guanine phosphoribosyltransferase as a biomarker for colorectal cancer patients. Mol Cell Oncol 5: e1481810. https://doi.org/10.1080/23723556.2018.1481810
[137]	Townsend MH, Robison RA, O'Neill KL (2018) A review of HPRT and its emerging role in cancer. Med Oncol 35: 89. https://doi.org/10.1007/s12032-018-1144-1
[138]	Townsend MH, Shrestha G, Robison RA, et al. (2018) The expansion of targetable biomarkers for CAR T cell therapy. J Exp Clin Cancer Res 37: 163. https://doi.org/10.1186/s13046-018-0817-0
[139]	Townsend MH, Ence ZE, Felsted AM, et al. (2019) Potential new biomarkers for endometrial cancer. Cancer Cell Int 19: 19. https://doi.org/10.1186/s12935-019-0731-3
[140]	Pandey P, Sliker B, Peters HL, et al. (2016) Amyloid precursor protein and amyloid precursor-like protein 2 in cancer. Oncotarget 7: 19430-19444. https://doi.org/10.18632/oncotarget.7103
[141]	Nguyen KV (2019) β-Amyloid precursor protein (APP) and the human diseases. AIMS Neurosci 6: 273-281. https://doi.org/10.3934/Neuroscience.2019.4.273
[142]	Zheng H, Koo EH (2006) The amyloid precursor protein: beyond amyloid. Mol Neurodegener 1: 5. https://doi.org/10.1186/1750-1326-1-5
[143]	Nguyen KV (2015) The human β-amyloid precursor protein: biomolecular and epigenetic aspects. BioMol Concepts 6: 11-32. https://doi.org/10.1515/bmc-2014-0041
[144]	Xu F, Previti ML, Nieman MT, et al. (2009) AβPP/APLP2 family of Kunitz serine proteinase inhibitors regulate cerebral thrombosis. J Neurosci 29: 5666-5670. https://doi.org/10.1523/JNEUROSCI.0095-09.2009
[145]	Xu F, Davis J, Hoos M, et al. (2017) Mutation of the Kunitz-type proteinase inhibitor domain in the amyloid β-protein precursor abolishes its anti-thrombotic properties in vivo. Thromb Res 155: 58-64. https://doi.org/10.1016/j.thromres.2017.05.003
[146]	Di Luca M, Colciaghi F, Pastorino L, et al. (2000) Platelets as a peripheral district where to study pathogenetic mechanisms of Alzheimer disease: the case of amyloid precursor protein. Eur J Pharmacol 405: 277-283. https://doi.org/10.1016/S0014-2999(00)00559-8
[147]	Saonere JA (2011) Antisense therapy, a magic bullet for the treatment of various diseases: present and future prospects. J Med Genet Genom 3: 77-83.
[148]	Nguyen KV, Naviaux RK, Nyhan WL (2020) Lesch-Nyhan disease: I. Construction of expression vectors for hypoxanthine-guanine phosphoribosyltransferase (HGprt) enzyme and amyloid precursor protein (APP). Nucleosides Nucleotides Nucleic Acids 39: 905-922. https://doi.org/10.1080/15257770.2020.1714653
[149]	van Boven HH, Lane DA (1997) Antithrombin and its inherited deficiency states. Semin Hematol 34: 188-204.
[150]	Johnson EJ, Prentice CR, Parapia LA (1990) Premature arterial disease associated with familial antithrombin III deficiency. Thromb Haemost 63: 13-15. https://doi.org/10.1055/s-0038-1645677
[151]	Menache D, Grossman BJ, Jackson CM (1992) Antithrombin III: physiology, deficiency, and replacement therapy. Transfusion 32: 580-588. https://doi.org/10.1046/j.1537-2995.1992.32692367206.x
[152]	Cordell HJ (2002) Epistasis: what it means, what it doesn't mean, and statistical method to detect it in humans. Hum Mol Genet 11: 2463-2468. https://doi.org/10.1093/hmg/11.20.2463
[153]	Moore JH (2003) The ubiquitous nature of epistasis in determining susceptibility to common human diseases. Hum Hered 56: 73-82. https://doi.org/10.1159/000073735
[154]	Riordan JD, Nadeau JH (2017) From peas to disease: modifier genes, network resilience, and the genetics of health. Am J Hum Genet 101: 177-191. https://doi.org/10.1016/j.ajhg.2017.06.004
[155]	Coutard B, Valle C, de Lamballerie X, et al. (2020) The spike glycoprotein of the new coronavirus 2019-nCoV contains a furin-like cleavage site in CoV of the same clade. Antiviral Res 176: 104742. https://doi.org/10.1016/j.antiviral.2020.104742
[156]	Nguyen KV (2021) Problems associated with antiviral drugs and vaccines development for COVID-19: approach to intervention using expression vectors via GPI anchor. Nucleosides Nucleotide Nucleic Acids 40: 665-706. https://doi.org/10.1080/15257770.2021.1914851

This article has been cited by:

1.	Kazem Nouri, Milad Fahimi, Leila Torkzadeh, Dumitru Baleanu, Numerical method for pricing discretely monitored double barrier option by orthogonal projection method, 2021, 6, 2473-6988, 5750, 10.3934/math.2021339
2.	Lei Fu, Huanhe Dong, Chaudry Masood Khalique, Hongwei Yang, CONSERVATION LAWS, EXACT SOLUTIONS OF TIME-SPACE FRACTIONAL GENERALIZED GINZBURG-LANDAU EQUATION FOR SHALLOW WAKE FLOWS, 2021, 11, 2156-907X, 874, 10.11948/20200053
3.	Abdulaziz Alsenafi, Fares Alazemi, Javad Alavi, An efficient algorithm to solve the geometric Asian power option price PDE under the stochastic volatility model, 2024, 1017-1398, 10.1007/s11075-024-01794-z

Reader Comments

Your name:*

Email:*
© 2022 the Author(s), licensee AIMS Press. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0)

通讯作者: 陈斌, bchen63@163.com

1.
沈阳化工大学材料科学与工程学院沈阳 110142

AIMS Neuroscience

3.1 4.2

Metrics

Article views(4279) PDF downloads(199) Cited by(2)

Preview PDF

Download XML

Export Citation

Article outline

Show full outline

AIMS Neuroscience

Encephalomalacia/gliosis, deep venous thrombosis, and cancer in Arg393His antithrombin Hanoi and the potential impact of the β-amyloid precursor protein (APP) on thrombosis and cancer

Related Papers:

Abstract

1. Introduction

2. Deriving PDE models of B-S and HCIR

3. Construction of multi-dimensional Legendre wavelet

3.1. Operational matrix of integration

4. Methodology for B-S and HCIR PDEs

5. Numerical results

6. Conclusion

Conflict of interest

References

This article has been cited by:

Reader Comments

通讯作者: 陈斌, bchen63@163.com

Metrics

Figures and Tables

Other Articles By Authors

Catalog

Abstract

1. Introduction

2. Deriving PDE models of B-S and HCIR

3. Construction of multi-dimensional Legendre wavelet

3.1. Operational matrix of integration

4. Methodology for B-S and HCIR PDEs

5. Numerical results

6. Conclusion

Conflict of interest

References

AIMS Neuroscience

Encephalomalacia/gliosis, deep venous thrombosis, and cancer in Arg393His antithrombin Hanoi and the potential impact of the β-amyloid precursor protein (APP) on thrombosis and cancer

Related Papers:

Abstract

1. Introduction

2. Deriving PDE models of B-S and HCIR

3. Construction of multi-dimensional Legendre wavelet

3.1. Operational matrix of integration

4. Methodology for B-S and HCIR PDEs

5. Numerical results

6. Conclusion

Conflict of interest

References

This article has been cited by:

Reader Comments

通讯作者: 陈斌, bchen63@163.com

Metrics

Figures and Tables

Other Articles By Authors

Related pages

Tools

Export File

Citation

Format

Content

Catalog

Abstract

1. Introduction

2. Deriving PDE models of B-S and HCIR

3. Construction of multi-dimensional Legendre wavelet

3.1. Operational matrix of integration

4. Methodology for B-S and HCIR PDEs

5. Numerical results

6. Conclusion

Conflict of interest

References
